| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass- Direct wire only 100V-277V |
| CA Regulations | Exempt - >2600 Lumens |
| Lamp Filament | LED |
| Material | Aluminum / Plastic |
| Fixture Type | Corncob |
| Product Notes | DLC 5.1 replacement S23147; Non-DLC replacement S49391 |
| Status | Discontinued |
| Most Current Generation | S49391 |
| Surge Protection | Built-in surge protection - 2.5KV |
| Working Voltage | AC 90-305V |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | No Finish |
| Additional Info | Emits no UV light; Contains no Mercury (Hg); Acceptable for use in food prep areas |
| Amps | 0.220-0.079A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Plastic (PS) |
| Lensed | True |
| Minimum Compartment Size | Length: 8.5 in. Width: 6 in. Depth: 6 in. |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Shatter Proof Type | Shatter resistant materials |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Fluor Equiv | 40W |
| Incandescent Equivalent | 150W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 300 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -25C (-13F) to +45C (+113F) |
| HID Equivalent | 100W |
| Lumens | 3080L |
| Volts | 120V-277V |
| Watts | 22W |
| Lamp Base | Medium |
|---|---|
| Finish | Clear |
| Housing Color | White |
| ANSI Base | E26 |
| Lamp Type | Corncob |
| MOD Lamps | 2.38 |
| MOL | 5.69 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Status | Lawful for sale in California |
|---|---|
| CO Status | Lawful for sale |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| IP Rating | IP64 |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923303913 |
|---|---|
| Case Cube | 1.2333 |
| Case Height | 8.86 |
| Case Length | 19.09 |
| Case Quantity | 24 |
| Case UPC | 10045923303910 |
| Case Weight | 23.15 |
| Case Width | 12.6 |
| EA Cube | 0.0347 |
| EA Height | 7.28 |
| EA Length | 2.87 |
| EA Quantity | 1 |
| EA Weight | 0.84 |
| EA Width | 2.87 |
| Inner Cube | 0.527 |
| Inner Height | 8.07 |
| Inner Length | 9.25 |
| Inner Quantity | 12 |
| Inner UPC | 20045923303917 |
| Inner Weight | 11.24 |
| Inner Width | 12.2 |
| Pack Type | Box |

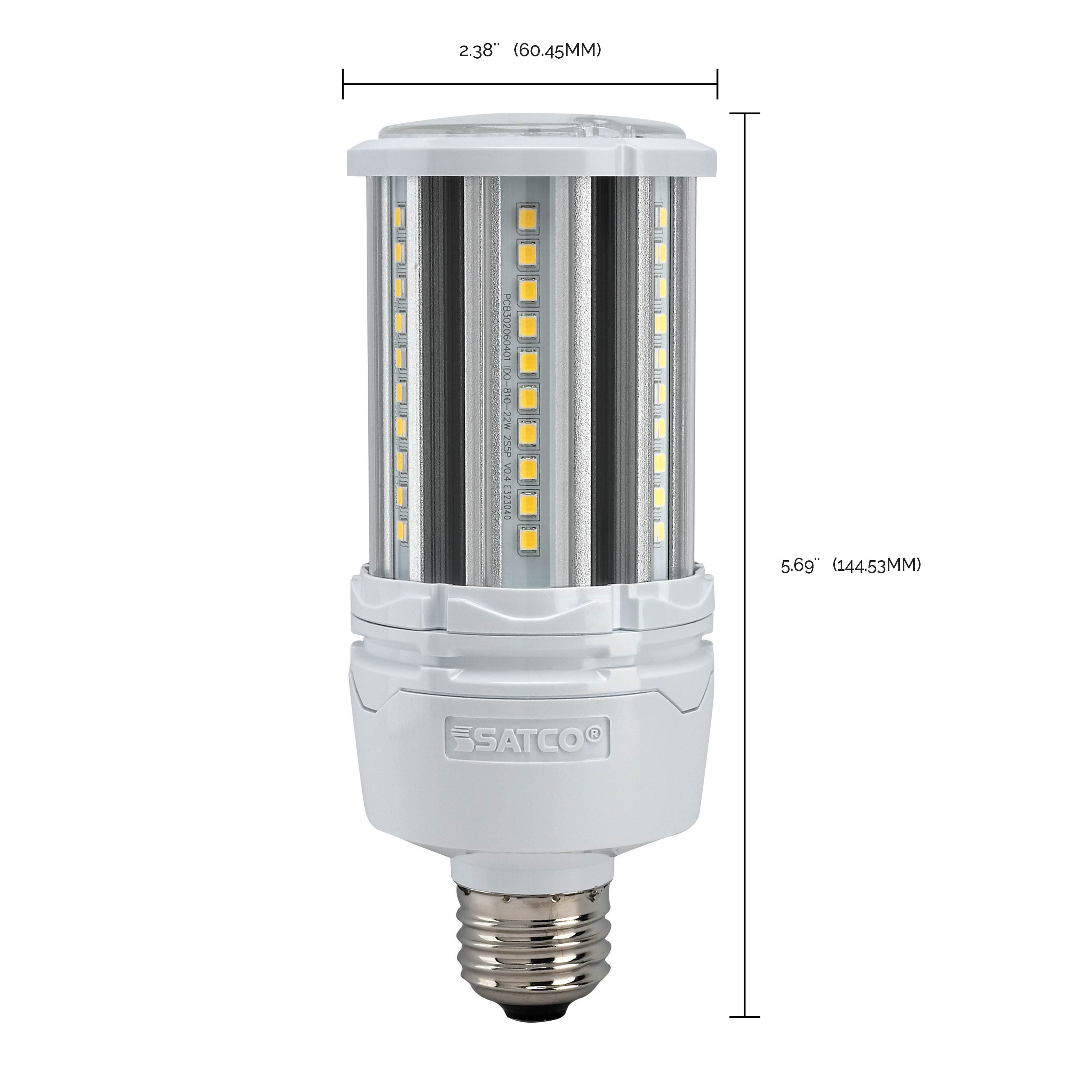

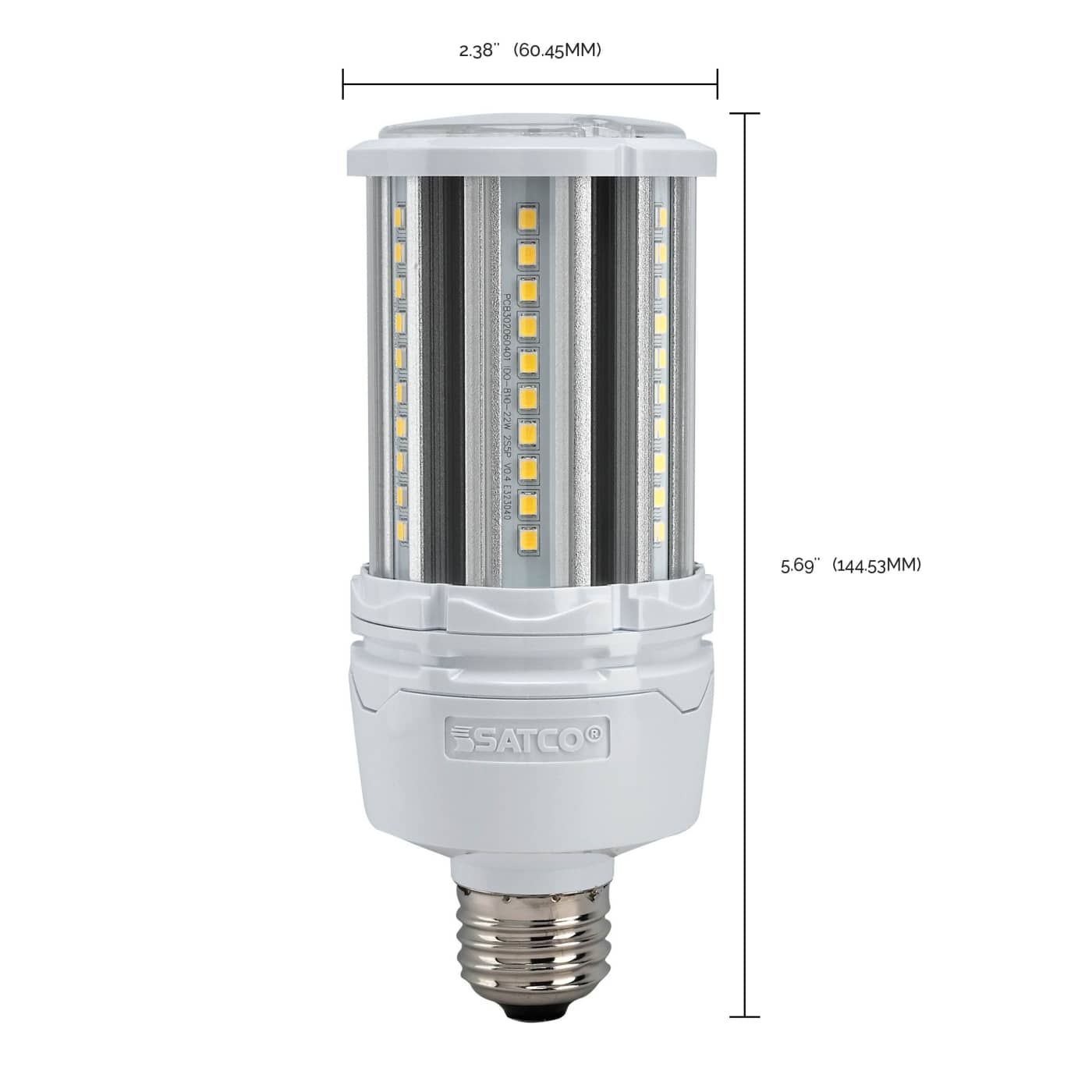

| Web Length | 5.69 |
| Web Width | 2.38 |
