S39464

7WLED/DIR/4/40'/30K/120V

Discontinued - Suggested Replacement: S11822

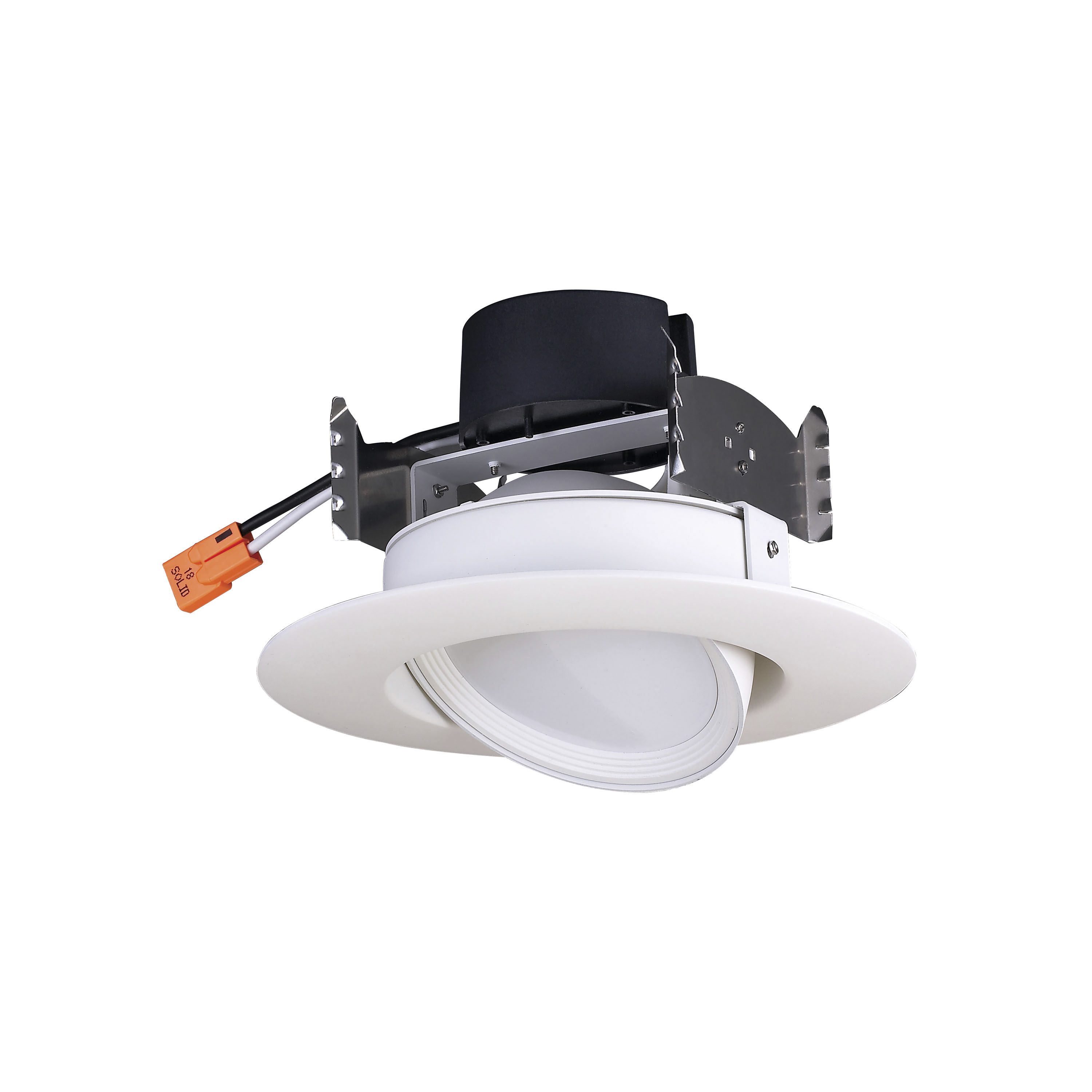

  • 7 watt LED Directional Retrofit Downlight - Gimbaled
  • 4"
  • 3000K
  • 40' Beam spread
  • 120 volts
  • Dimmable
  • White Finish
location_rating^damp^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S39464 SpecificationsS39464 Photometrics.iesS39464 Instructions.pdf
Tools
Lighting Layout Analysis For S39464
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
7 watt LED Directional Retrofit Downlight - Gimbaled; 4"; 3000K; 40' Beam spread; 120 volts; Dimmable; White Finish
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter6.0
MaterialThermo Plastic (PBT)
Fixture TypeDownlight Retrofit
StatusDiscontinued
Most Current GenerationS11822
CCT SelectableFalse
Wattage SelectableFalse
Can Size4 in.
Finish FamilyWhite
Additional InfoTrim material is Thermo Plastic; Trim color is White
Amps0.058A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)40
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens600L
Volts120v
Watts7W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextCalifornia T24 Listed
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923394645
Case Cube1.0114
Case Height7.68
Case Length16.61
Case Quantity8
Case UPC10045923394642
Case Weight8.62
Case Width13.7
EA Cube0.0996
EA Height6.69
EA Length6.53
EA Quantity1
EA Weight0.9
EA Width3.94
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.47
Web Width6.0
