» S39717

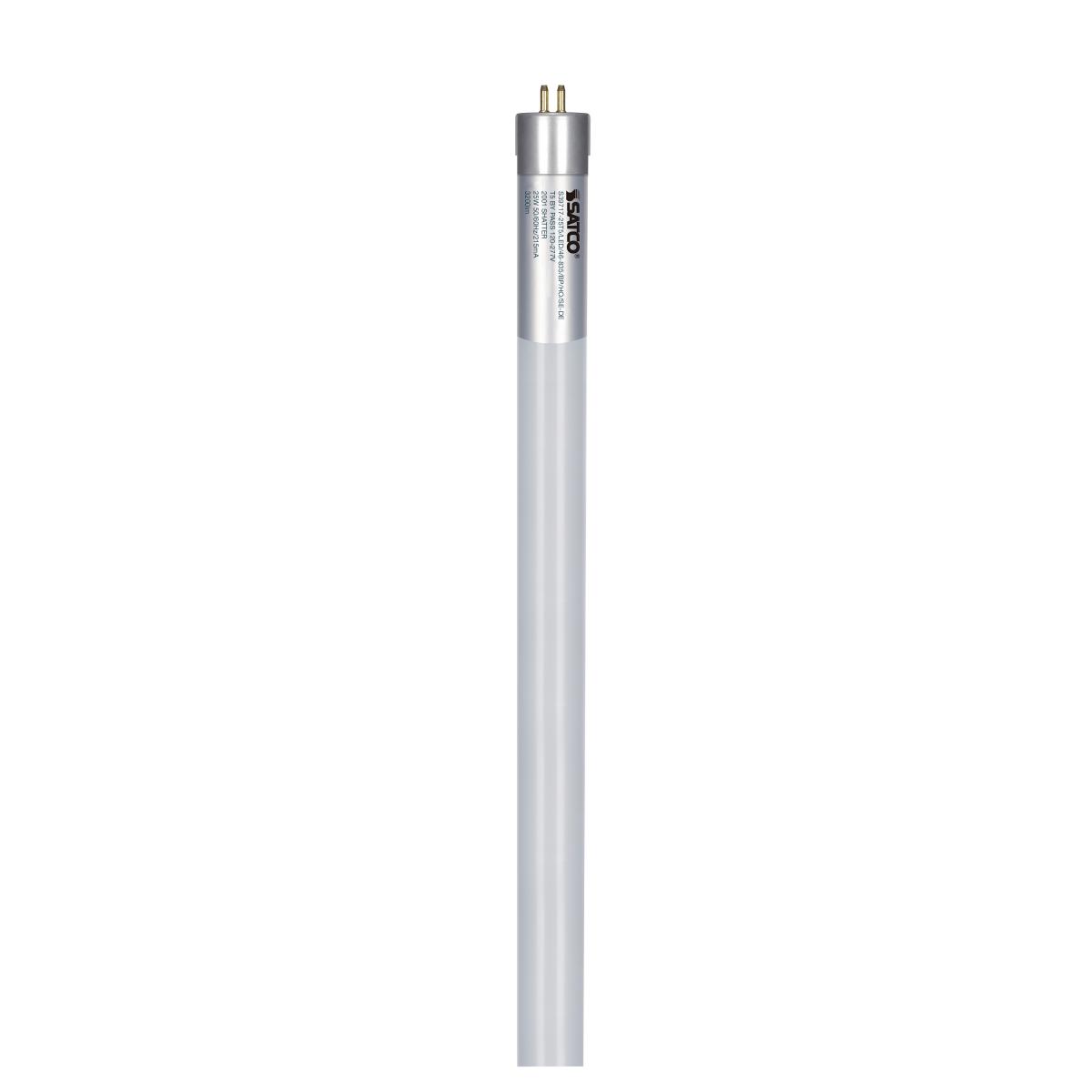

S39717 25T5/LED/46-835/BP/HO/SE-DE

S39717

25T5/LED/46-835/BP/HO/SE-DE

25 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 3200 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring


SATCO|NUVO's 25-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ballast or external driver required for this lamp that delivers 50,000 hours of neutral white light.
  • Single or double ended wiring
  • All glass tube
  • PET-shatterproof coated
  • NSF certified
  • Damp location rating
  • 50/60 hertz electric power frequency
  • 50/60 hertz electric power frequency
Lights

S39717

25T5/LED/46-835/BP/HO/SE-DE

25 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 3200 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

SATCO|NUVO's 25-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ballast or external driver required for this lamp that delivers 50,000 hours of neutral white light.
  • Single or double ended wiring
  • All glass tube
  • PET-shatterproof coated
  • NSF certified
  • Damp location rating
  • 50/60 hertz electric power frequency
  • 50/60 hertz electric power frequency

Specifications

General
StatusActive
Watts25W
Incandescent Equivalent100W
Fluorescent Equivalent54W
Volts120V-277V
Ballast TypeType B
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI83
Lumens3200L
Beam Spread240
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts25W
Incandescent Equivalent100W
Fluorescent Equivalent54W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI83
Lumens3200L
Beam Spread240
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL46
MOD0.83
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.4
Additional Information
Shatter-Proof TypePET Coated
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLB80NZNQTYJ
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923397172
Each Quantity1
Each Length (in.)0.83
Each Width (in.)5.20
Each Height (in.)5.20
Each Weight (lb.)0.40
Each Cube (CuFt.)0.0130
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923397179
Case Quantity25
Case Length (in.)48.10
Case Width (in.)5.20
Case Height (in.)5.20
Case Weight (lb.)12.90
Case Cube (CuFt.)0.7527
