S39724

9WLED/RDL/5-6/27K/120V

Discontinued - Suggested Replacement: S11801R1

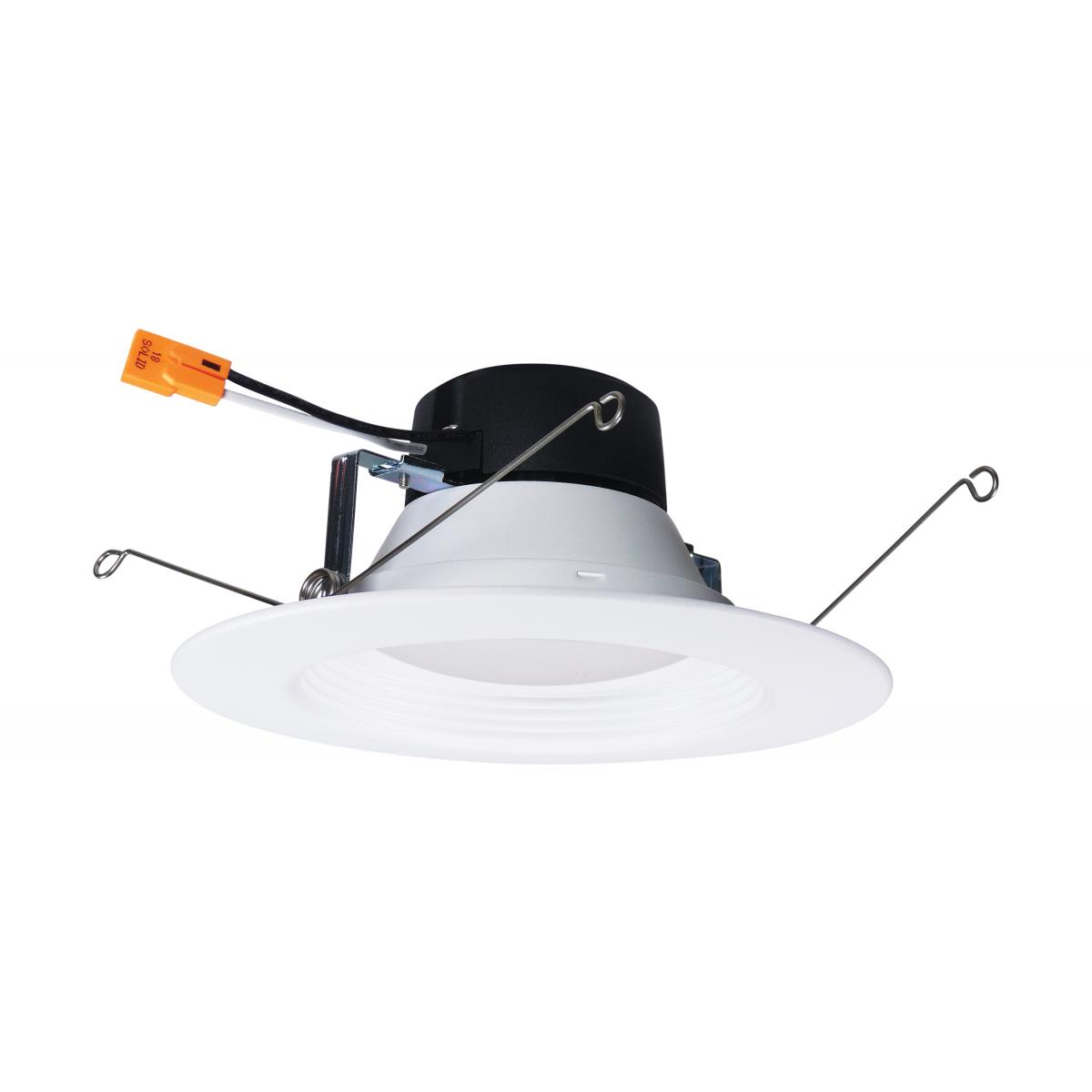

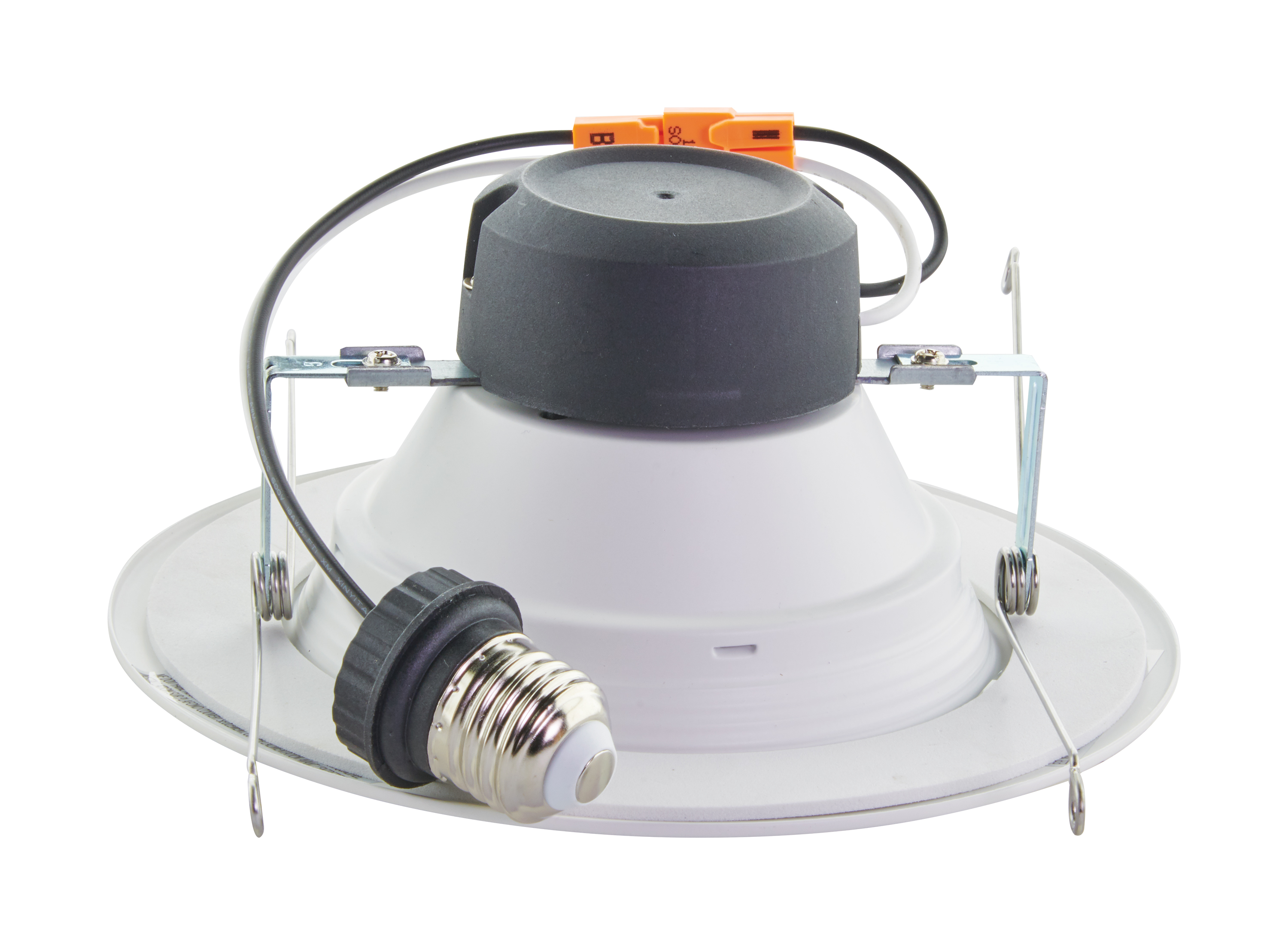

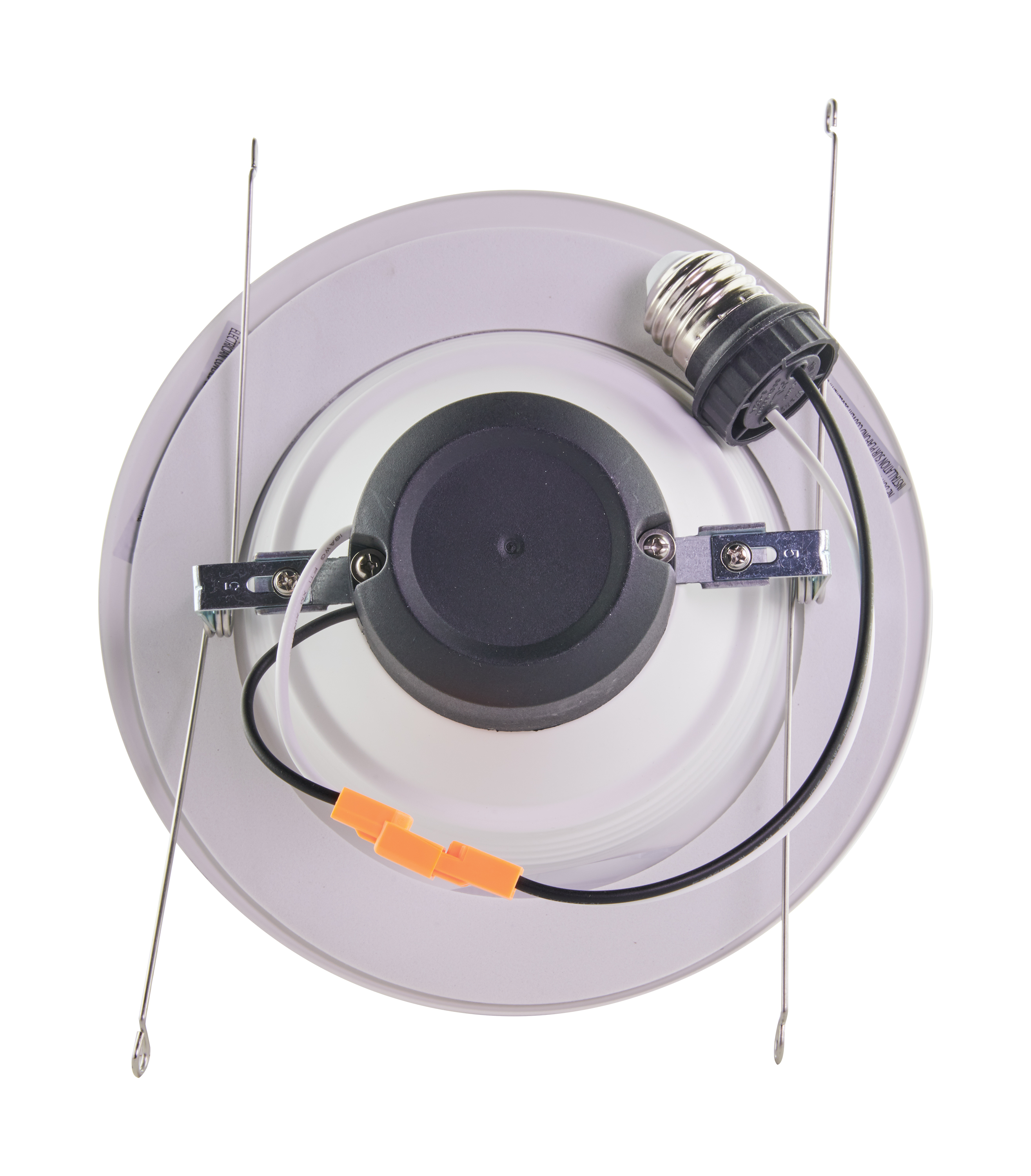

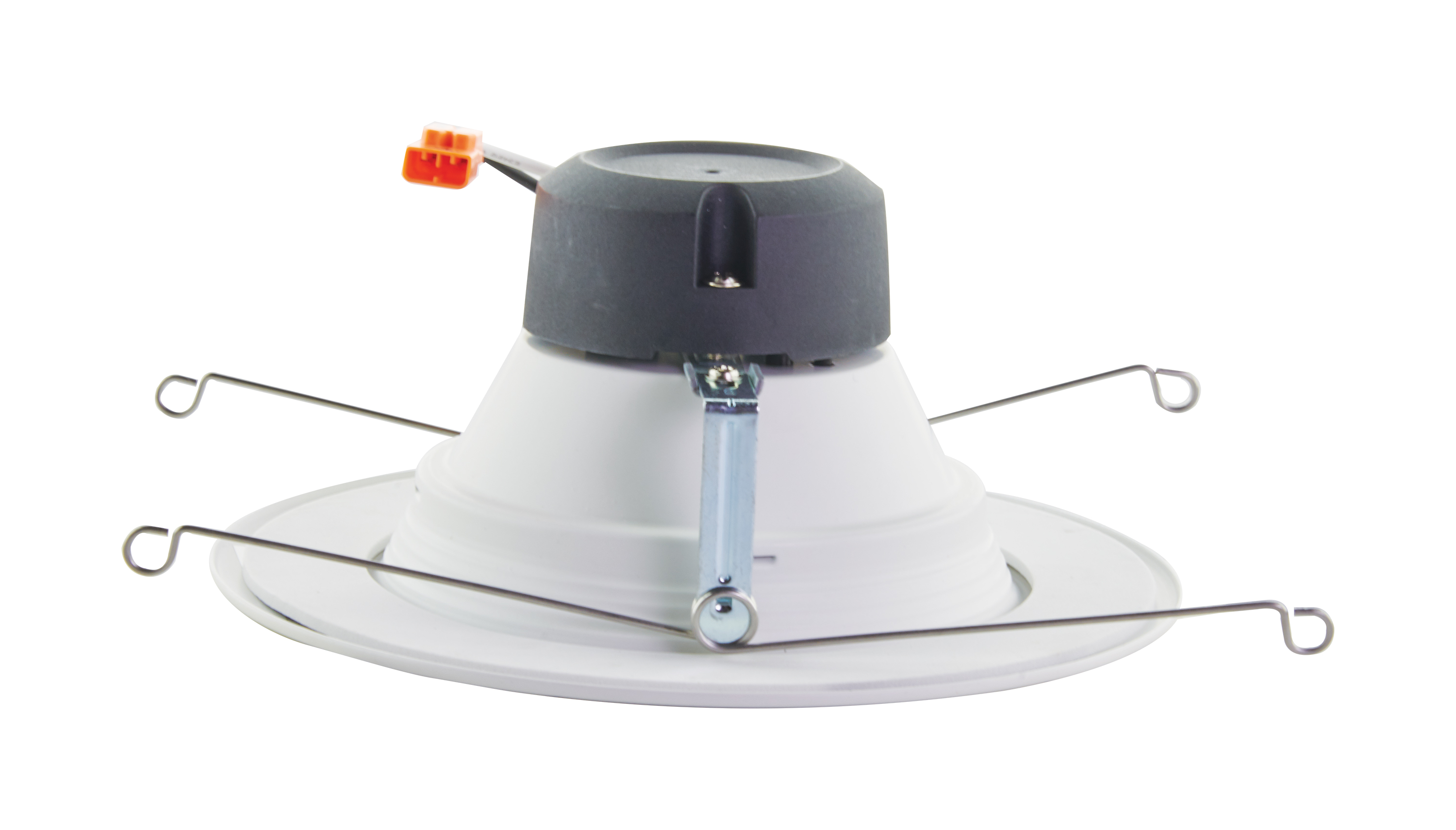

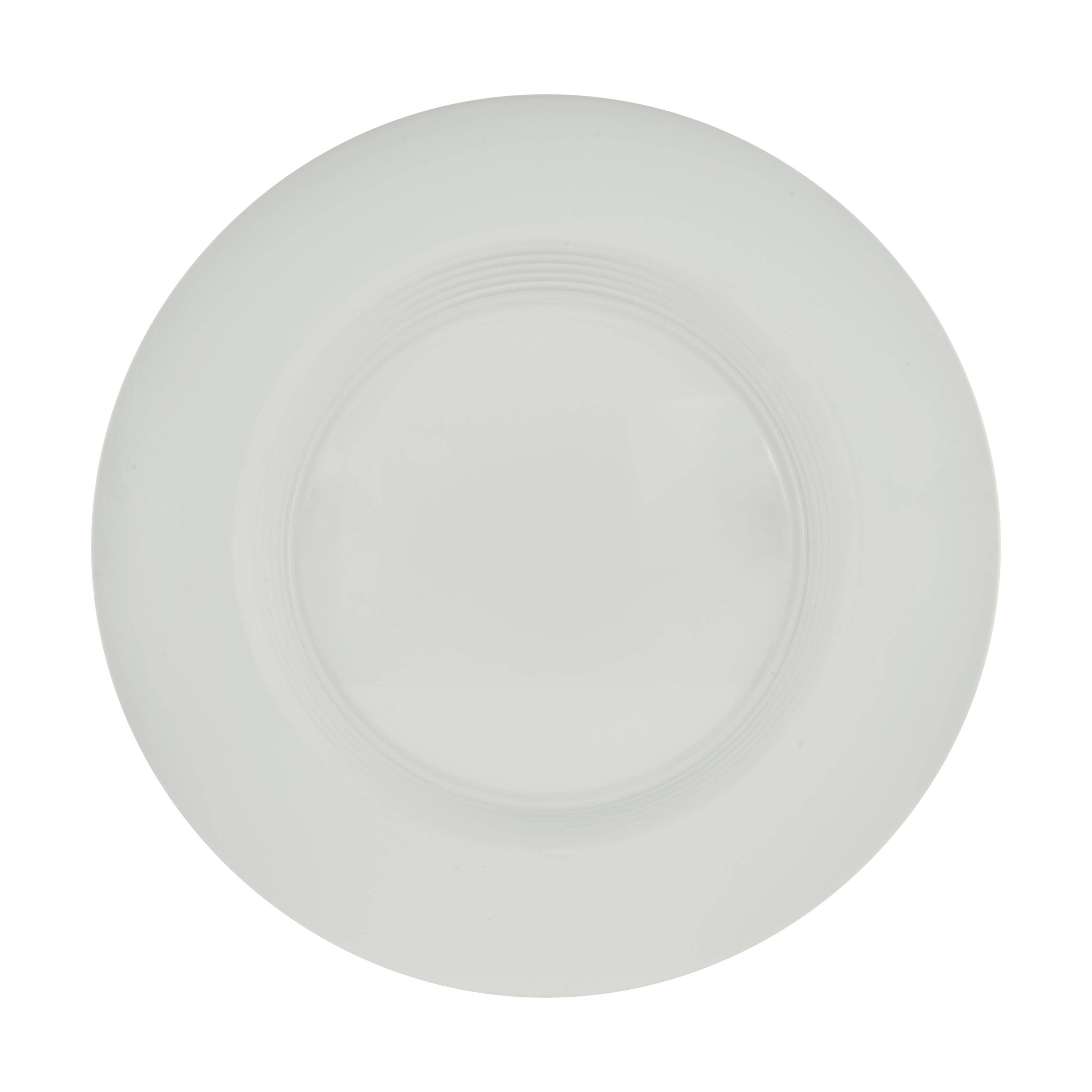

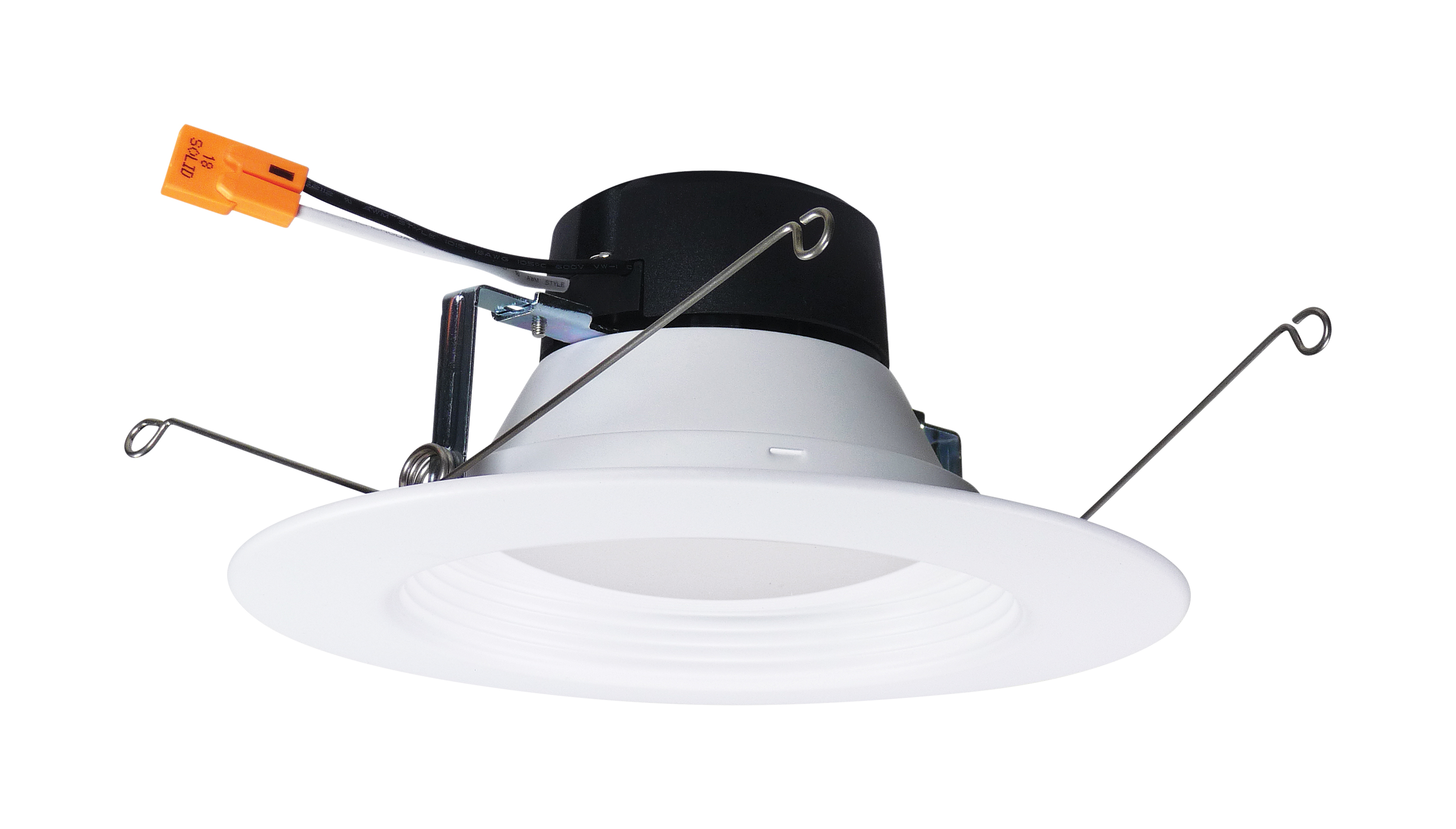

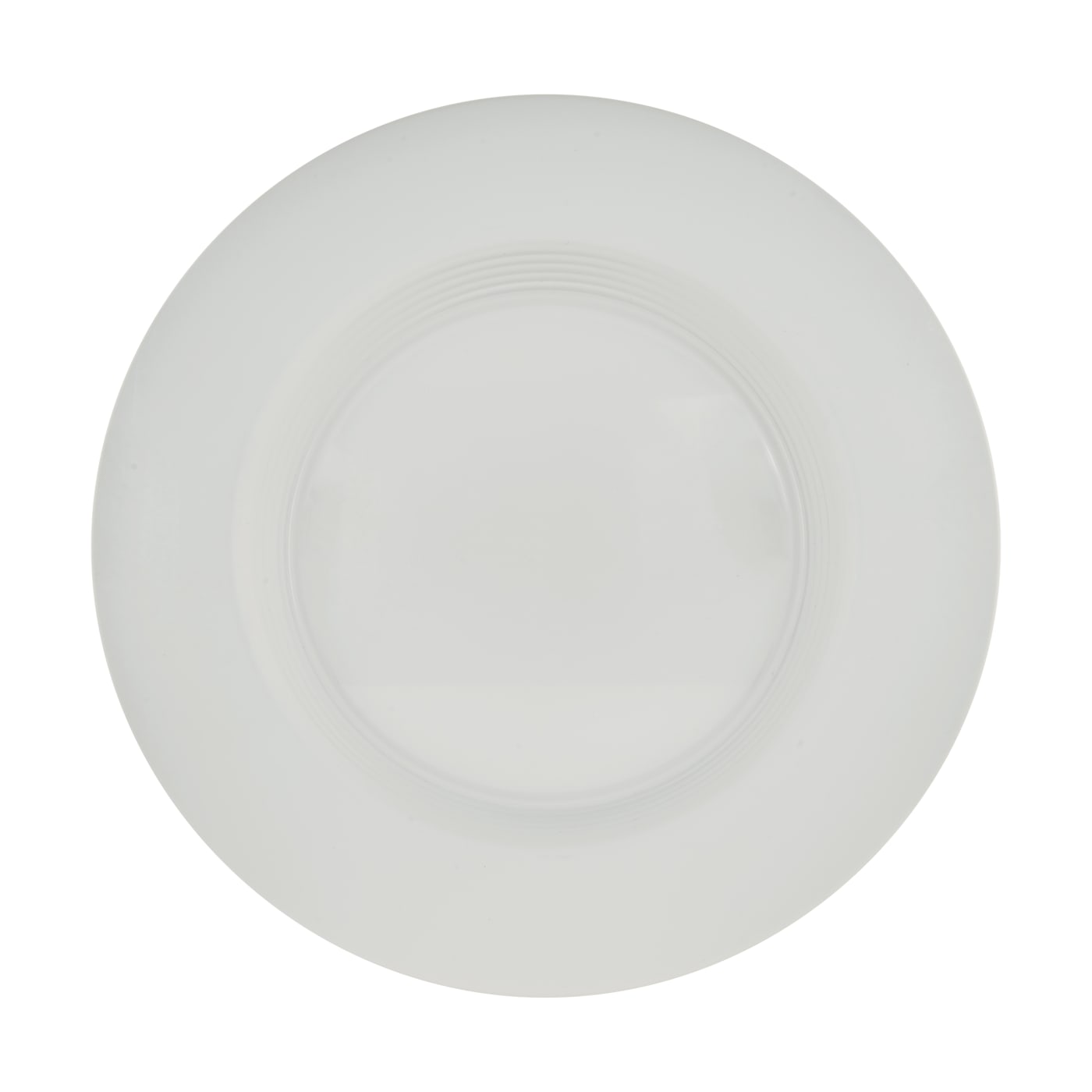

  • 9 watt LED Downlight Retrofit
  • 5"-6"
  • 2700K
  • 120 volts
  • Dimmable
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S39724 SpecificationsS39724 InstructionsNU1350-5 LO RES LED Fixt Guide 10 20
Tools
Lighting Layout Analysis For S39724
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9 watt LED Downlight Retrofit; 5"-6"; 2700K; 120 volts; Dimmable
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter7.41
MaterialPowder Coated steel
Fixture TypeDownlight Retrofit
StatusDiscontinued
Most Current GenerationS11801R1
CCT SelectableFalse
Wattage SelectableFalse
Can Size5-6 in.
Finish FamilyWhite
Additional InfoTrim material is Powder Coated Steel; Trim color is White
Amps0.075A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
Power Factor0.97
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens800L
Volts120v
Watts9W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
IC RatedTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextCalifornia T24 Listed
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923397240
Case Cube1.596
Case Height8.86
Case Length18.74
Case Quantity8
Case UPC10045923397247
Case Weight10.71
Case Width16.61
EA Cube0.1667
EA Height8.07
EA Length9.06
EA Quantity1
EA Weight1.08
EA Width3.94
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.44
Web Width7.41
