9WLED/RDL/5-6/30K/120V - S39725
9WLED/RDL/5-6/30K/120V - S39725
9WLED/RDL/5-6/30K/120V - S39725
9WLED/RDL/5-6/30K/120V - S39725
9WLED/RDL/5-6/30K/120V - S39725
S39725

9WLED/RDL/5-6/30K/120V

Discontinued - Suggested Replacement: S11801R1

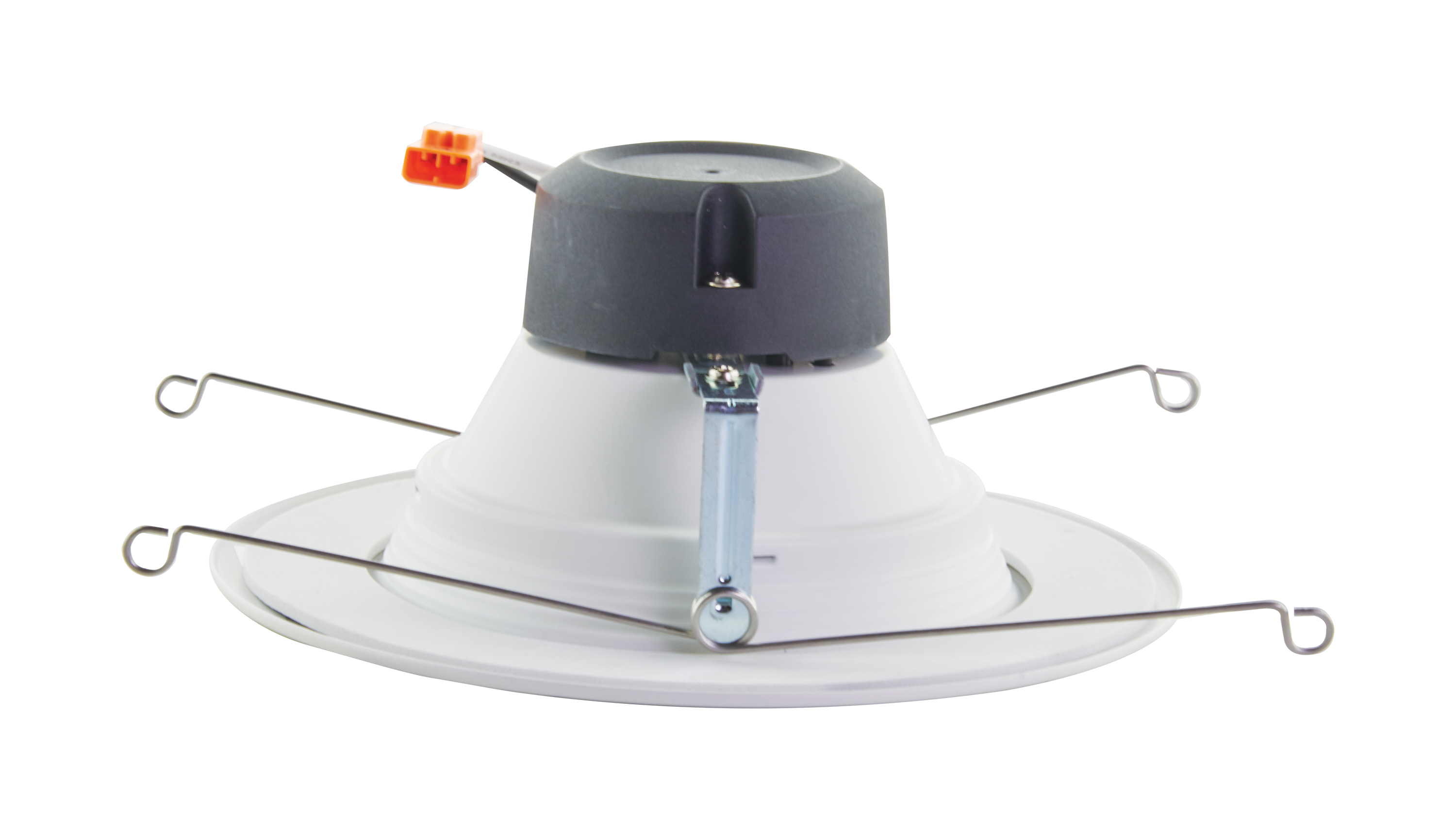

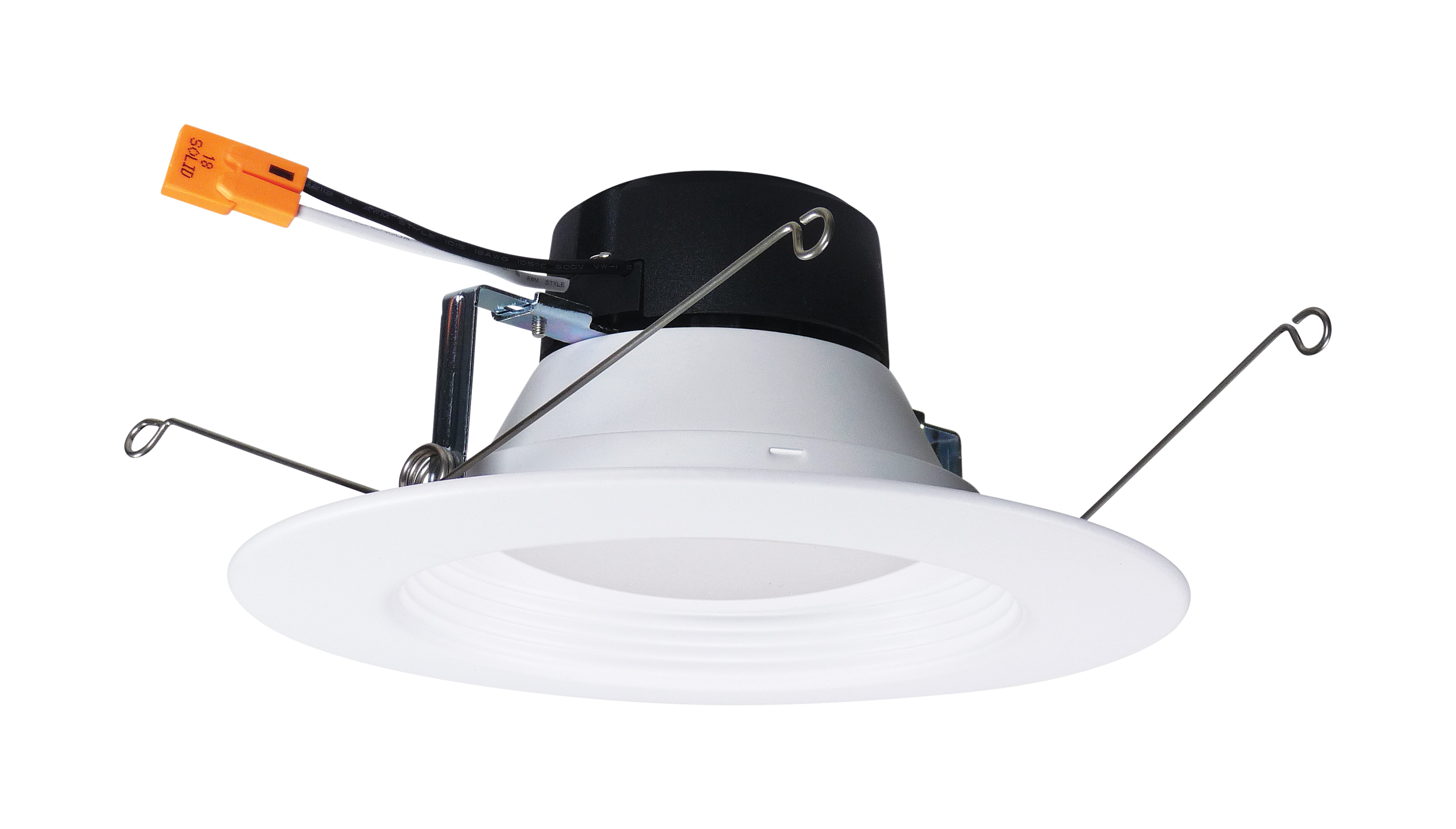

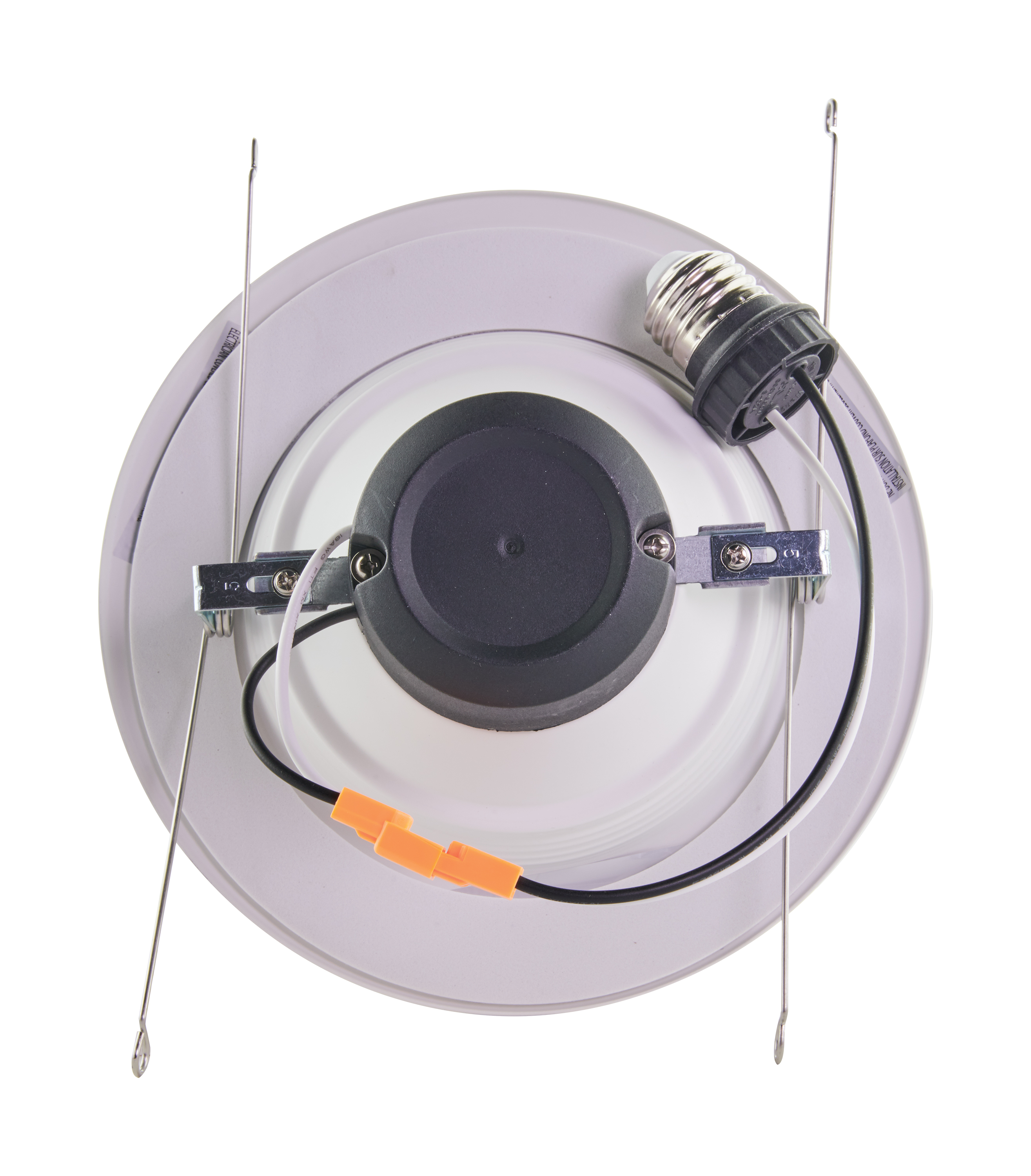

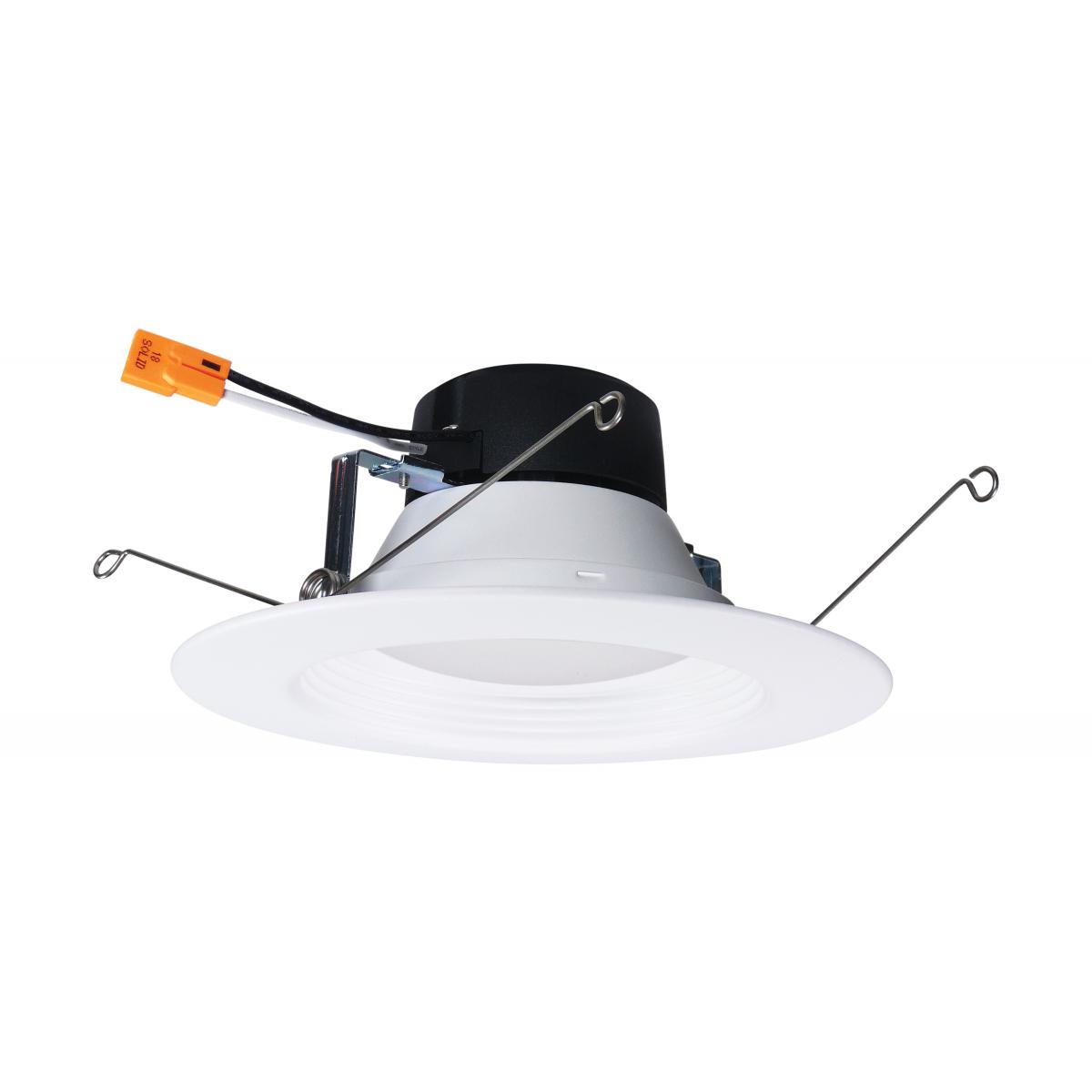

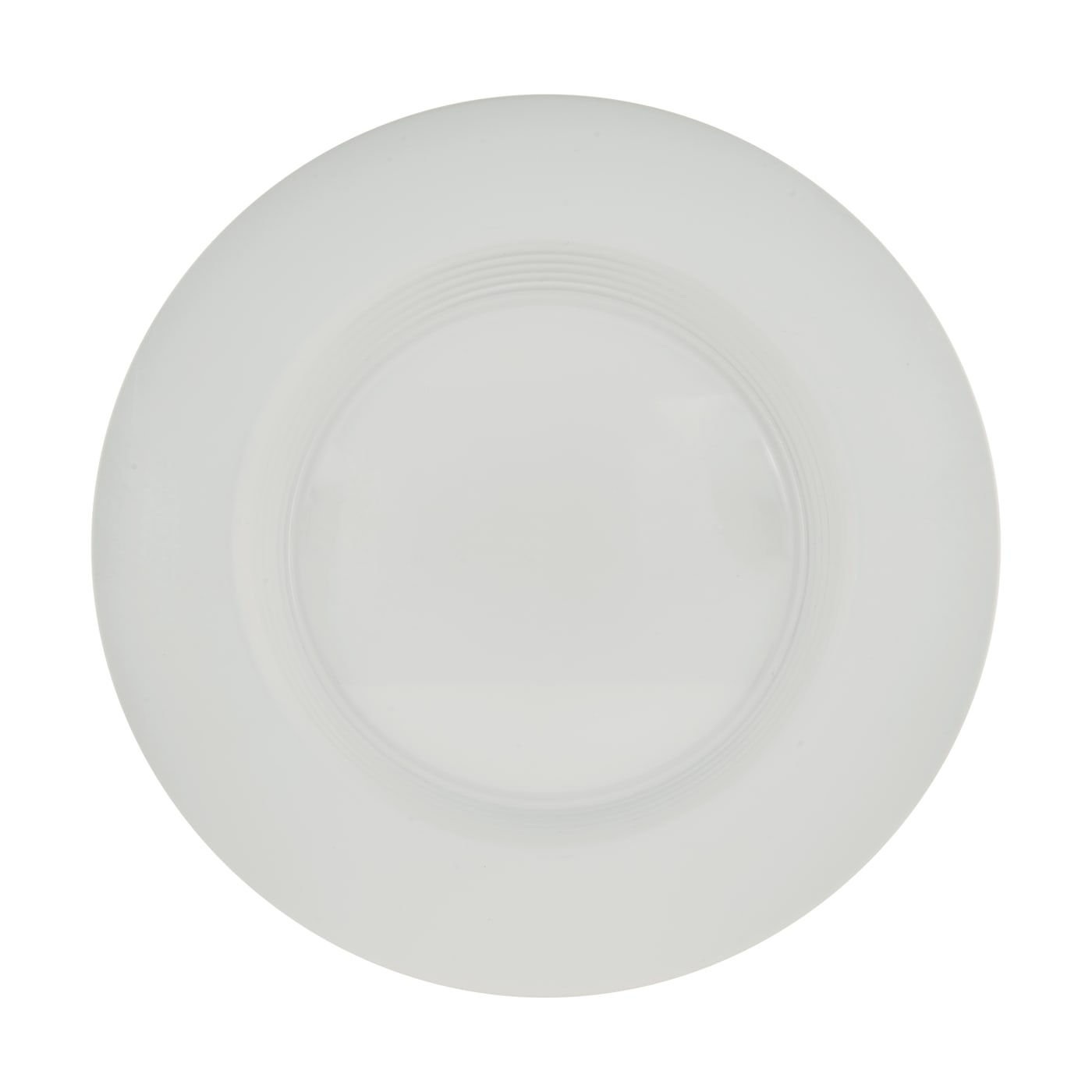

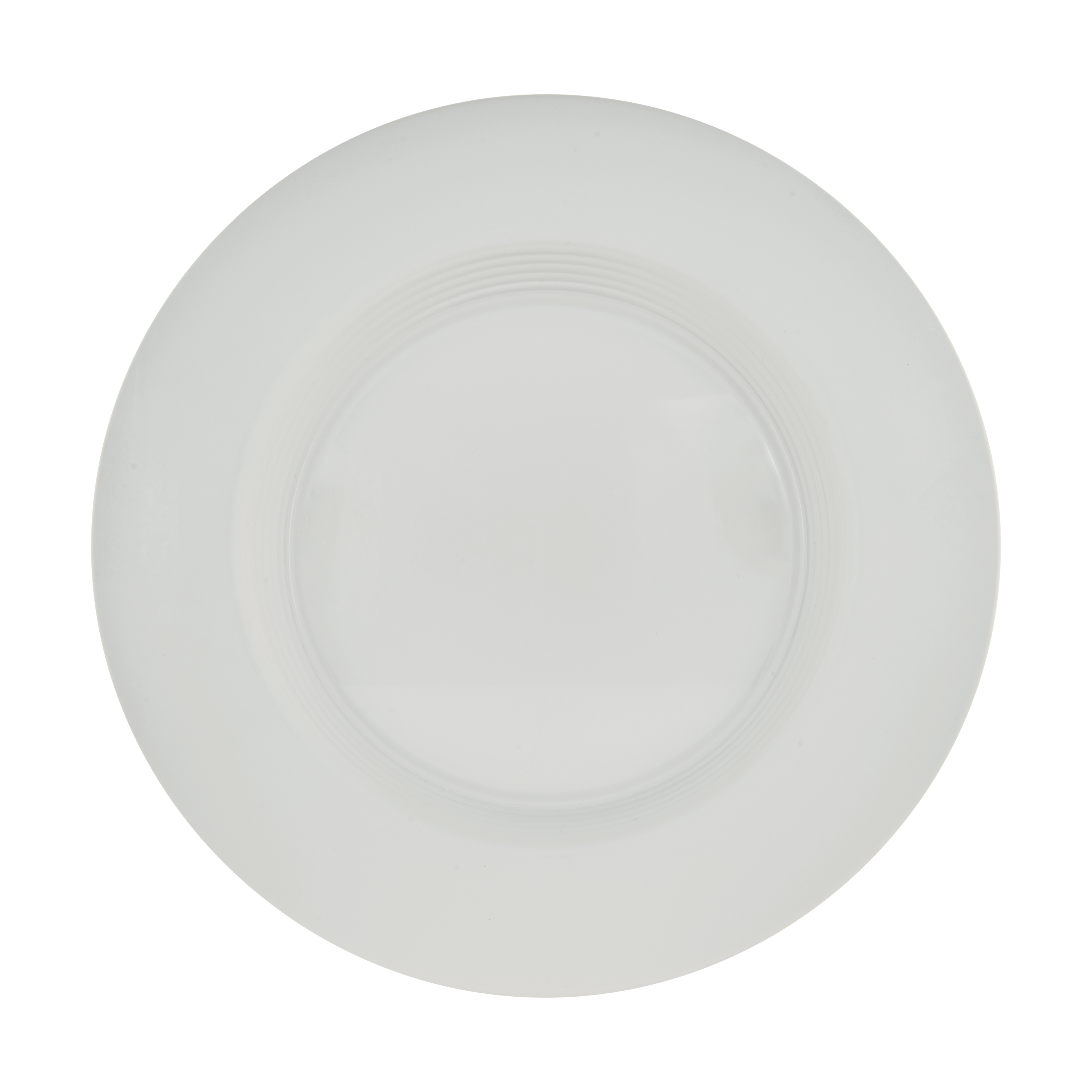

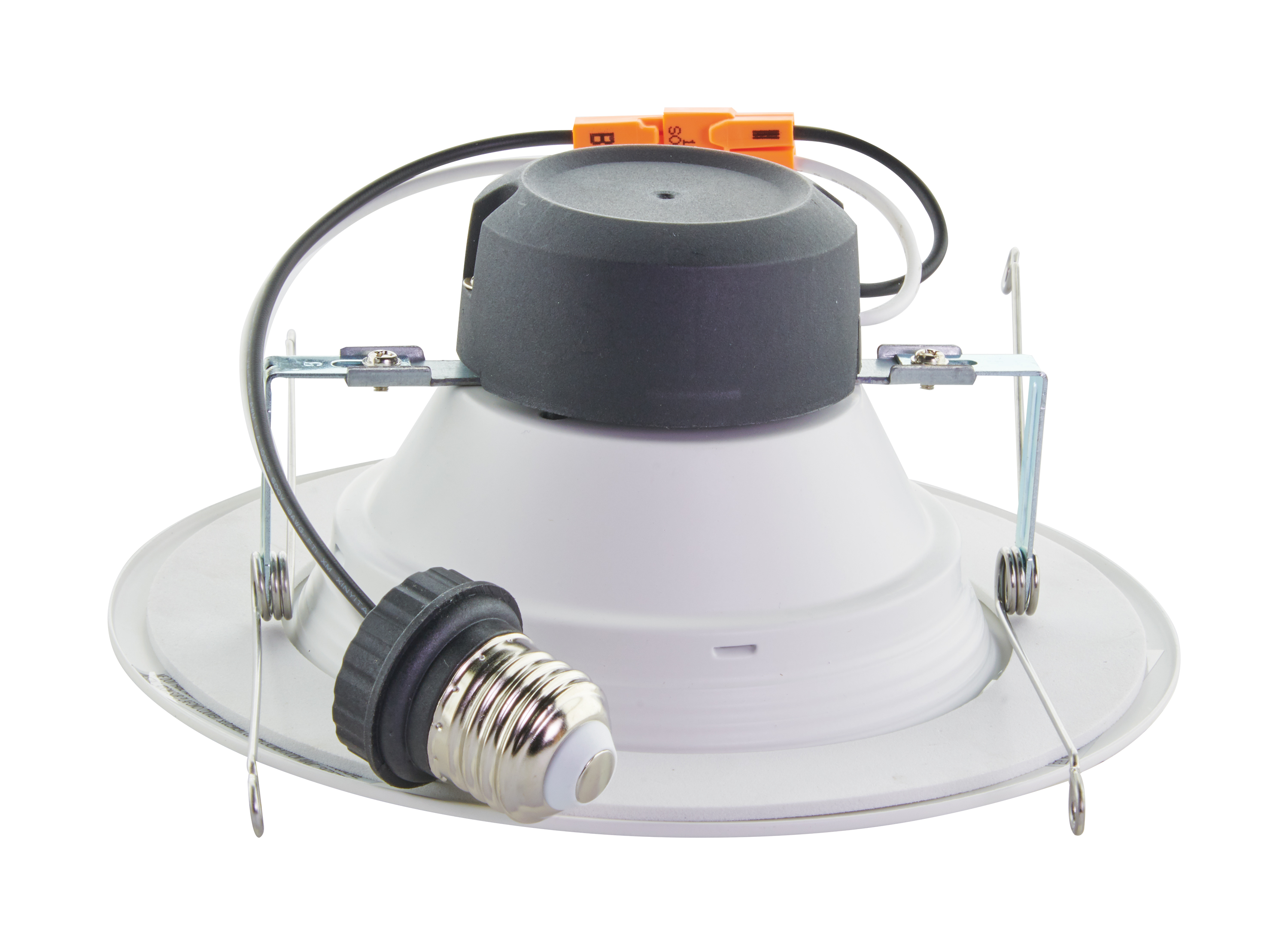

  • 9 watt LED Downlight Retrofit
  • 5"-6"
  • 3000K
  • 120 volts
  • Dimmable
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S39725 SpecificationsS39725 Photometrics.iesS39725 Instructions.pdf
Tools
Lighting Layout Analysis For S39725
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9 watt LED Downlight Retrofit; 5"-6"; 3000K; 120 volts; Dimmable
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter7.41
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
MaterialPowder Coated steel
Fixture TypeDownlight Retrofit
StatusDiscontinued
CCT SelectableNo
Wattage SelectableNo
Can Size5-6 in.
Finish FamilyWhite
Additional InfoTrim material is Powder Coated Steel; Trim color is White
Amps0.075A
Has CameraNo
IOT EnabledNo
Lens FinishWhite
Lens MaterialPolycarbonate (PC)
Power Factor0.97
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens800L
Volts120v
Watts9W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Yes
T24 CompliantYes
Packaging
UPC045923397257
Case Cube1.596
Case Height8.86
Case Length18.74
Case Quantity8
Case UPC10045923397254
Case Weight10.71
Case Width16.61
EA Cube0.1667
EA Height8.07
EA Length9.06
EA Quantity1
EA Weight1.08
EA Width3.94
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.44
Web Width7.41
