45W/LED/HID/5000K/100-277V E26 - S39739
45W/LED/HID/5000K/100-277V E26 - S39739
45W/LED/HID/5000K/100-277V E26 - S39739
S39739

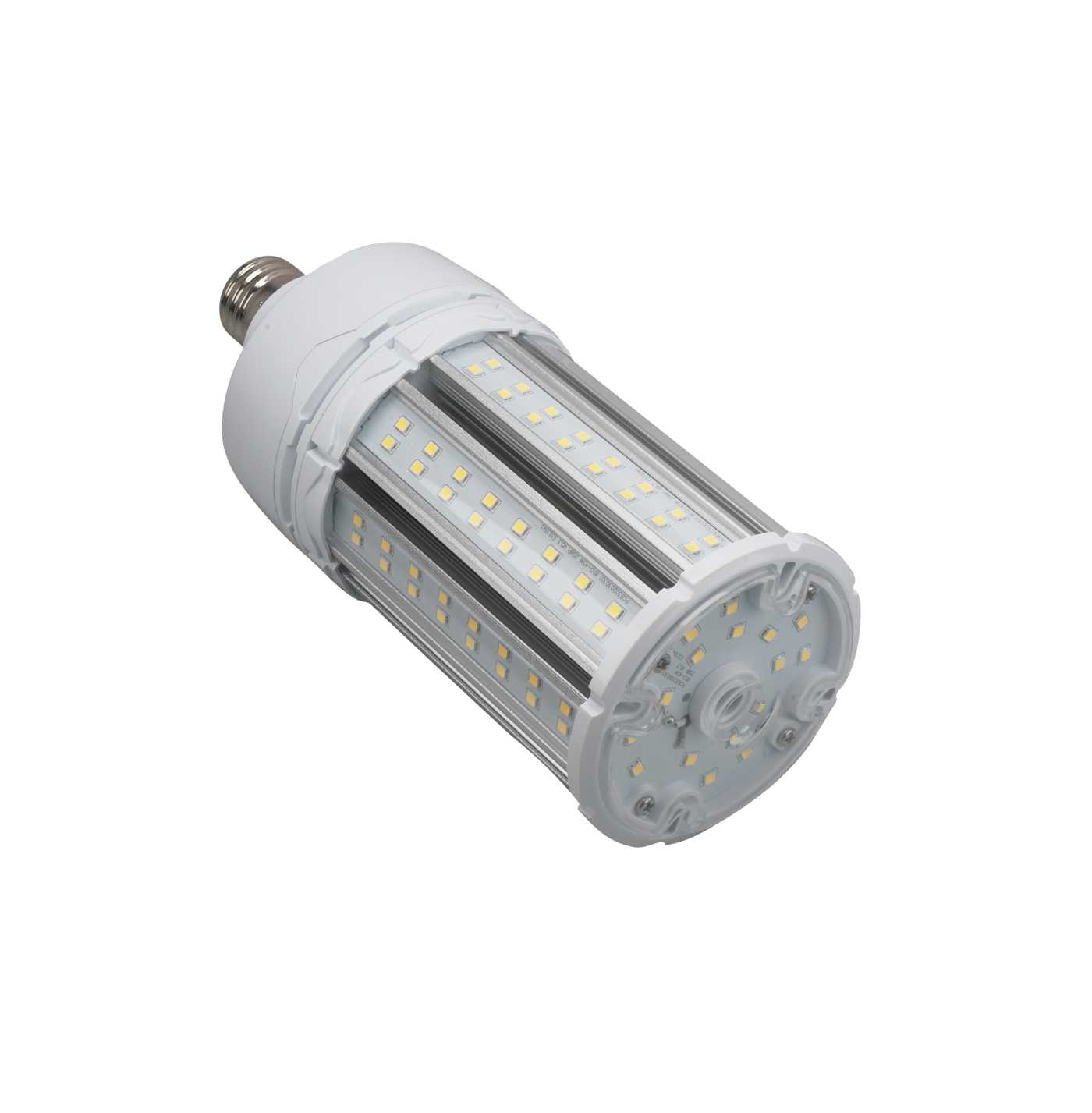

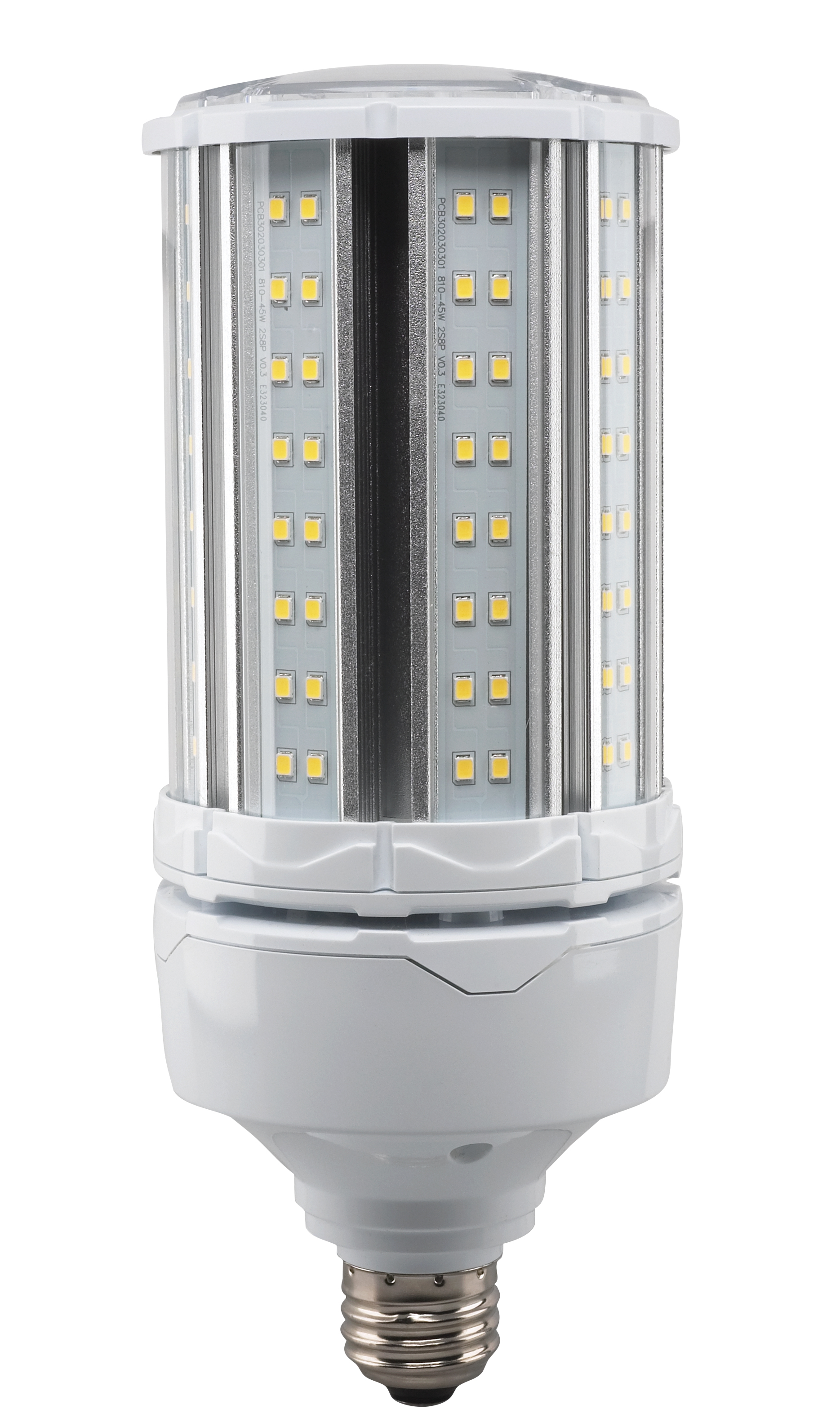

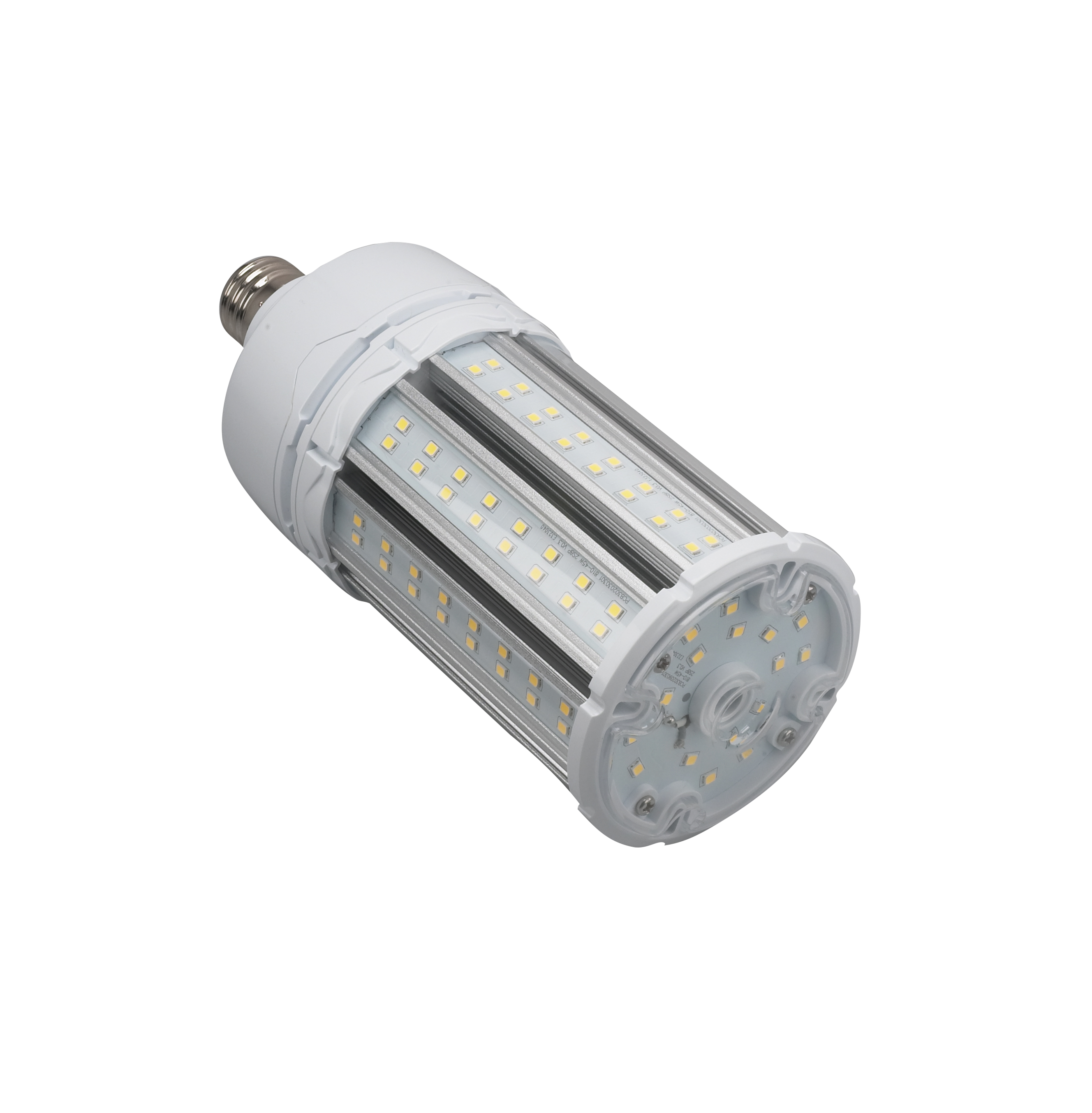

45W/LED/HID/5000K/100-277V E26

Discontinued - Suggested Replacement: S49739
  • 45 Watt LED HID Replacement
  • 5000K
  • Medium base
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

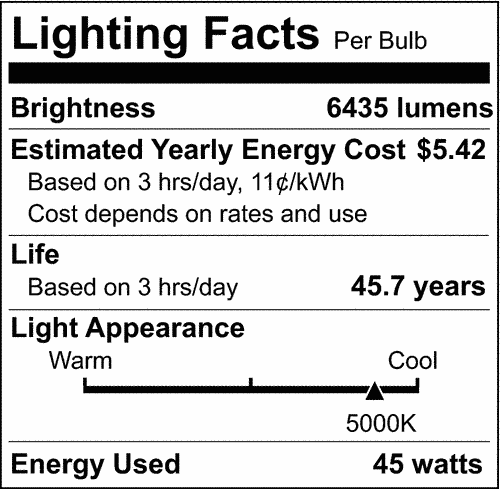

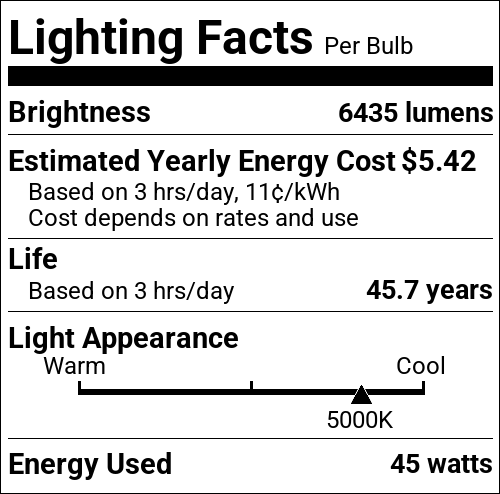

S39739 SpecificationsS39739 Photometrics.iesS39739 Instructions.pdfS39739 Lighting Facts Label
Tools
Lighting Layout Analysis For S39739
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
45 Watt LED HID Replacement; 5000K; Medium base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
MaterialAluminum / Plastic
Fixture TypeCorncob
Product NotesDLC 5.1 replacement S23140; Non-DLC replacement S49739
StatusObsolete
StyleContemporary
Most Current GenerationS49739
Surge ProtectionBuilt-in surge protection - 4KV
Working VoltageAC 100-277V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoEmits no UV light; Contains no Mercury (Hg); Acceptable for use in food prep areas
Amps0.450-0.162A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPlastic (PS)
LensedYes
Minimum Compartment SizeLength: 11 in. Width: 8 in. Depth: 8 in.
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Shatter Proof TypeShatter resistant materials
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv65W
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
HID Equivalent175W
Lumens6435L
Volts120V-277V
Watts45W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhite
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps3.34
MOL8.5
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP64
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923397394
Case Cube1.8574
Case Height11.42
Case Length19.29
Case Quantity12
Case UPC10045923397391
Case Weight28.66
Case Width14.57
EA Cube0.137
EA Height10.63
EA Length4.72
EA Quantity1
EA Weight2.21
EA Width4.72
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length8.5
Web Width3.34
