S39744

8.5WLED/RDL/4/30K/BN/120V

Discontinued - Suggested Replacement: S11833R1

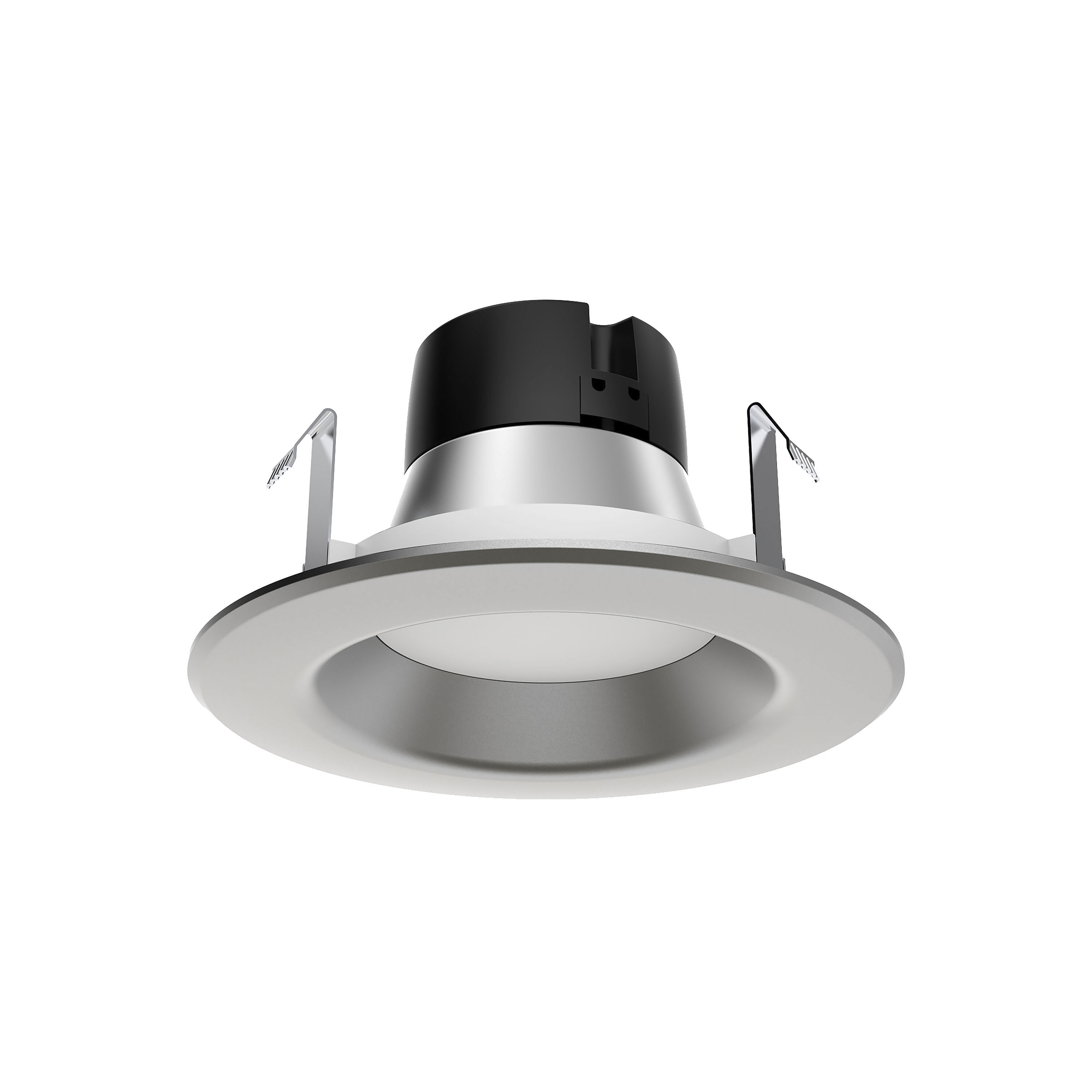

  • 8.5 watt LED Downlight Retrofit
  • 4"
  • 3000K
  • 120 volts
  • Dimmable
  • Brushed Nickel Finish
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S39744 SpecificationsS39744 Photometrics.iesS39744 Instructions.pdf
Tools
Lighting Layout Analysis For S39744
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
8.5 watt LED Downlight Retrofit; 4"; 3000K; 120 volts; Dimmable; Brushed Nickel Finish
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter5.31
MaterialThermo Plastic (PBT)
Fixture TypeDownlight Retrofit
StatusDiscontinued
StyleUtility
Most Current GenerationS11833R1
CCT SelectableFalse
Wattage SelectableFalse
Can Size4 in.
Finish FamilyNickel
Additional InfoTrim material is Thermo Plastic; Trim color is Brushed Nickel
Amps0.071A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
Power Factor0.96
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens600L
Volts120v
Watts8.5W
Physical
Lamp BaseMedium Adapter
FinishBrushed Nickel
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsT20 Non-Compliant - LPW <80
CA Prop 65Lead
CA StatusNon-Compliant
FCC CompliantTrue
IC RatedTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextNon-Compliant
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923397448
Case Cube1.5619
Case Height7.09
Case Length24.17
Case Quantity16
Case UPC10045923397445
Case Weight11.46
Case Width15.75
EA Cube0.0682
EA Height5.91
EA Length5.51
EA Quantity1
EA Weight0.63
EA Width3.62
Inner Cube0.3222
Inner Height6.3
Inner Length15.16
Inner Quantity4
Inner UPC20045923397442
Inner Weight2.43
Inner Width5.83
Pack TypeBox
Web Height2.88
Web Width5.31
