| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | Forward Phase or Reverse Phase or Phase Selectable |
| Material | Thermo Plastic (PBT) |

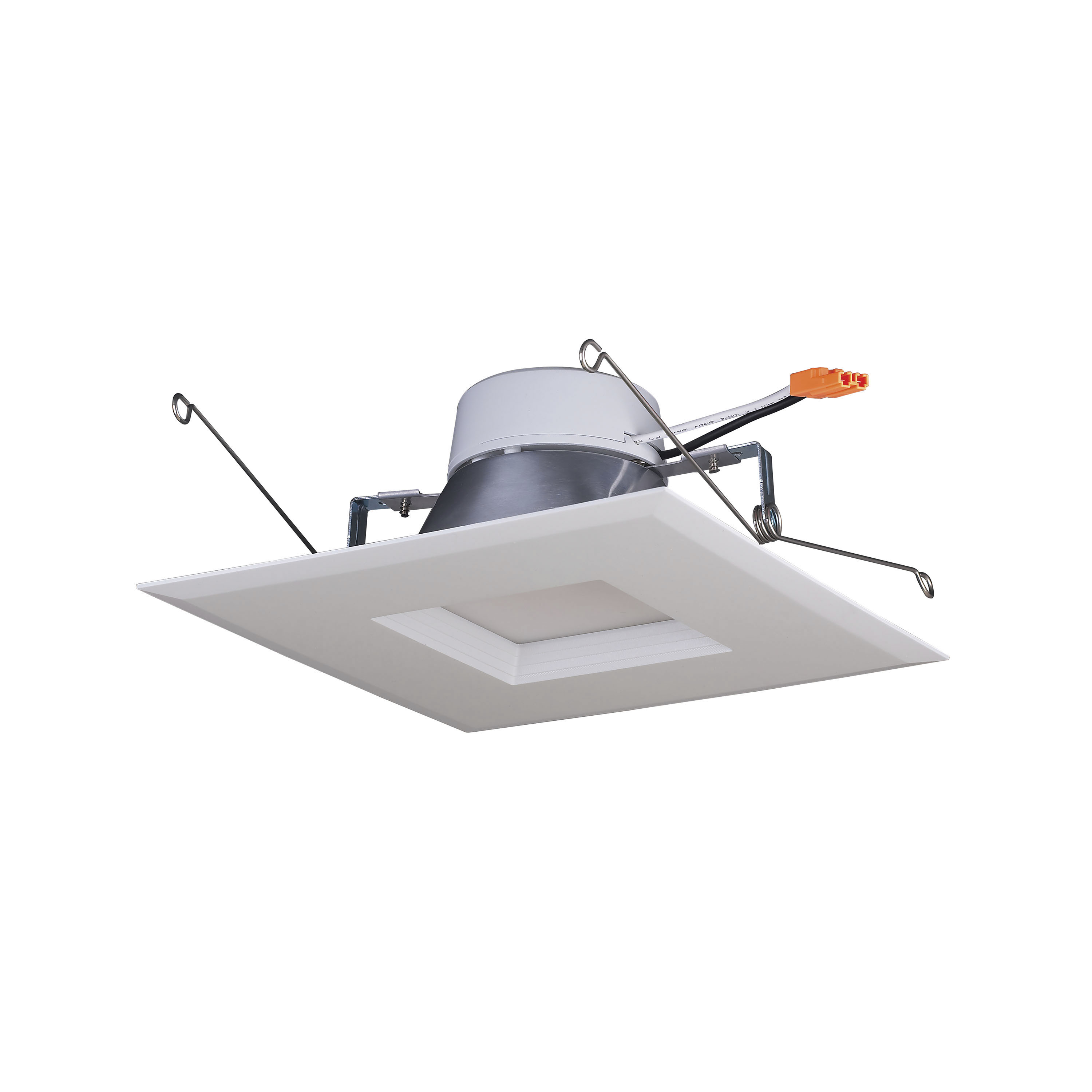

| Fixture Type | Downlight Retrofit |
| Status | Obsolete |
| CCT Selectable | No |
| Wattage Selectable | No |
| Can Size | 5-6 in. |
| Finish Family | White |
| Additional Info | Trim material is Thermo Plastic; Trim color is White |
| Amps | 0.096A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lens Material | Plastic (PS) |
| Power Factor | 0.97 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 85W |
| CCT (Kelvin Temp) | 2700K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 90 |
| Color Temp | Warm White |
| CRI | 90+ |
| Dimming Type | 120V only, Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 1000L |
| Volts | 120v |
| Watts | 11.5W |
| Lamp Base | Medium Adapter |
|---|---|
| Finish | WHITE |
| ANSI Base | E26 Adapter |
| Lamp Type | Integrated LED |
| Fixture Shape | Square |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| FCC Compliant | Yes |
| IC Rated | Yes |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified |
| California Ban | California T24 Listed |
| DLC Approved | No |
| Title 20 | Yes |
| T24 Compliant | Yes |
| UPC | 045923397707 |
|---|---|
| Case Cube | 1.8908 |
| Case Height | 8.5 |
| Case Length | 21.89 |
| Case Quantity | 12 |
| Case UPC | 10045923397704 |
| Case Weight | 14.7 |
| Case Width | 17.56 |
| EA Cube | 0.1308 |
| EA Height | 7.72 |
| EA Length | 8.46 |
| EA Quantity | 1 |
| EA Weight | 1.0 |
| EA Width | 3.46 |
| Pack Type | Box |
| Web Height | 3.25 |
| Web Length | 7.41 |
| Web Width | 7.41 |
