SKU S39771 - Image 1
S39771

11.5WLED/5-6/SQ/30K/120V

  • 11.5 watt LED Downlight Retrofit
  • 5-6 inch square shape
  • 3000K
  • 120 volt
  • White Finish
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S39771 SpecificationsS39771 InstructionsNU1350-5 LO RES LED Fixt Guide 10 20
Tools
Lighting Layout Analysis For S39771
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

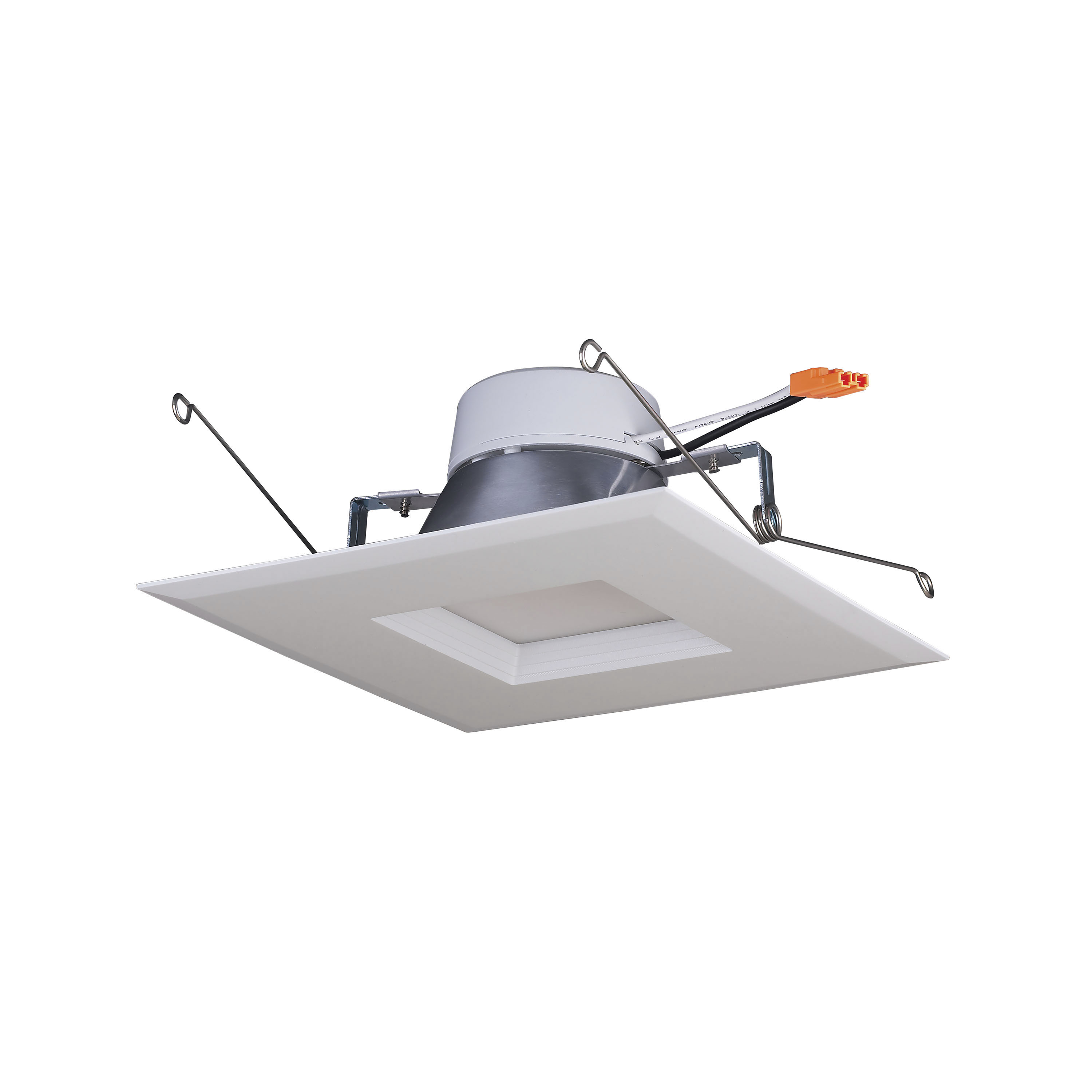

11.5 watt LED Downlight Retrofit; 5-6 inch square shape; 3000K; 120 volt; White Finish
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
MaterialThermo Plastic (PBT)
Fixture TypeDownlight Retrofit
StatusObsolete
Most Current GenerationS11821R1
CCT SelectableFalse
Wattage SelectableFalse
Can Size5-6 in.
Finish FamilyWhite
Additional InfoTrim material is Thermo Plastic; Trim color is White
Amps0.096A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
Power Factor0.97
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent85W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1000L
Volts120v
Watts11.5W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
IC RatedTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextCalifornia T24 Listed
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923397714
Case Cube1.8908
Case Height8.5
Case Length21.89
Case Quantity12
Case UPC10045923397711
Case Weight14.7
Case Width17.56
EA Cube0.1308
EA Height7.72
EA Length8.46
EA Quantity1
EA Weight1.0
EA Width3.46
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.25
Web Length7.41
Web Width7.41
