| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| CA Regulations | Exempt - Base Not Regulated |
| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | Linear |
| Product Notes | Built-in shock resistant circuit - (not hot until both ends are installed) |
| Status | Active |
| Style | Utility |
| Total Harmonic Distortion | 20% |
| Tube Guard Use | Yes |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Additional Info | Equivalent CCT selectable option available in S11767 |
| Amps | 0.142-0.061A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Gloss White |
| Lens Material | Glass |

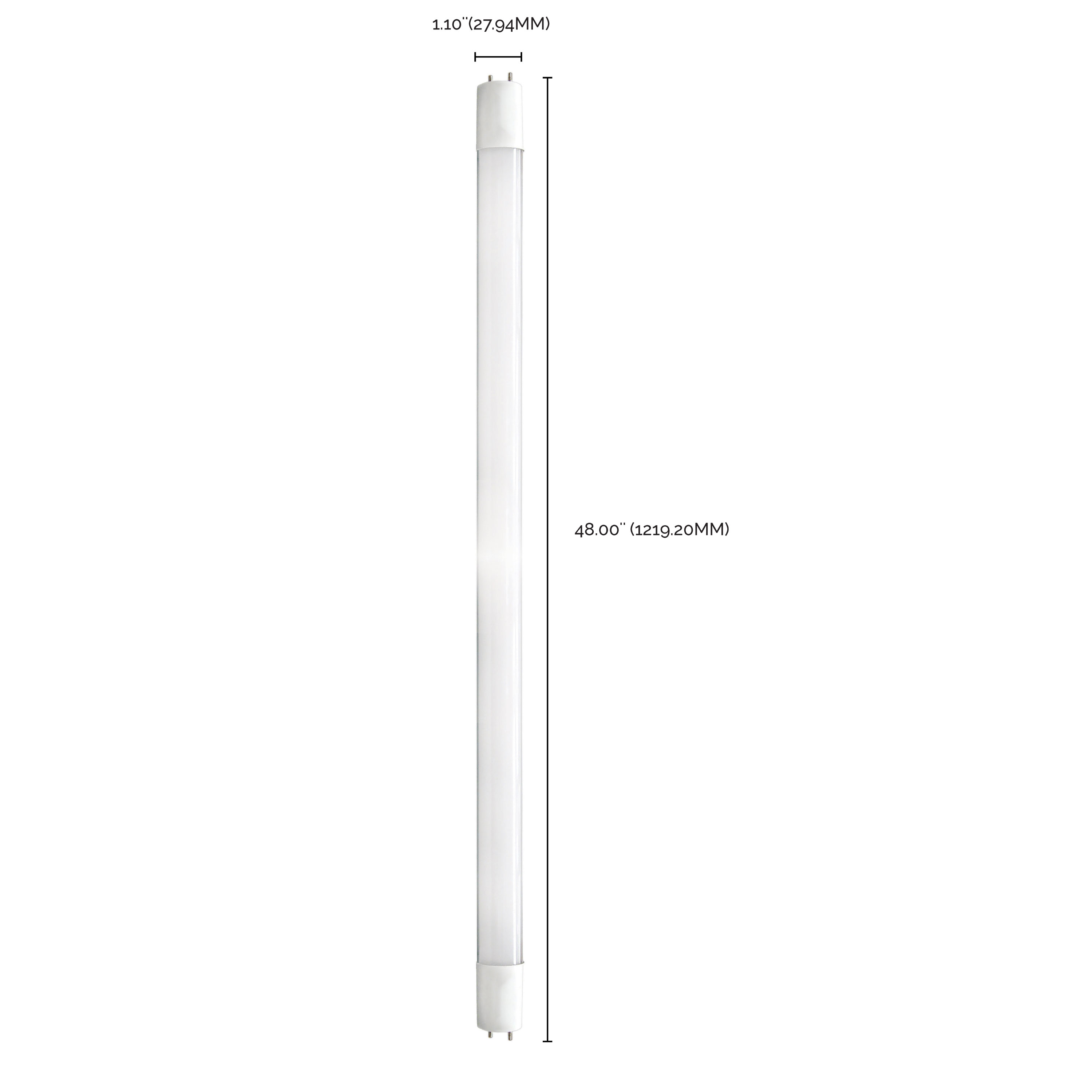

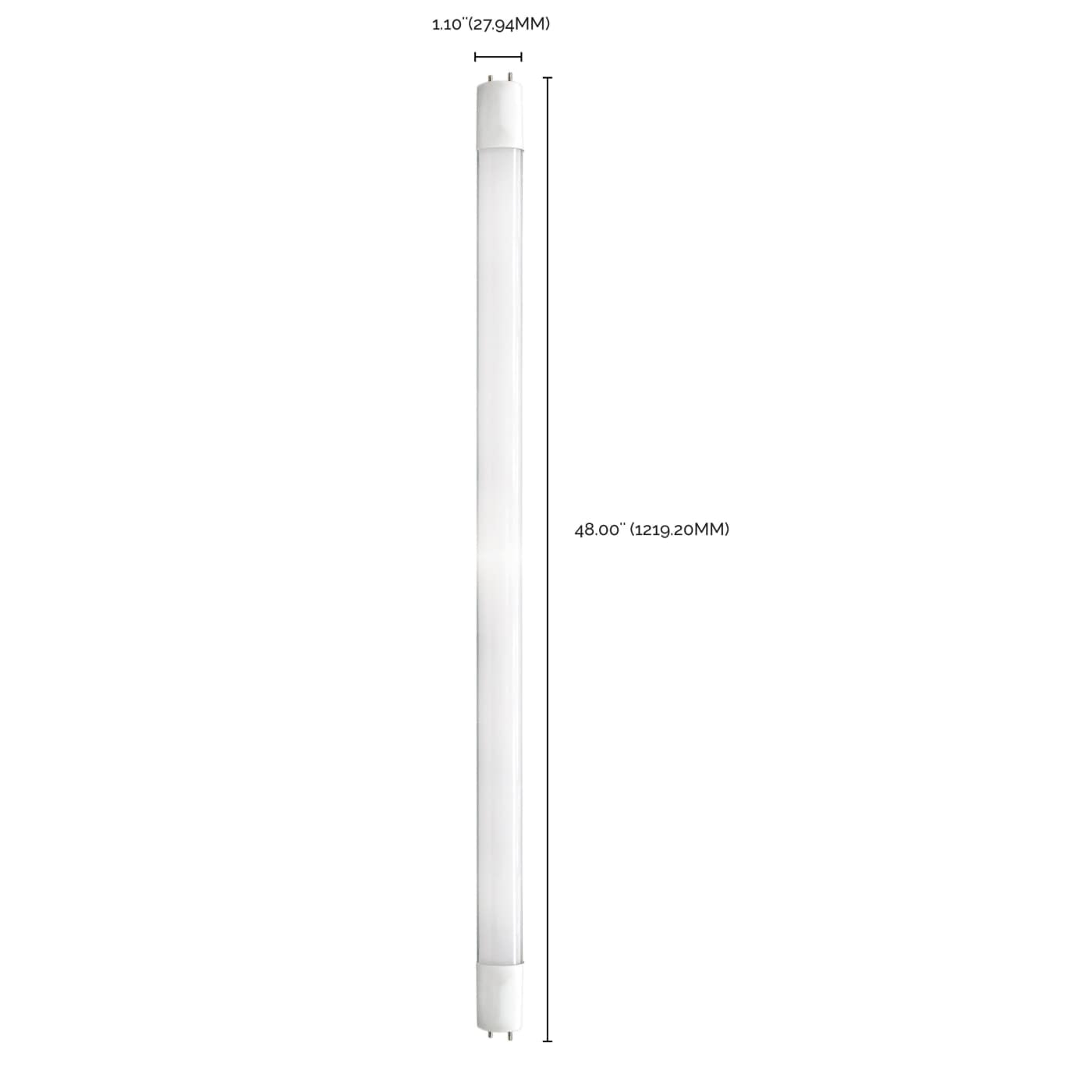

| Nominal Length | 48.0 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Fluor Equiv | 25W/28W/30W/32W |
| Incandescent Equivalent | 90W |
| CCT (Kelvin Temp) | 3500K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 210 |
| Color Temp | Neutral White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 2100L |
| Volts | 120V-277V |
| Watts | 17W |

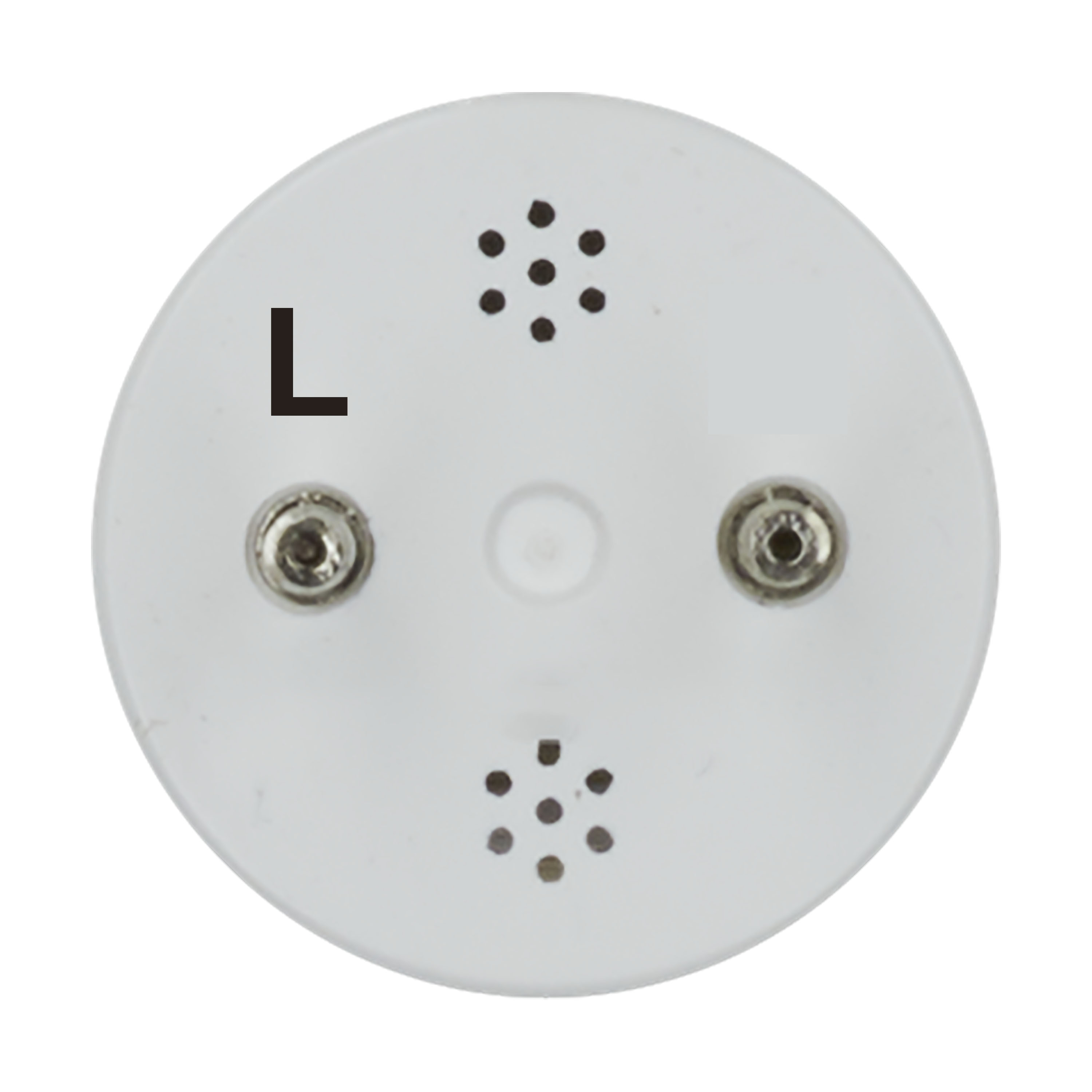

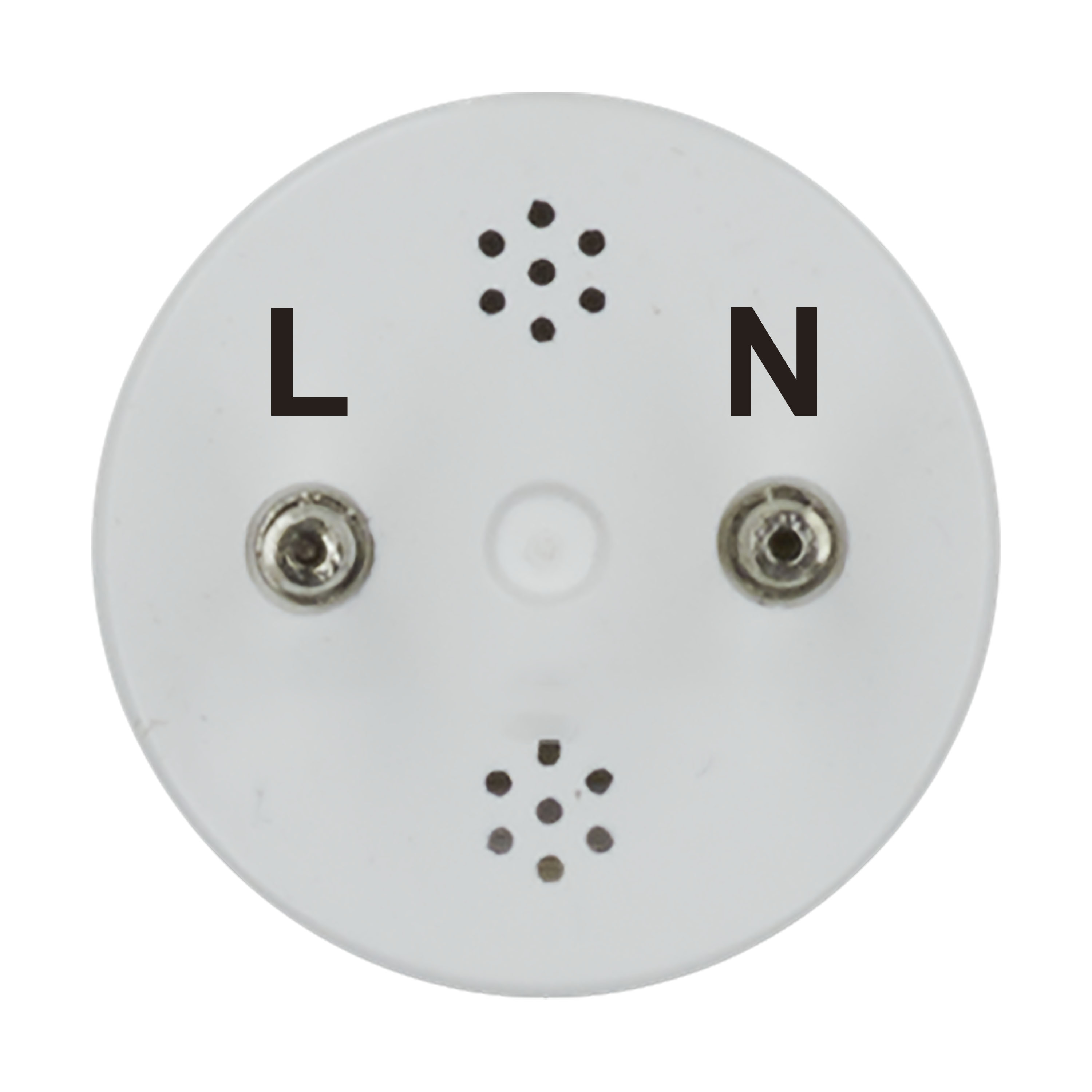

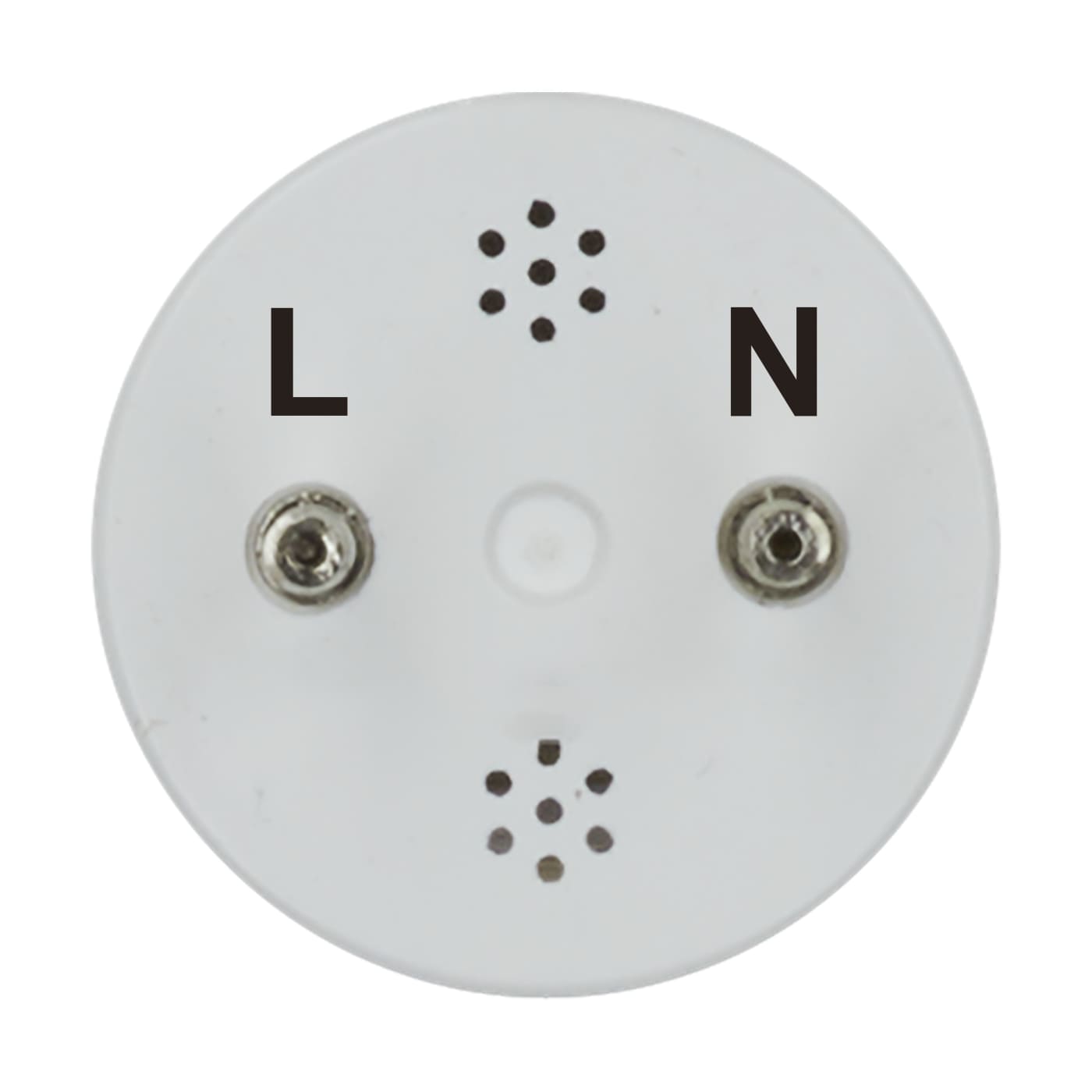

| Lamp Base | Medium Bi Pin |
|---|---|
| Finish | Gloss White |
| Housing Color | White |
| ANSI Base | G13 |
| Lamp Type | T8 |
| MOD Lamps | 1.1 |
| MOL | 47.78 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Status | Lawful for sale in California |
|---|---|
| CO Status | Lawful for sale |
| DLC ID | PLPOXR8SWHON |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| UPC | 045923399053 |
|---|---|
| Case Cube | 1.0208 |
| Case Height | 6.0 |
| Case Length | 49.0 |
| Case Quantity | 25 |
| Case UPC | 10045923399050 |
| Case Weight | 14.4 |
| Case Width | 6.0 |
| EA Cube | 0.0336 |
| EA Height | 1.1 |
| EA Length | 48.0 |
| EA Quantity | 1 |
| EA Weight | 0.58 |
| EA Width | 1.1 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Sleeve |
| Web Length | 47.78 |
| Web Width | 1.1 |
