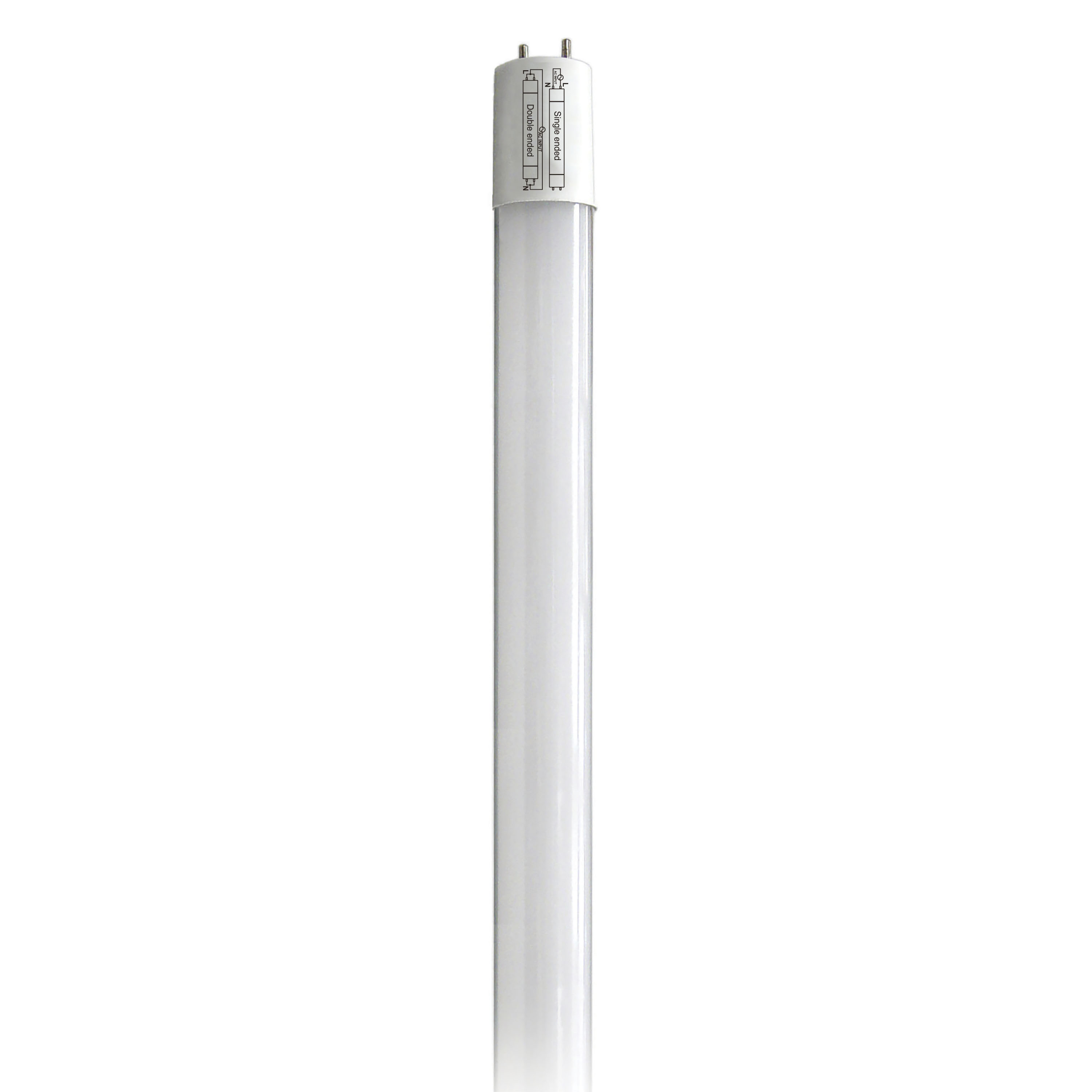

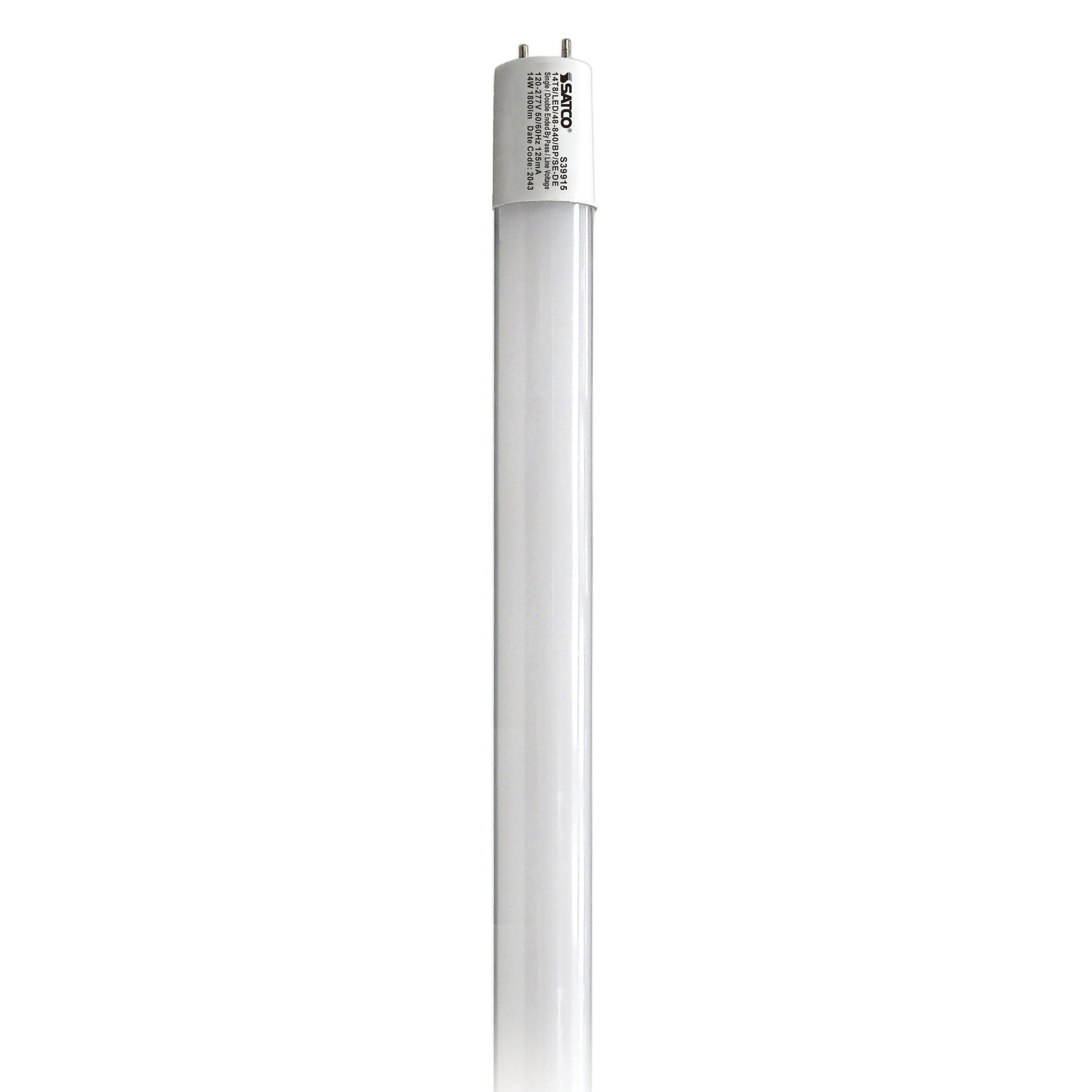

S39915 14T8/LED/48-840/BP/SE-DE

S39915

14T8/LED/48-840/BP/SE-DE

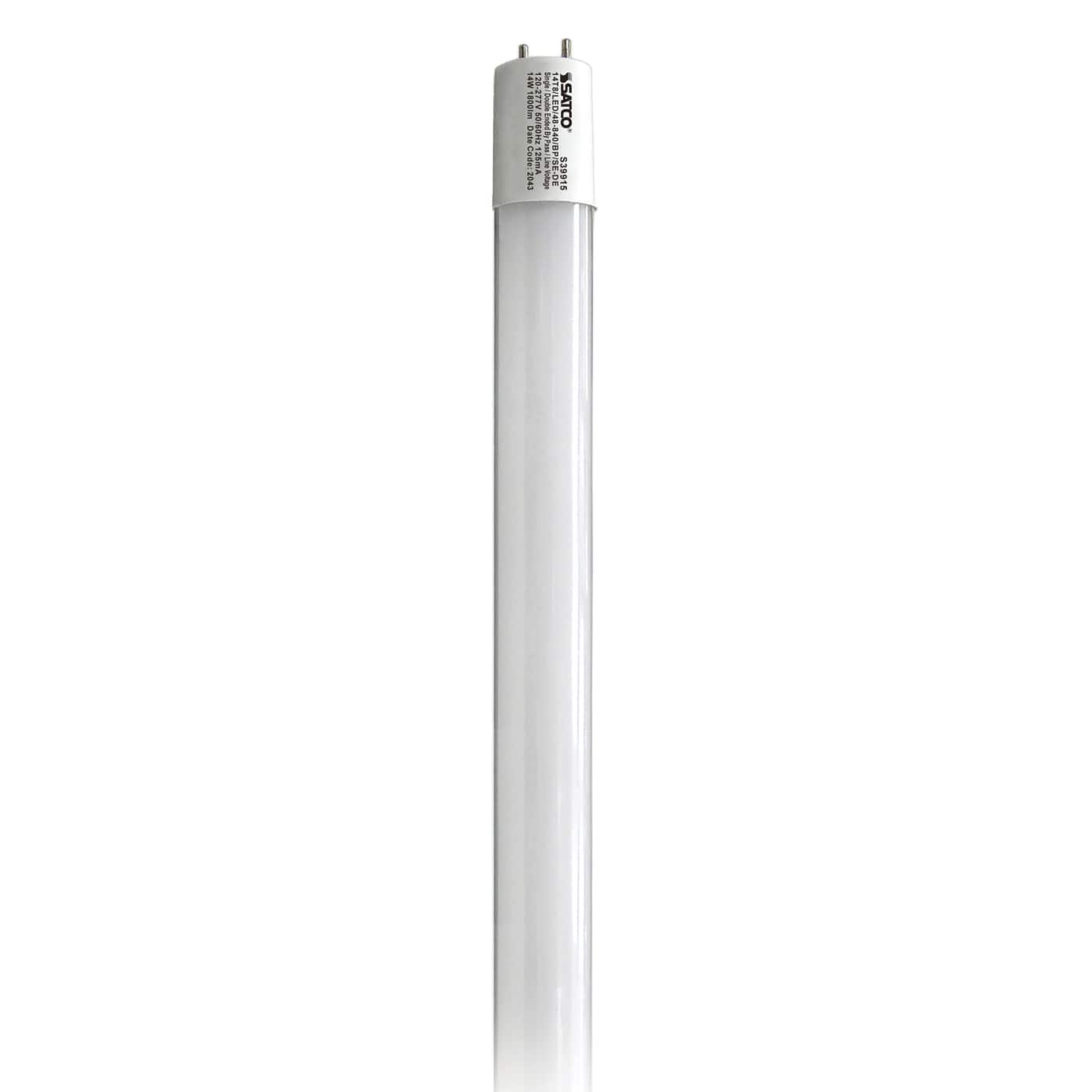

14 Watt T8 LED; 4Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring


SATCO|NUVO's 14-watt LED T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. Versatile and functional, this lamp delivers 50,000 hours of cool white light.
  • MOL: 47.78 inches, MOD: 1.10 inches
  • Gloss White Finish
  • Medium Bi Pin Base
  • 4000K Cool White Light
  • Rated for 50,000 hours
  • 1800 lumens
  • 210 degree beam spread
  • FCC and RoHS compliant
  • 5-year limited warranty
Lights

S39915

14T8/LED/48-840/BP/SE-DE

14 Watt T8 LED; 4Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

SATCO|NUVO's 14-watt LED T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. Versatile and functional, this lamp delivers 50,000 hours of cool white light.
  • MOL: 47.78 inches, MOD: 1.10 inches
  • Gloss White Finish
  • Medium Bi Pin Base
  • 4000K Cool White Light
  • Rated for 50,000 hours
  • 1800 lumens
  • 210 degree beam spread
  • FCC and RoHS compliant
  • 5-year limited warranty

Specifications

General
StatusActive
Watts14W
Incandescent Equivalent75W
Fluorescent Equivalent32W
Volts120V-277V
Ballast TypeType B
ShapeT8

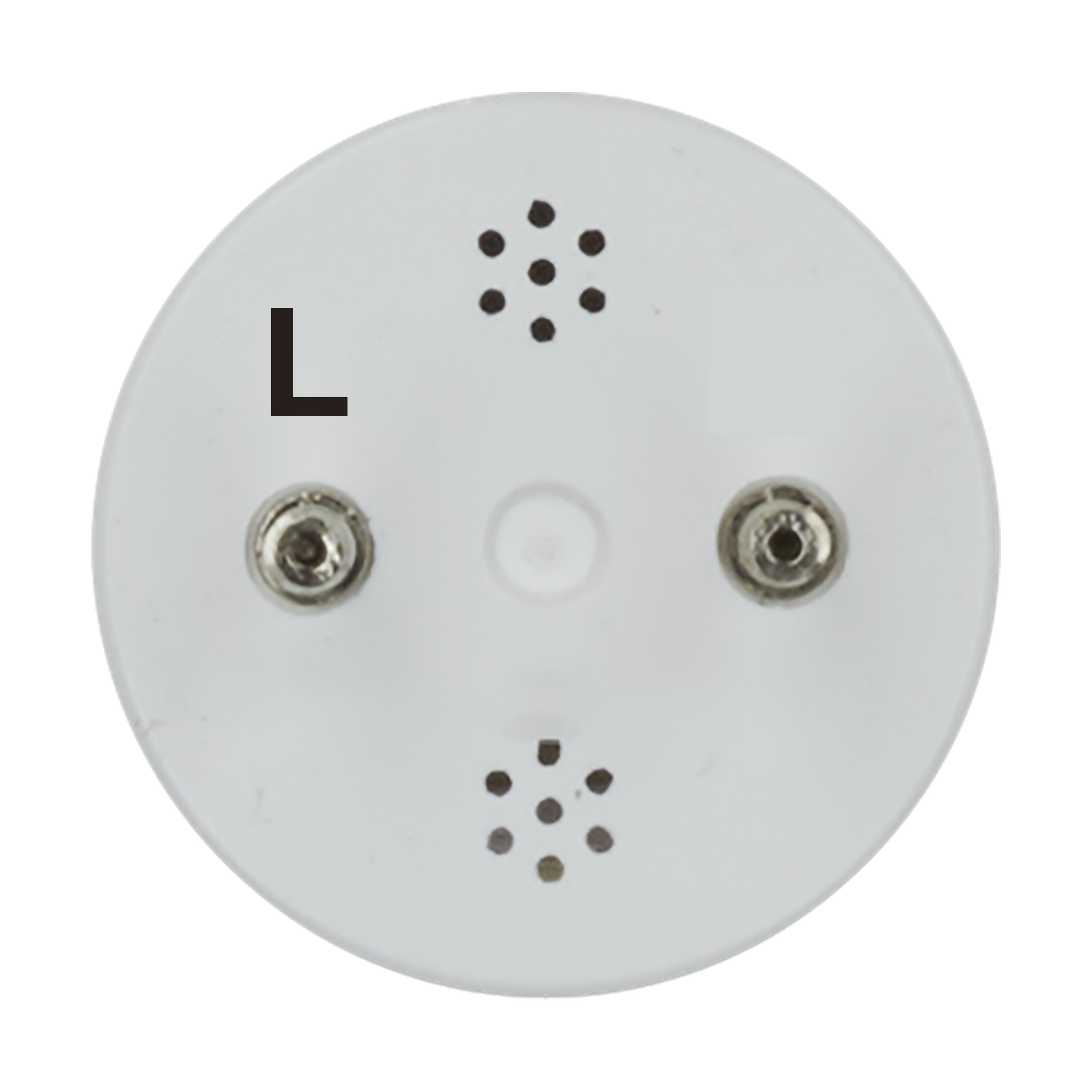

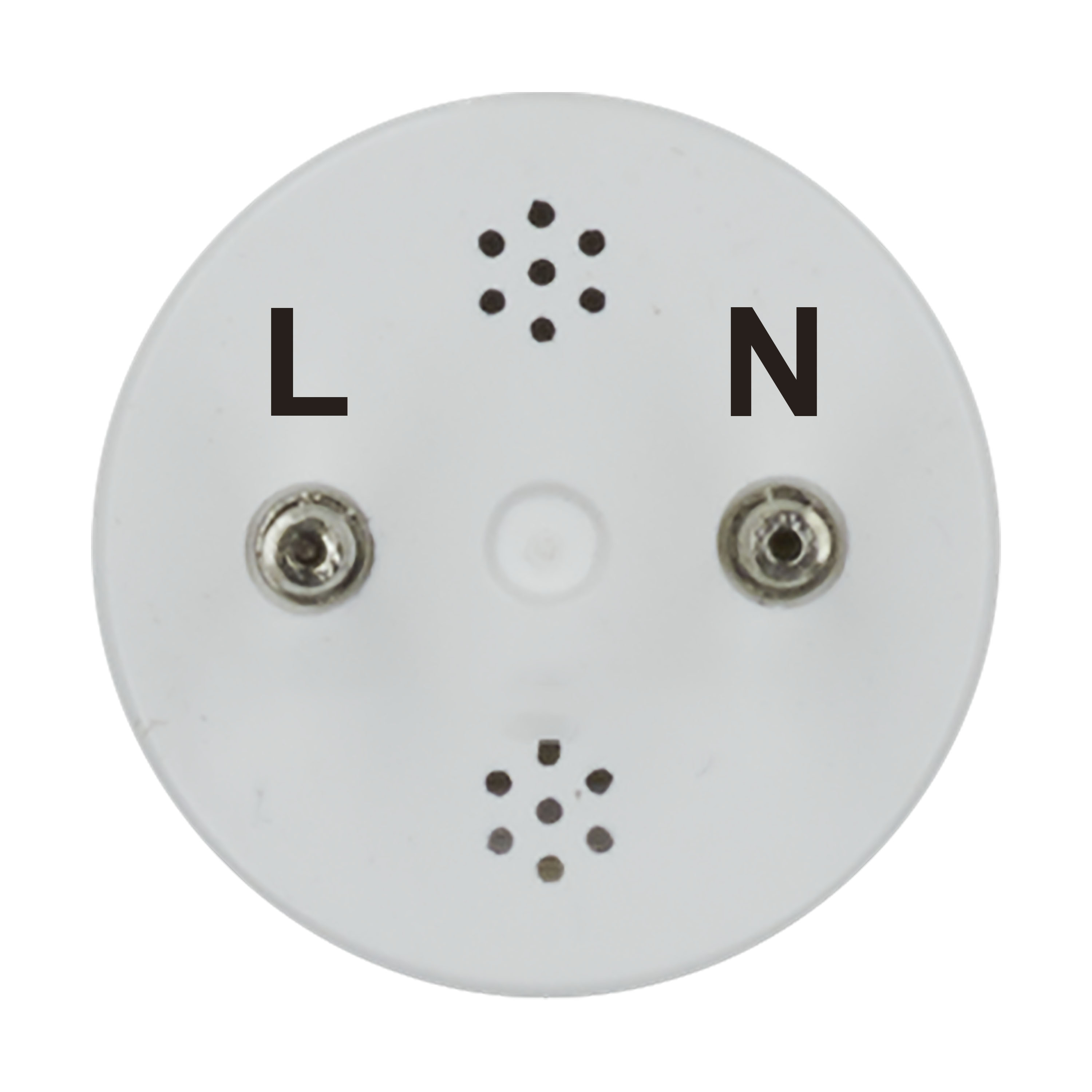

BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss White
CCT (Kelvin)4000K
TemperatureCool White
CRI82

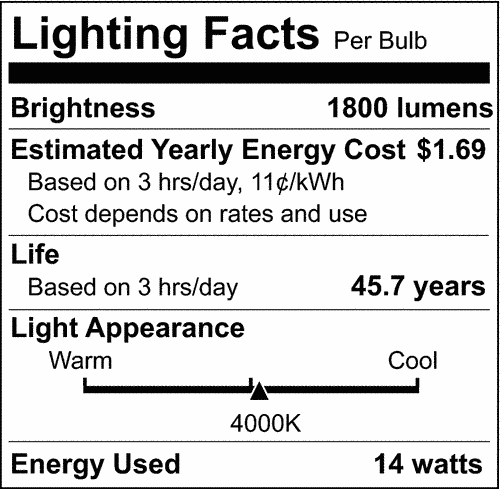

Lumens1800L
Beam Spread210
Hours Rated50000
Product CategoryT8
Lamp TypeT8
TechnologyLED
Electrical
Watts14W
Incandescent Equivalent75W
Fluorescent Equivalent32W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI82
Lumens1800L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical

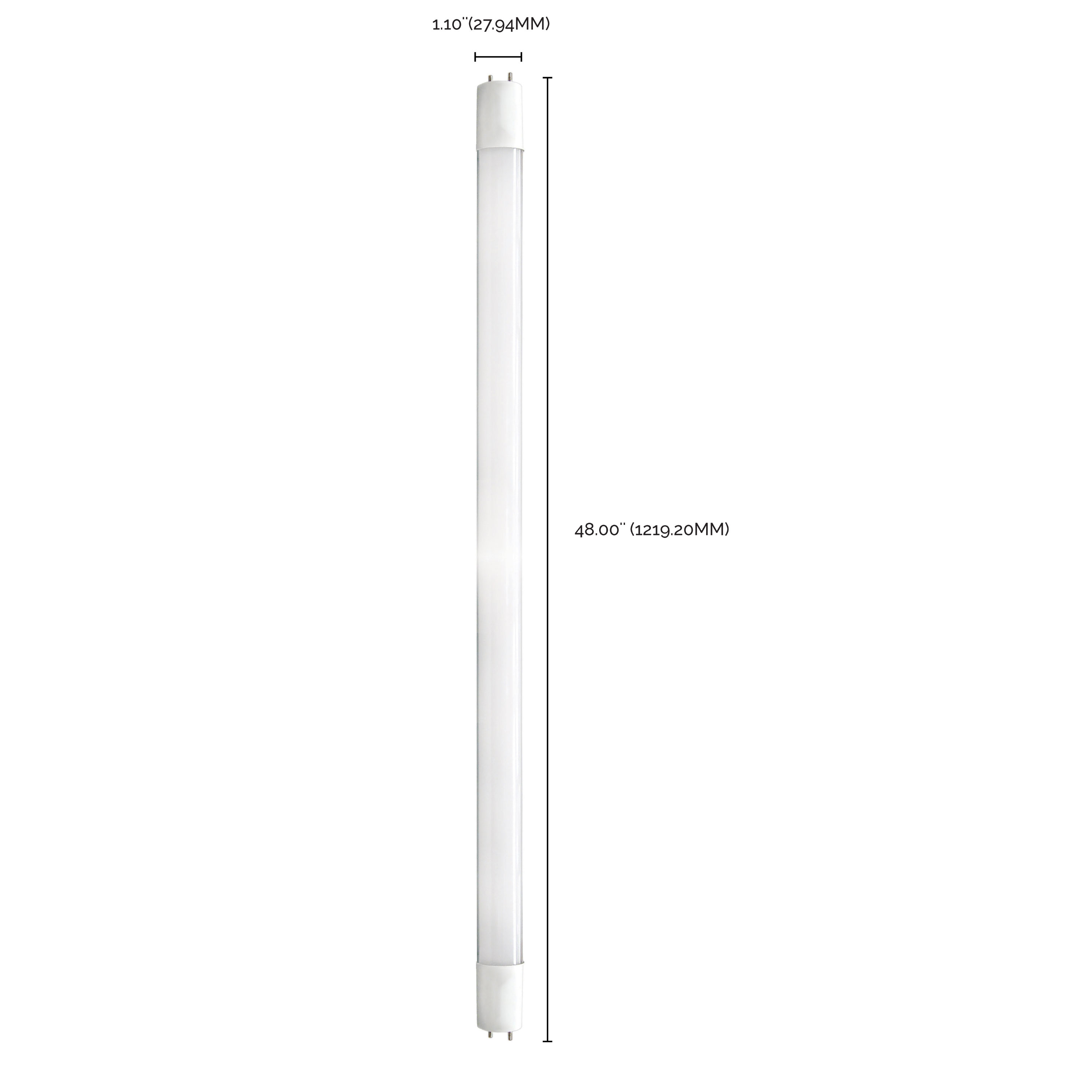

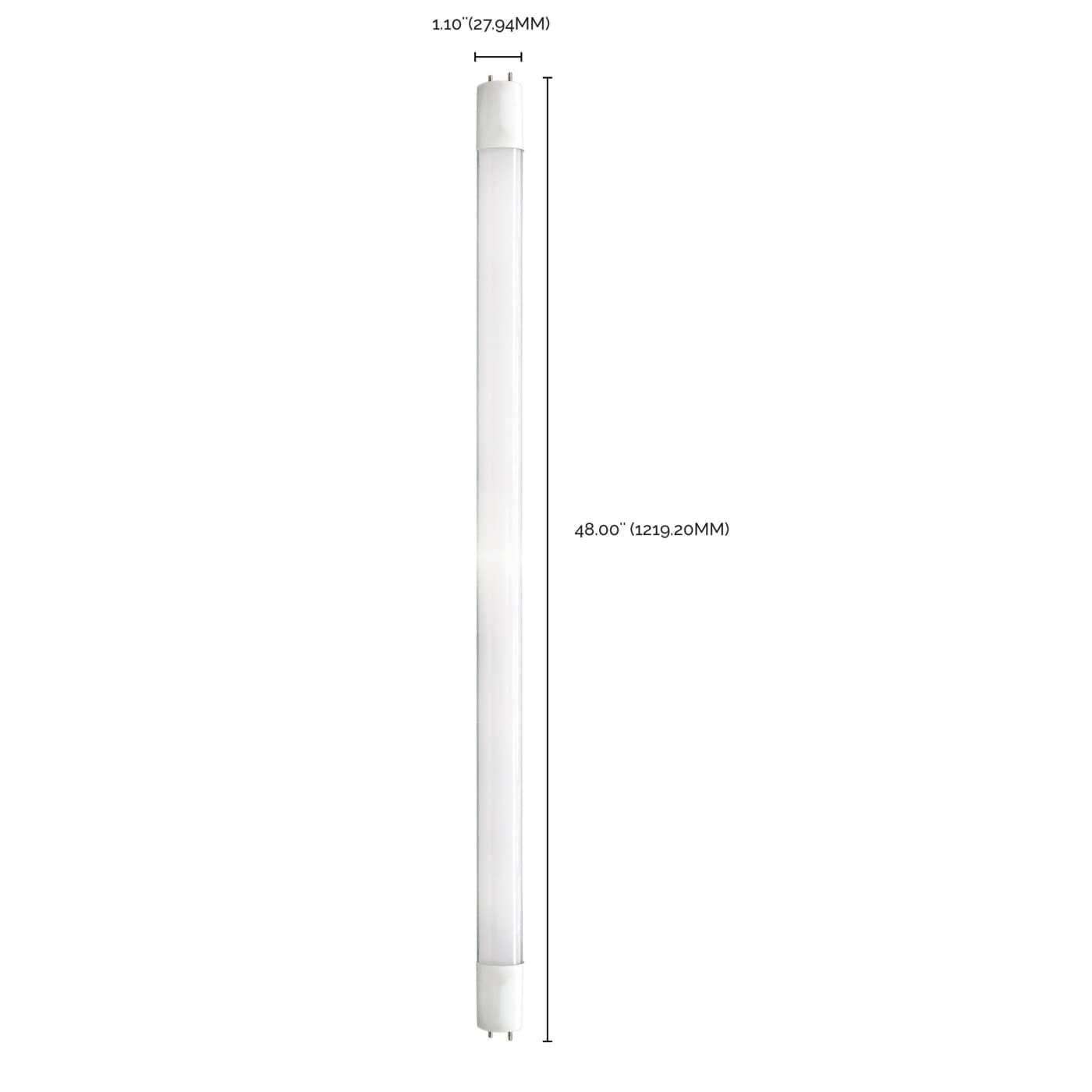

MOL47.78
MOD1.1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
MaterialGlass
Lens FinishGloss White
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.44
Additional Information
Additional InfoEquivalent CCT selectable option available in S11766
Tube Guard UseApproved for use with tube guards
Installation NotesNot for use in vapor tight fixtures.

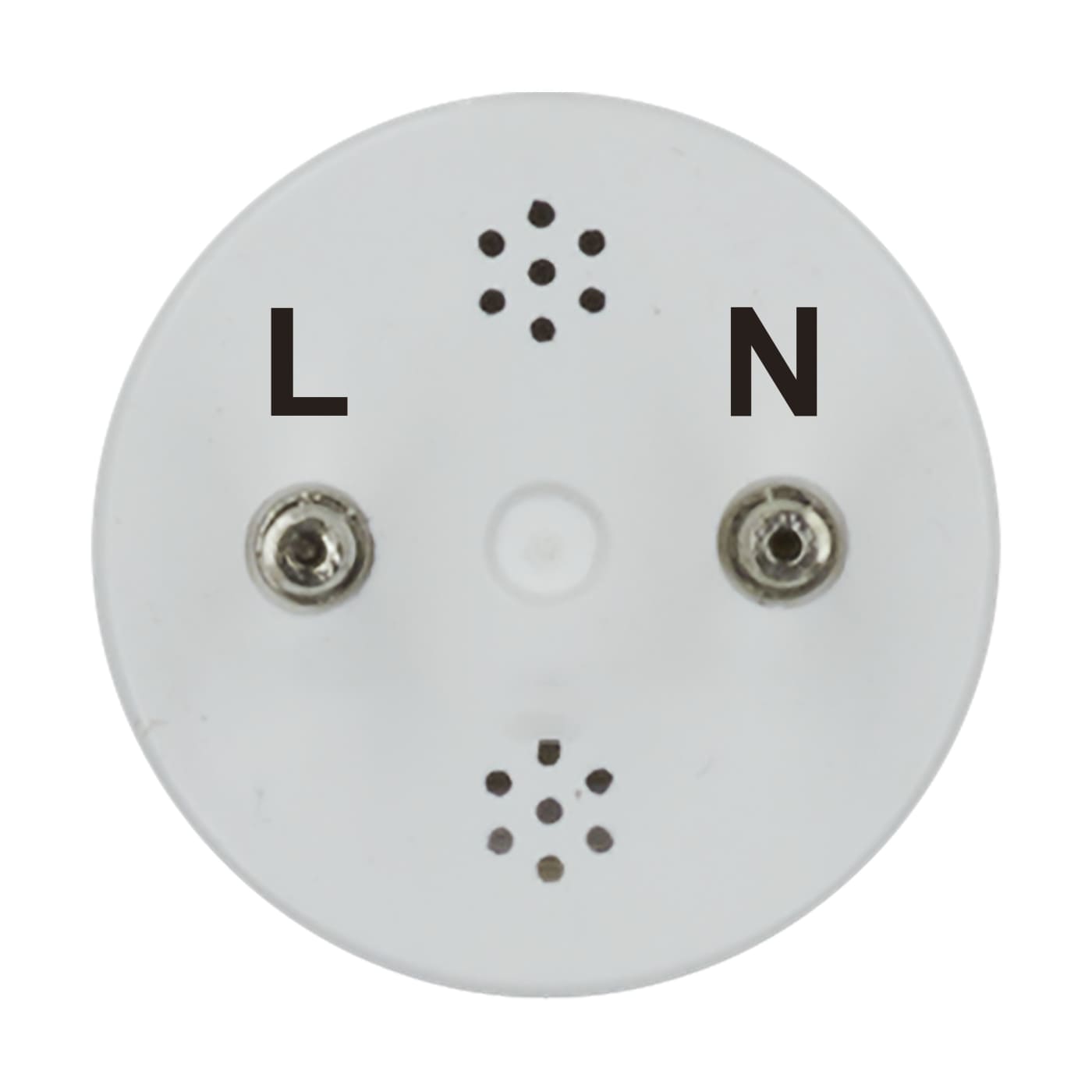

Specification NoteBuilt-in shock resistant circuit - (not hot until both ends are installed)
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLUMQ3JWEPJX
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923399152
Each Quantity1
Each Length (in.)1.10
Each Width (in.)1.10
Each Height (in.)48.00
Each Weight (lb.)0.58
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923399159
Case Quantity25
Case Length (in.)49.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)14.40
Case Cube (CuFt.)1.0208
