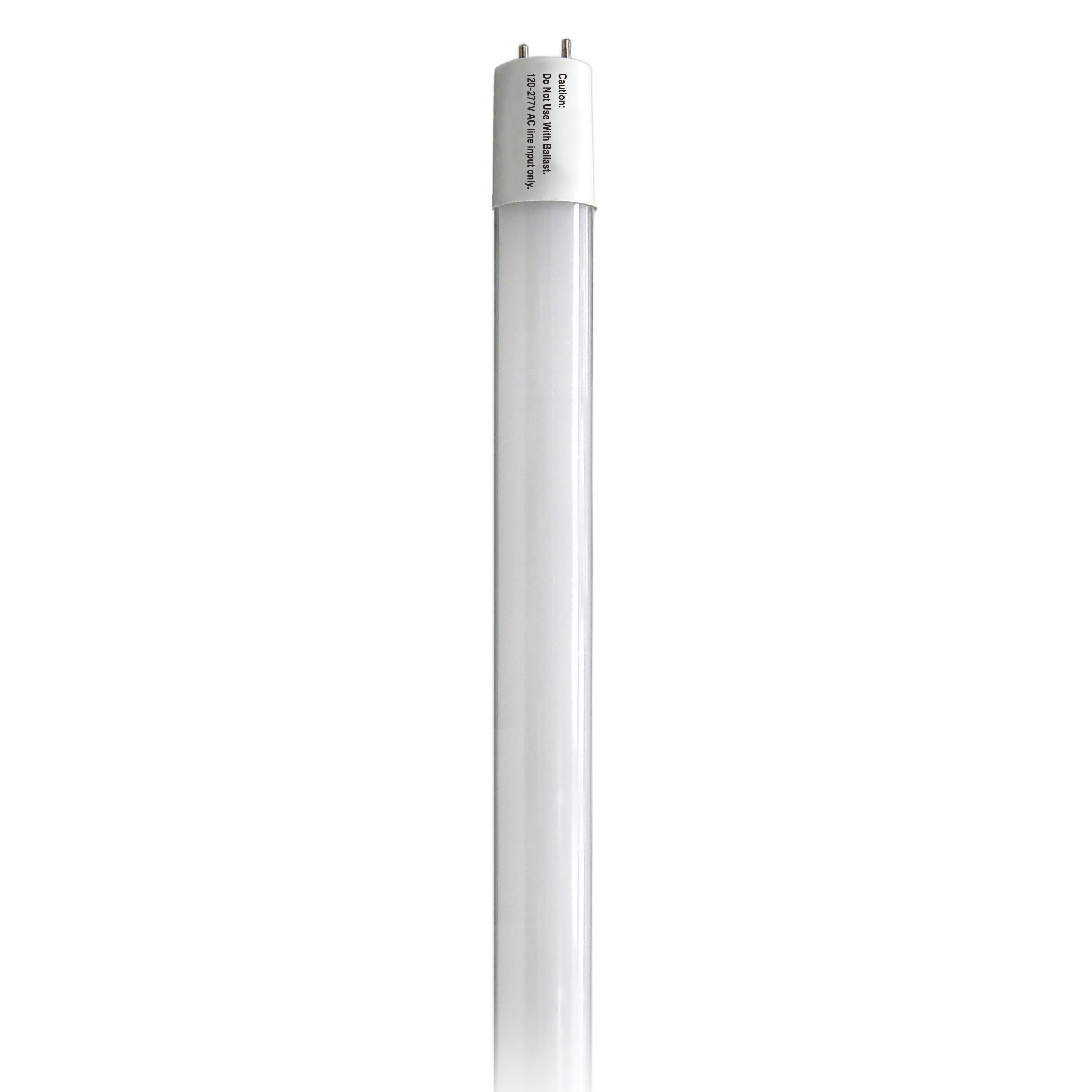

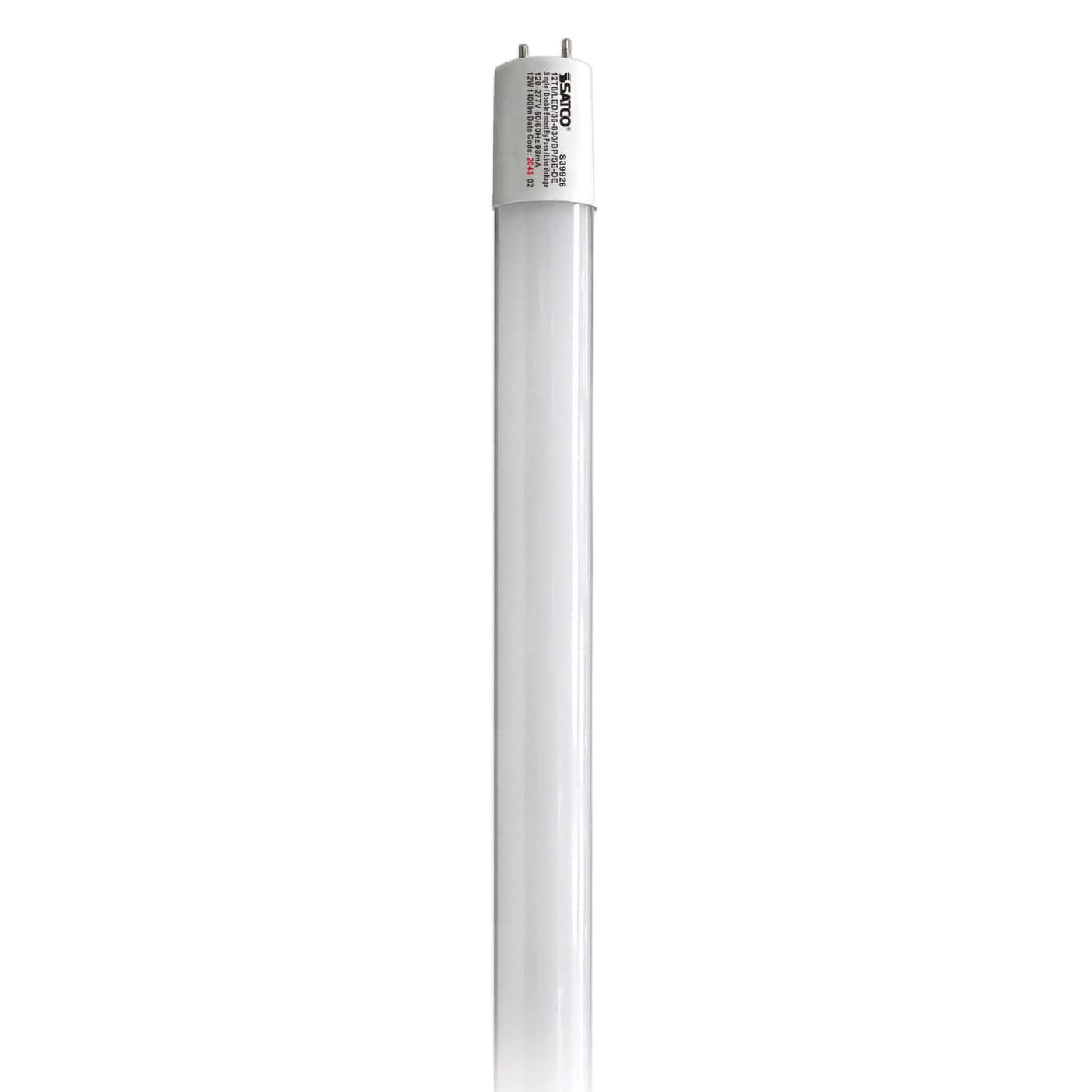

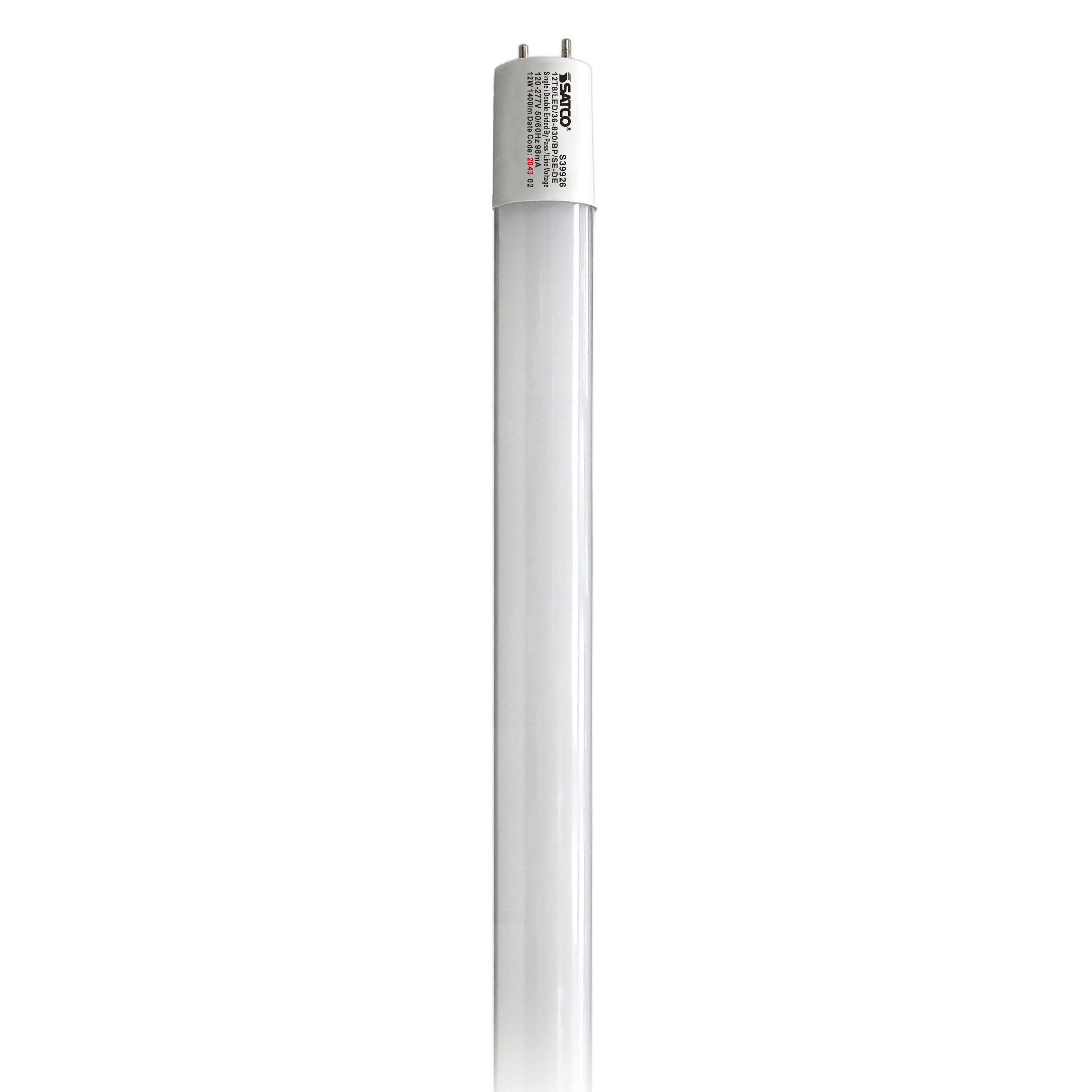

S39926 12T8/LED/36-830/BP/SE-DE

S39926

12T8/LED/36-830/BP/SE-DE

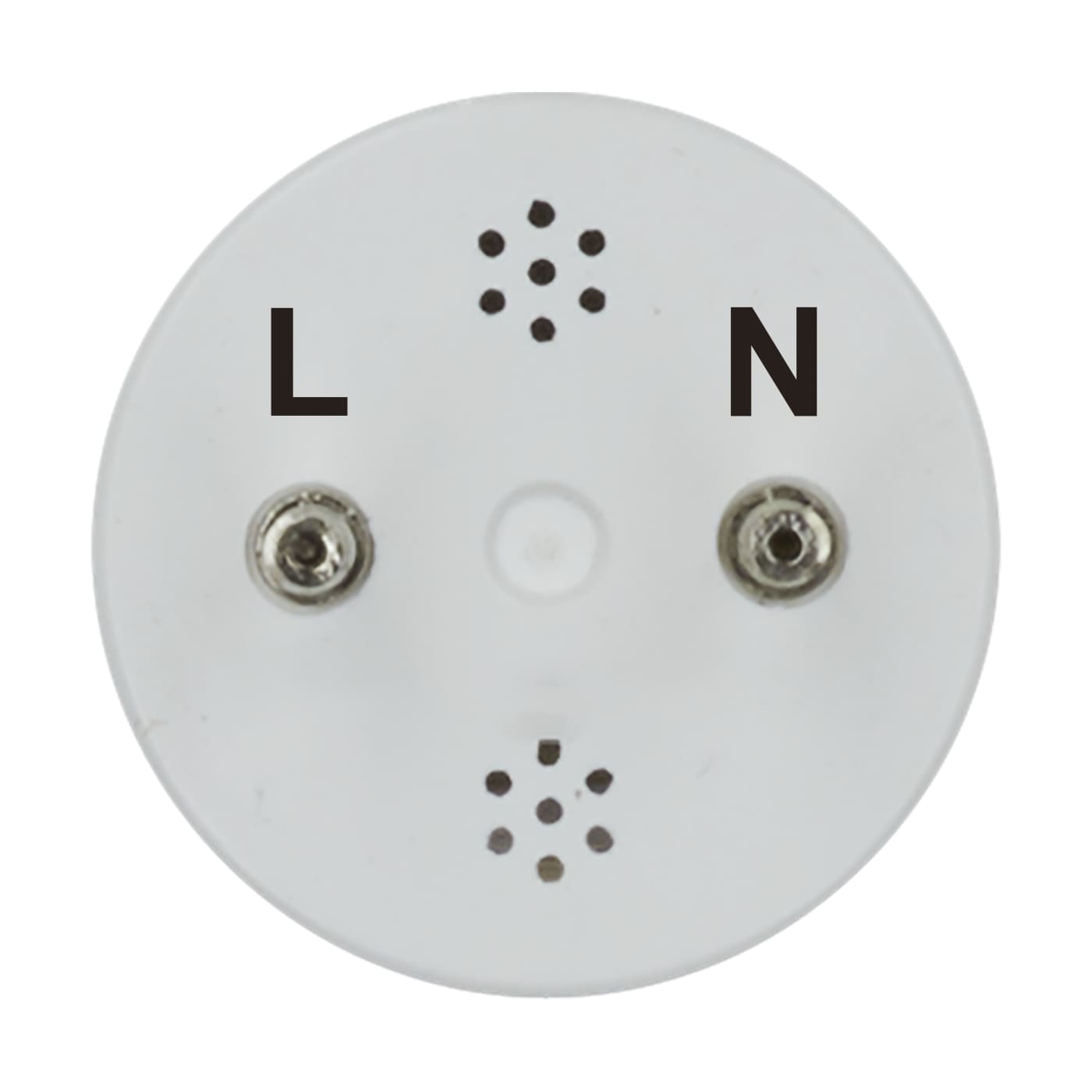

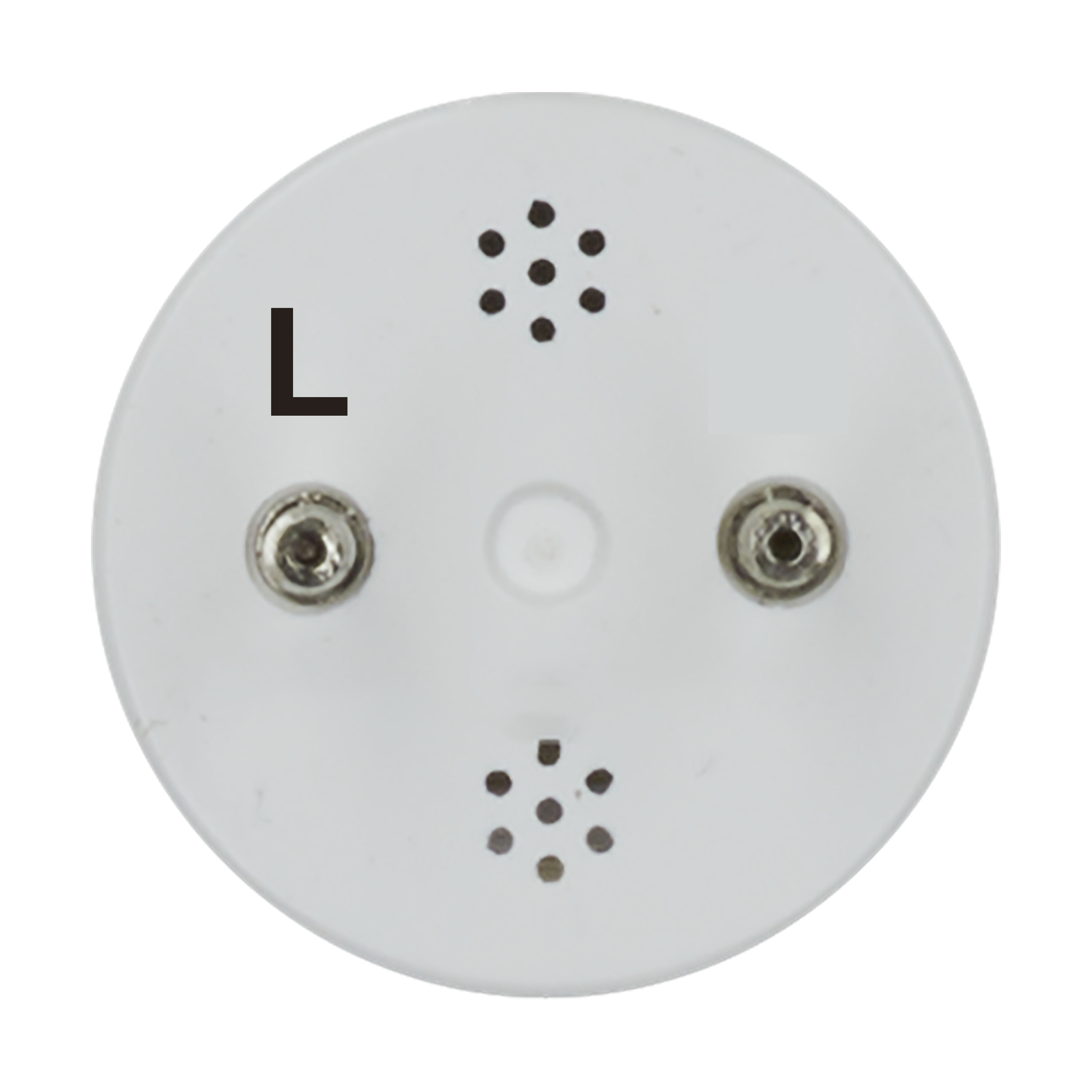

12 Watt T8 LED; 3Ft; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1400 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

Satco's new generation of Type B ballast bypass lamps, desgined to replace T8 or T12 medium bi-pin flourescent lamps are available in 2-foot, 3-foot and 4-foot lengths. This 12-watt at 3000K is 3-feet in length and is engineered for single or double-ended wiring options and will not light unless the ballast is bypassed. Commercial, venues, schools, hospitality, health care - any large scale lighting application - will benefit from immediate energy savings and less maintenance.
Lights

S39926

12T8/LED/36-830/BP/SE-DE

12 Watt T8 LED; 3Ft; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1400 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

Satco's new generation of Type B ballast bypass lamps, desgined to replace T8 or T12 medium bi-pin flourescent lamps are available in 2-foot, 3-foot and 4-foot lengths. This 12-watt at 3000K is 3-feet in length and is engineered for single or double-ended wiring options and will not light unless the ballast is bypassed. Commercial, venues, schools, hospitality, health care - any large scale lighting application - will benefit from immediate energy savings and less maintenance.

Specifications

General
StatusActive
Watts12W
Volts120V-277V
Ballast TypeType B
ShapeT8

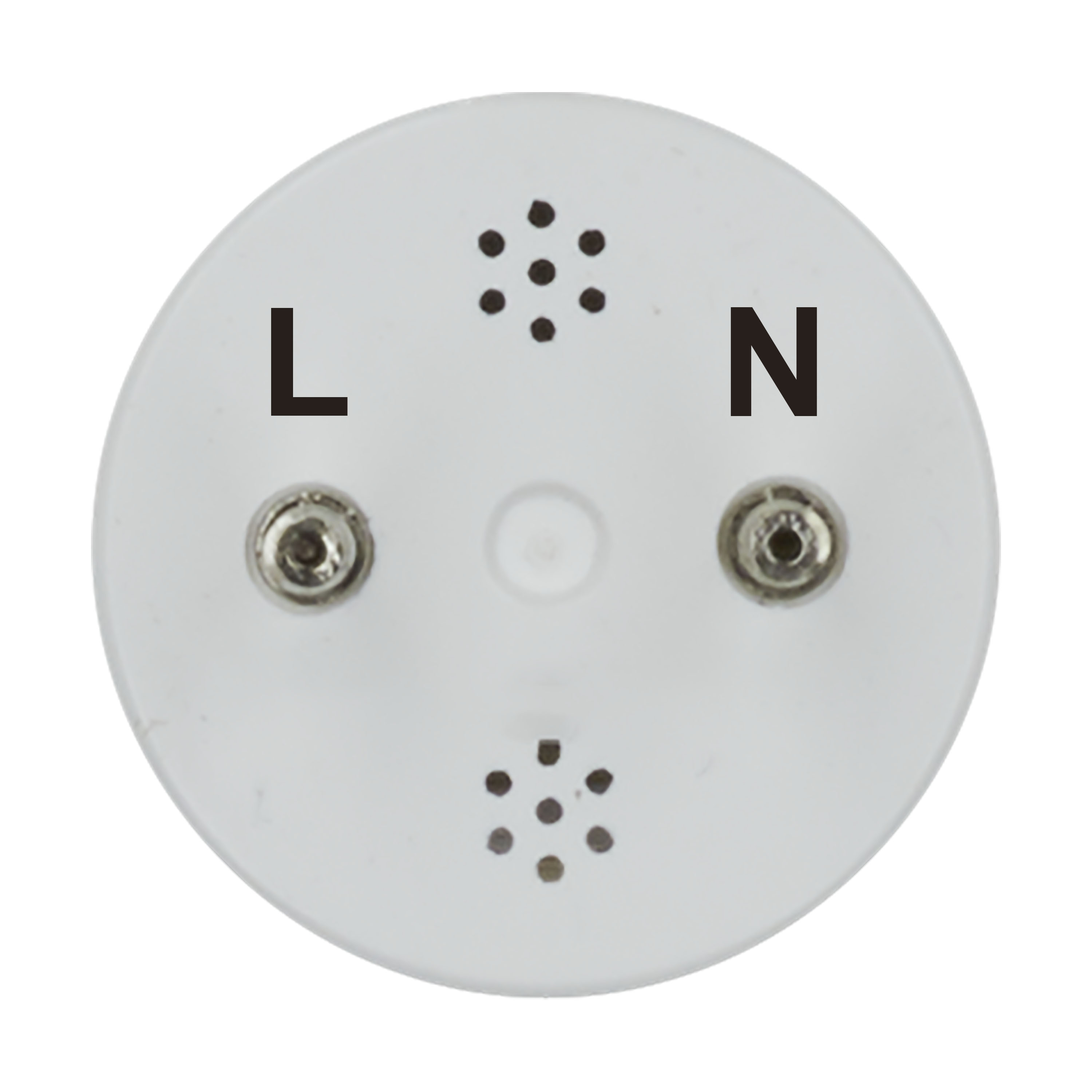

BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36.00
FinishGloss White
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1400L
Beam Spread210
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeT8
TechnologyLED
Electrical
Watts12W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1400L
Beam Spread210
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
THD0.2
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL35.78
MOD1.1
Nominal Length36.00
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
MaterialGlass
Lens FinishGloss White
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.33
Additional Information
Tube Guard UseApproved for use with tube guards
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLUOIB3BFNJ0
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923399268
Each Quantity1
Each Length (in.)36.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.45
Each Cube (CuFt.)0.0252
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923399265
Case Quantity25
Case Length (in.)37.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)11.33
Case Cube (CuFt.)0.7708
×
×

Ballast Compatibility

Name Type View
LED Linear S39926 Ballasts View
×

Precautions

No precautions available at this time.

×
