S39927 12T8/LED/36-835/BP/SE-DE

S39927

12T8/LED/36-835/BP/SE-DE

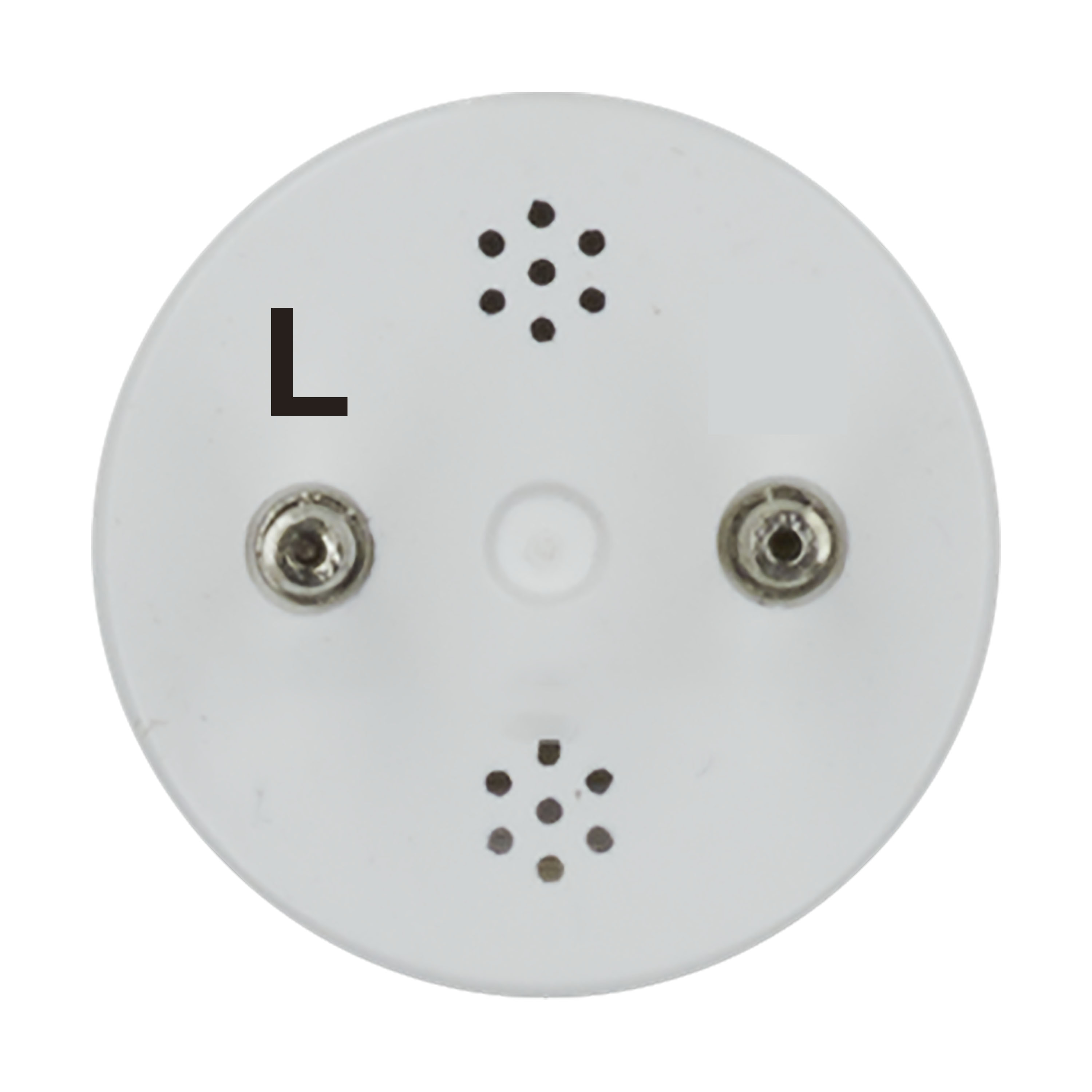

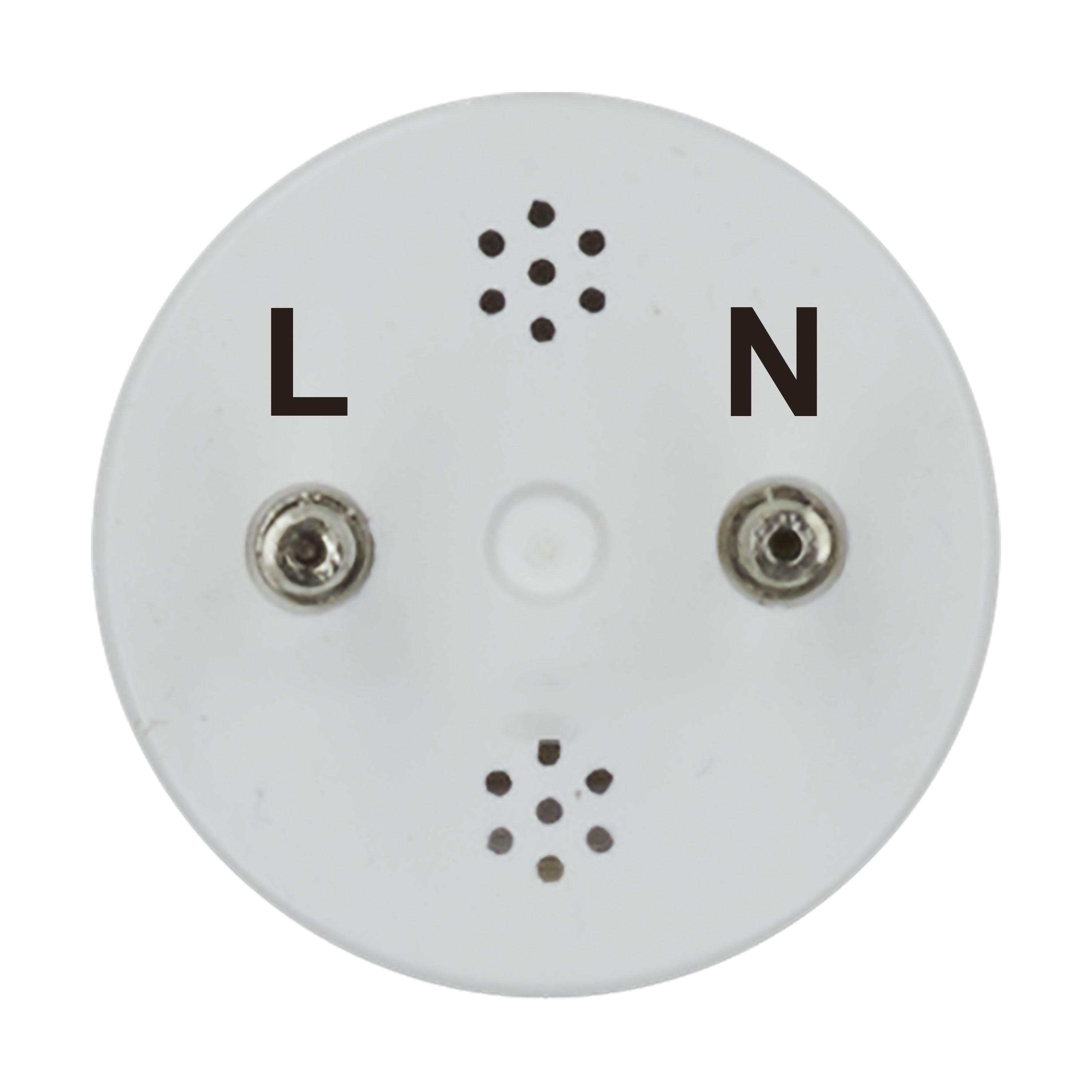

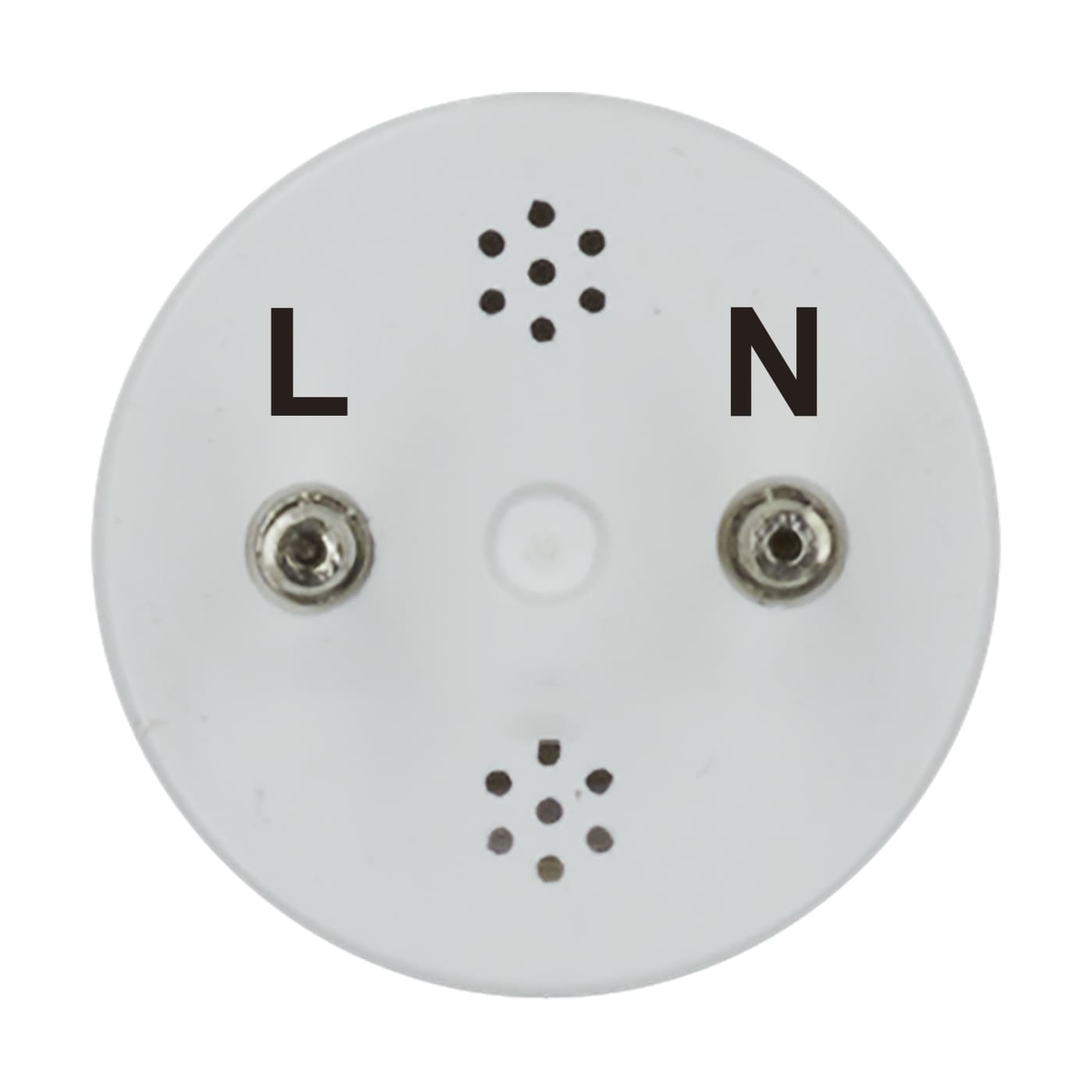

12 Watt T8 LED; 3Ft; 3500K; Medium Bi Pin base; 50000 Average rated hours; 1400 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

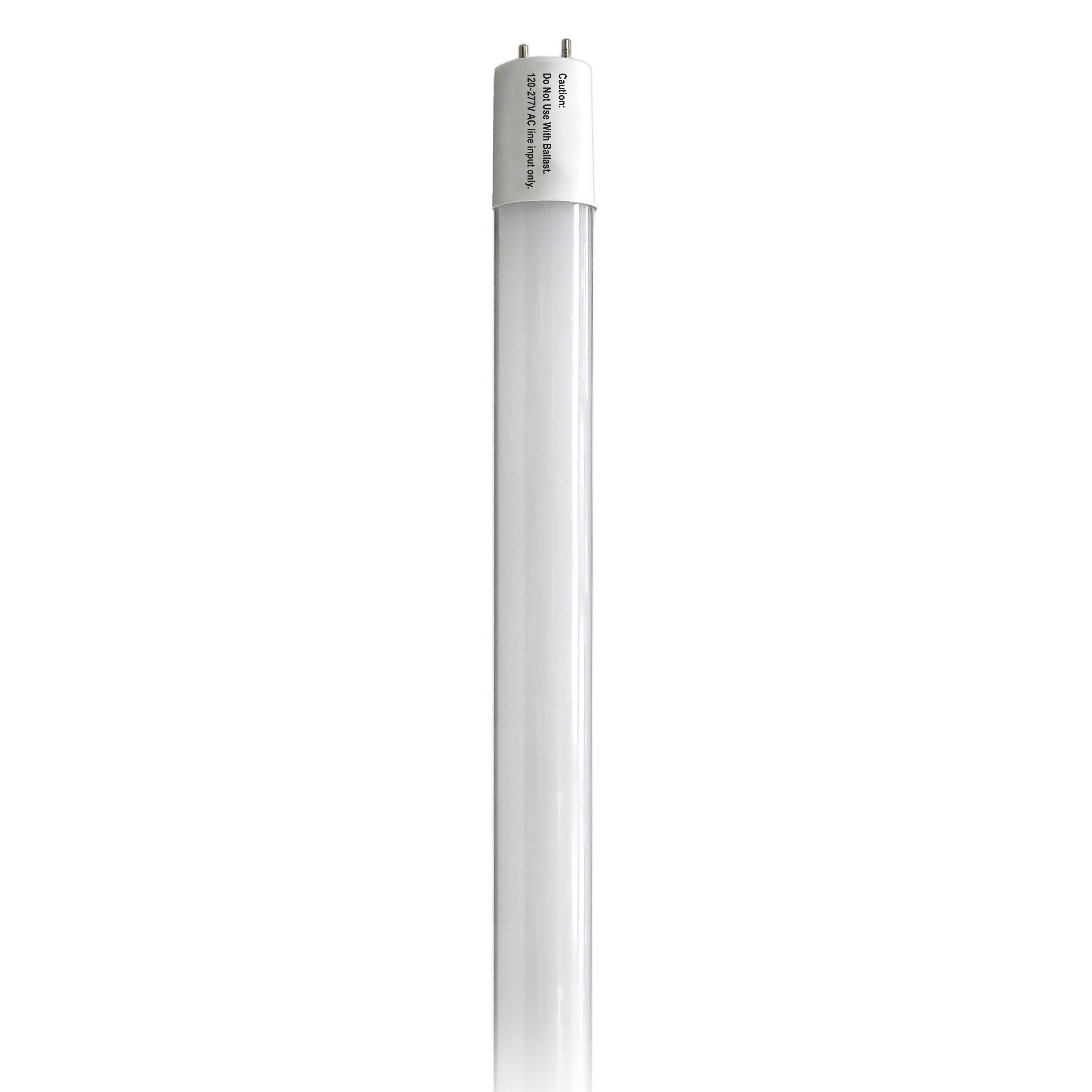

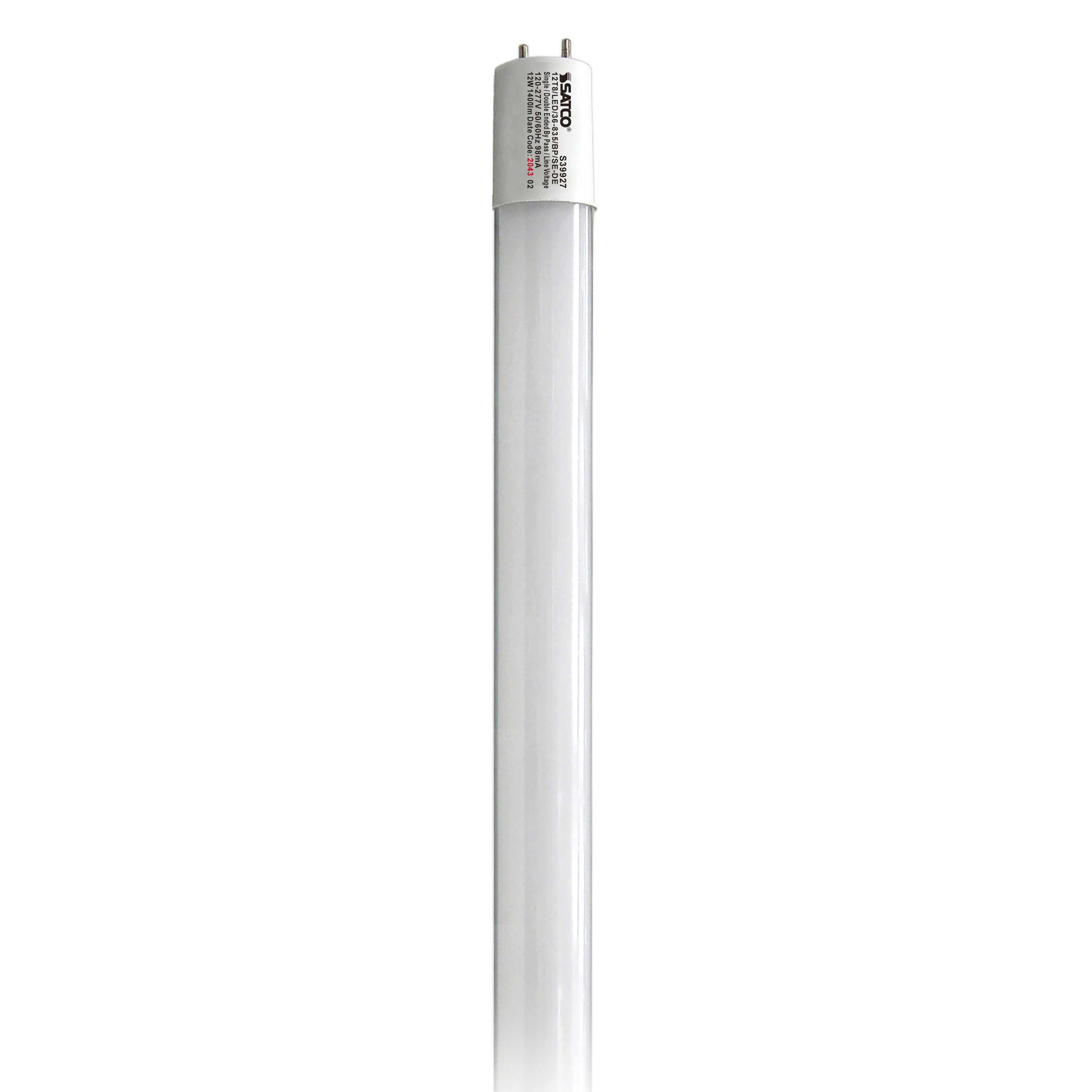

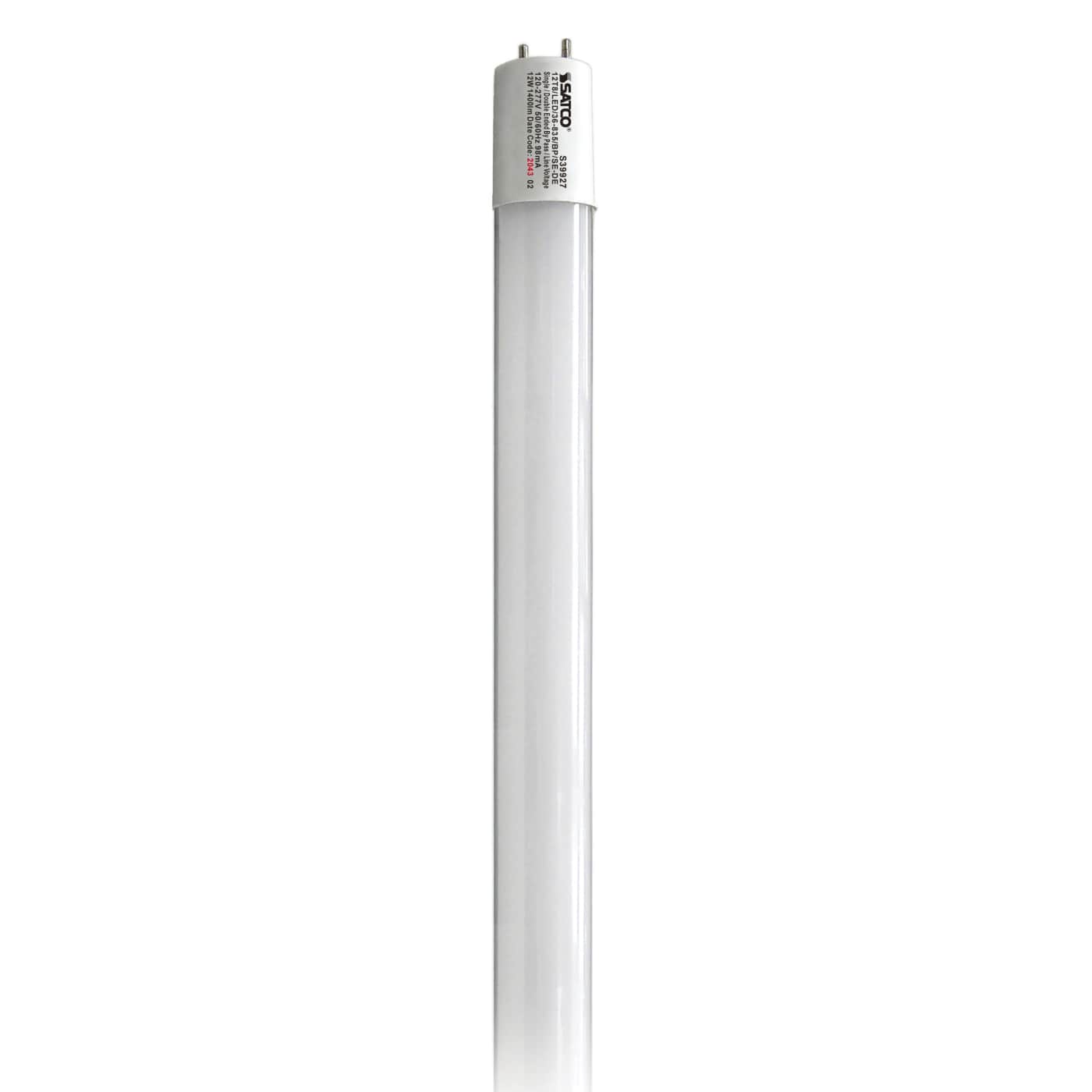

SATCO|NUVO's 12-watt LED T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. Versatile and functional, this lamp delivers 50,000 hours of neutral white light.

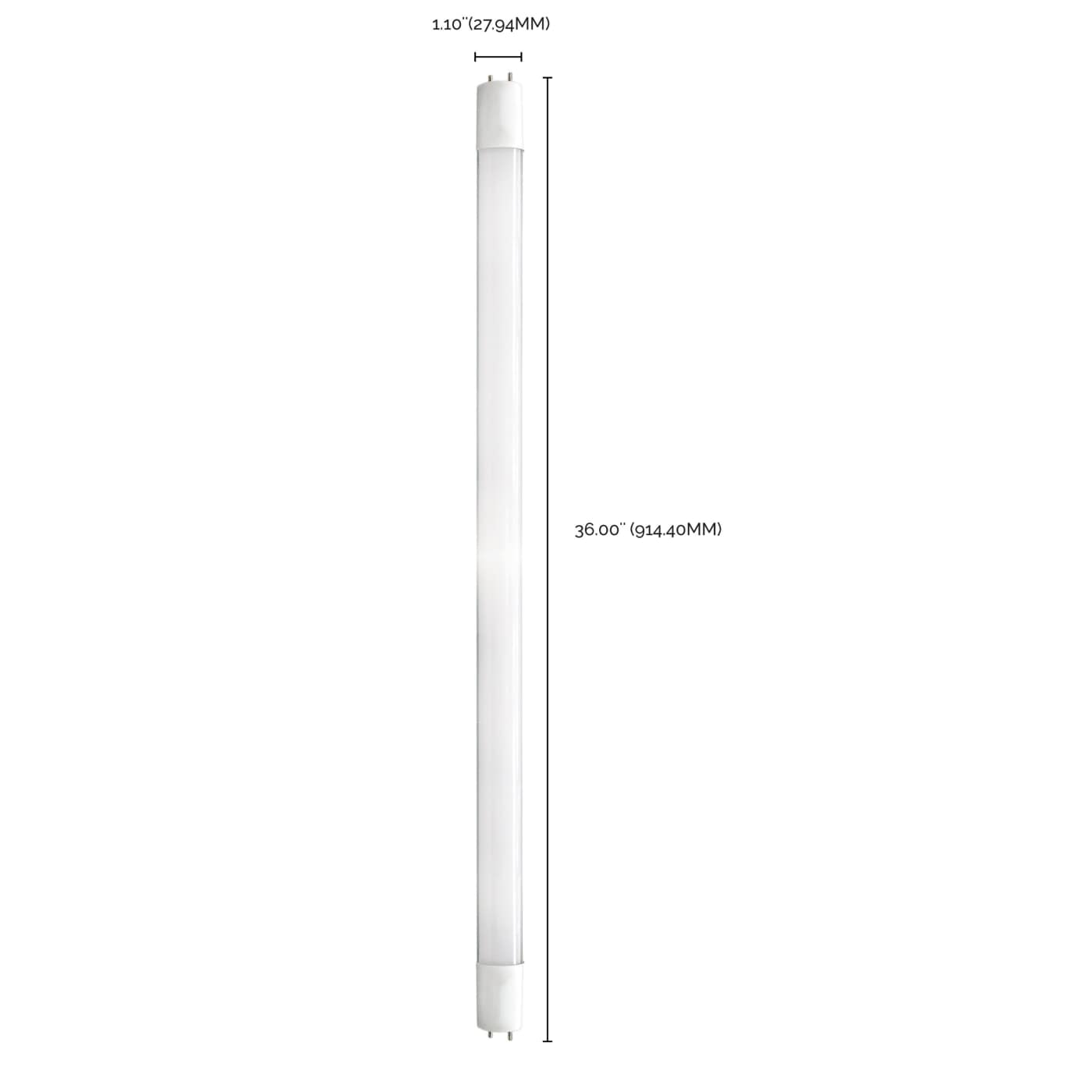

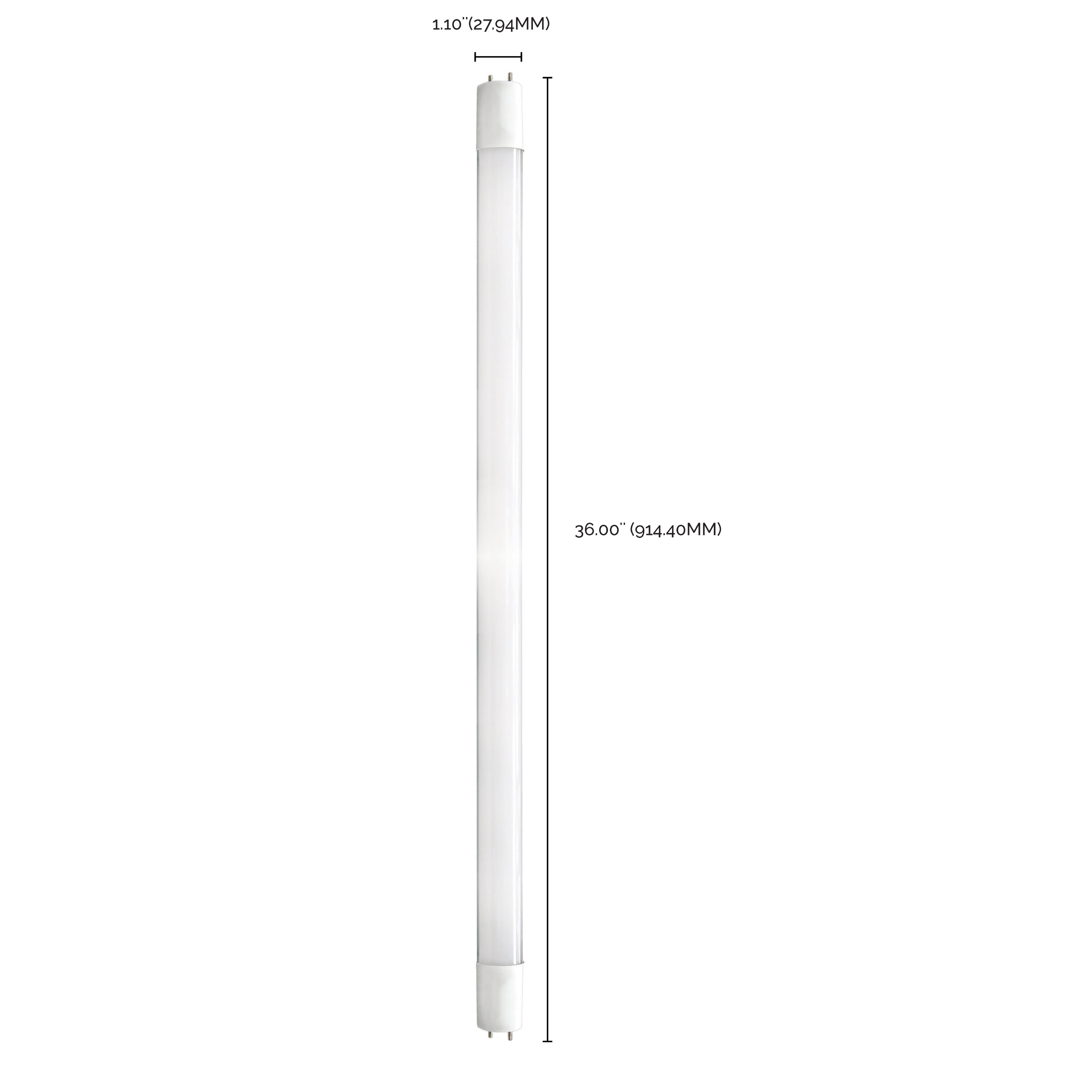

  • MOL: 35.78 inches, MOD: 1.10 inches
  • Gloss White Finish
  • Medium Bi Pin Base
  • 3500K Neutral White Light
  • Rated for 50,000 hours
  • 1400 lumens
  • 210 degree beam spread
  • FCC and RoHS compliant
  • 5-year limited warranty
Lights

S39927

12T8/LED/36-835/BP/SE-DE

12 Watt T8 LED; 3Ft; 3500K; Medium Bi Pin base; 50000 Average rated hours; 1400 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

SATCO|NUVO's 12-watt LED T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 210-degree beam spread and high lumens count for superior illumination. Versatile and functional, this lamp delivers 50,000 hours of neutral white light.
  • MOL: 35.78 inches, MOD: 1.10 inches
  • Gloss White Finish
  • Medium Bi Pin Base
  • 3500K Neutral White Light
  • Rated for 50,000 hours
  • 1400 lumens
  • 210 degree beam spread
  • FCC and RoHS compliant
  • 5-year limited warranty

Specifications

General
StatusActive
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent25W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36
FinishGloss White
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1400L
Beam Spread210
Hours Rated50000
Product CategoryT8
Lamp TypeT8
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent25W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens1400L
Beam Spread210
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL35.78
MOD1.1
Nominal Length36
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
MaterialGlass
Lens FinishGloss White
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.33
Additional Information
Additional InfoEquivalent CCT selectable option available in S11765
Tube Guard UseApproved for use with tube guards
Specification NoteBuilt-in shock resistant circuit - (not hot until both ends are installed)
Warranty5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLGWY2SBB1MN
CA T20 / T24 RationaleExempt - Base Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923399275
Each Quantity1
Each Length (in.)36.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.45
Each Cube (CuFt.)0.0252
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923399272
Case Quantity25
Case Length (in.)37.00
Case Width (in.)6.00
Case Height (in.)6.00
Case Weight (lb.)11.33
Case Cube (CuFt.)0.7708
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
