| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Aluminum / Polycarbonate (PC) |
| Fixture Type | LED HID |
| Status | Active |
| Style | Contemporary |
| Most Current Generation | S49393R1 |
| Surge Protection | Built-in surge protection - 3KV |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Additional Info | Safety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions) |
| Amps | 0.450-0.162A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |

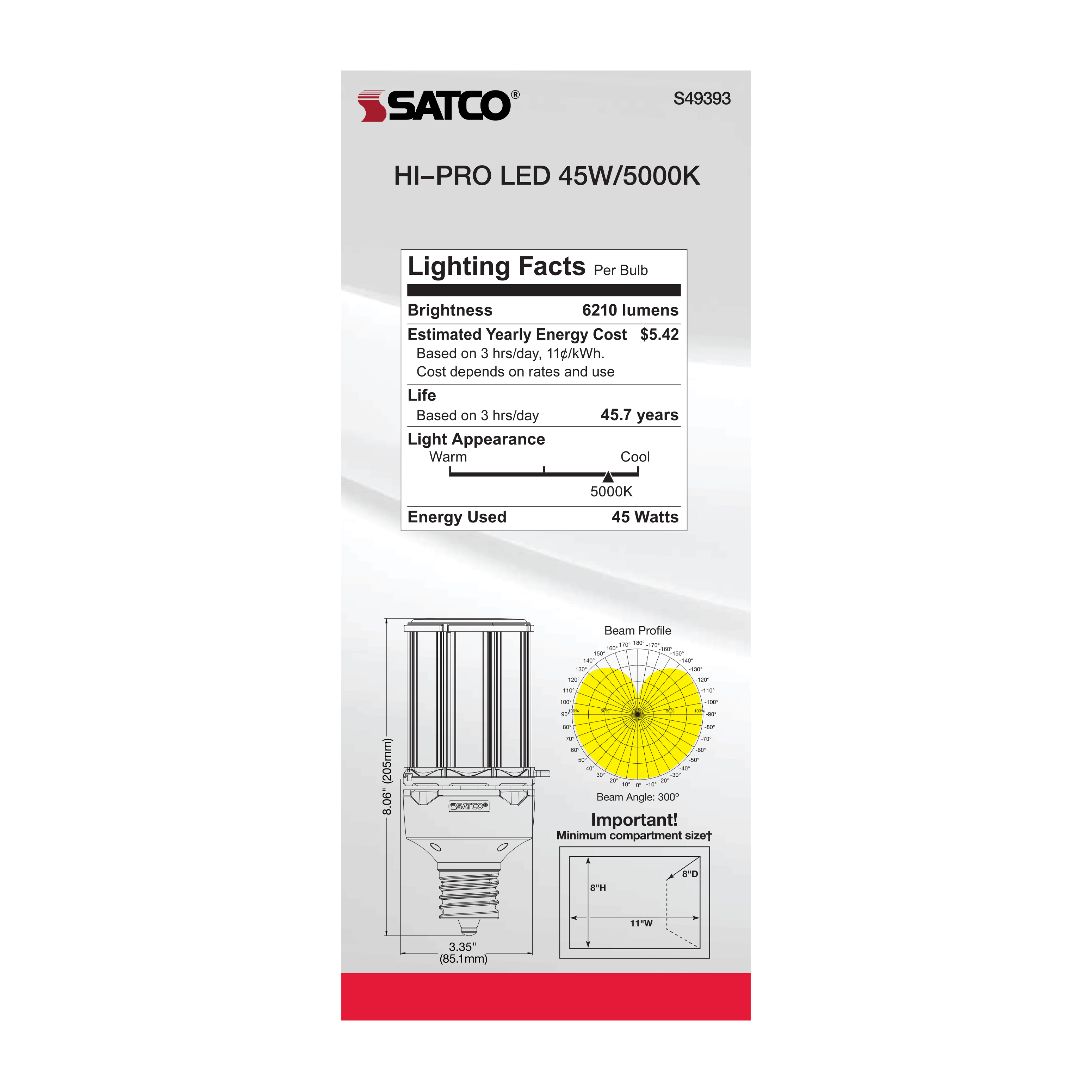

| Minimum Compartment Size | Length: 8 in. Width: 8 in. Height: 11 in. |
| Operating Position | Universal |
| Photo Cell | No |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 300W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 35000 |
| Beam Angle (degree) | 300 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -25C (-13F) to +55C (+131F) |
| HID Equivalent | 175W |

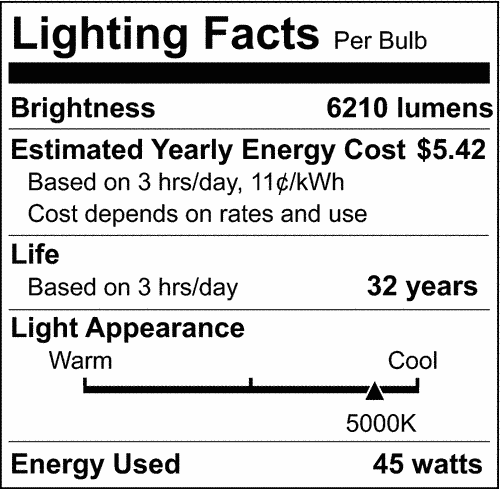

| Lumens | 6210L |
| Volts | 120V-277V |
| Watts | 45W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | EX39 |

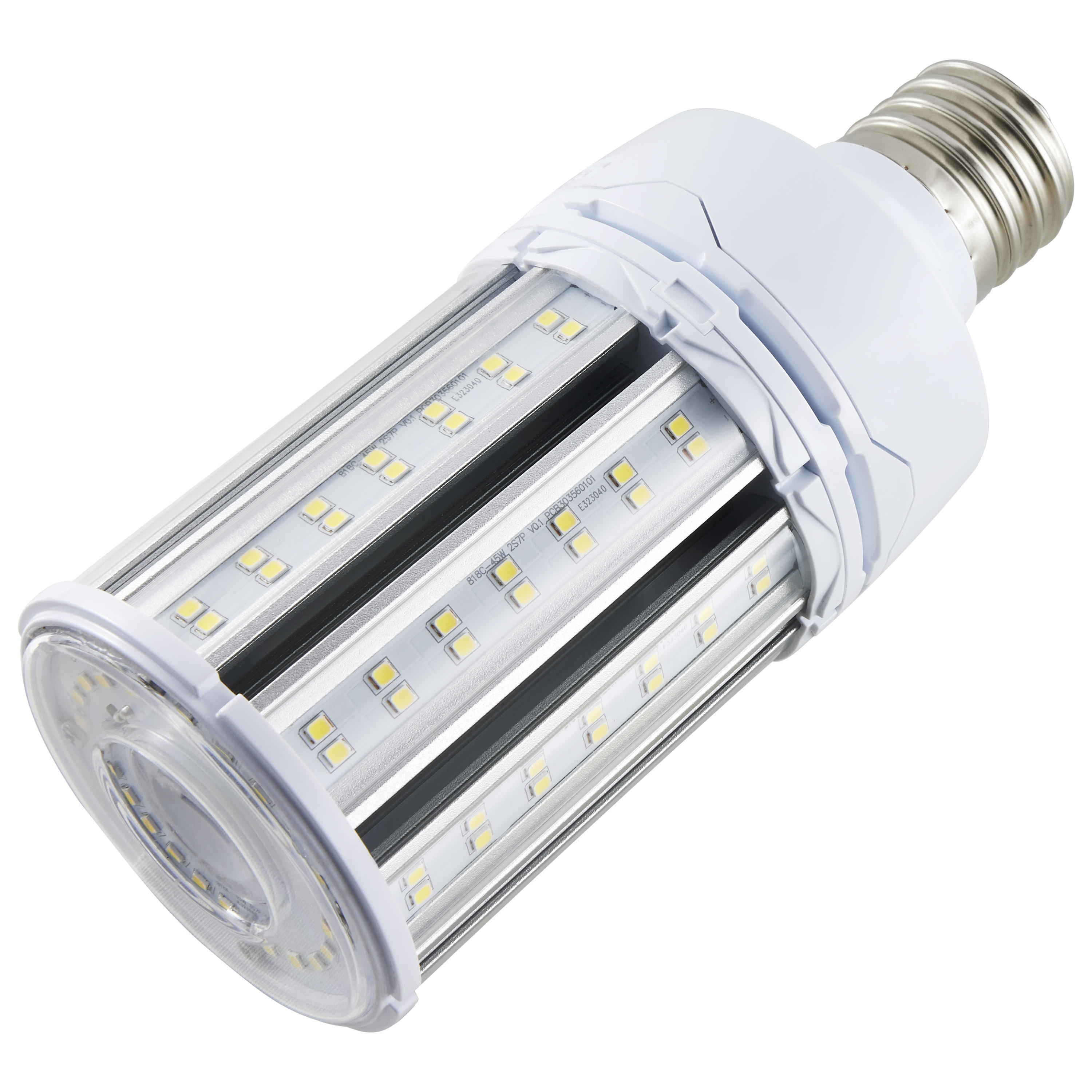

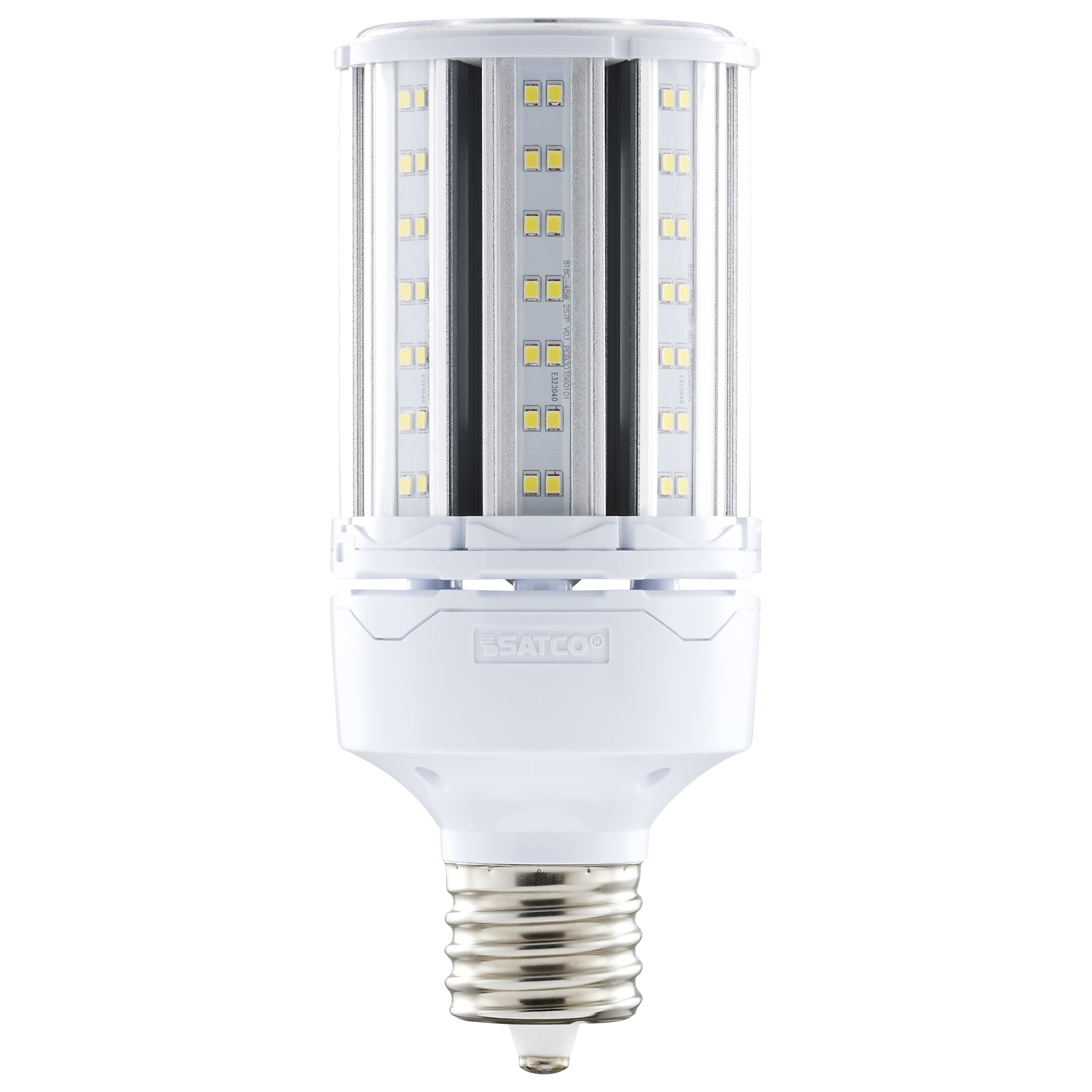

| Lamp Type | Corncob |
| MOD Lamps | 3.35 |
| MOL | 8.06 |
| Warranty | 3-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| IP Rating | IP65 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923493935 |
|---|---|
| Case Cube | 1.1538 |
| Case Height | 9.84 |
| Case Length | 16.34 |
| Case Quantity | 12 |
| Case UPC | 10045923493932 |
| Case Weight | 21.38 |
| Case Width | 12.4 |
| EA Cube | 0.0814 |
| EA Height | 9.06 |
| EA Length | 3.94 |
| EA Quantity | 1 |
| EA Weight | 1.78 |
| EA Width | 3.94 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Length | 8.06 |
| Web Width | 3.35 |
