| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Aluminum / Polycarbonate (PC) |
| Fixture Type | LED HID |
| Includes | Safety Cable |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 4KV |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Additional Info | Safety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions) |
| Amps | 1.200-0.433A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |

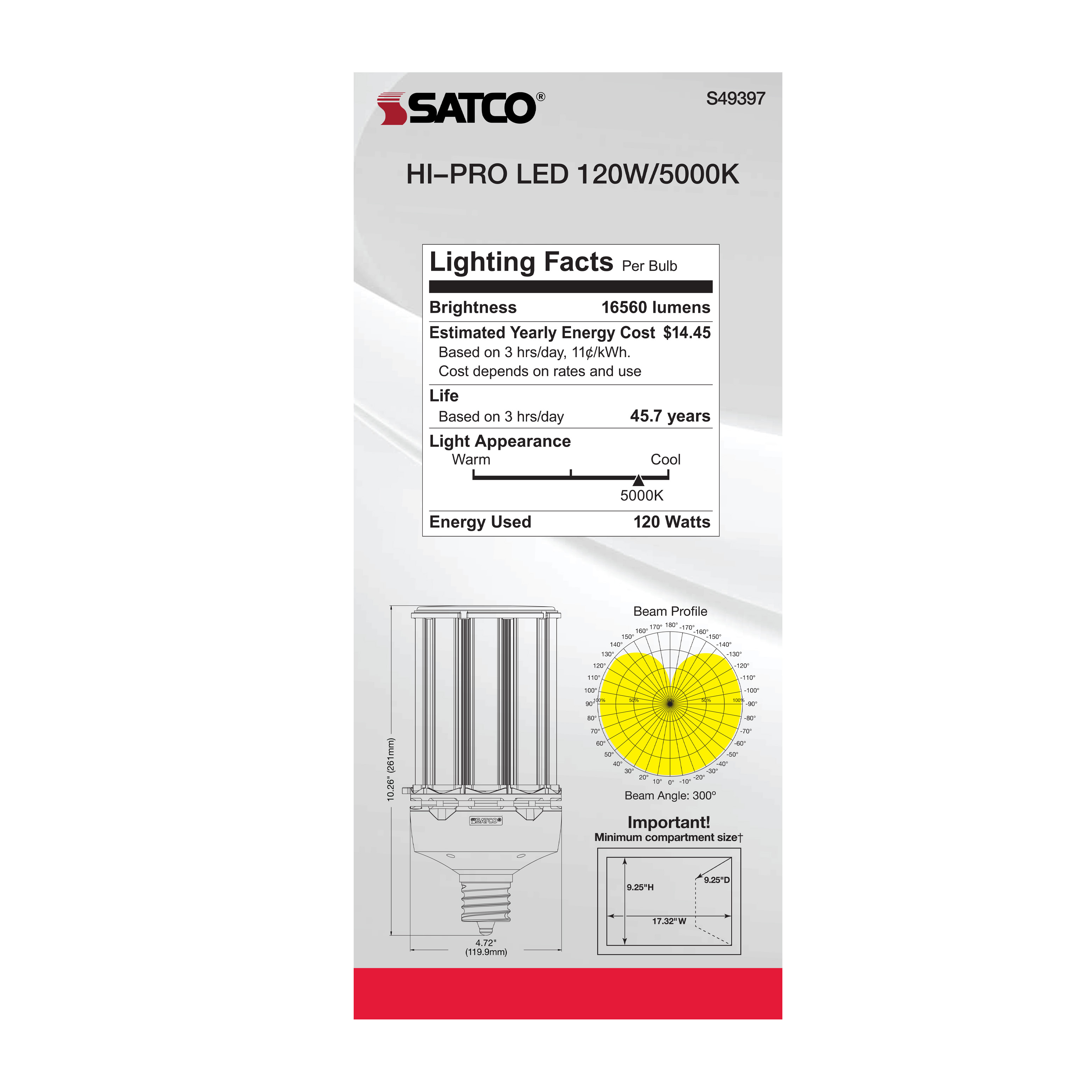

| Minimum Compartment Size | Length: 9.25 in. Width: 9.25 in. Height: 17.32 in. |
| Operating Position | Base Up or Down |
| Photo Cell | No |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 750W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 35000 |
| Beam Angle (degree) | 300 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +50C (+122F) |
| HID Equivalent | 600W |
| Lumens | 16560L |
| Volts | 120V-277V |
| Watts | 120W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | EX39 |

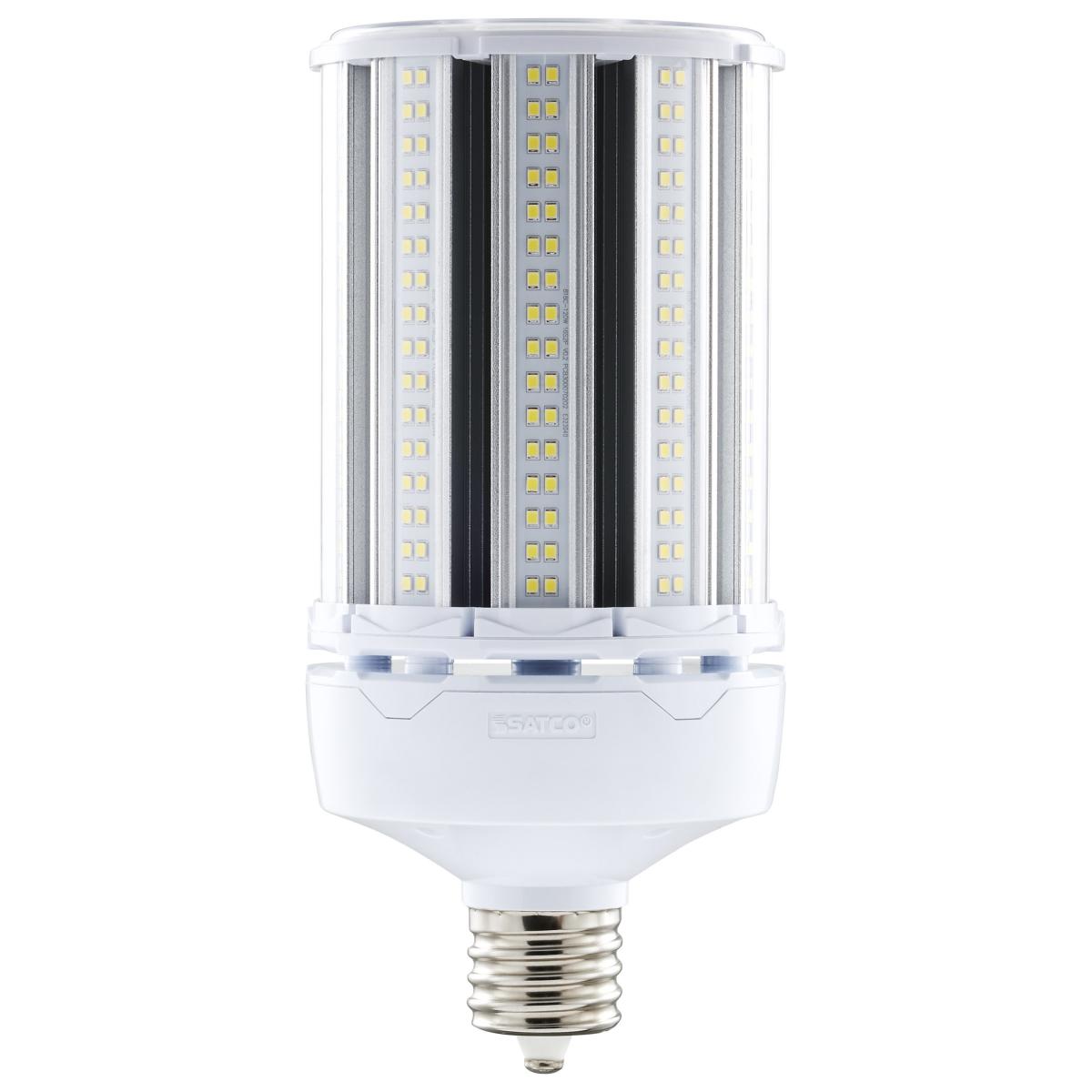

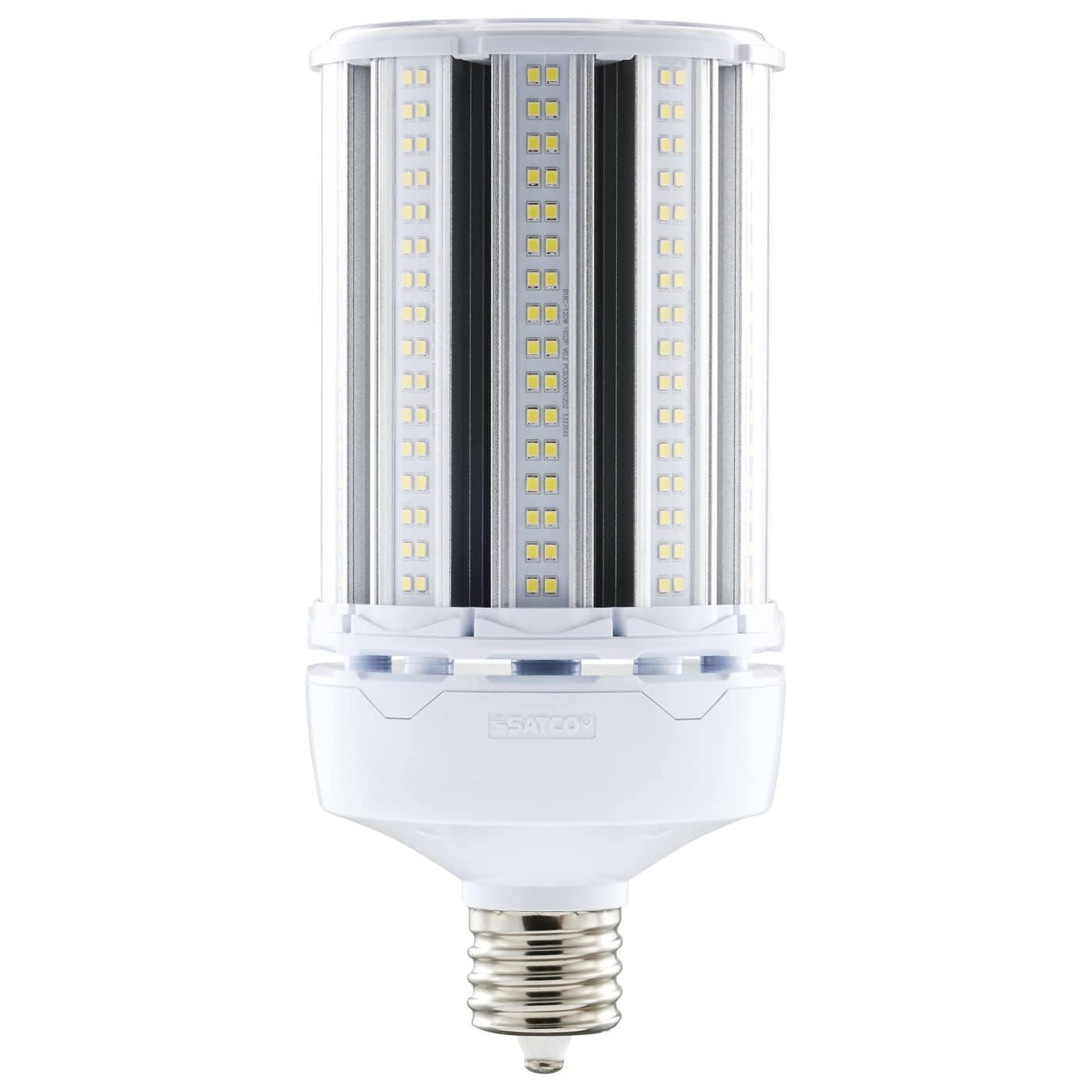

| Lamp Type | Corncob |
| MOD Lamps | 4.72 |
| MOL | 10.26 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923493973 |
|---|---|
| Case Cube | 0.9121 |
| Case Height | 12.52 |
| Case Length | 11.22 |
| Case Quantity | 4 |
| Case UPC | 10045923493970 |
| Case Weight | 16.31 |
| Case Width | 11.22 |
| EA Cube | 0.1914 |
| EA Height | 11.73 |
| EA Length | 5.31 |
| EA Quantity | 1 |
| EA Weight | 4.01 |
| EA Width | 5.31 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Length | 10.26 |
| Web Width | 4.72 |
