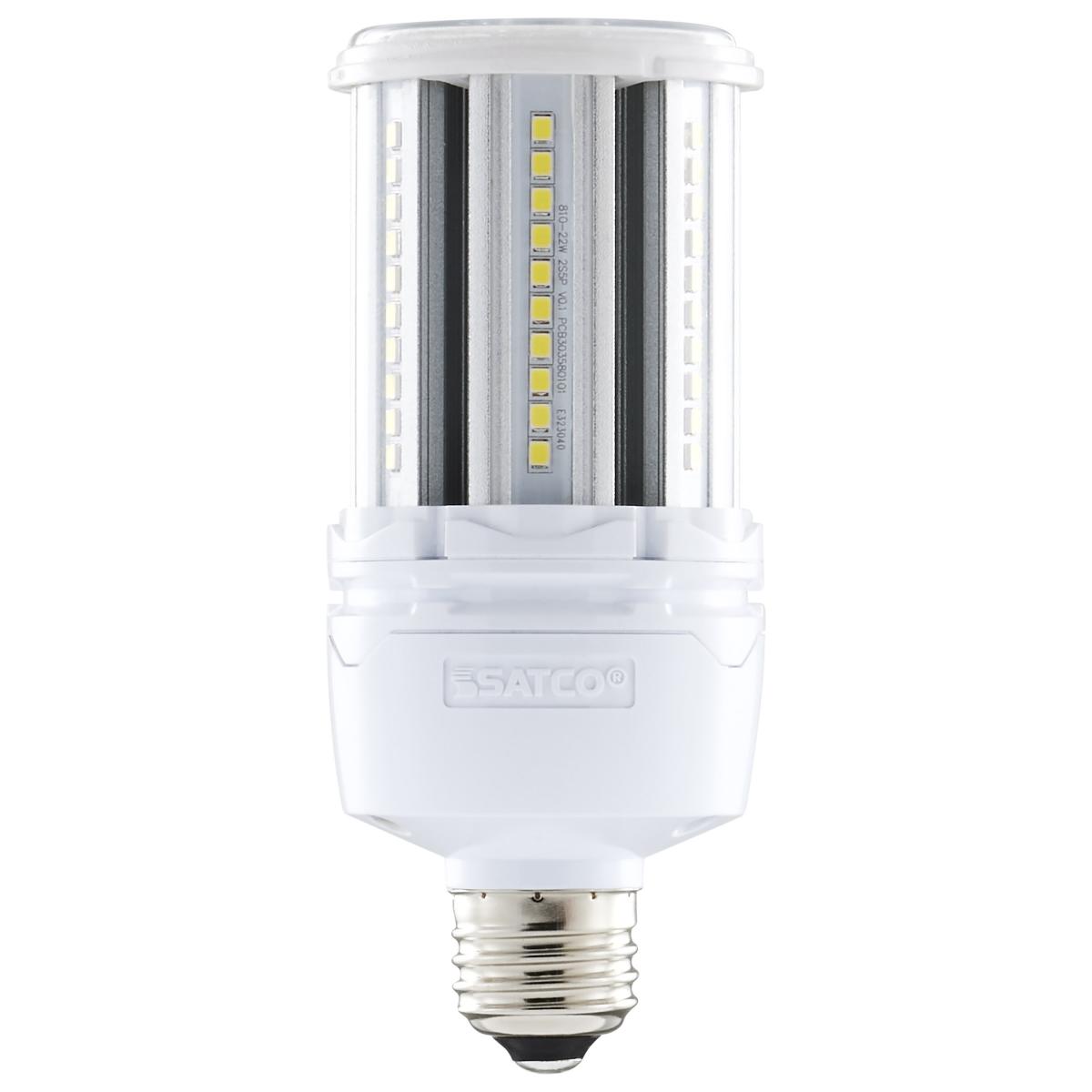

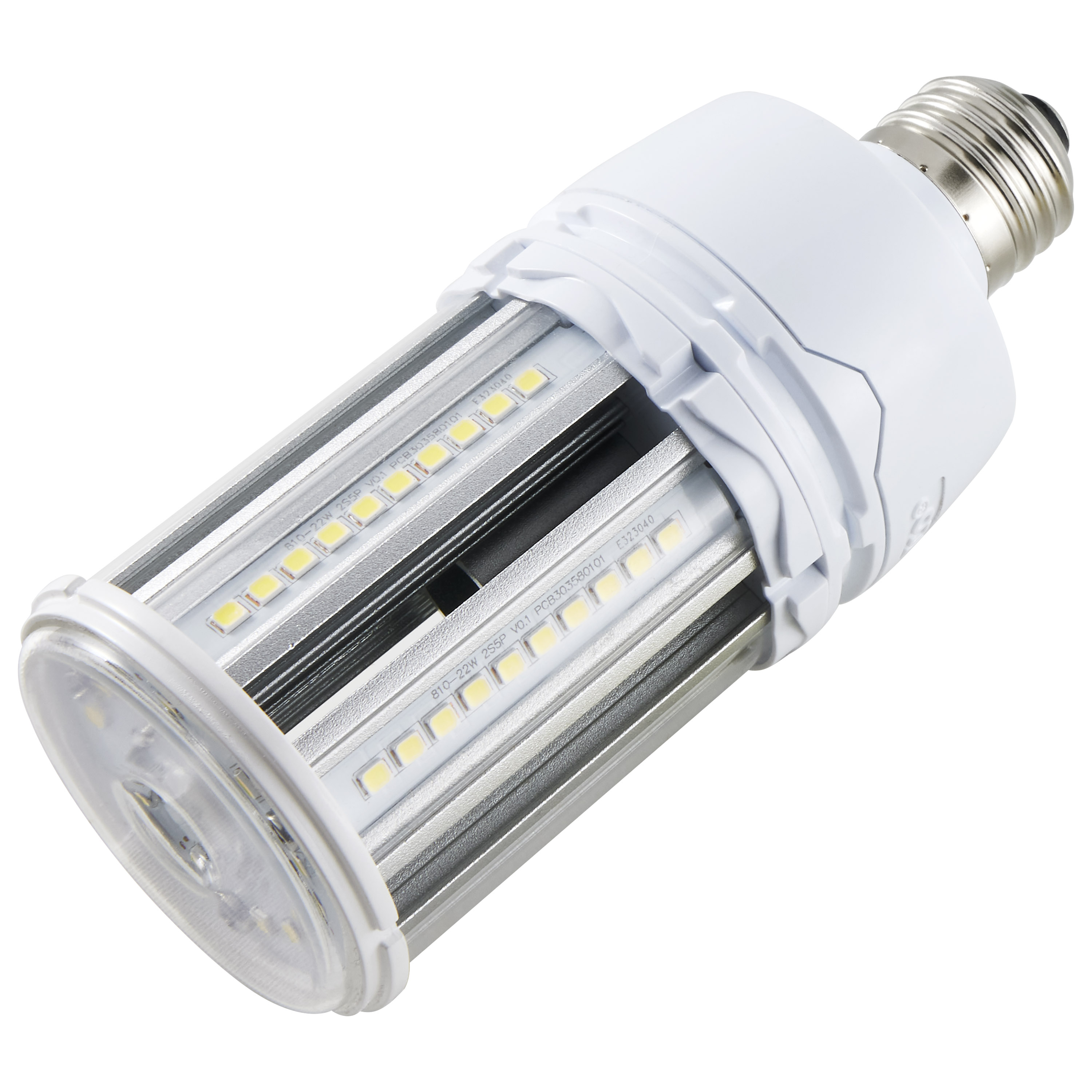

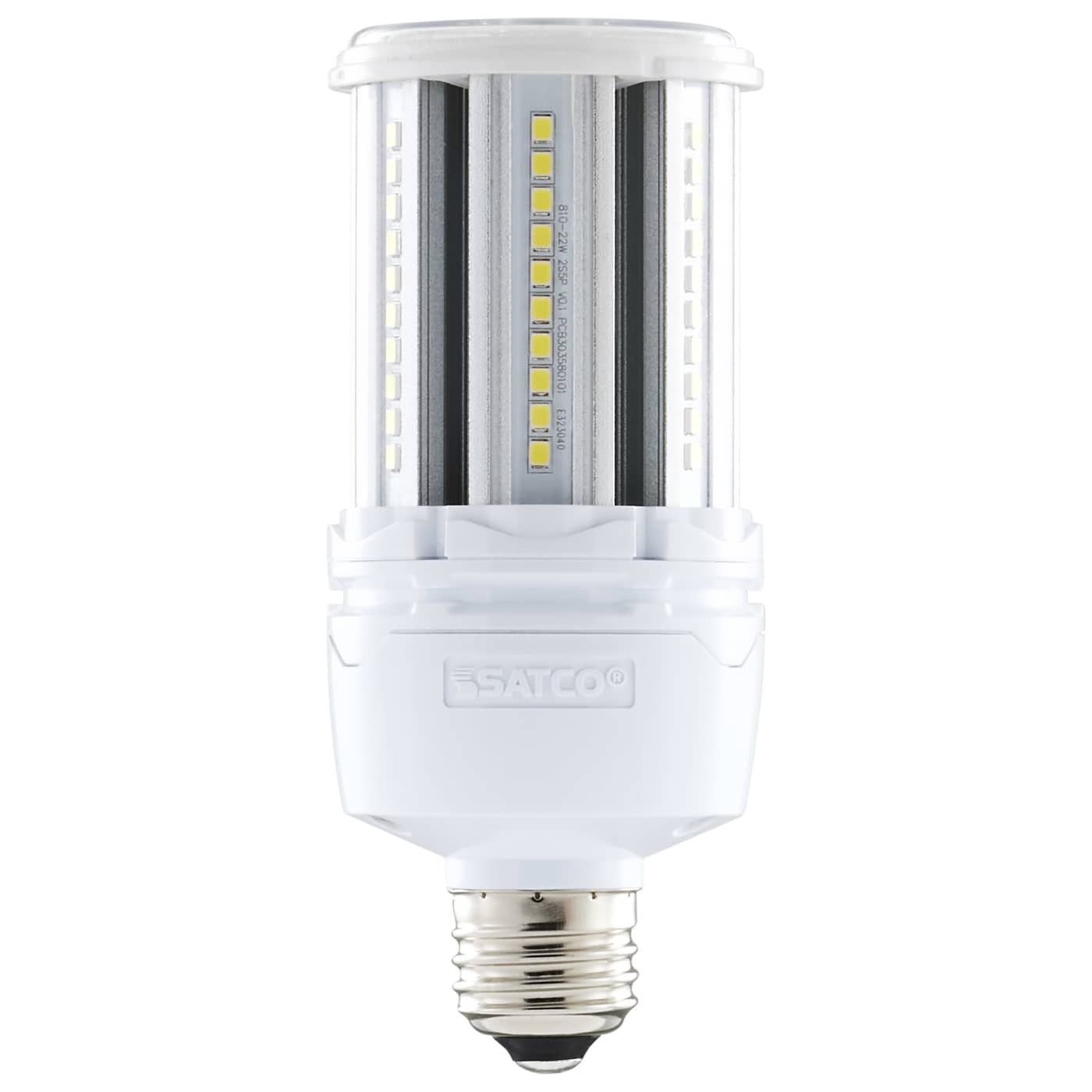

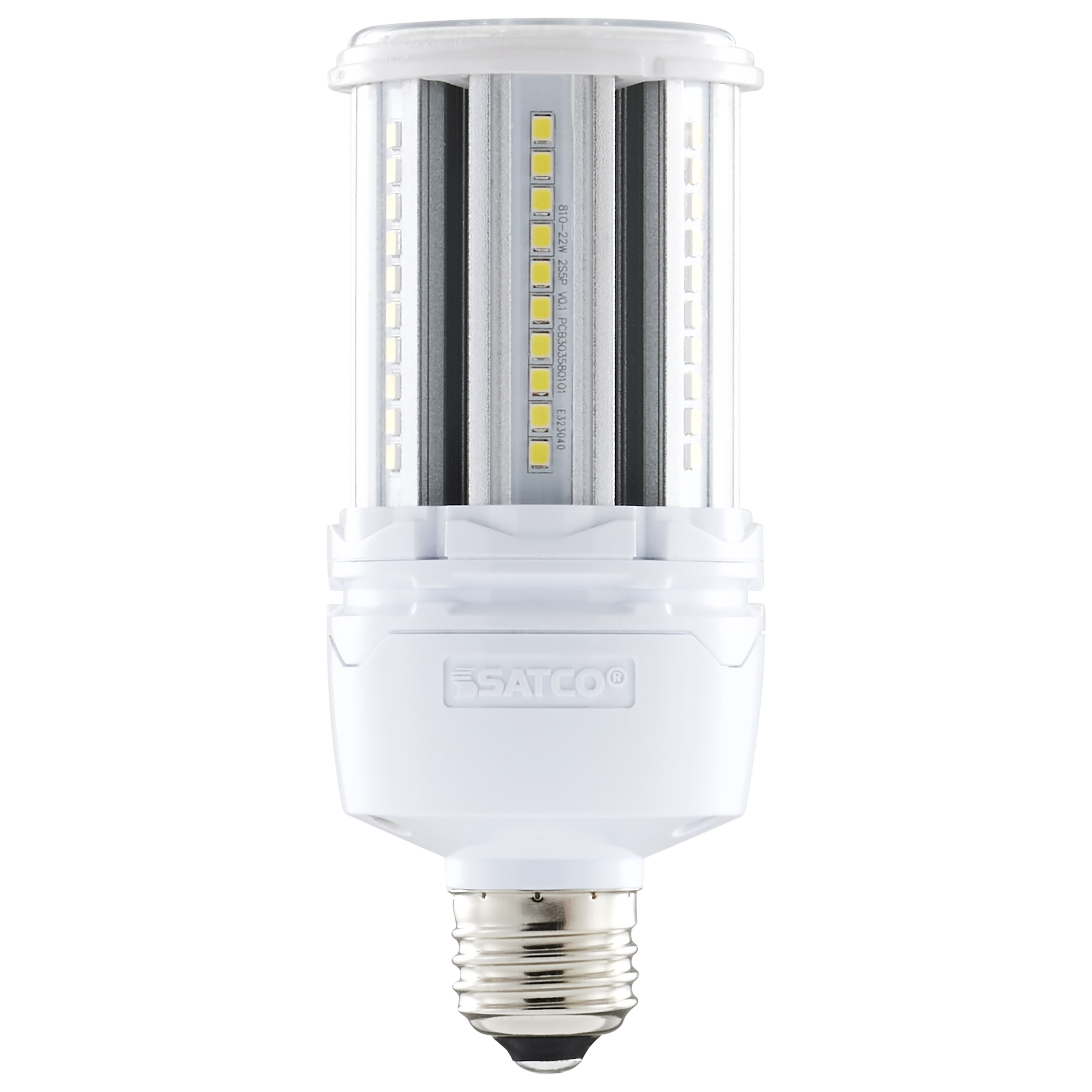

S49671

22W/LED/HP/827/100-277V/E26

  • 22 Watt LED HID Replacement
  • 80 CRI
  • 2700K
  • Type B
  • Ballast Bypass
  • Medium base
  • Economy Hi-Pro
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^35k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

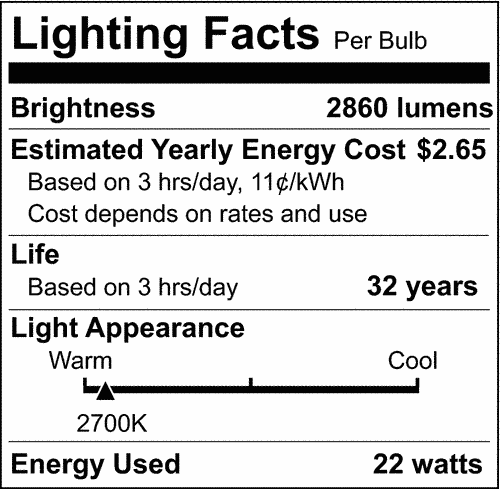

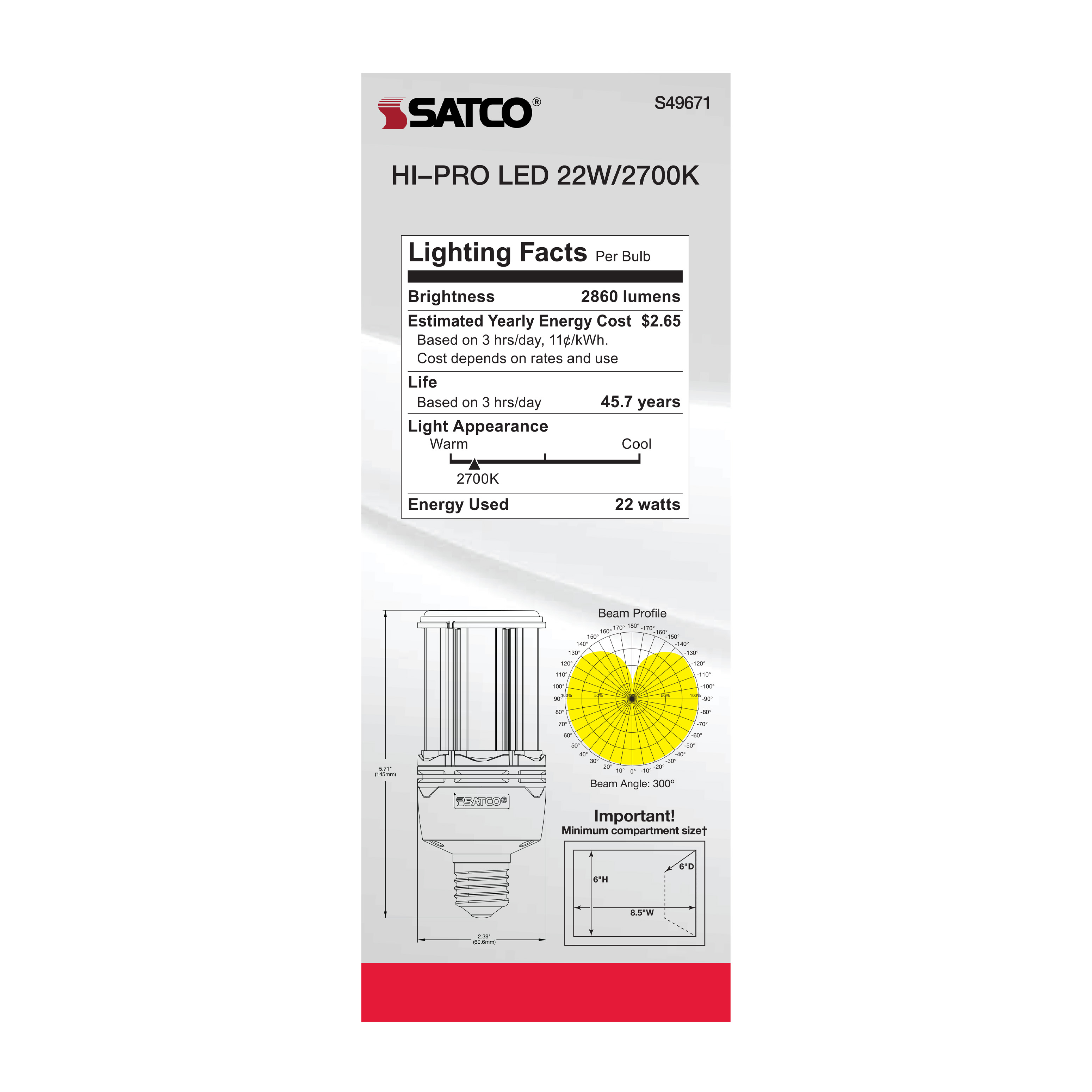

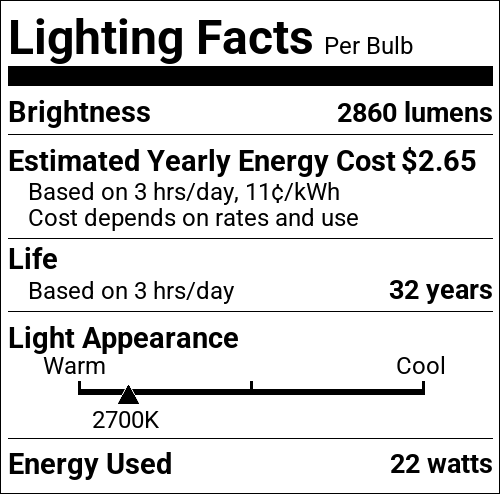

S49671 SpecificationsS49671 Photometrics.iesS49671 Instructions.pdfS49671 Lighting Facts Label
Tools
Lighting Layout Analysis For S49671
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
22 Watt LED HID Replacement; 80 CRI; 2700K; Type B; Ballast Bypass; Medium base; Economy Hi-Pro
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLED HID
StatusActive
StyleContemporary
Most Current GenerationS49671R1
Surge ProtectionBuilt-in surge protection - 2KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoSafety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions)
Amps0.220-0.079A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeLength: 6 in. Width: 6 in. Height: 8.5 in.
Operating PositionUniversal
Photo CellNo
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent150W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated35000
Beam Angle (degree)300
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +55C (+131F)
HID Equivalent100W
Lumens2860L
Volts120V-277V
Watts22W
Physical
Lamp BaseMedium
FinishWHITE
Housing ColorWhite
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps2.39
MOL5.71
Additional Info
Warranty3-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923496714
Case Cube1.2658
Case Height8.98
Case Length19.21
Case Quantity24
Case UPC10045923496711
Case Weight20.28
Case Width12.68
EA Cube0.0347
EA Height7.28
EA Length2.87
EA Quantity1
EA Weight0.85
EA Width2.87
Inner Cube0.5123
Inner Height7.95
Inner Length12.09
Inner Quantity12
Inner UPC20045923496718
Inner Weight9.7
Inner Width9.21
Pack TypeBox
Web Length5.71
Web Width2.39
