S49672

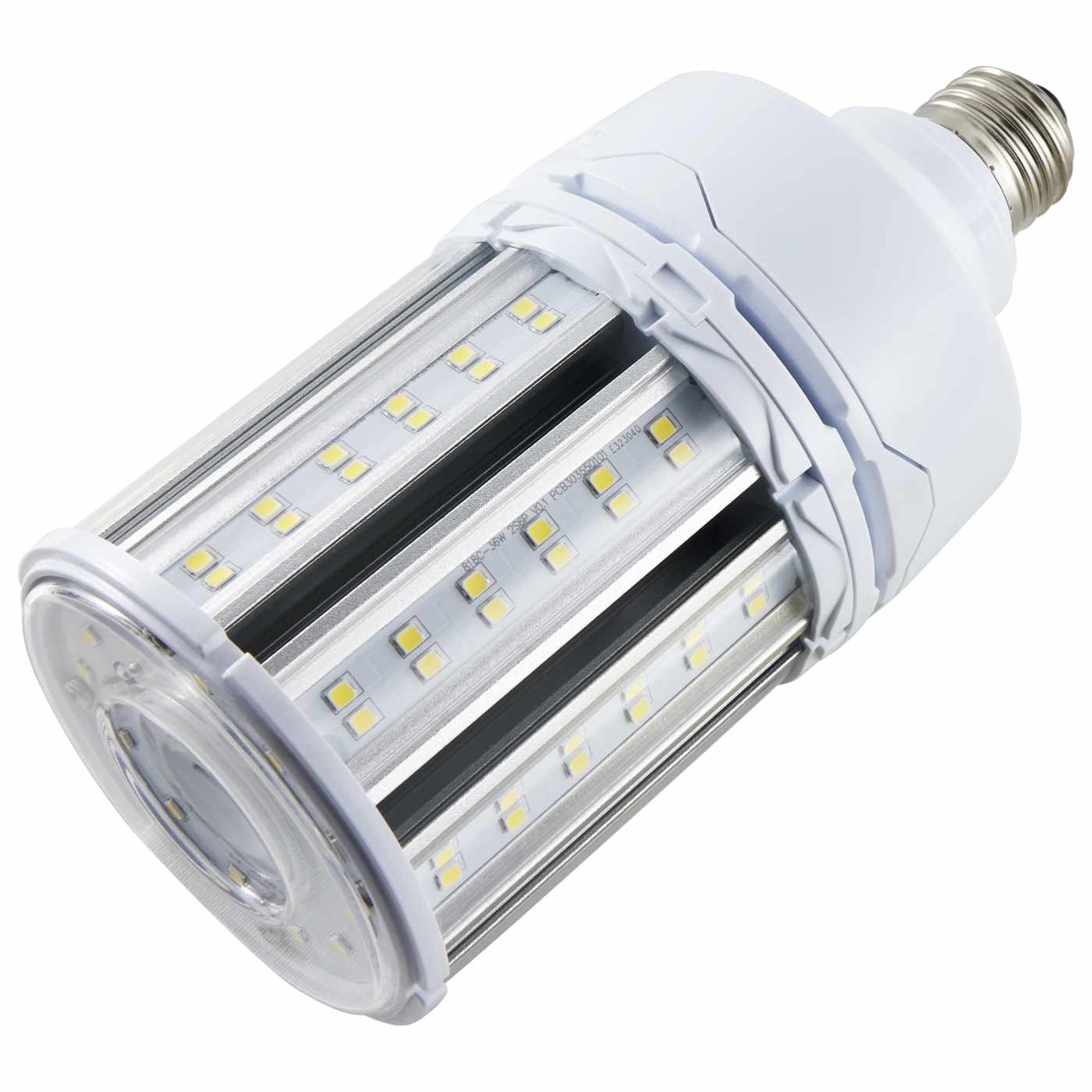

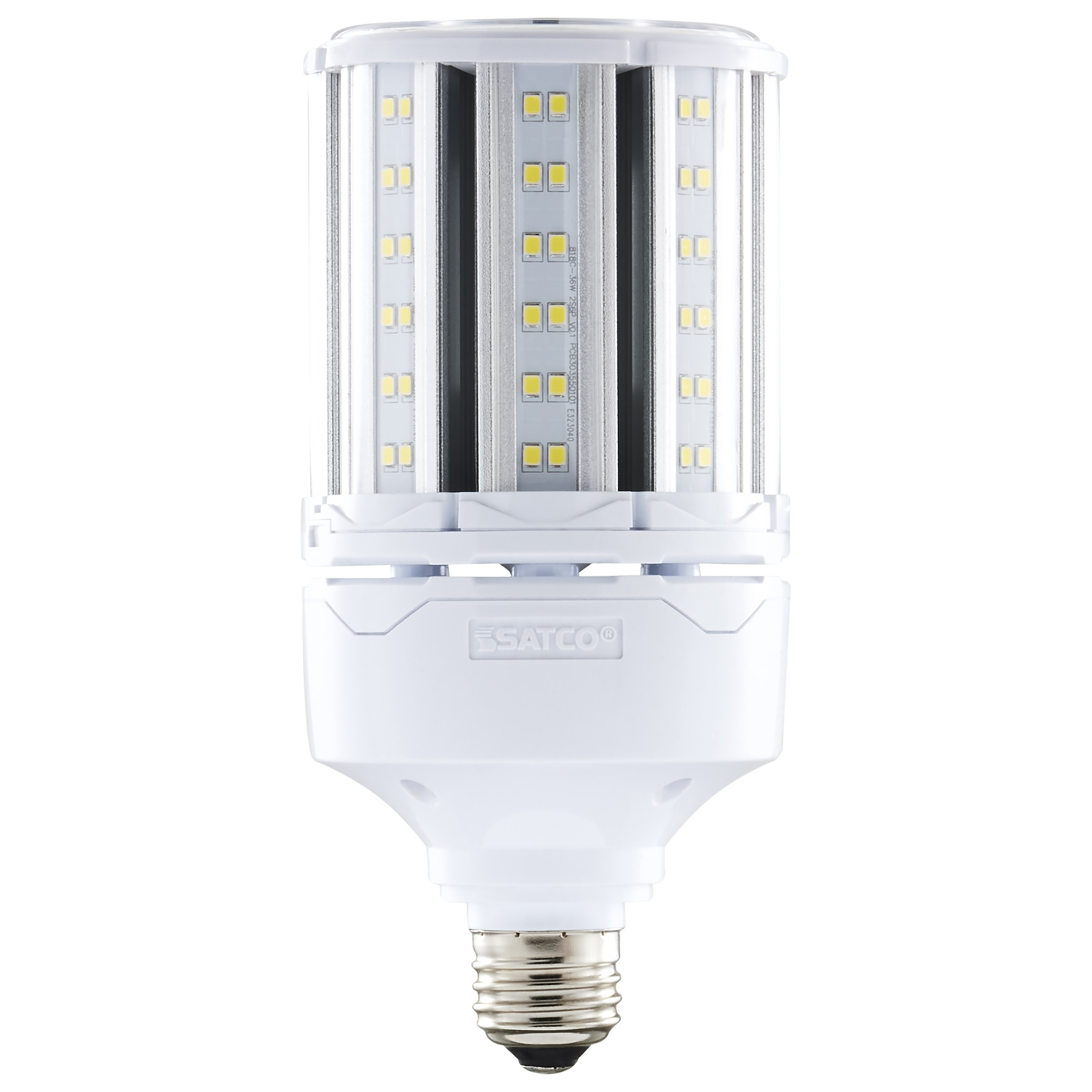

36W/LED/HP/827/100-277V/E26

  • 36 Watt LED HID Replacement
  • 80 CRI
  • 2700K
  • Type B
  • Ballast Bypass
  • Medium base
  • Economy Hi-Pro
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^35k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

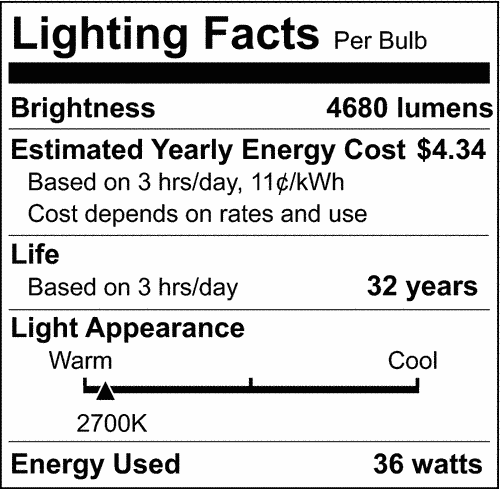

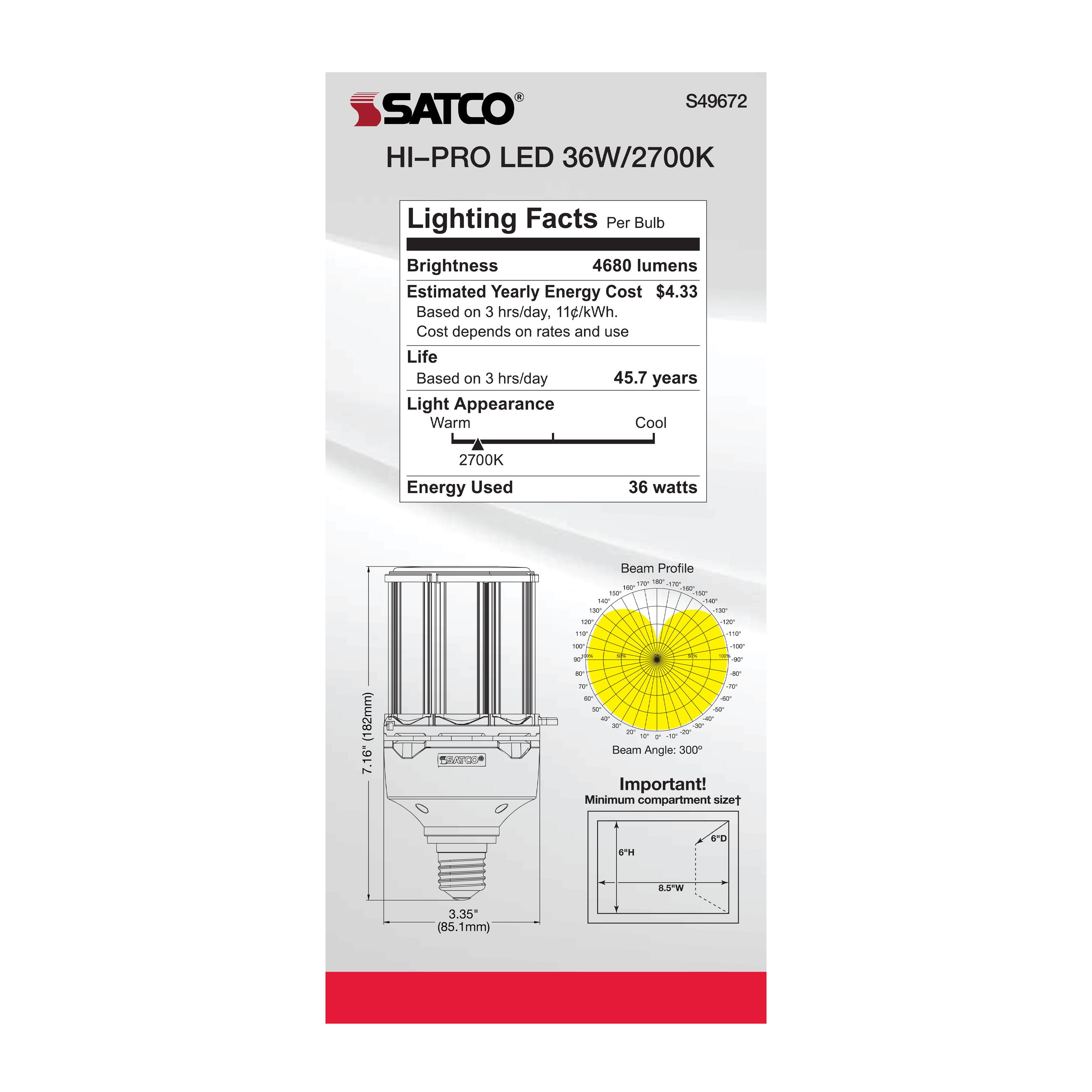

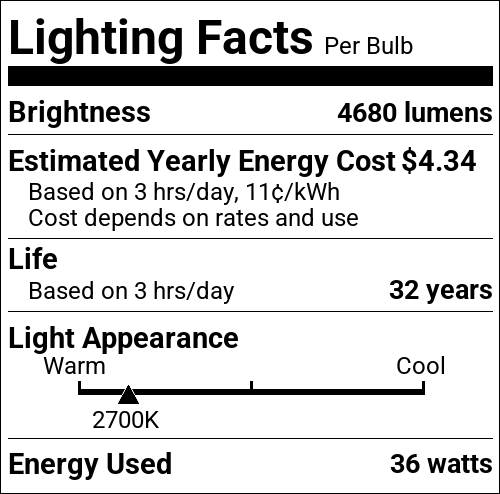

S49672 SpecificationsS49672 Instructions.pdfS49672 Lighting Facts Label
Tools
Lighting Layout Analysis For S49672
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
36 Watt LED HID Replacement; 80 CRI; 2700K; Type B; Ballast Bypass; Medium base; Economy Hi-Pro
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLED HID
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 3KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoSafety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions)
Amps0.360-0.130A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeLength: 6 in. Width: 6 in. Height: 8.5 in.
Operating PositionUniversal
Photo CellNo
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated35000
Beam Angle (degree)300
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +55C (+131F)
HID Equivalent150W
Lumens4680L
Volts120V-277V
Watts36W
Physical
Lamp BaseMedium
FinishWHITE
Housing ColorWhite
ANSI BaseE26

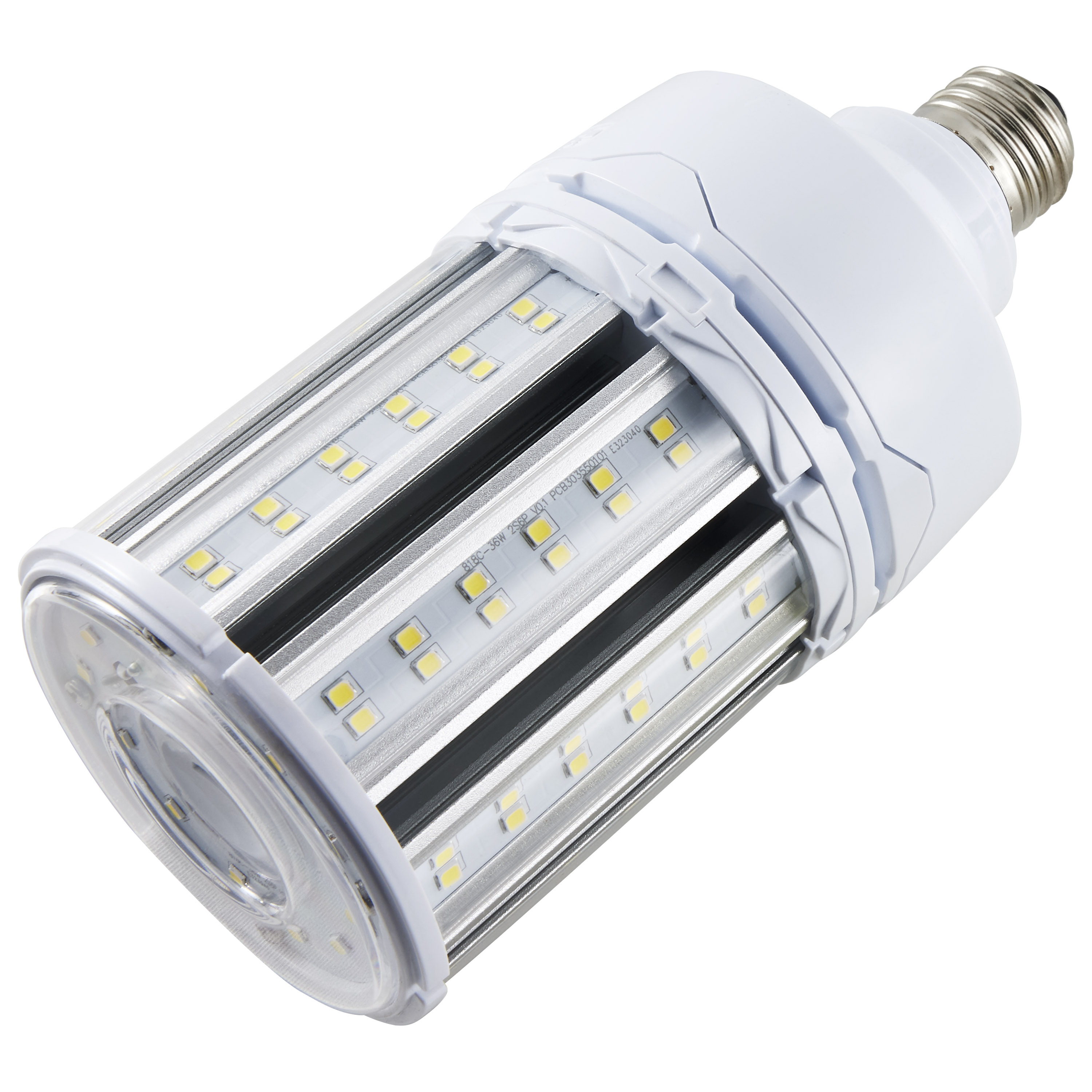

Lamp TypeCorncob
MOD Lamps3.35
MOL7.16
Additional Info
Warranty3-Years

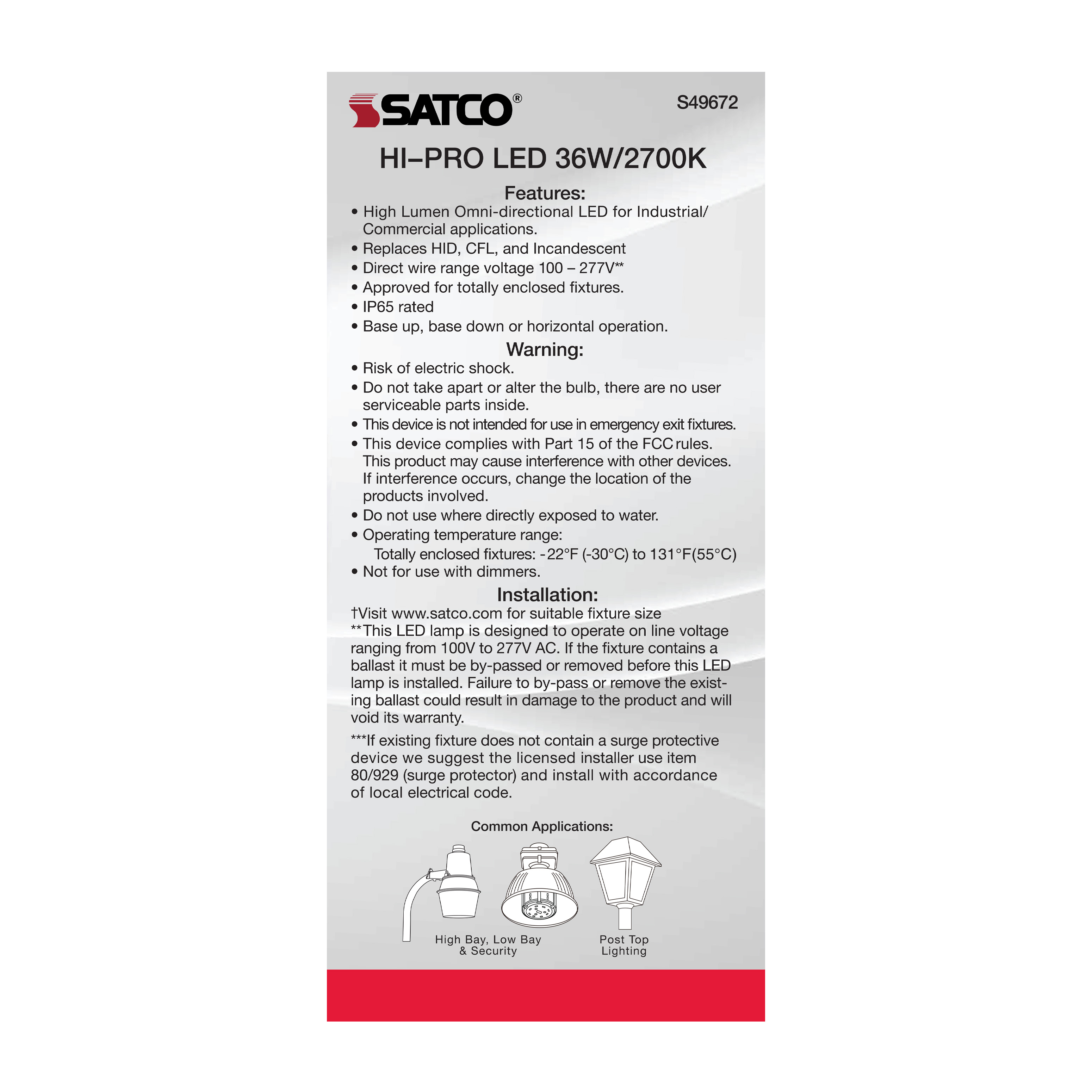

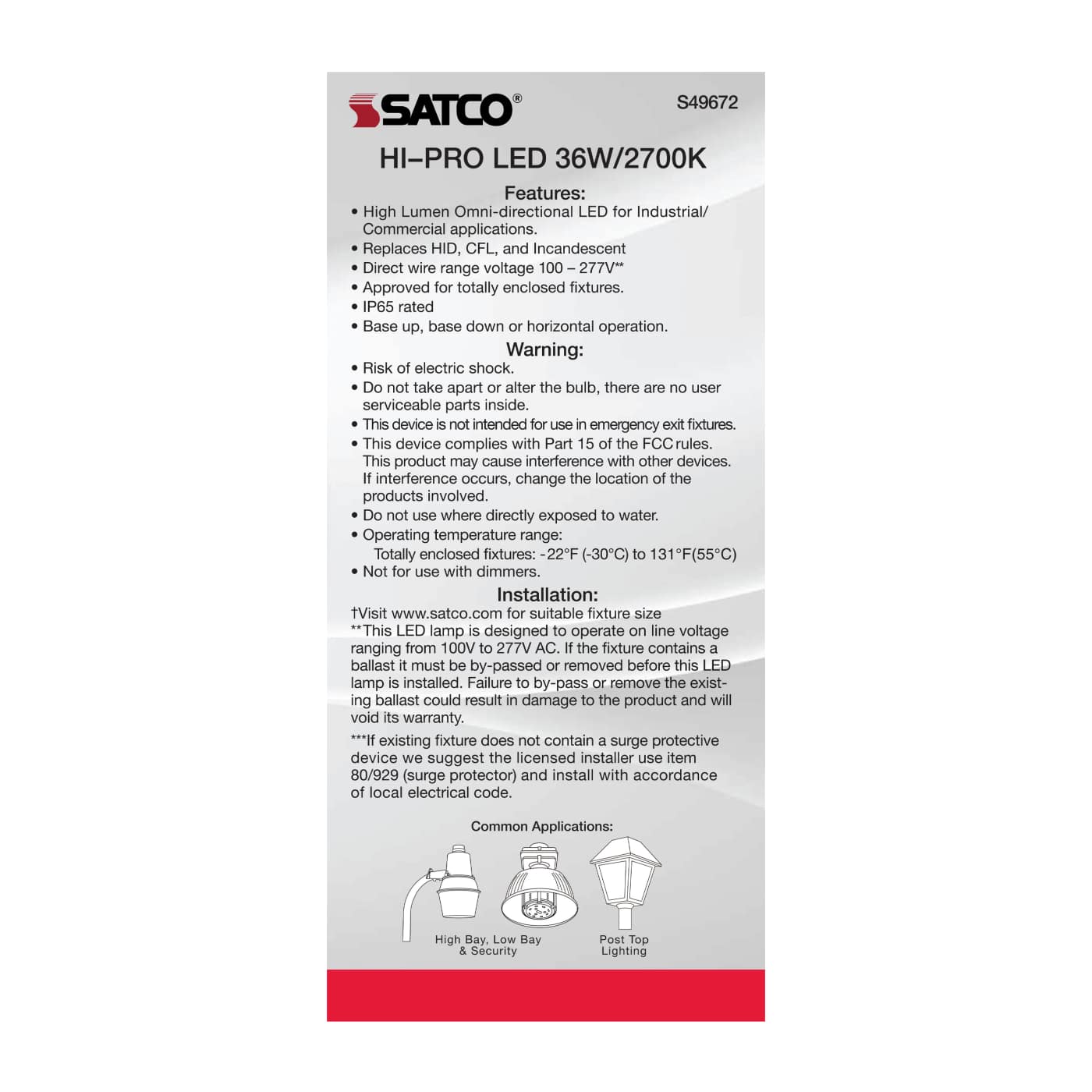

Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923496721
Case Cube1.0846
Case Height9.25
Case Length16.34
Case Quantity12
Case UPC10045923496728
Case Weight19.62
Case Width12.4
EA Cube0.076
EA Height8.46
EA Length3.94
EA Quantity1
EA Weight1.64
EA Width3.94

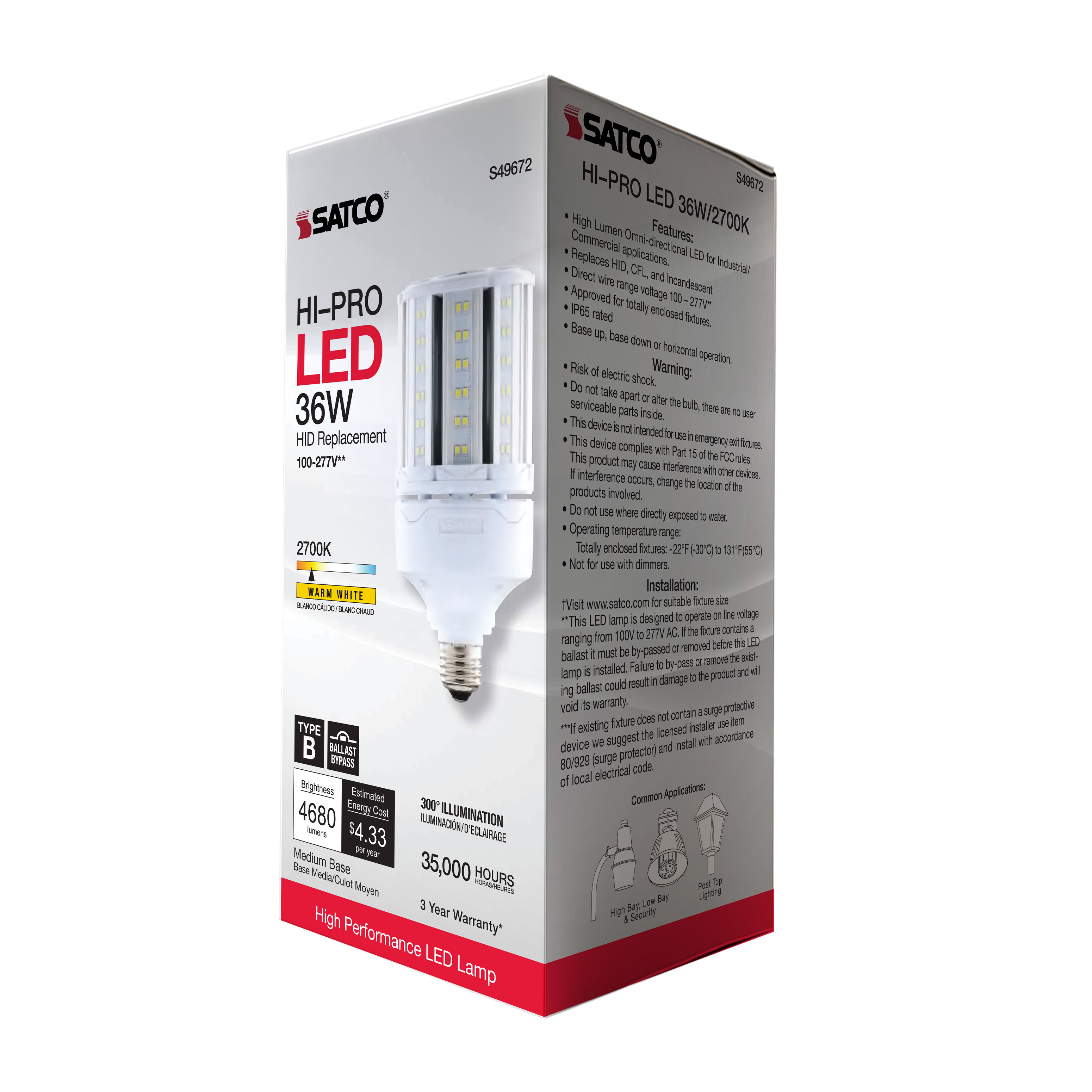

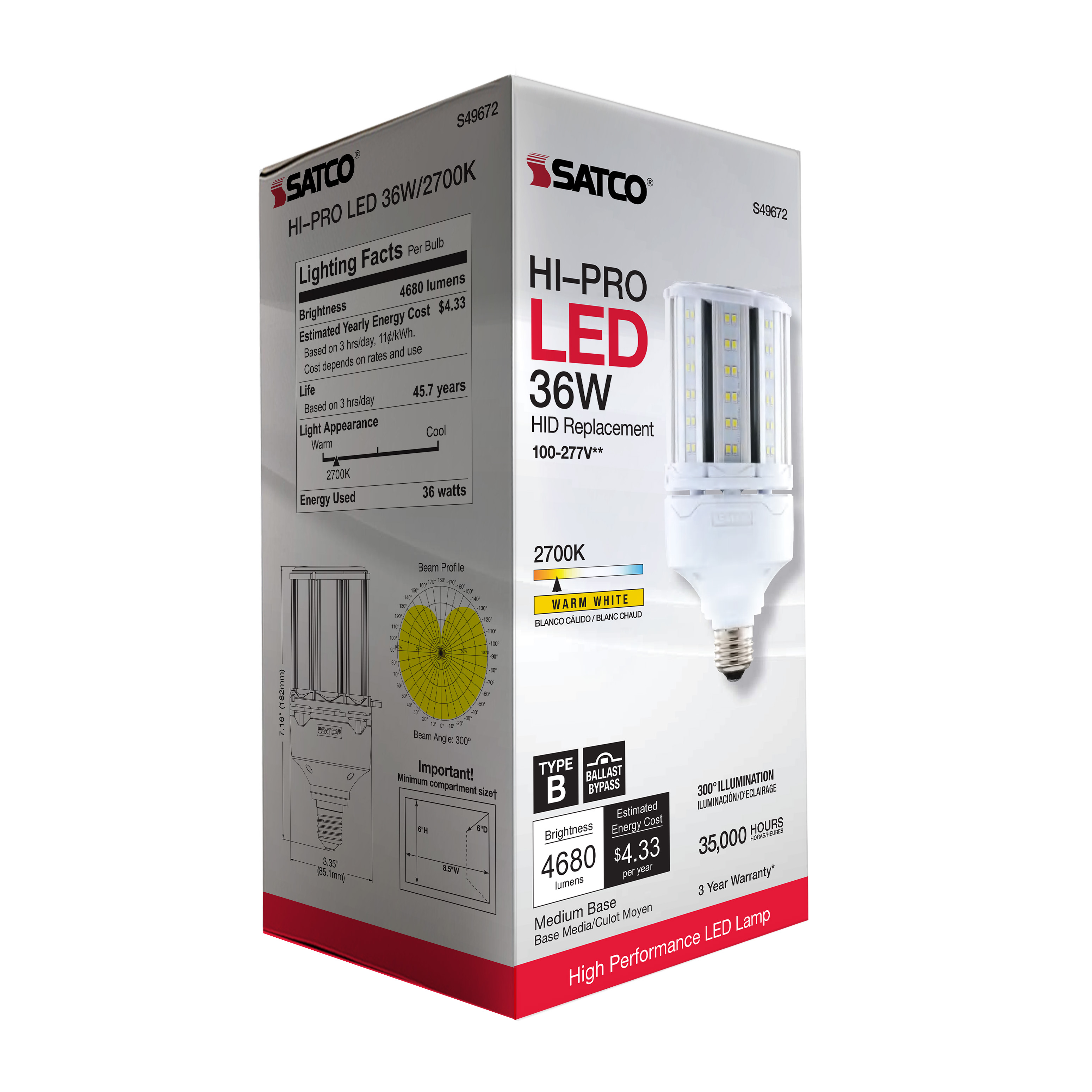

Pack TypeBox
Web Length7.16
Web Width3.35
