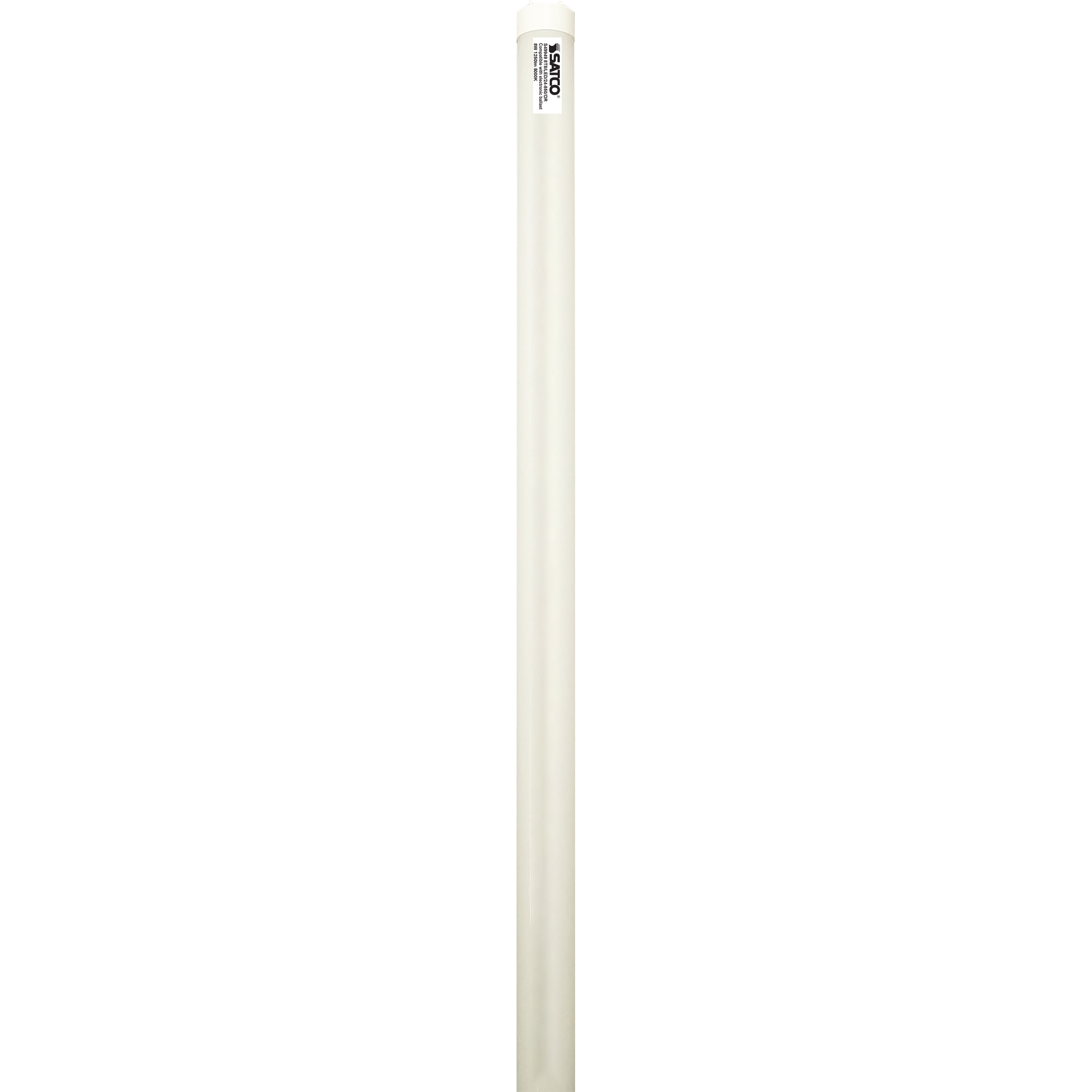

S49949 8T8/LED/24-850/DR

S49949

8T8/LED/24-850/DR

8 Watt; 2 Foot LED T8; Medium Bi Pin base; 5000K; 50000 Average rated hours; 1250 Lumens; Type A; Ballast dependent


SATCO|NUVO's 8-watt, 24 inch, T8 LED bulb is an energy efficient lighting solution for a variety of applications. Retail spaces, hospitals, and educational venues can all realize the immediate benefits and savings LED lighting offers. Dimmable and versatile, this lamp delivers 50,000 hours of natural light.
  • No rewiring required
  • All glass tubes -- no aging, yellowing, or bending
  • Integrated thermal fuse pins
  • Damp location rated
  • DLC 5.1 certified
  • Operating Temperature: -20C (-4F) to a maximum of 45C (113F)
Lights

S49949

8T8/LED/24-850/DR

8 Watt; 2 Foot LED T8; Medium Bi Pin base; 5000K; 50000 Average rated hours; 1250 Lumens; Type A; Ballast dependent

SATCO|NUVO's 8-watt, 24 inch, T8 LED bulb is an energy efficient lighting solution for a variety of applications. Retail spaces, hospitals, and educational venues can all realize the immediate benefits and savings LED lighting offers. Dimmable and versatile, this lamp delivers 50,000 hours of natural light.
  • No rewiring required
  • All glass tubes -- no aging, yellowing, or bending
  • Integrated thermal fuse pins
  • Damp location rated
  • DLC 5.1 certified
  • Operating Temperature: -20C (-4F) to a maximum of 45C (113F)

Specifications

General
StatusActive
Watts8W
Incandescent Equivalent110W
Fluorescent Equivalent17W/15W
Volts120V-277V
Ballast TypeType A
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length24
FinishGloss White
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1250L
Beam Spread210
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts8W
Incandescent Equivalent110W
Fluorescent Equivalent17W/15W
Volts120V-277V
Ballasting RequirementsBallast required
Ballast TypeType A
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1250L
Beam Spread210
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical

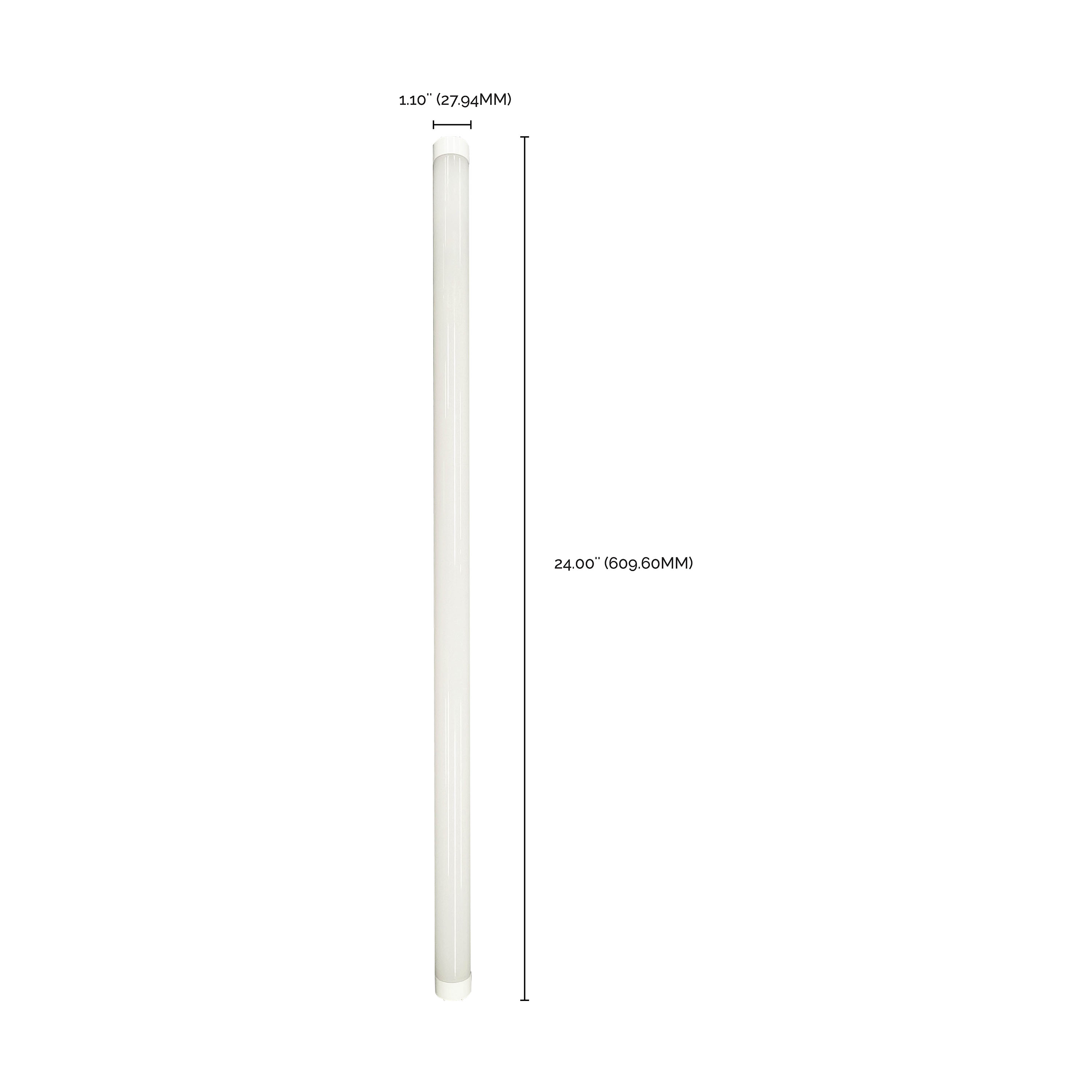

MOL23.78
MOD1.1
Nominal Length24
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
MaterialGlass
Lens FinishGloss White
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.24
Additional Information
Tube Guard UseApproved for use with tube guards when operated on Low or Normal ballast factor systems
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLF8D978G3J7
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923499494
Each Quantity1
Each Length (in.)24.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.24
Each Cube (CuFt.)0.0168
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923499491
Case Quantity25
Case Length (in.)25.00
Case Width (in.)5.79
Case Height (in.)5.82
Case Weight (lb.)6.88
Case Cube (CuFt.)0.4875
×
×

Ballast Compatibility

Name Type View
LED Linear S49949 Ballasts View
×

Precautions

No precautions available at this time.

×
