S49976 14/T8/LED/48-835/DR

S49976

14/T8/LED/48-835/DR

14 Watt; 4 Foot LED T8; Medium Bi Pin base; 3500K; 50000 Average rated hours; 2200 Lumens; Type A; Ballast dependent

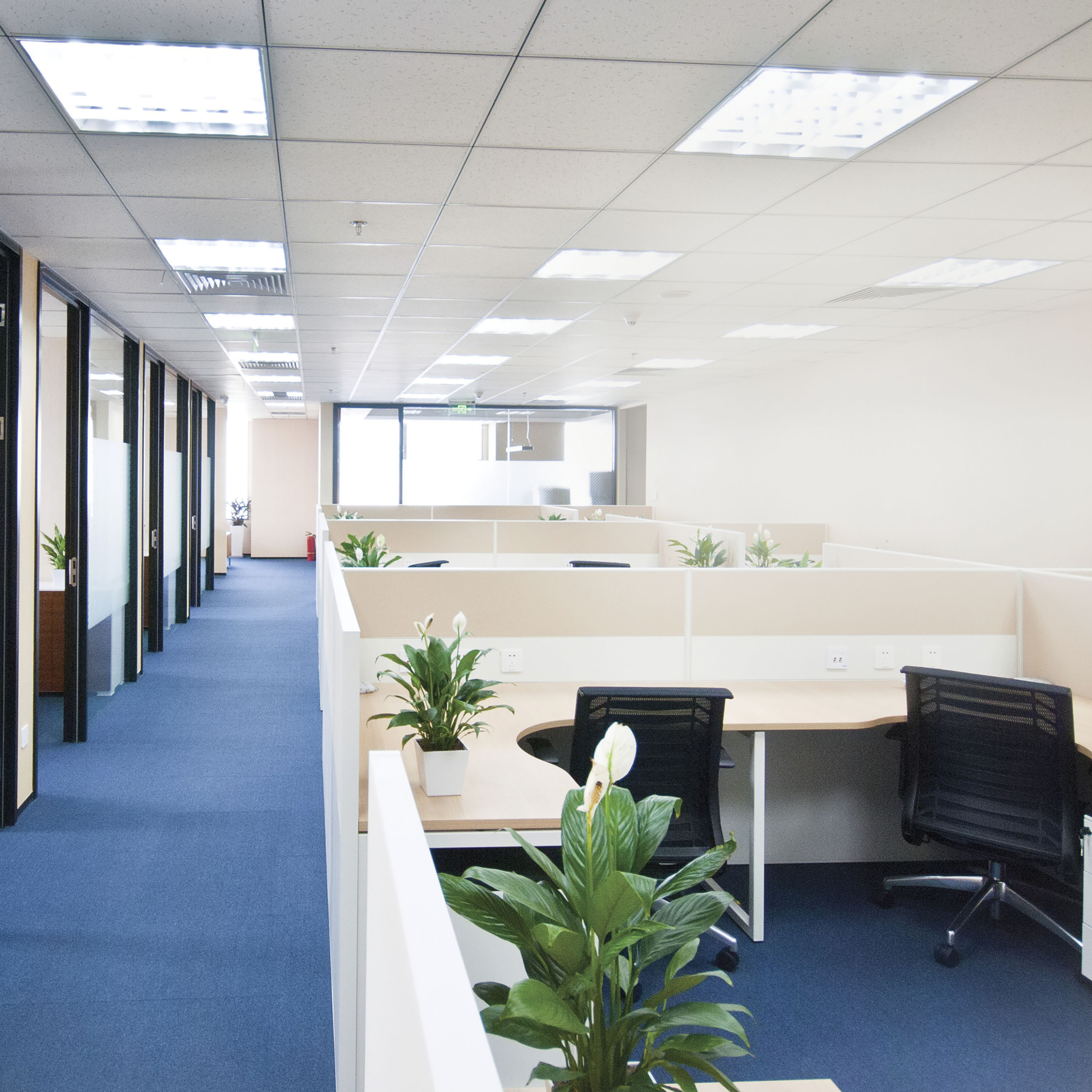

SATCO|NUVO's 14-watt, 48 inch, T8 LED bulb is an energy efficient lighting solution for a variety of applications. Retail spaces, hospitals, and educational venues can all realize the immediate benefits and savings LED lighting offers. Dimmable and versatile, this lamp delivers 50,000 hours of neutral white light.
  • No rewiring required
  • All glass tubes -- no aging, yellowing, or bending
  • Integrated thermal fuse pins
  • Damp location rated
  • DLC 5.1 certified
  • Operating Temperature: -20C (-4F) to a maximum of 45C (113F)
Lights

S49976

14/T8/LED/48-835/DR

14 Watt; 4 Foot LED T8; Medium Bi Pin base; 3500K; 50000 Average rated hours; 2200 Lumens; Type A; Ballast dependent

SATCO|NUVO's 14-watt, 48 inch, T8 LED bulb is an energy efficient lighting solution for a variety of applications. Retail spaces, hospitals, and educational venues can all realize the immediate benefits and savings LED lighting offers. Dimmable and versatile, this lamp delivers 50,000 hours of neutral white light.
  • No rewiring required
  • All glass tubes -- no aging, yellowing, or bending
  • Integrated thermal fuse pins
  • Damp location rated
  • DLC 5.1 certified
  • Operating Temperature: -20C (-4F) to a maximum of 45C (113F)

Specifications

General
StatusActive
SubstituteS49976R1
Watts14W
Incandescent Equivalent175W
Fluorescent Equivalent32W/30W/28W/25W
Volts120V-277V
Ballast TypeType A
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48
FinishGloss White
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens2200L
Beam Spread210
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts14W
Incandescent Equivalent175W
Fluorescent Equivalent32W/30W/28W/25W
Volts120V-277V
Ballasting RequirementsBallast required
Ballast TypeType A
Operating Frequency50/60Hz
CCT (Kelvin)3500K
TemperatureNeutral White
CRI82
Lumens2200L
Beam Spread210
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical

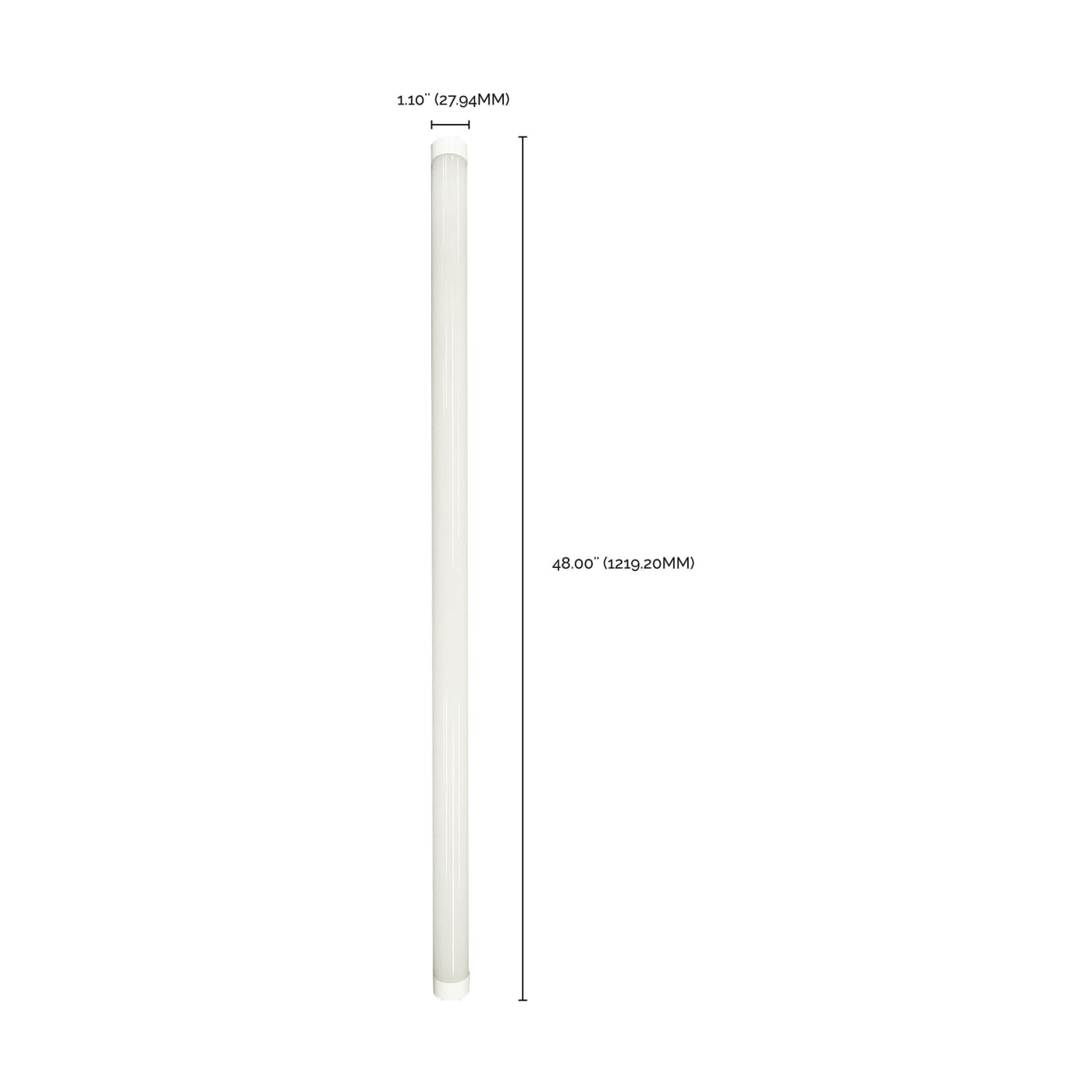

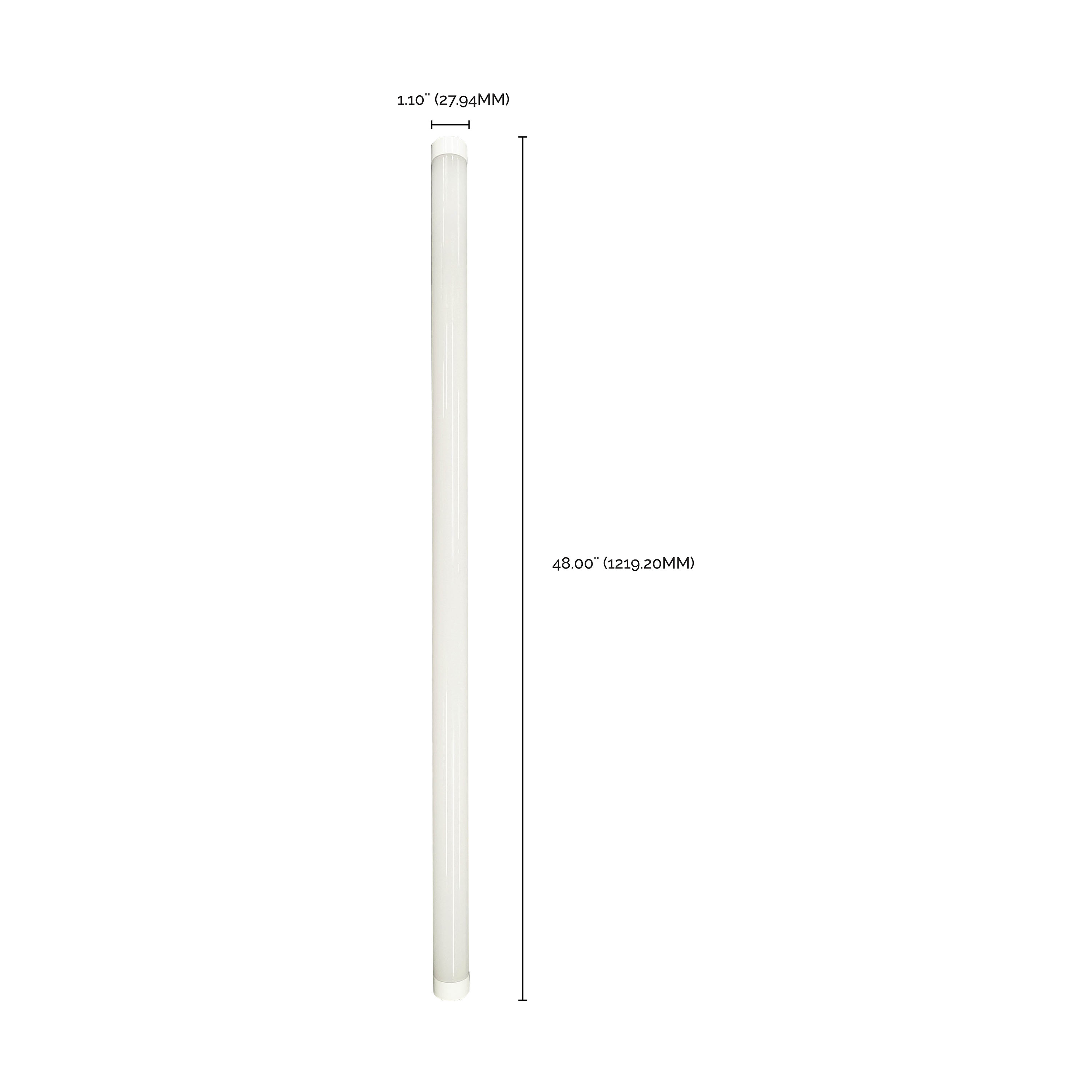

MOL47.78
MOD1.1
Nominal Length48
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
MaterialGlass
Lens FinishGloss White
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.44
Additional Information
Tube Guard UseApproved for use with tube guards when operated on Low or Normal ballast factor systems
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLSE80YI5QZ7
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923499760
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.44
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923499767
Case Quantity25
Case Length (in.)48.82
Case Width (in.)5.91
Case Height (in.)5.91
Case Weight (lb.)14.40
Case Cube (CuFt.)0.9868
×
×

Ballast Compatibility

Name Type View
LED Linear S49976 Ballasts View
×

Precautions

No precautions available at this time.

×
