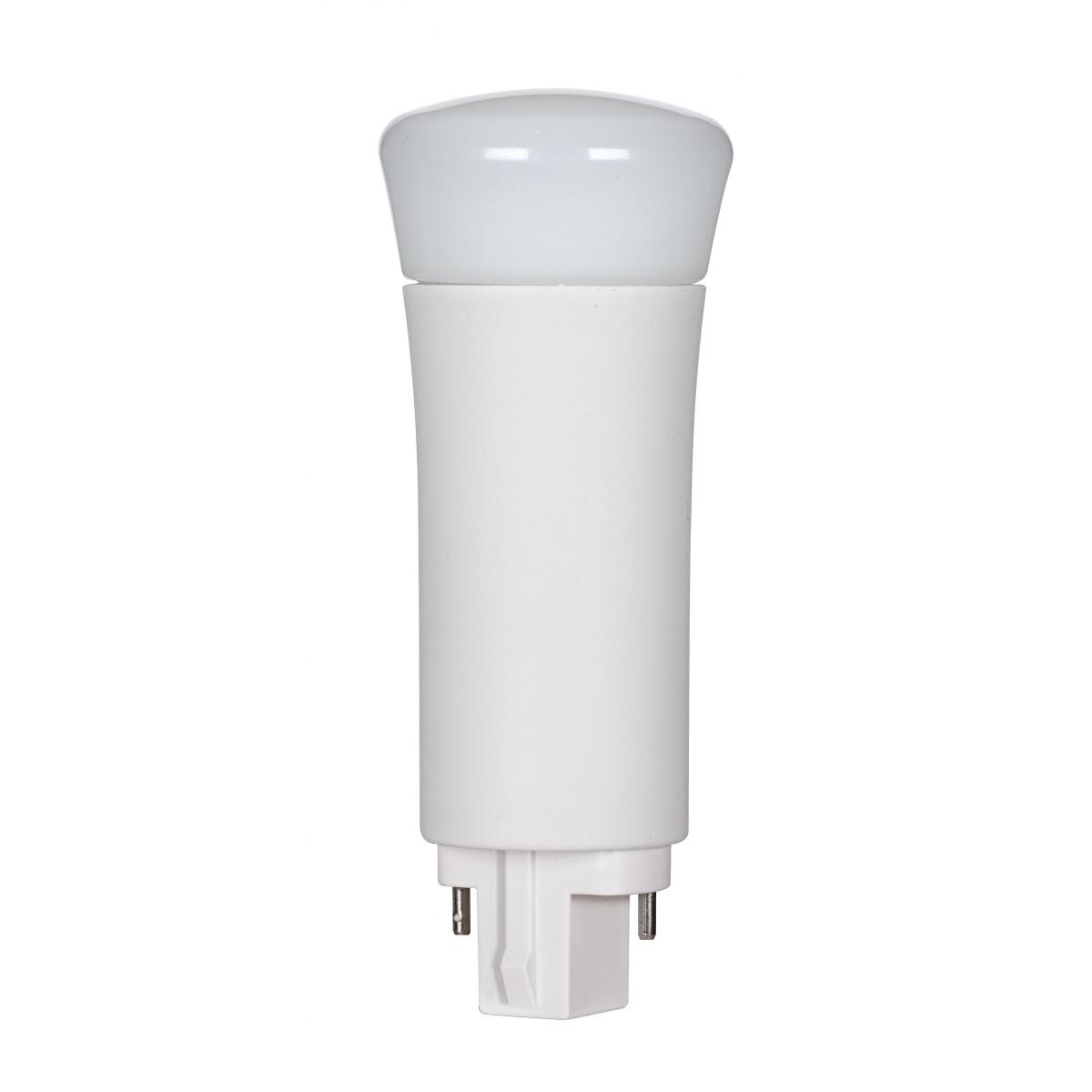

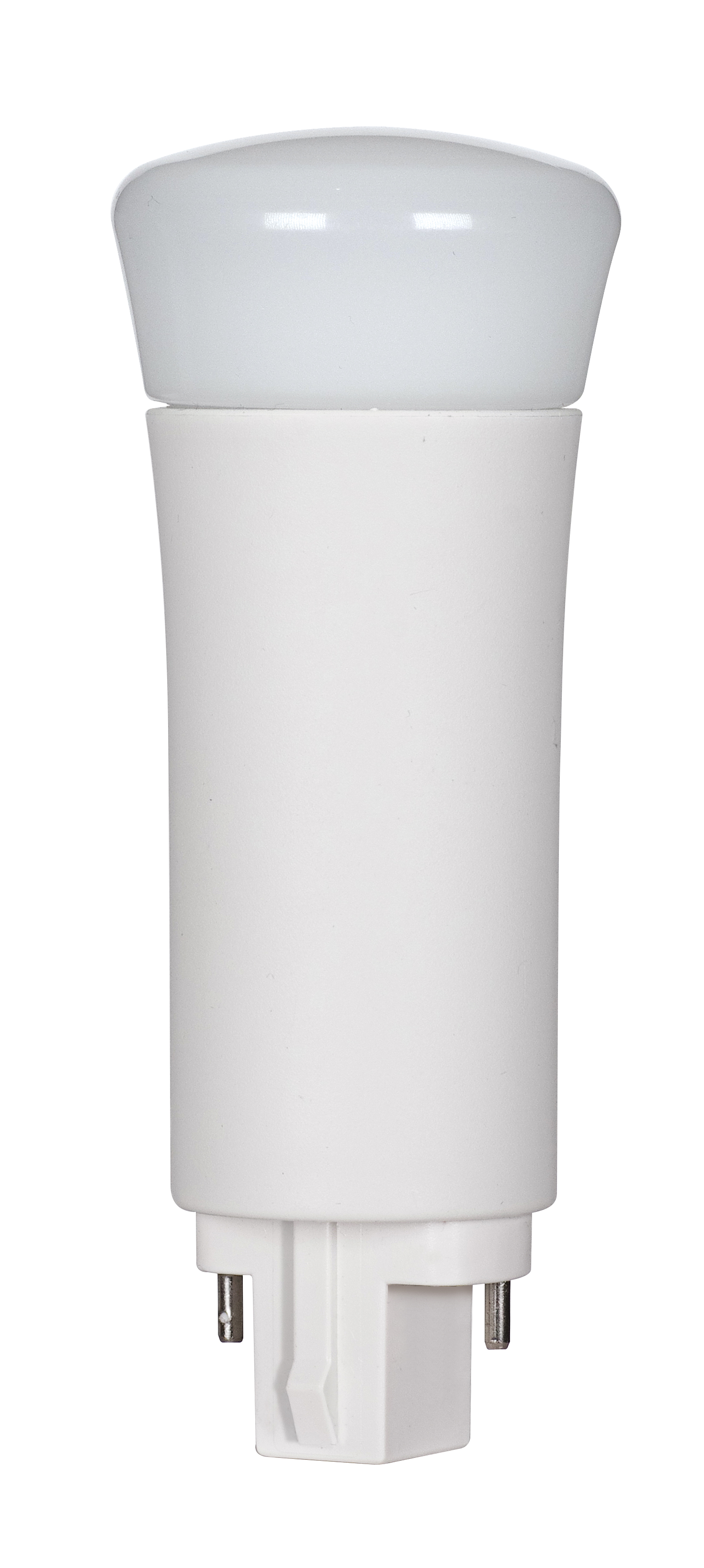

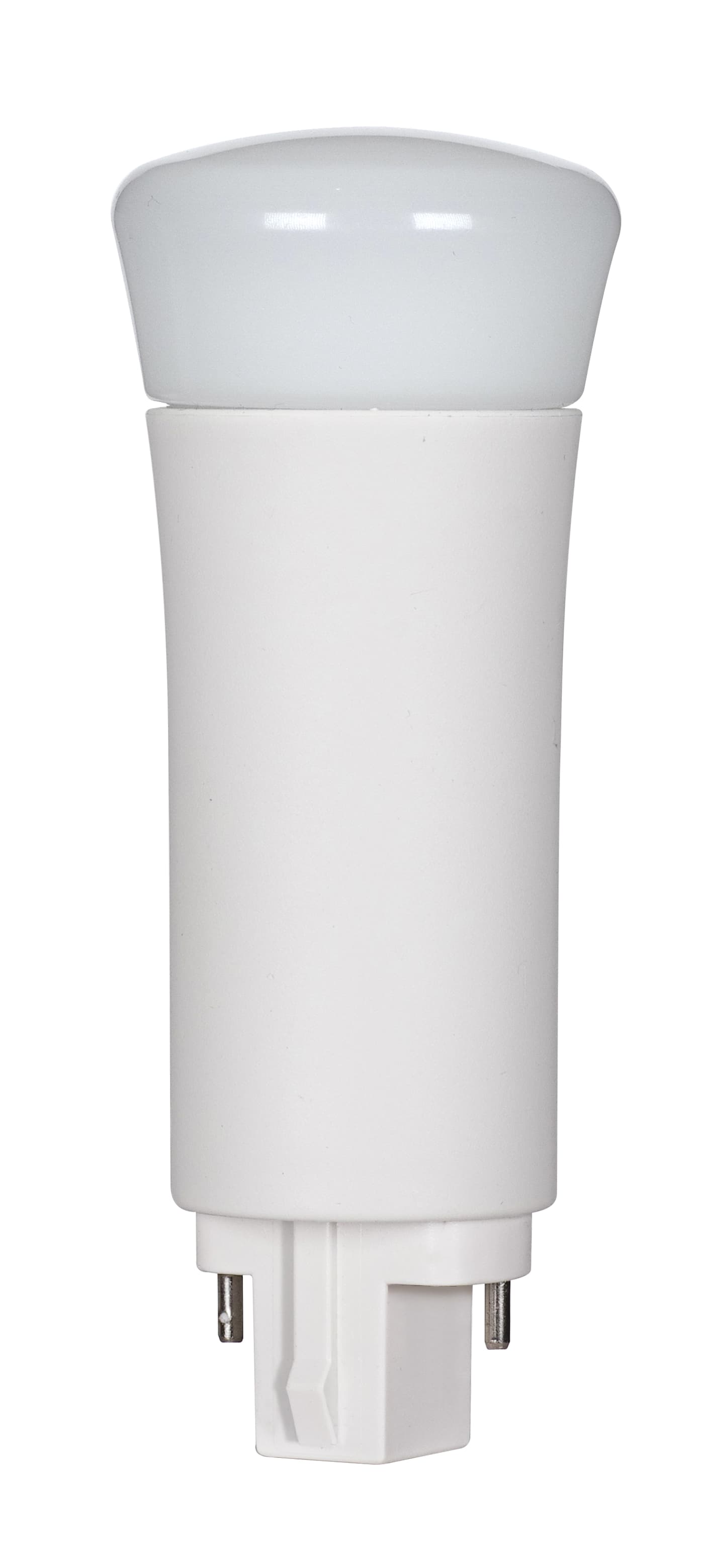

S8536 9WPLV/LED/830/BP/2P

S8536

9WPLV/LED/830/BP/2P

9 Watt LED PL 2-Pin; 3000K; 950 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Vertical; Type B; Ballast Bypass

Lights

S8536

9WPLV/LED/830/BP/2P

9 Watt LED PL 2-Pin; 3000K; 950 Lumens; G24d base; 50000 Average rated hours; 120 Deg. Beam Angle; Vertical; Type B; Ballast Bypass

Specifications

General
StatusActive
Watts9W
Fluorescent EquivalentSee Notes
Volts120V-277V
Ballast TypeType B
ShapePL
Base2-Pin
ANSI BaseG24d
FinishFrost
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens950L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Lamp TypePL
Burning PositionVertical Operation
TechnologyLED
Electrical
Watts9W
Fluorescent EquivalentSee Notes
Volts120V-277V
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens950L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Burning PositionVertical Operation
Operating Temperature-20C (-4F) to a maximum of +45C (+113F)
Physical
MOL4.69
MOD1.91
ShapePL
Base2-Pin
ANSI BaseG24d
FinishFrost
Additional Information
Additional InfoIn G24d (2-pin) sockets replaces 18 and 26 watt CFLs; In G24q (4-pin) sockets replaces 13; 18; and 26 watt CFLs
Installation Notes2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets.
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923085369
Each Quantity1
Each Length (in.)1.93
Each Width (in.)1.93
Each Height (in.)4.84
Each Weight (lb.)0.31
Each Cube (CuFt.)0.0104
Pack TypeBox
Inner UPC20045923085363
Inner Quantity10
Inner Length (in.)10.00
Inner Width (in.)4.17
Inner Height (in.)5.12
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.1236
Case UPC10045923085366
Case Quantity50
Case Length (in.)11.00
Case Width (in.)10.60
Case Height (in.)10.60
Case Weight (lb.)15.67
Case Cube (CuFt.)0.7153
