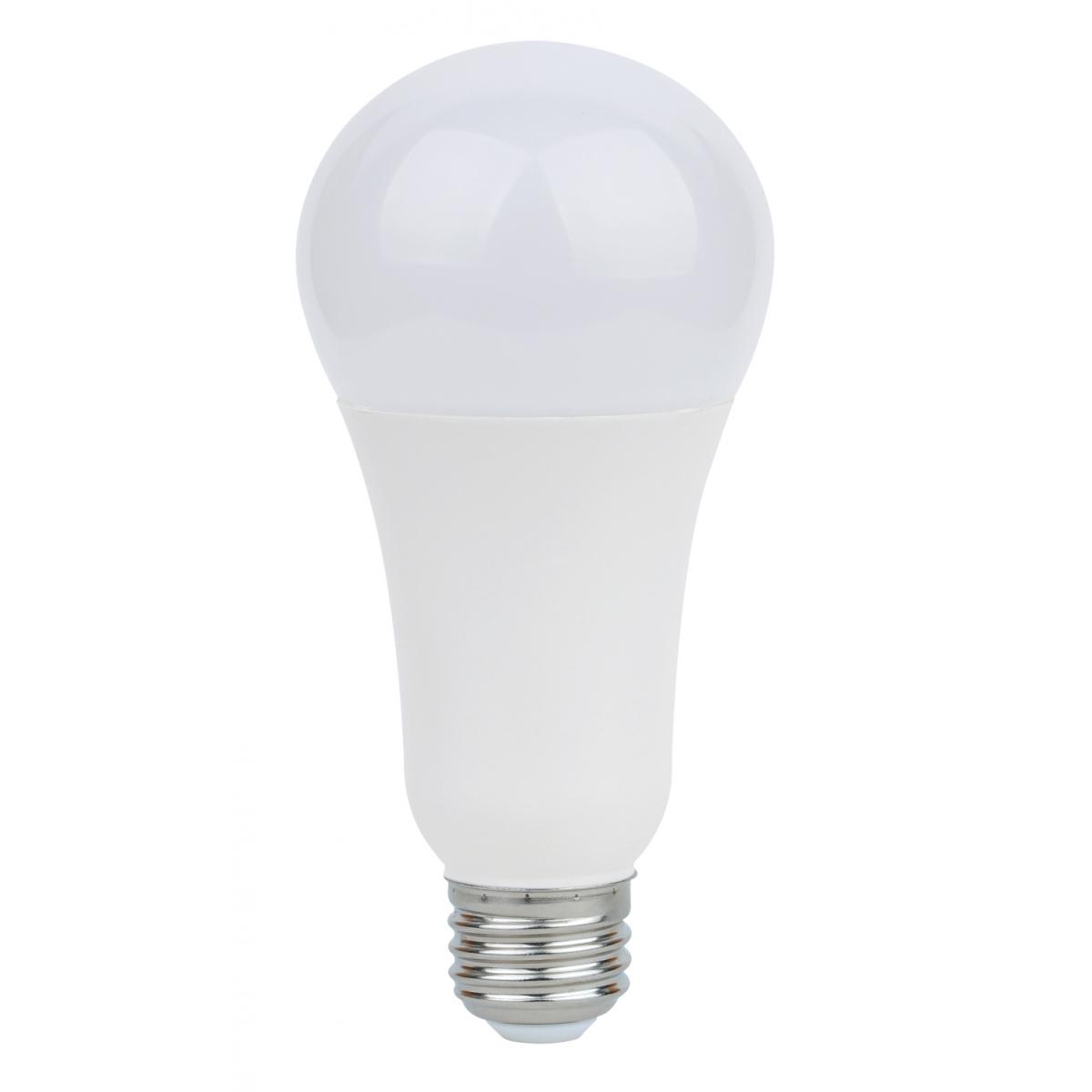

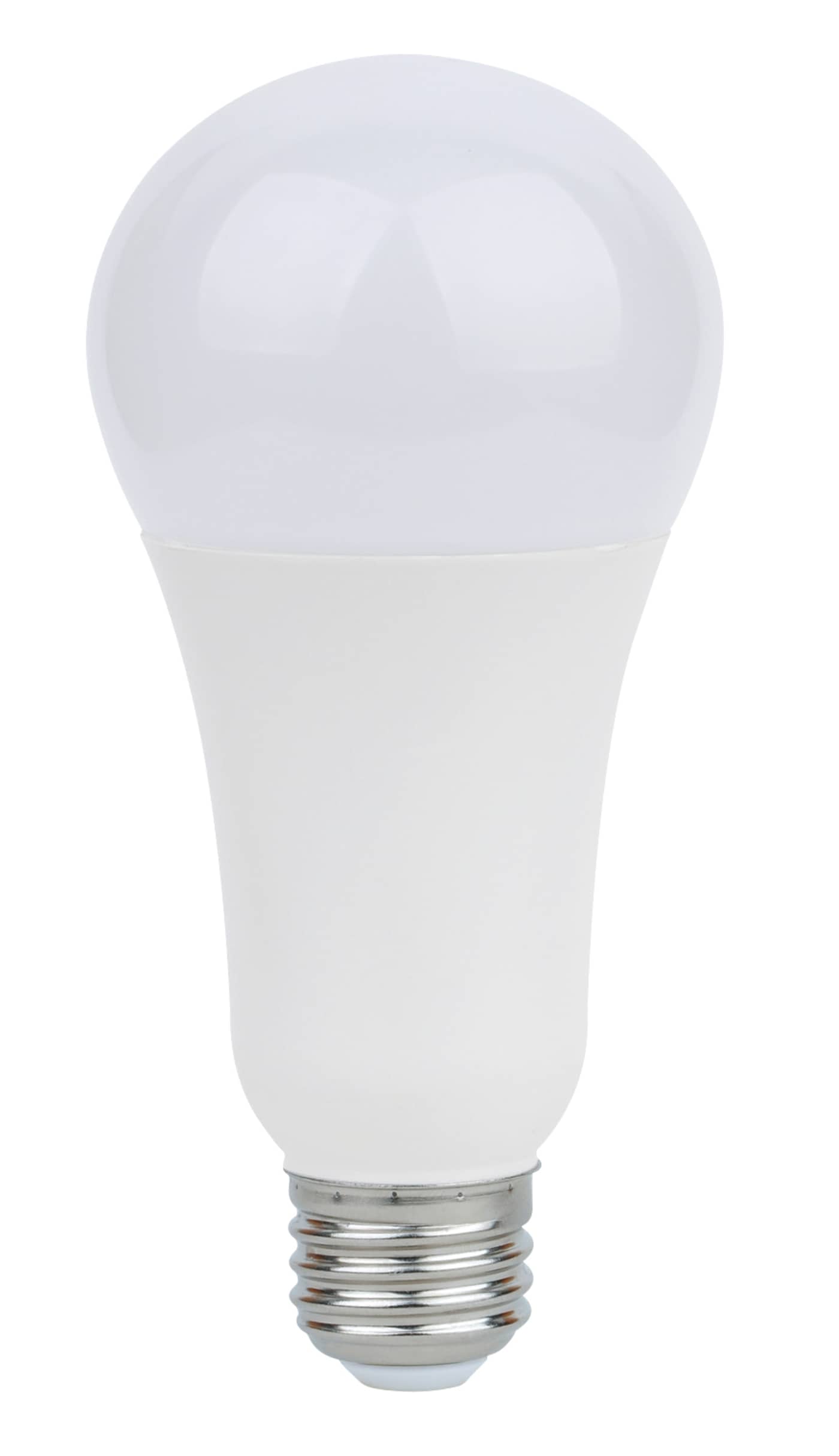

5/15/21A21/3-WAY/LED/30K - S8543
S8543

5/15/21A21/3-WAY/LED/30K

Discontinued - Suggested Replacement: S11516
  • 5 Watt/15 Watt/21 Watt
  • A21 LED
  • 3-way
  • Frosted
  • 3000K
  • Medium base
  • 120 Volt
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

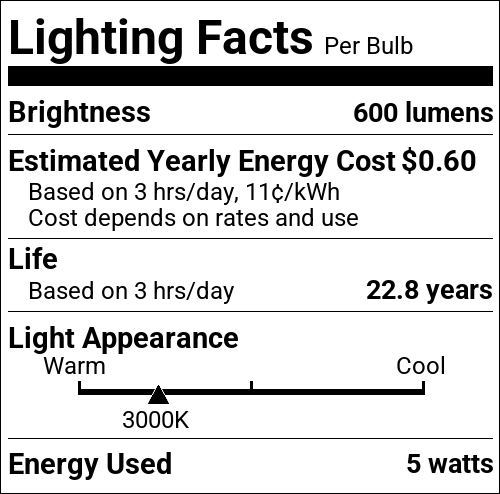

S8543 SpecificationsS8543 Photometrics.iesOmni-directional 3-way LED lampsS8543 Lighting Facts Label
Tools
Lighting Layout Analysis For S8543
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
5 Watt/15 Watt/21 Watt; A21 LED; 3-way; Frosted; 3000K; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
StyleTraditional
Most Current GenerationS11516
CCT SelectableNo
Wattage SelectableYes
Finish FamilyWhite
Additional InfoThree way lamp
Amps0.042/0.125/0.175A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
Power Factor0.94
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W/100W/150W
Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempWarm White
CRI80+
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens600L/1600L/2150L
Volts120v
Watts5W/15W/21W
Physical
Lamp BaseMedium
FinishFrost
ANSI BaseE26
Lamp TypeA21
MOD Lamps2.638
MOL5.551
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923085437
Case Cube0.9058
Case Height13.78
Case Length12.28
Case Quantity24
Case UPC10045923085434
Case Weight12.01
Case Width9.25
EA Cube0.025
EA Height6.02
EA Length2.68
EA Quantity1
EA Weight0.45
EA Width2.68
Inner Cube0.1789
Inner Height6.34
Inner Length8.54
Inner Quantity6
Inner UPC20045923085431
Inner Weight2.87
Inner Width5.71
Pack TypeBox
Web Length5.551
Web Width2.638
