S8581

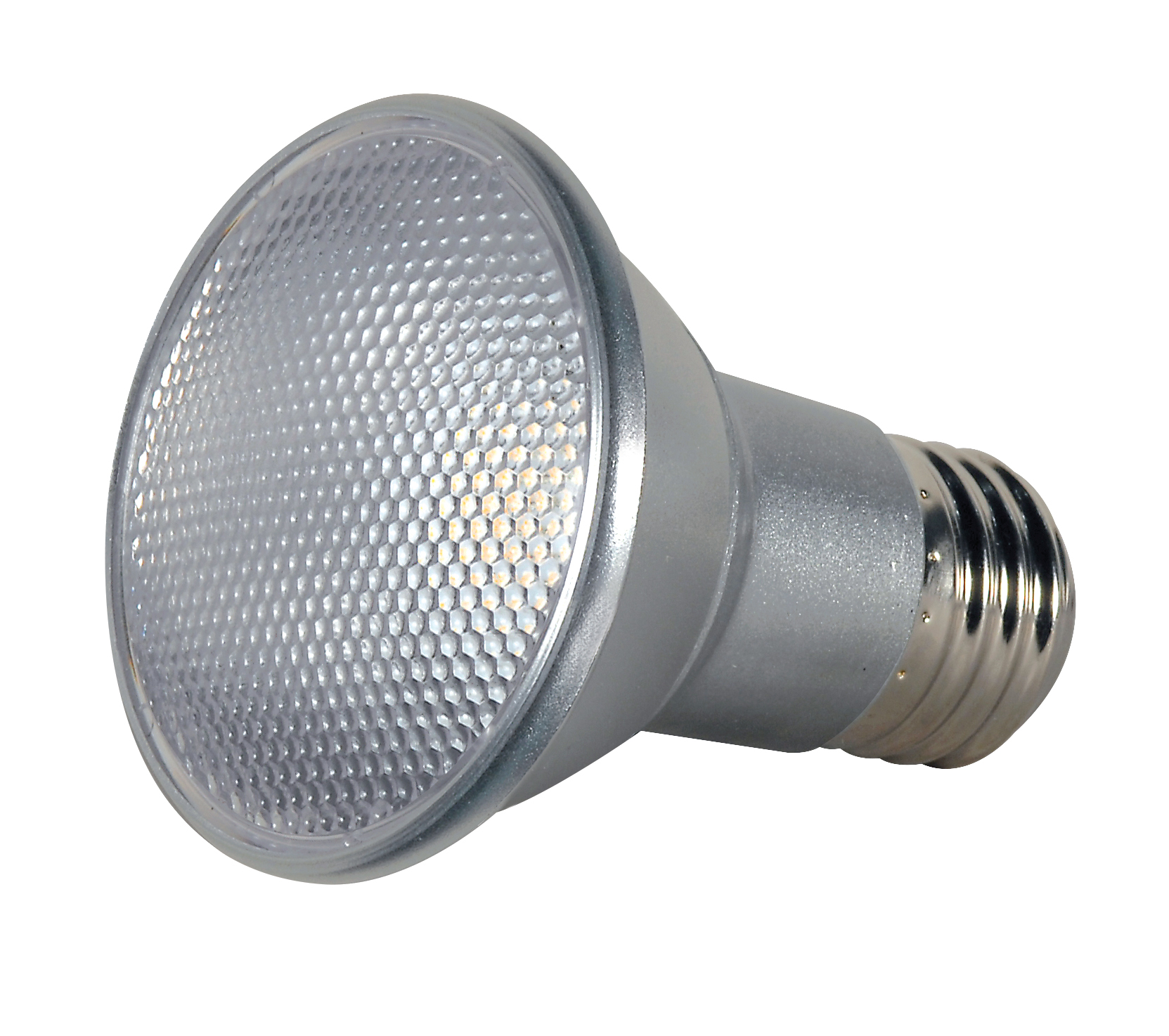

7PAR20/LED/40'/3K/90CRI

Discontinued - Suggested Replacement: S29406
  • 7 Watt PAR20 LED
  • 3000K
  • 40 deg. Beam Angle
  • Medium base
  • 120 Volt
ip_rating^IP65^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S8581 SpecificationsSA2000-3 LED Lamp Reference Guide 8-28-20
Description
Description
7 Watt PAR20 LED; 3000K; 40 deg. Beam Angle; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Center Beam Candle Power600
Lamp FilamentLED
Fixture TypePAR
StatusDiscontinued
Most Current GenerationS29406
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.058A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)40
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Triac
Operating Temp-20C (-4F) to +45C (+113F)

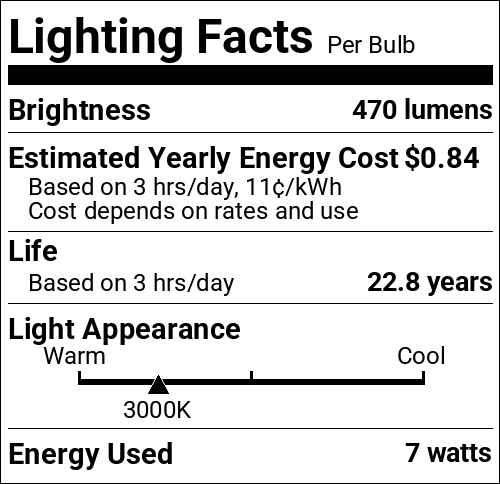

Lumens470L
Volts120v
Watts7W
Physical
Lamp BaseMedium
FinishClear
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR20
MOD Lamps2.5
MOL3.03
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingWet
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantTrue
Packaging
UPC045923085819
Case Cube0.5361
Case Height8.86
Case Length11.8
Case Quantity24
Case UPC10045923085816
Case Weight5.62
Case Width8.86
EA Cube0.0134
EA Height3.54
EA Length2.56
EA Quantity1
EA Weight0.13
EA Width2.56
Inner Cube0.1041
Inner Height3.94
Inner Length8.27
Inner Quantity6
Inner UPC20045923085813
Inner Weight1.02
Inner Width5.52
Pack TypeBox
Web Length3.03
Web Width2.5
