S8585

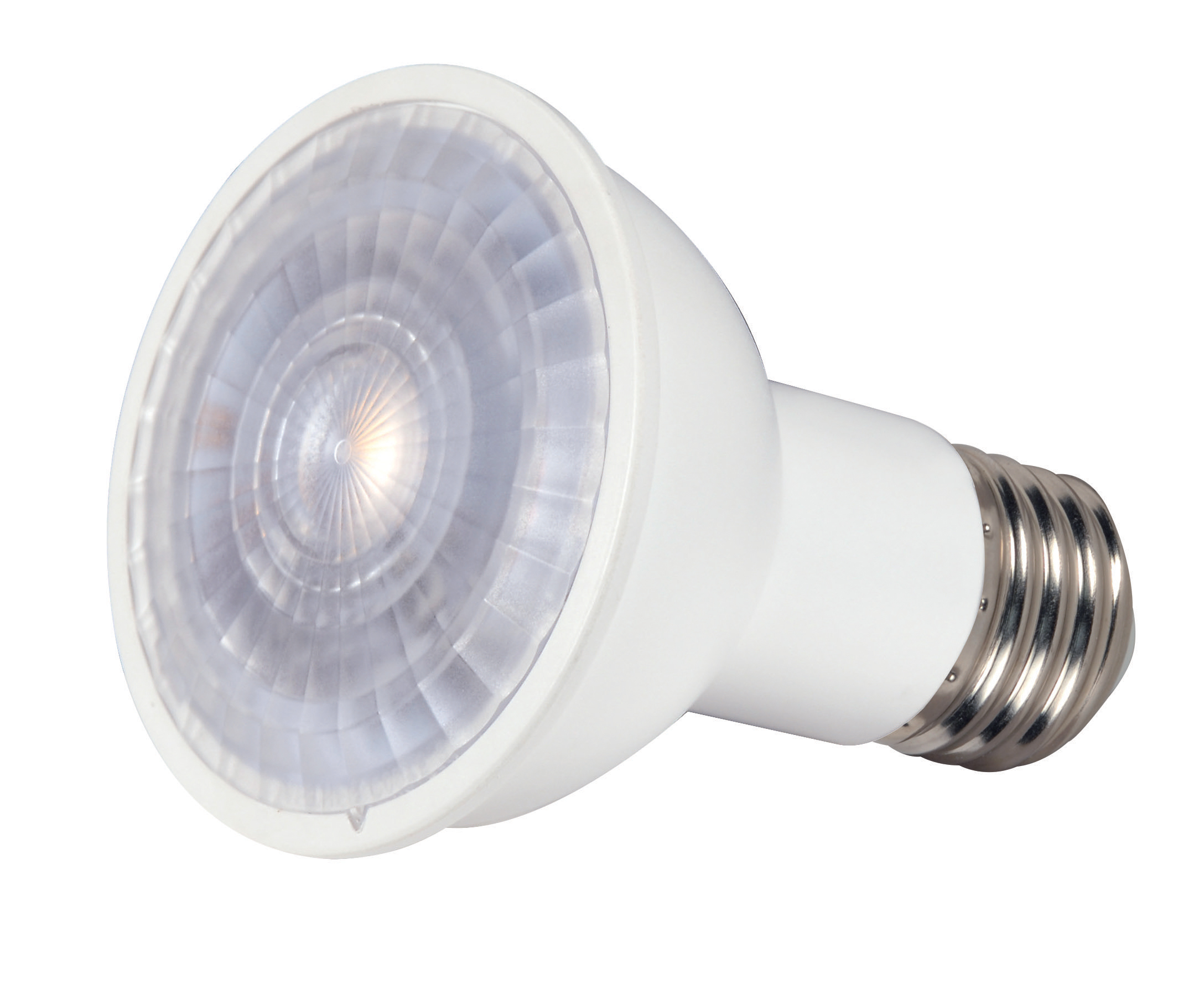

4PAR16/LED/40'/3K/120V/90CRI

  • 4 Watt PAR16 LED
  • 3000K
  • 40 deg. Beam Angle
  • Medium base
  • 120 Volt
location_rating^damp^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S8585 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Tools
Lighting Layout Analysis For S8585
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4 Watt PAR16 LED; 3000K; 40 deg. Beam Angle; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Candle Power510.0
Center Beam Candle Power510
Lamp FilamentLED
Fixture TypePAR
StatusActive
StyleUtility
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.033A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor0.92
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent45W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)40
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens360L
Volts120v
Watts4W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhite
ANSI BaseE26
Lamp TypePAR16
MOD Lamps2.0
MOL2.88
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923085857
Case Cube0.6771
Case Height8.46
Case Length14.17
Case Quantity48
Case UPC10045923085854
Case Weight8.51
Case Width9.76
EA Cube0.0086
EA Height3.54
EA Length2.05
EA Quantity1
EA Weight0.15
EA Width2.05
Inner Cube0.1292
Inner Height7.48
Inner Length6.65
Inner Quantity12
Inner UPC20045923085851
Inner Weight2.01
Inner Width4.49
Pack TypeBox
Web Length2.88
Web Width2.0
