| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 9.31 |
| Dimmable Text | 0-10V Dimming Only |
| Material | Aluminum |

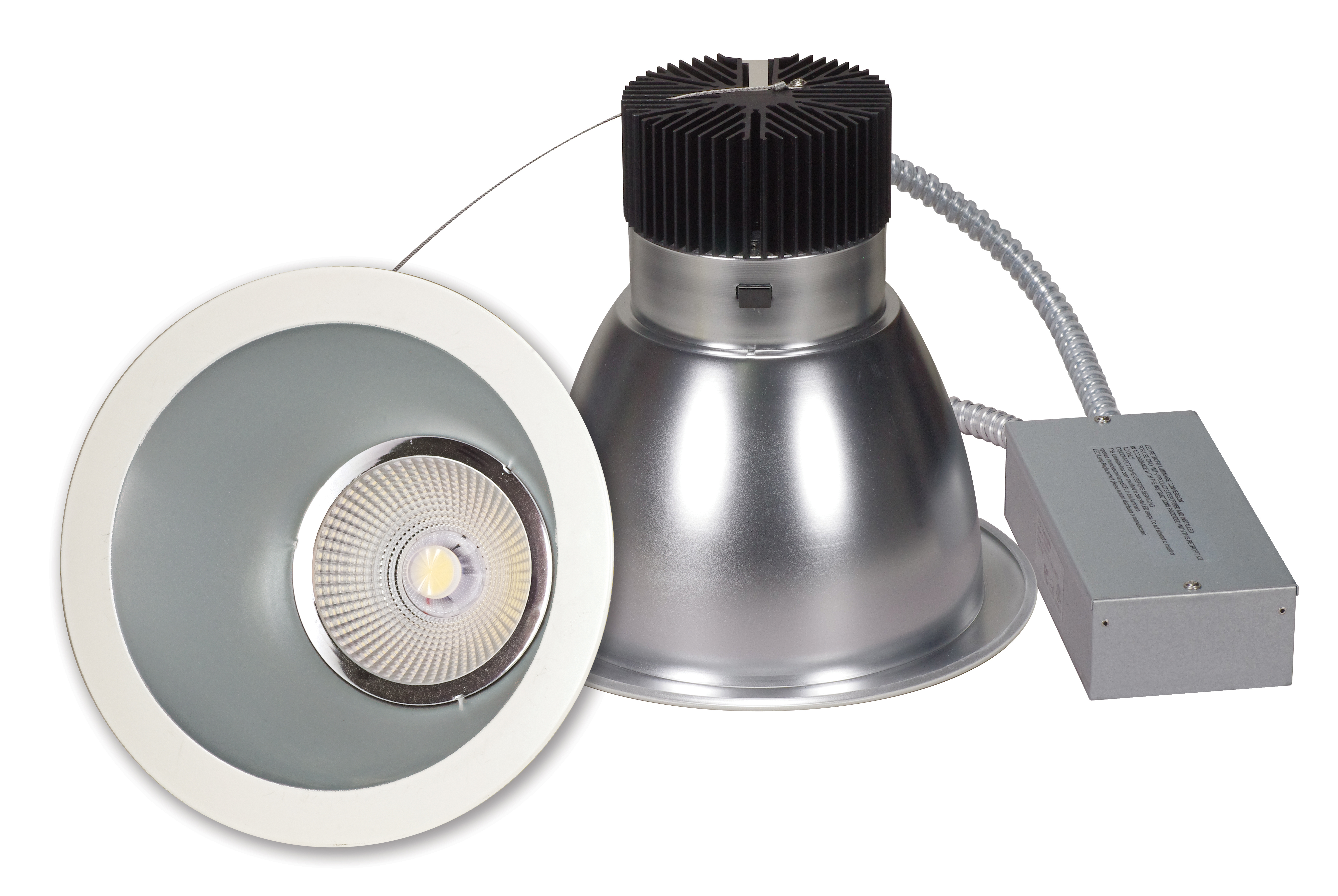

| Fixture Type | Commercial Downlight Retrofit |
| Status | Obsolete |
| Style | Utility |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | Silver |
| Amps | 0.250-0.090A |
| Has Camera | No |
| IOT Enabled | No |
| Power Factor | 0.89 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 2 x 26W CFL |
| Incandescent Equivalent | 150W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 40 |
| Color Temp | Cool White |
| CRI | 90+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 2800L |
| Volts | 120V-277V |
| Watts | 25W |
| Lamp Base | Integrated |
|---|---|
| Finish | SILVER |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|---|
| Installation Notes | 7.7 in. min. to 8.4 in. max. mounting frame diameters |
| CA Prop 65 | Lead |
|---|---|
| FCC Compliant | Yes |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923087073 |
|---|---|
| Case Cube | 3.0642 |
| Case Height | 10.43 |
| Case Length | 24.8 |
| Case Quantity | 4 |
| Case UPC | 10045923087070 |
| Case Weight | 19.84 |
| Case Width | 20.47 |
| EA Cube | 0.4325 |
| EA Height | 8.66 |
| EA Length | 9.29 |
| EA Quantity | 1 |
| EA Weight | 3.31 |
| EA Width | 9.29 |
| Inner Cube | 0.66 |
| Inner Height | 9.65 |
| Inner Length | 12.01 |
| Inner Quantity | 1 |
| Inner UPC | 20045923087077 |
| Inner Weight | 3.53 |
| Inner Width | 9.84 |
| Pack Type | Box |
| Web Height | 8.63 |
| Web Width | 9.31 |
