» S8745

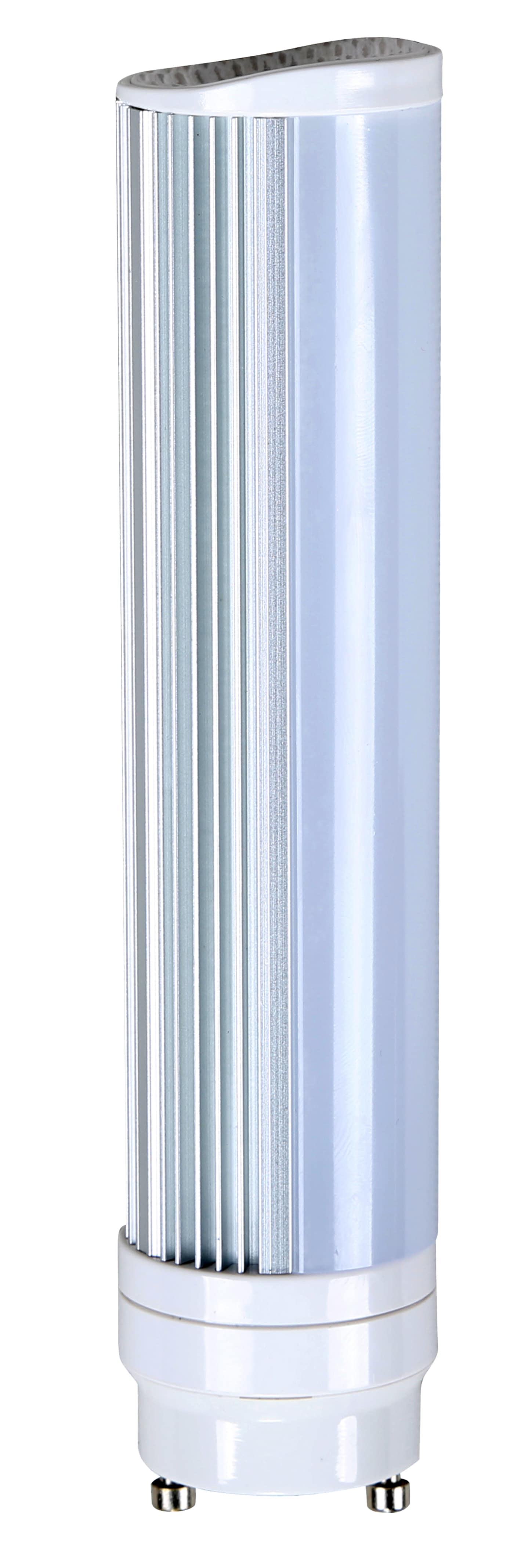

S8745 8W/H/LED/CFL/827/GU24/120-277V

S8745

8W/H/LED/CFL/827/GU24/120-277V

8 Watt LED PL GU24 base; 2700K; Type B; Ballast Bypass; 920 Lumens; 50000 Average rated hours; 120 deg. Beam Angle; 120-277 Volt


Lights

S8745

8W/H/LED/CFL/827/GU24/120-277V

8 Watt LED PL GU24 base; 2700K; Type B; Ballast Bypass; 920 Lumens; 50000 Average rated hours; 120 deg. Beam Angle; 120-277 Volt

Specifications

General
StatusActive
Watts8W
Fluorescent Equivalent13W/18W
Volts120V-277V
Ballast TypeType B
ShapePL
BaseBi Pin GU24
ANSI BaseGU24
FinishFrost
CCT (Kelvin)2700K
TemperatureWarm White
CRI83
Lumens920L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionUniversal
TechnologyLED
Electrical
Watts8W
Fluorescent Equivalent13W/18W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)2700K
TemperatureWarm White
CRI83
Lumens920L
Beam Spread120
DimmableNon-Dimmable
Hours Rated50000
Operating PositionUniversal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL6.41
MOD1.38
ShapePL
BaseBi Pin GU24
ANSI BaseGU24
FinishFrost
Housing ColorWhite
Weight (lb.)0.26
Additional Information
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus - Listed
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleNon-Compliant - R8 <72
California StatusNon-Compliant
Title 20 / 24 StatusNon-Compliant
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923087455
Each Quantity1
Each Length (in.)7.28
Each Width (in.)1.65
Each Height (in.)1.65
Each Weight (lb.)0.30
Each Cube (CuFt.)0.0115
Pack TypeBox
Inner UPC20045923087459
Inner Quantity10
Inner Length (in.)9.10
Inner Width (in.)3.50
Inner Height (in.)7.70
Inner Weight (lb.)3.00
Inner Cube (CuFt.)0.1419
Case UPC10045923087452
Case Quantity50
Case Length (in.)18.90
Case Width (in.)9.60
Case Height (in.)9.10
Case Weight (lb.)15.90
Case Cube (CuFt.)0.9555
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
