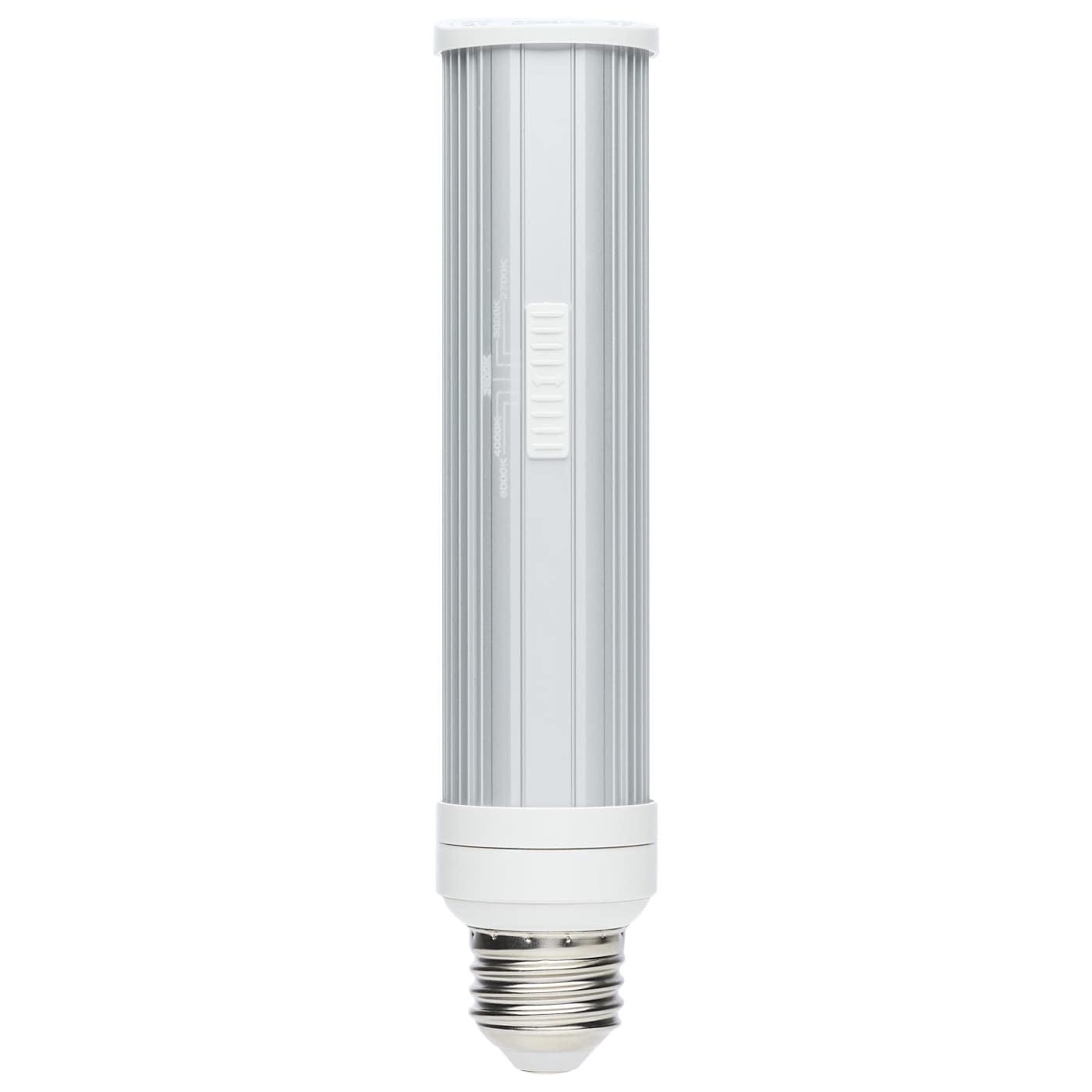

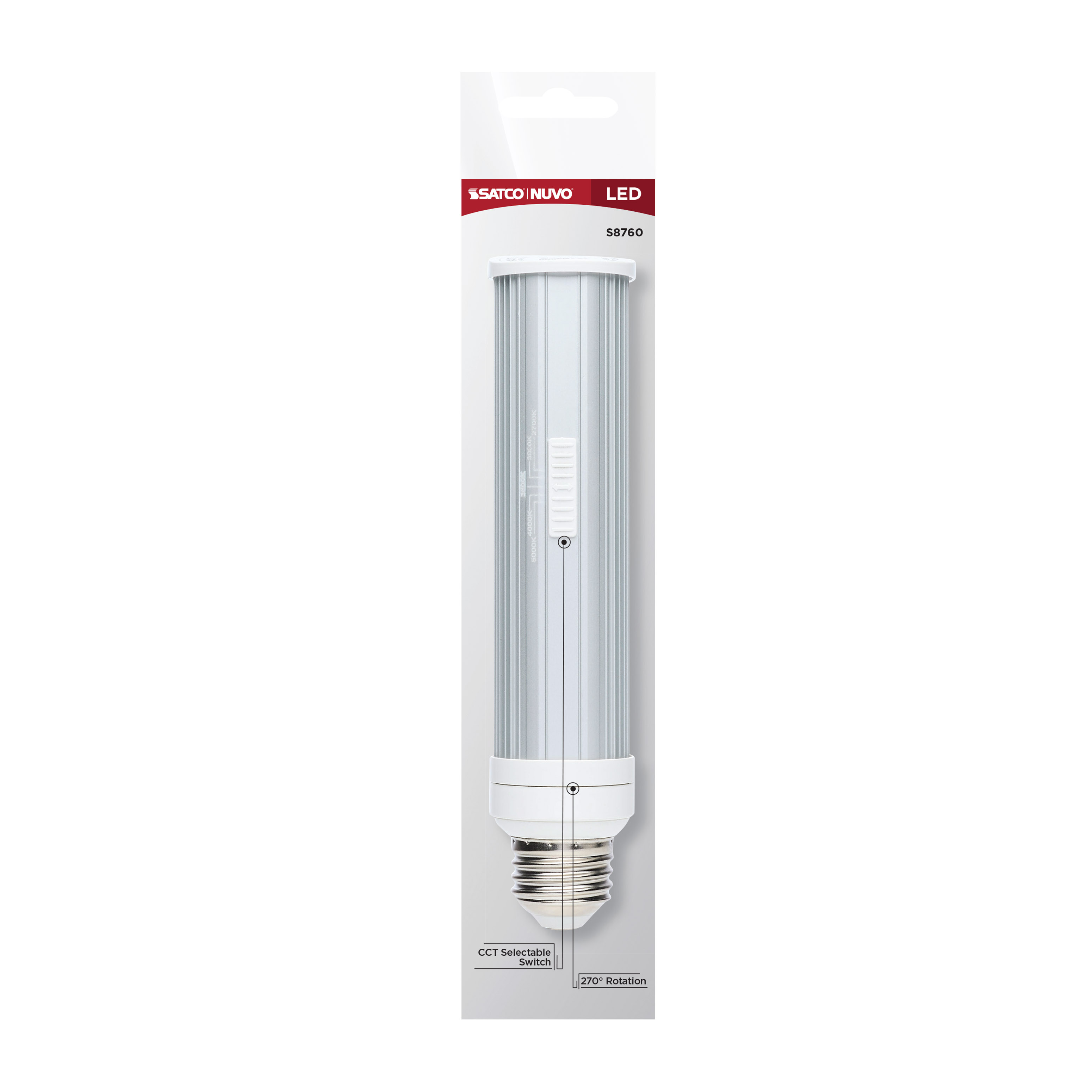

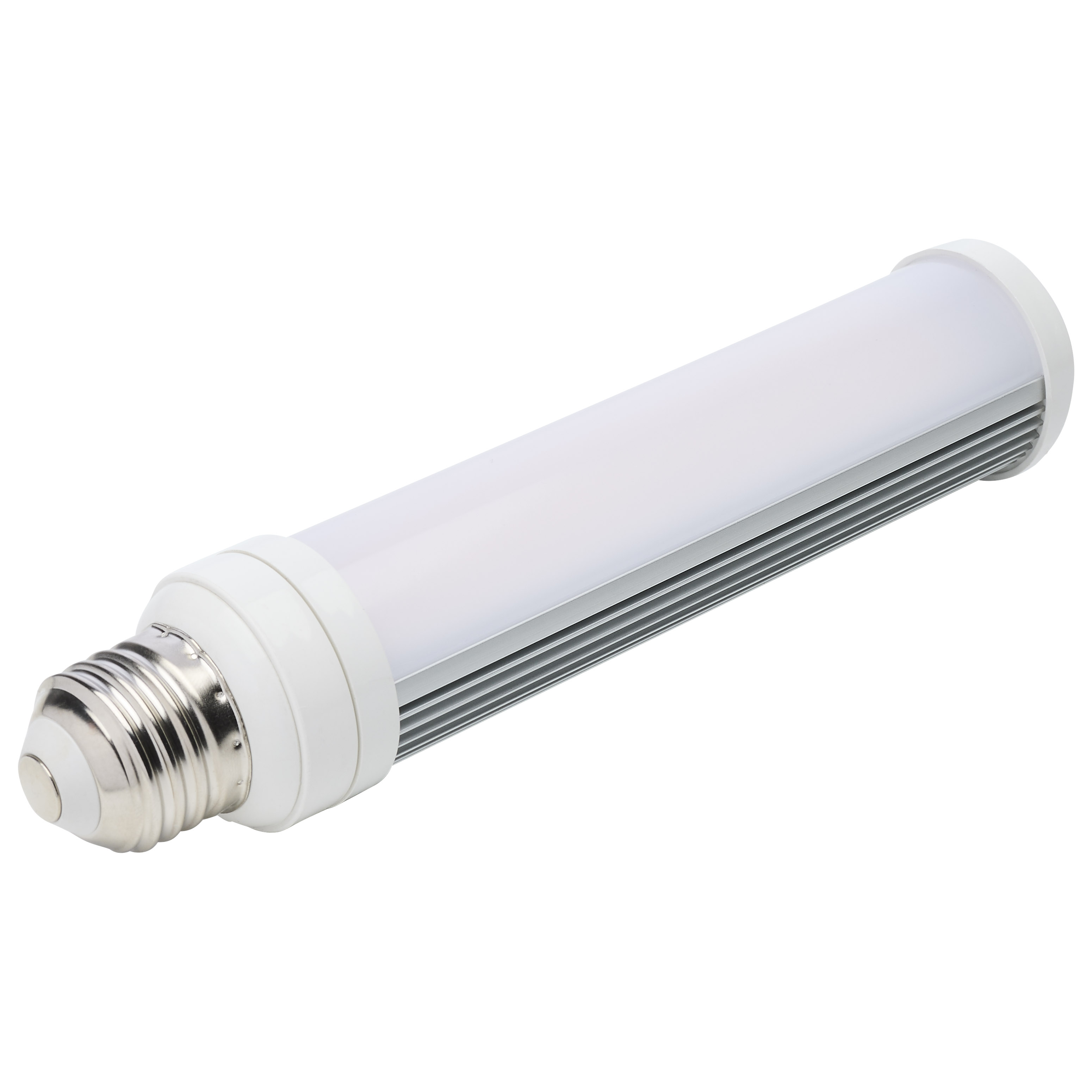

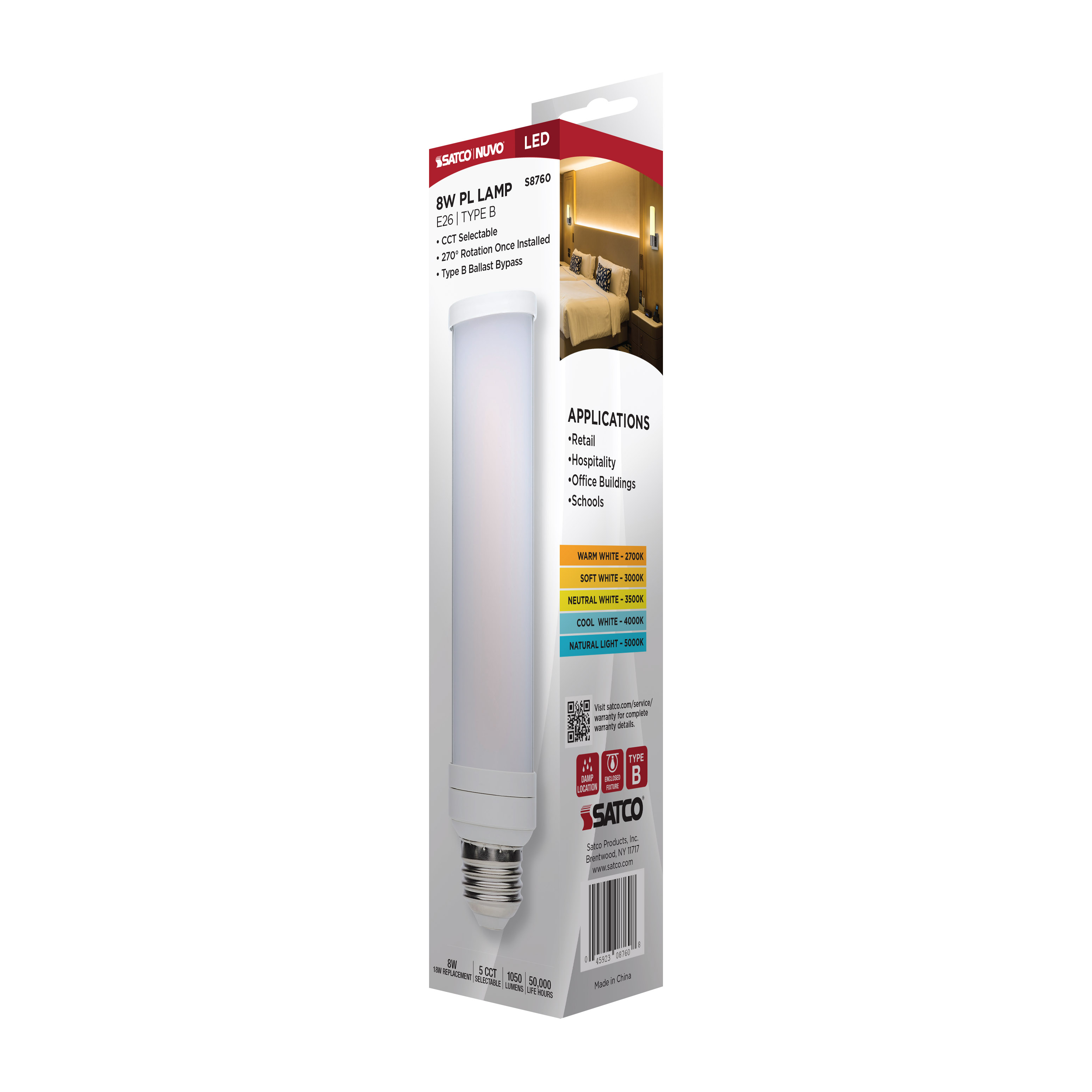

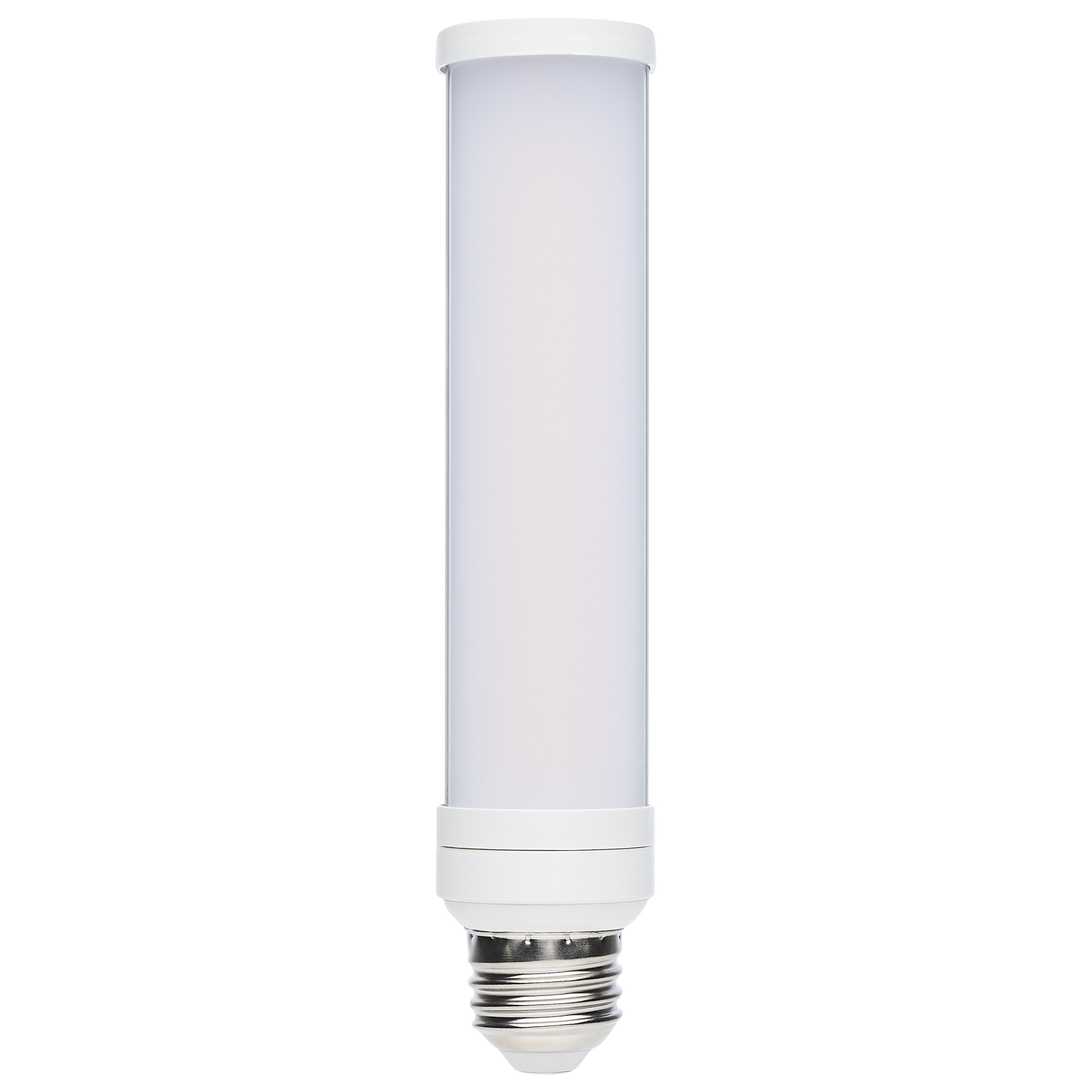

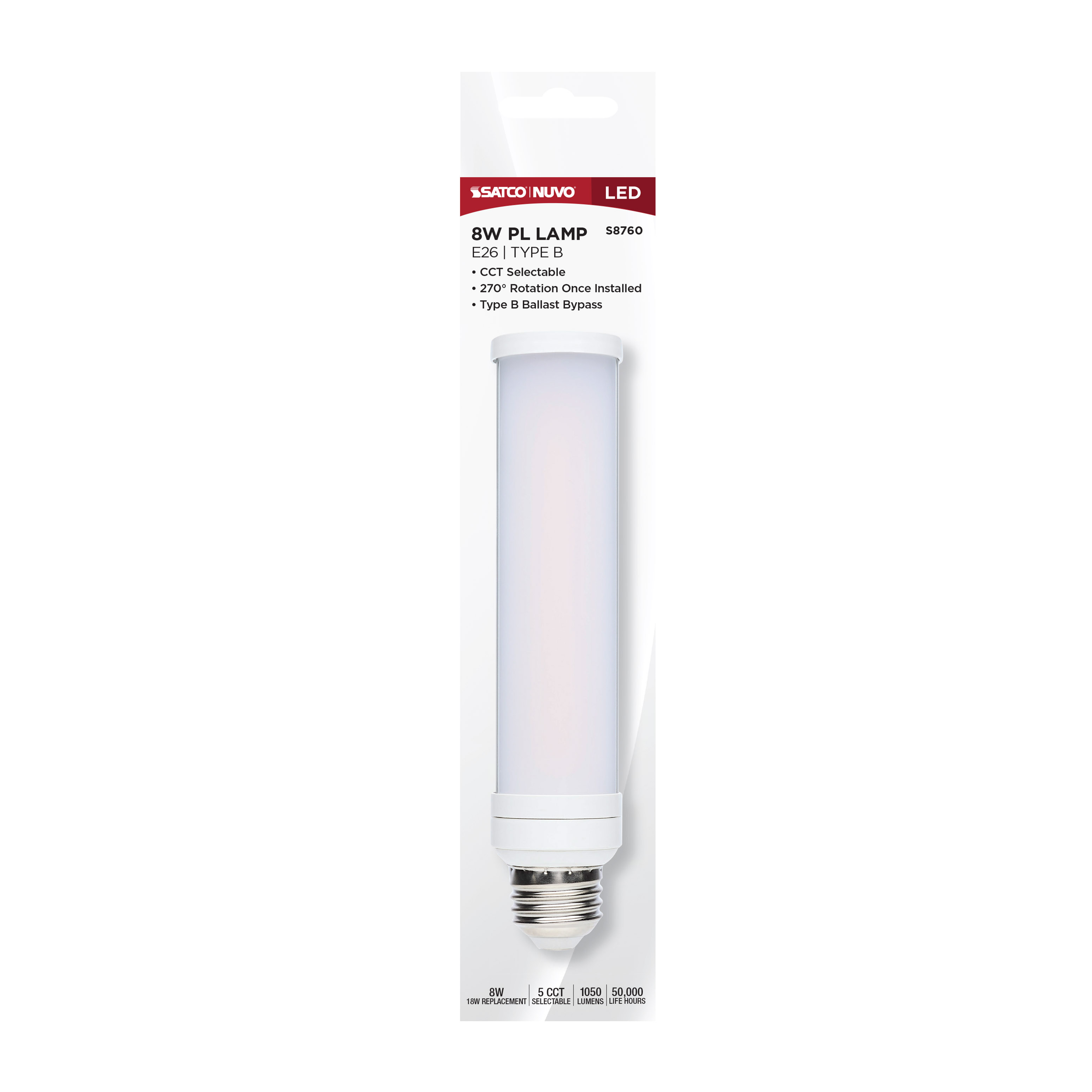

S8760

8W/LED/CFL/5CCT/E26

  • 8 Watt LED PL
  • E26 Base

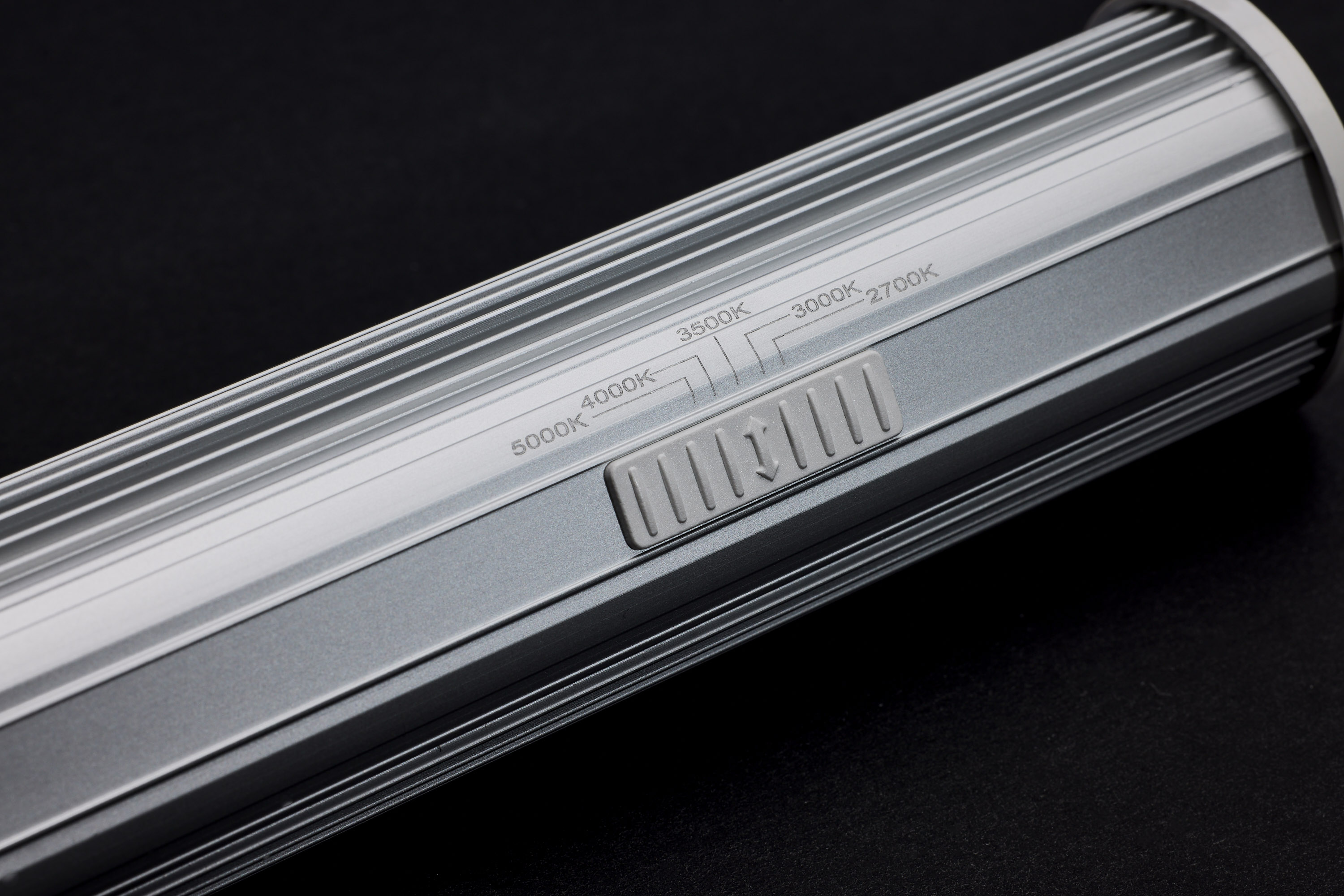

  • 27K/30K/35K/40K/50K CCT Selectable
  • Type B Ballast Bypass
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

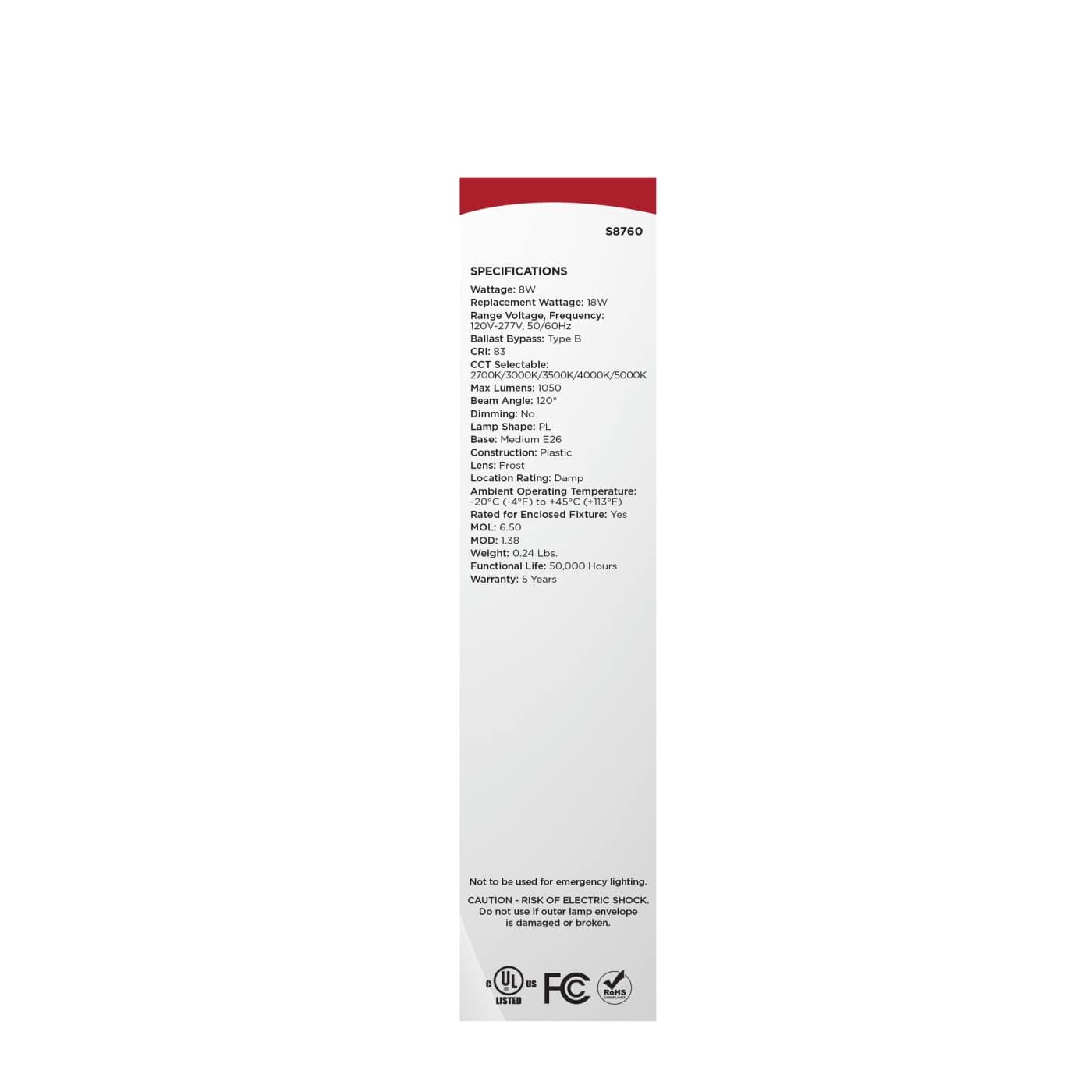

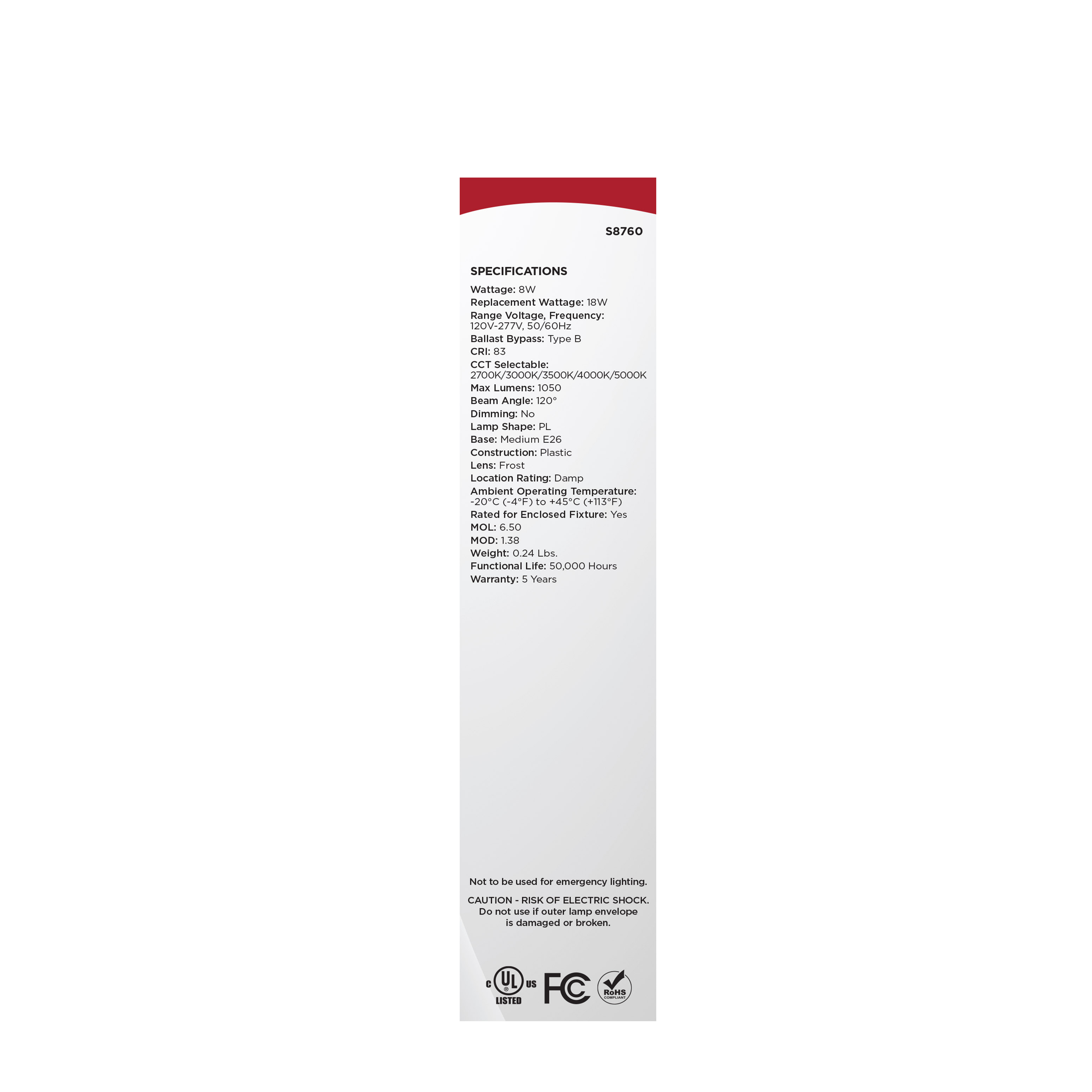

S8760 SpecificationsSN1696-8W LED PL Lamp PI 7-24-24 v4SN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25
Description
Description
8 Watt LED PL; E26 Base; 27K/30K/35K/40K/50K CCT Selectable; Type B Ballast Bypass; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Candle Power200.0
Lamp FilamentLED
MaterialPlastic
StatusActive
StyleTransitional
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.070A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv18W
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)

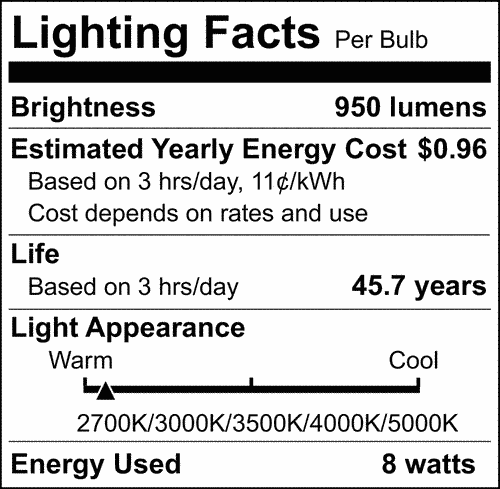

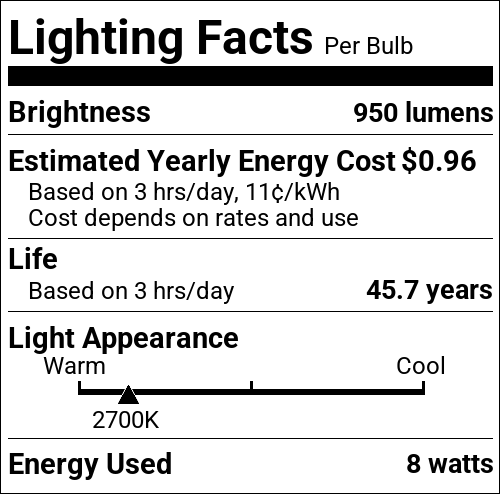

Lumens950L/975L/1000L/1050L/1050L
Volts120V-277V
Watts8W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypePL

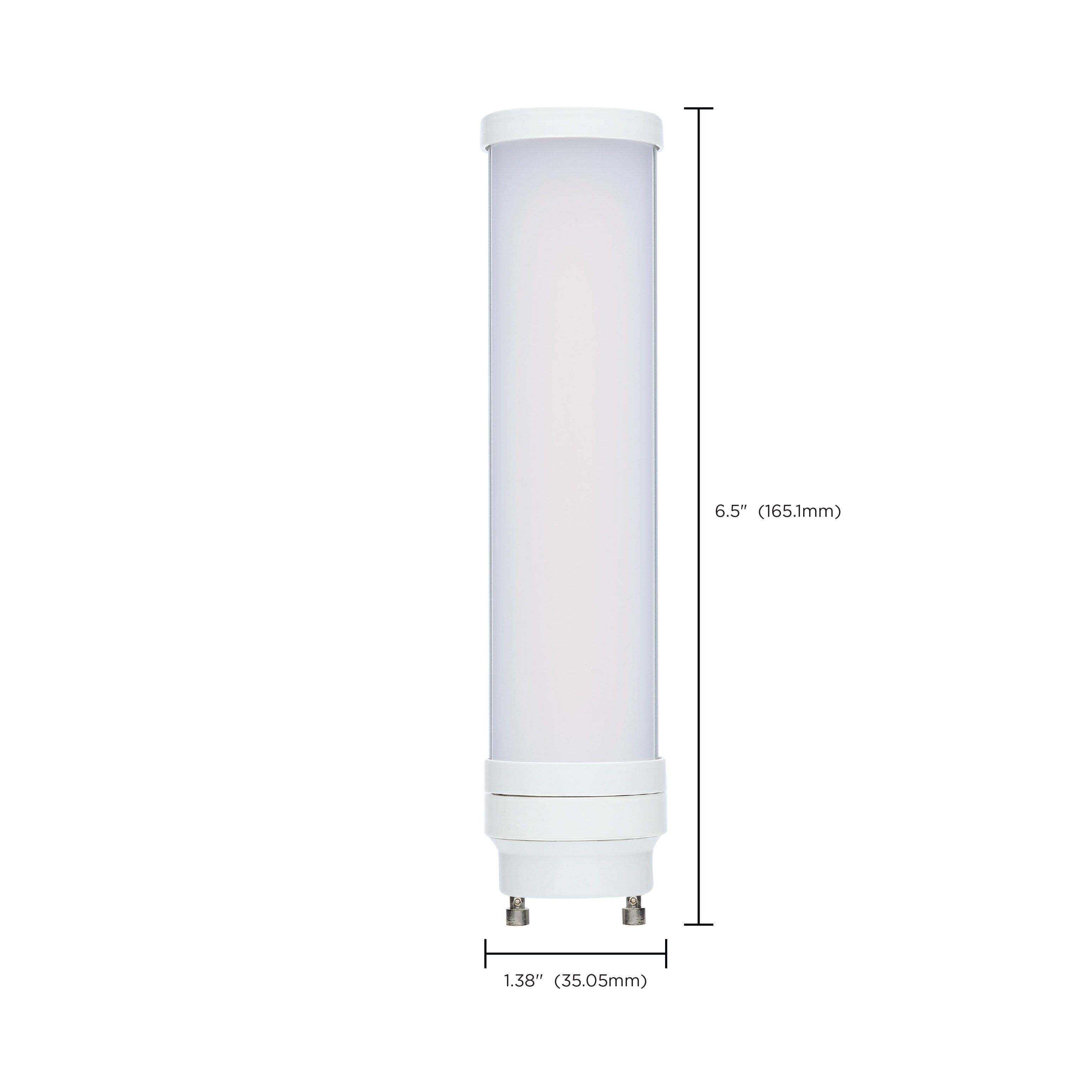

MOD Lamps1.38
MOL6.5
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - R8 <72
CA StatusNon-Compliant
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923087608
Case Cube0.9563
Case Height9.06
Case Length18.9
Case Quantity50
Case UPC10045923087605
Case Weight14.33
Case Width9.65
EA Cube0.0115
EA Height7.28
EA Length1.65
EA Quantity1
EA Weight0.3
EA Width1.65
Inner Cube0.1461
Inner Height7.87
Inner Length9.06
Inner Quantity10
Inner UPC20045923087602
Inner Weight0.3
Inner Width3.54
Pack TypeBox
Web Length6.5
Web Width1.38
