» S8892

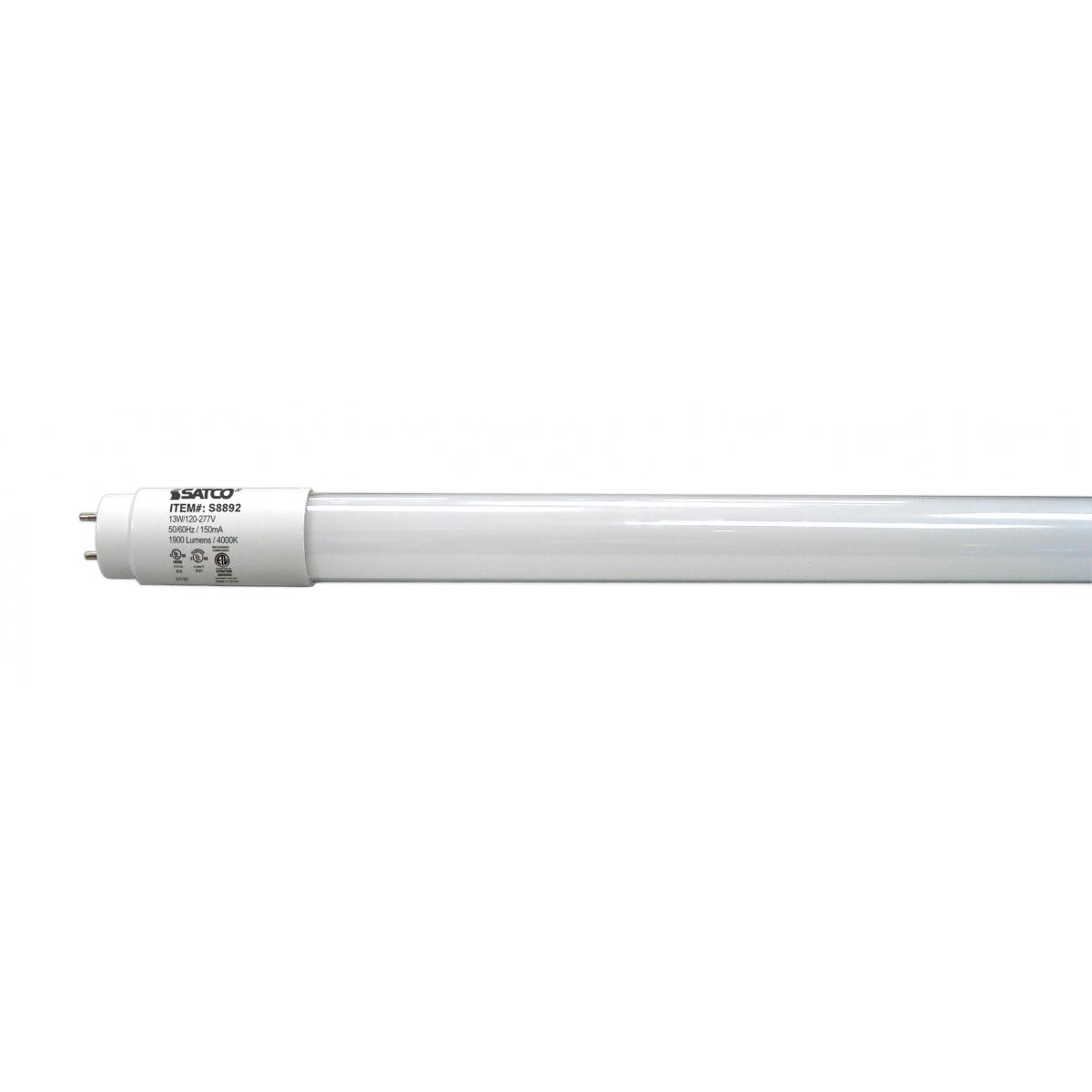

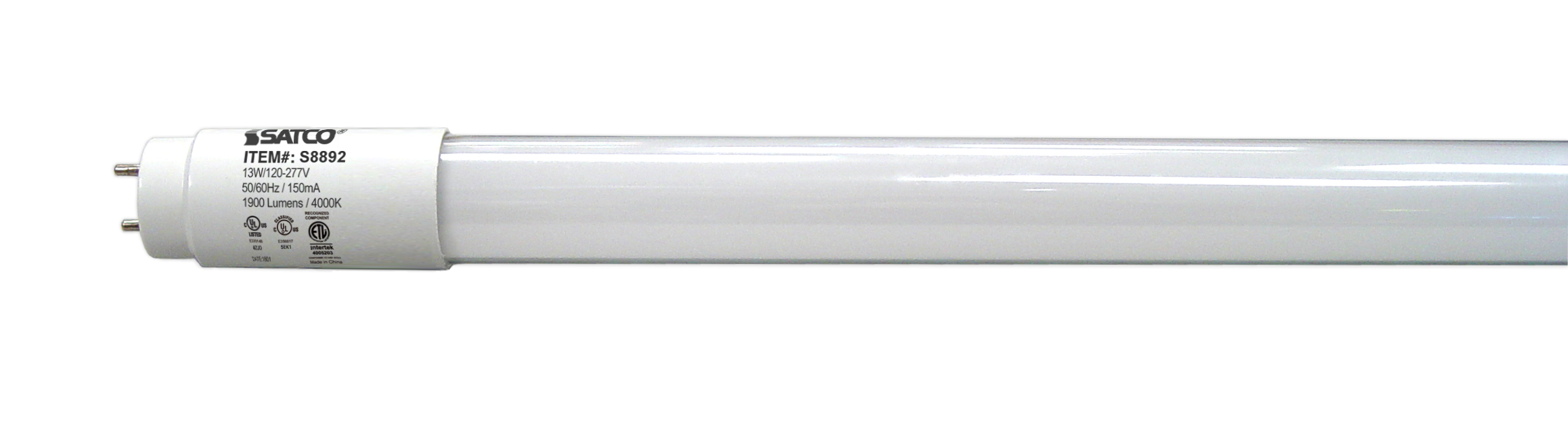

S8892 13T8/LED/48-840/DUAL/BP-DR

S8892

13T8/LED/48-840/DUAL/BP-DR

13 Watt T8 LED; Medium bi-pin base; 4000K; 50000 Hours; 1900 Lumens; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring

Lights

S8892

13T8/LED/48-840/DUAL/BP-DR

13 Watt T8 LED; Medium bi-pin base; 4000K; 50000 Hours; 1900 Lumens; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring

Specifications

General
StatusActive
Watts13W
Volts120V-277V
Ballast TypeType A/B
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length48.00
FinishFrost
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens1900L
Beam Spread240
DimmableYes-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts13W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60 Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens1900L
Beam Spread240
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.96
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL47.78
MOD1
Nominal Length48.00
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialGlass
Lens FinishFrost
Housing ColorWhite
Additional Information
Shatter-Proof TypePET Coated
Specification NoteBallast Compatible - bare lamp is 12W; Ballast Bypass - 13W.; Protection from arcing- Power must be turned off prior to installing lamps. Sockets must be in good working order, not broken, cracked or electrically compromised. If arcing occurs at the lamp pin, thermal fuse may activate to avoid overheating of lamp.
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLIR7BJW4P8T
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
Colorado StatusLawful for sale
Hawaii StatusLawful for sale
Nevada StatusLawful for sale
Washington StatusLawful for sale
Vermont StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923088926
Each Quantity1
Each Length (in.)48.00
Each Width (in.)1.10
Each Height (in.)1.10
Each Weight (lb.)0.50
Each Cube (CuFt.)0.0336
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923088923
Case Quantity25
Case Length (in.)50.20
Case Width (in.)7.30
Case Height (in.)7.30
Case Weight (lb.)15.90
Case Cube (CuFt.)1.5481
×
×

Ballast Compatibility

Name Type View
T8 LED Chart O LED T8 View
Ballast Compatibility Chart LED T8 View
×

Precautions

No precautions available at this time.

×
