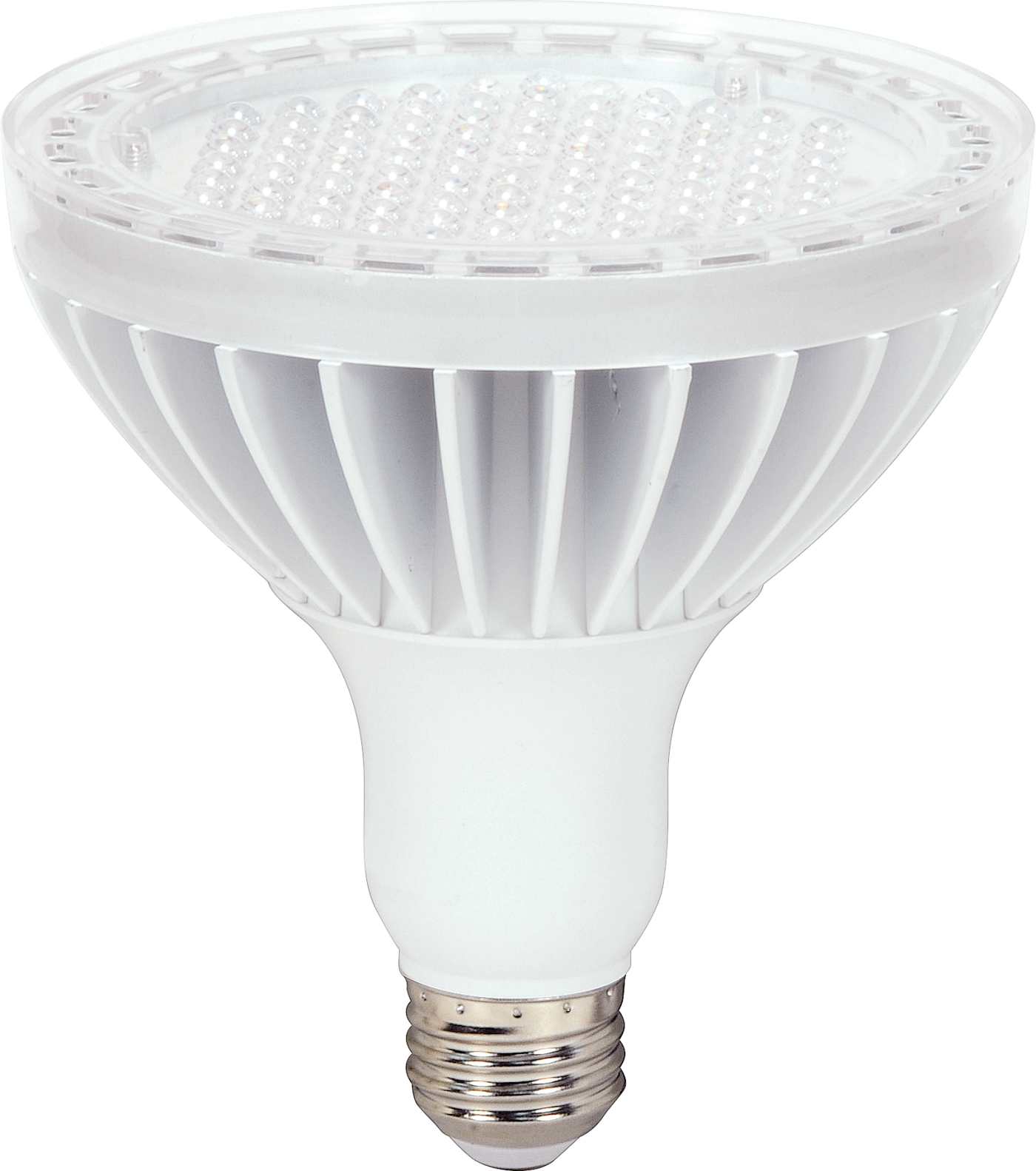

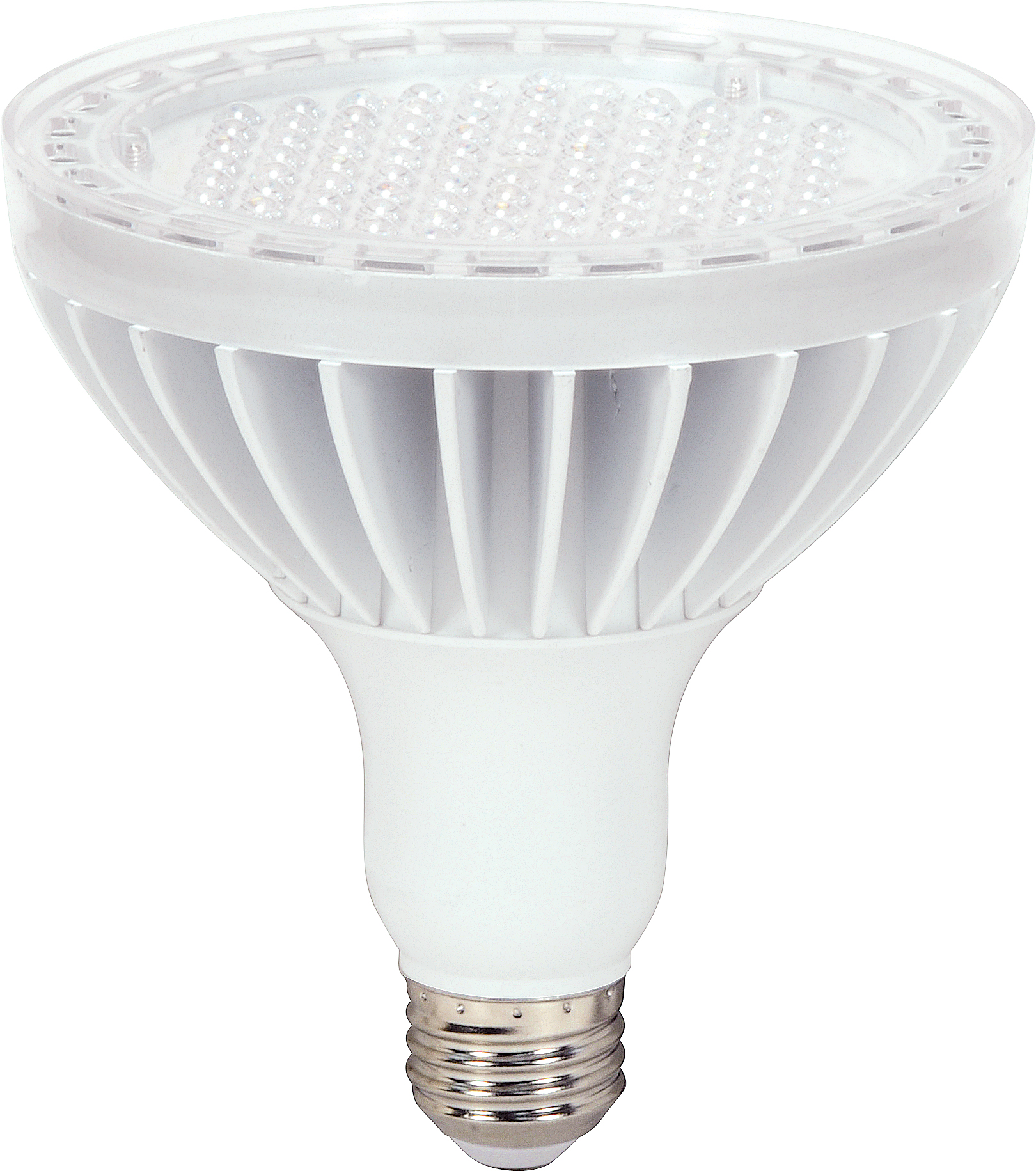

17PAR38/LED/60'/5000K/WH 2.0 - S8986
S8986

17PAR38/LED/60'/5000K/WH 2.0

Discontinued - Suggested Replacement: S29454
  • Discontinued - 17 watt
  • PAR38 LED
  • 5000K
  • 60' beam spread
  • Medium base
  • 120 volts
dimmable^dimmable^2
hours_rated^25k^2
beam_angle^60^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

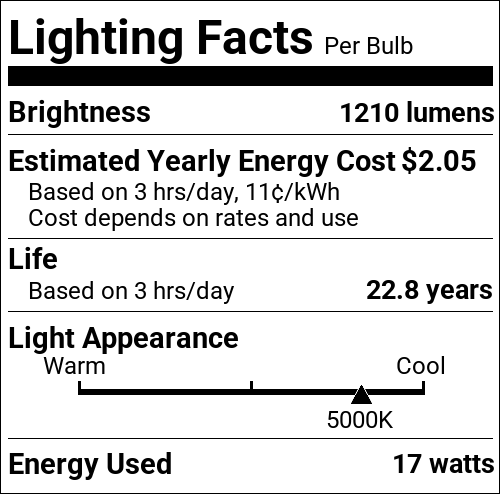

S8986 SpecificationsKolourOne Panel Array 2.0 17W PAR38 LED lampS8986 Lighting Facts Label
Description
Description
Discontinued - 17 watt; PAR38 LED; 5000K; 60' beam spread; Medium base; 120 volts
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypePAR
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.142A
Has CameraNo
IOT EnabledNo
Lens FinishArray White
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)60
Color TempNatural Light
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens1210L
Volts120v
Watts17W
Physical
Lamp BaseMedium
FinishArray White
Housing ColorWhite
ANSI BaseE26
Lamp TypePAR38
MOD Lamps4.75
MOL5.13
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
ROHS CompliantYes
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24/JA8 CompliantNo
Packaging
UPC045923089862
Case Cube1.446
Case Height13.39
Case Length16.34
Case Quantity12
Case UPC10045923089869
Case Weight19.29
Case Width11.42
EA Cube0.0866
EA Height5.71
EA Length5.12
EA Quantity1
EA Weight1.37
EA Width5.12
Inner Cube0.5726
Inner Height5.91
Inner Length15.75
Inner Quantity6
Inner UPC20045923089866
Inner Weight6.49
Inner Width10.63
Pack TypeBox
Web Length5.13
Web Width4.75
