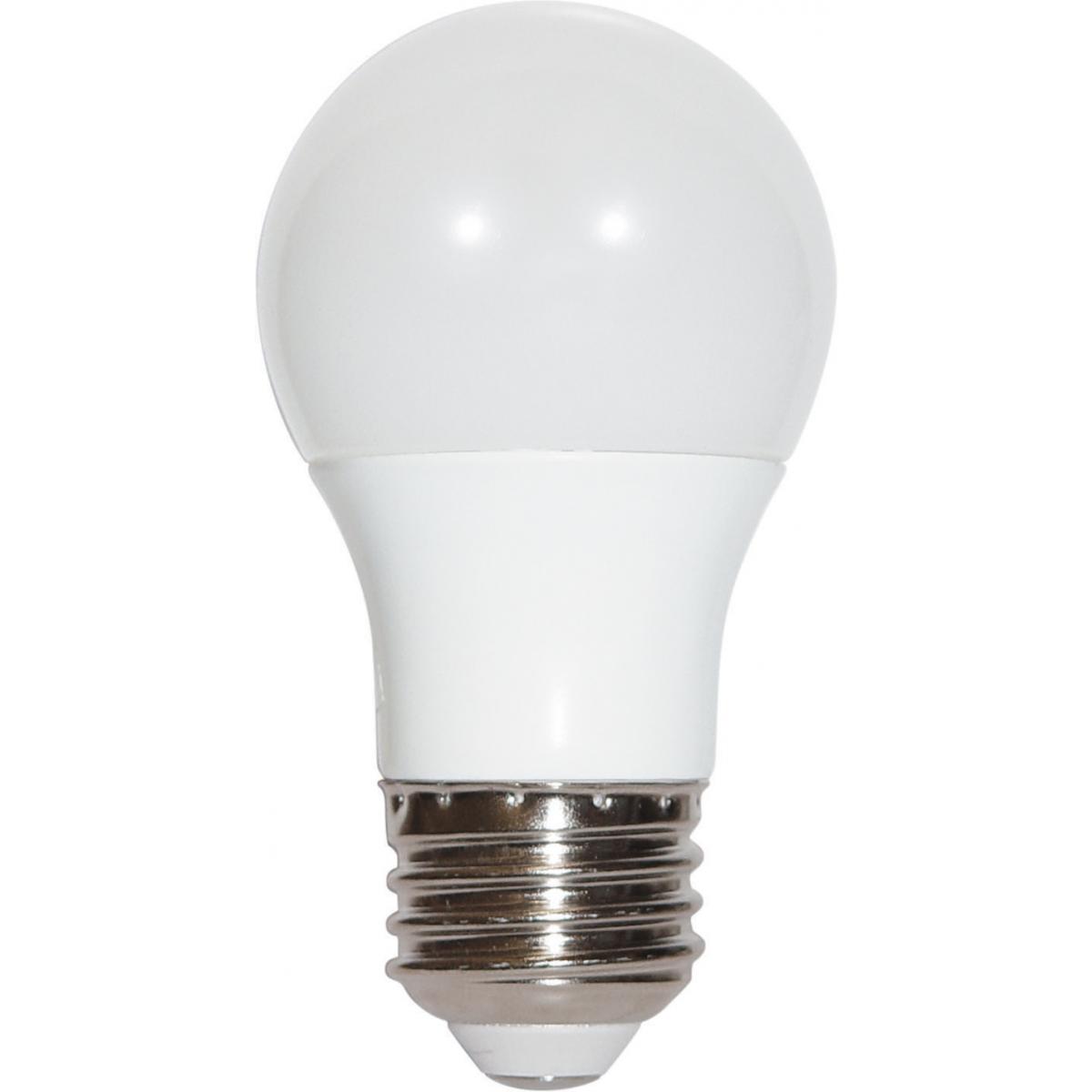

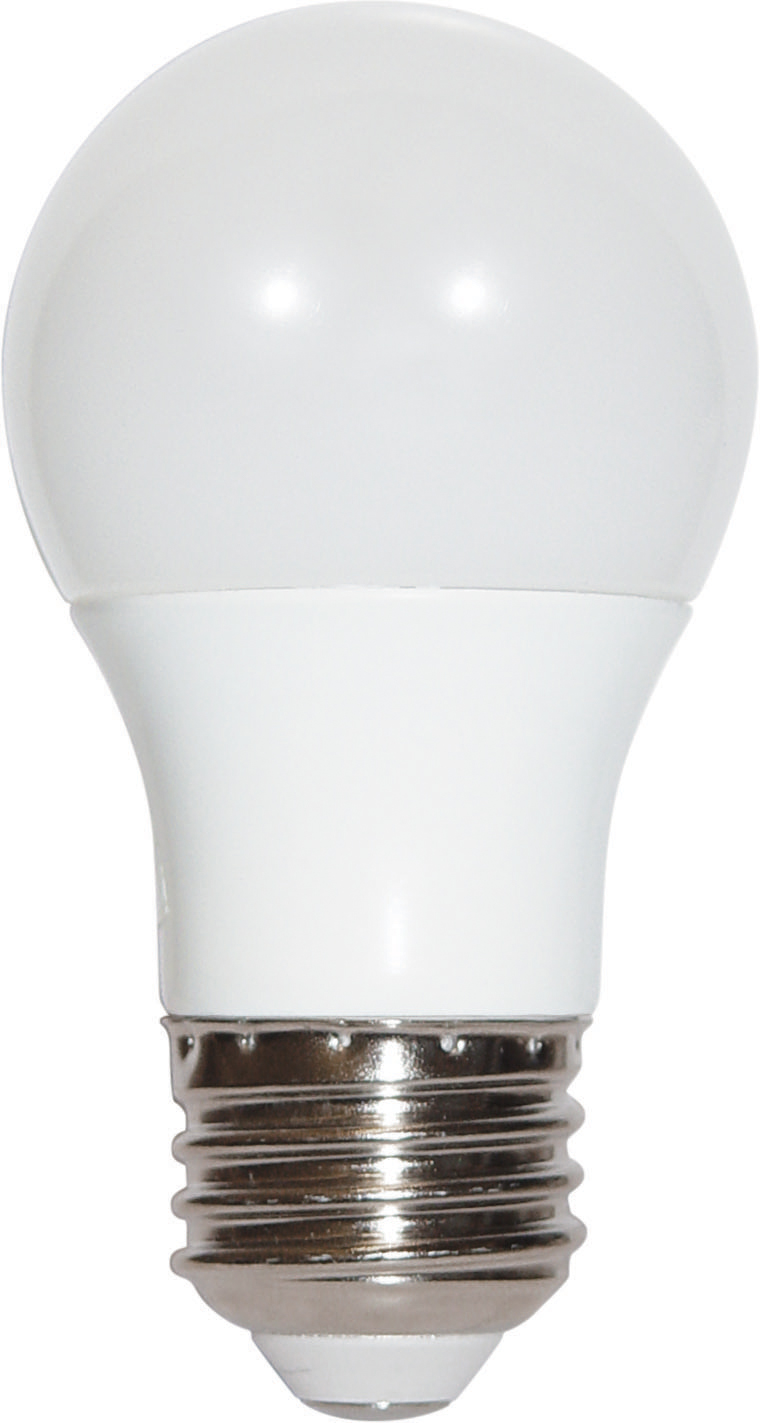

S9033

5.5A15/LED/5000K/120V

  • 5.5 Watt
  • A15 LED
  • Frosted
  • 5000K
  • Medium base
  • 230 deg. Beam Angle
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9033 SpecificationsS9033 LFLSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25
Tools
Lighting Layout Analysis For S9033
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
5.5 Watt; A15 LED; Frosted; 5000K; Medium base; 230 deg. Beam Angle; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTraditional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.046A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionUniversal
Photo CellNo
Power Factor0.79
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)230
Color TempNatural Light
CRI80+
Dimming TypeReverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)

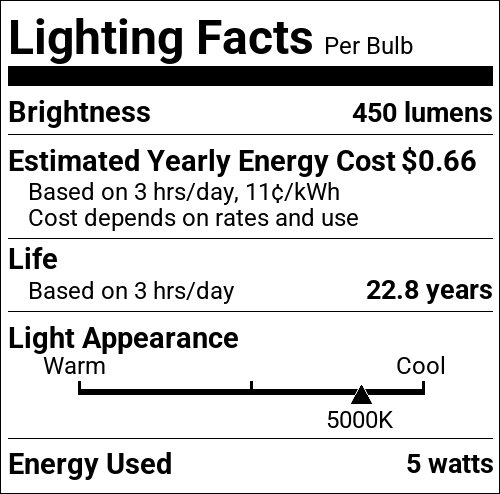

Lumens450L
Volts120v
Watts5.5W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA15
MOD Lamps1.89
MOL3.48
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA StatusNon-Compliant
CO StatusLawful for sale
Dark Sky RatedFalse
FCC CompliantTrue
HI StatusLawful for sale
IC RatedFalse
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923090332
Case Cube0.4278
Case Height5.71
Case Length13.7
Case Quantity24
Case UPC10045923090339
Case Weight3.37
Case Width9.45
EA Cube0.0097
EA Height4.33
EA Length1.97
EA Quantity1
EA Weight0.11
EA Width1.97
Inner Cube0.0759
Inner Height4.72
Inner Length6.42
Inner Quantity6
Inner UPC20045923090336
Inner Weight0.75
Inner Width4.33
Pack TypeBox
Web Length3.48
Web Width1.89
