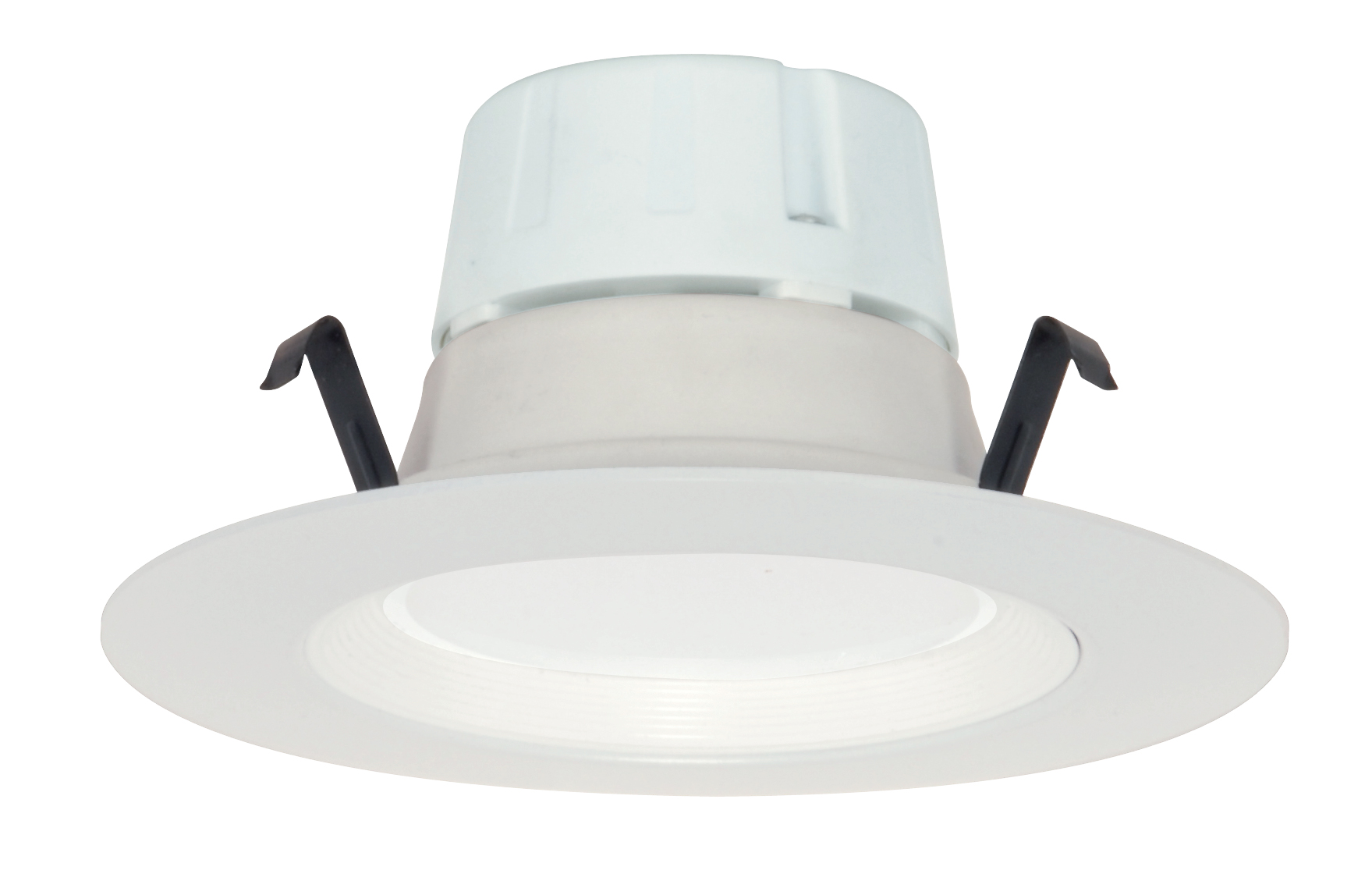

8WLED/RDL/4/120V/DIM 3000K - S9076
S9076

8WLED/RDL/4/120V/DIM 3000K

Discontinued - Suggested Replacement: S11800R1
  • Discontinued - 8 watt
  • LED Retrofit Kit
  • 3000K
  • 90' beam spread
  • Medium base
  • 120 volts
dimmable^dimmable^2
volts^120v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S9076 Specifications
Description
Description
Discontinued - 8 watt; LED Retrofit Kit; 3000K; 90' beam spread; Medium base; 120 volts
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter4.0
Fixture TypeDownlight Retrofit
StatusDiscontinued
StyleContemporary
Most Current GenerationS11800R1
CCT SelectableFalse
Wattage SelectableFalse
Can Size4 in.
Finish FamilyWhite
Amps0.067A
Has CameraFalse
IOT EnabledFalse
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated40000
Beam Angle (degree)90
Color TempWarm White
CRI80+
Dimming TypeReverse Phase or Phase Selectable
Operating Temp-20C (-4F) to +45C (+113F)
Lumens530L
Volts120v
Watts8W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsT20 Non-Compliant - LPW <80
CA Prop 65Lead
CA StatusNon-Compliant
FCC CompliantTrue
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextNon-Compliant
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923090769
Case Cube1.5665
Case Height15.2
Case Length13.42
Case Quantity12
Case UPC10045923090766
Case Weight12.76
Case Width13.27
EA Cube0.0896
EA Height6.63
EA Length6.56
EA Quantity1
EA Weight0.73
EA Width3.56
Inner Cube0.637
Inner Height6.89
Inner Length12.72
Inner Quantity6
Inner UPC20045923090763
Inner Weight6.2
Inner Width12.56
Pack TypeBox
Web Height3.31
Web Width4.0
