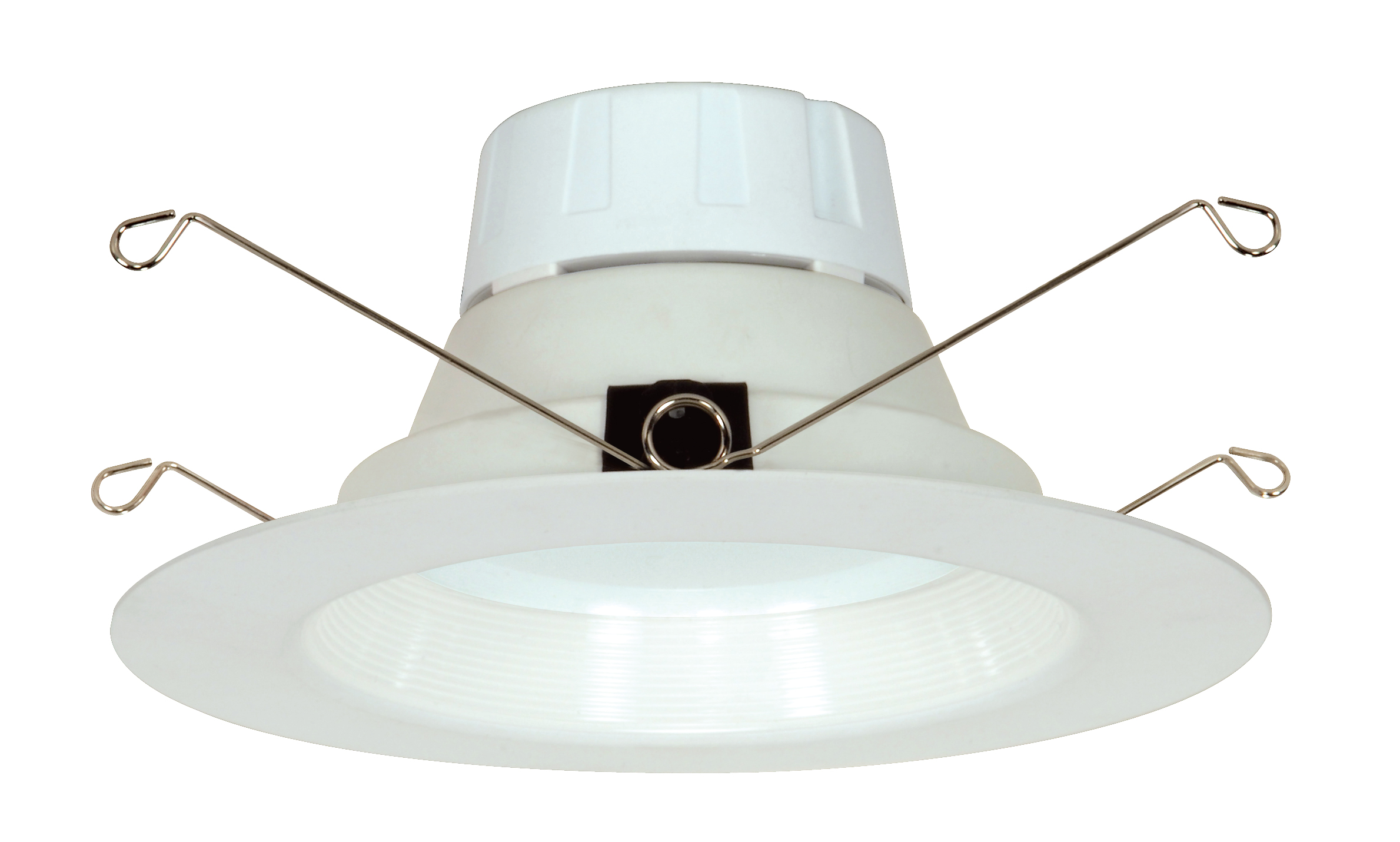

SKU S9119 - Image 1
S9119

15WLED/RDL/5-6/120V/DIM 90CRI

  • Discontinued - 15 watt
  • LED Retrofit
  • 3000K
  • 90' beam spread
  • Medium base
  • 120 volts
cri^90+^2
dimmable^dimmable^2
hours_rated^35k^2
volts^120v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S9119 SpecificationsSA1177 5-6inch LED Retrofits PI sheet - LIT 2 15
Description
Description
Discontinued - 15 watt; LED Retrofit; 3000K; 90' beam spread; Medium base; 120 volts
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter6.0
Fixture TypeDownlight Retrofit
StatusObsolete
StyleContemporary
Most Current GenerationS11825R1
CCT SelectableFalse
Wattage SelectableFalse
Can Size5-6 in.
Finish FamilyWhite
Amps0.125A
Has CameraFalse
IOT EnabledFalse
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated35000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming TypeForward Phase
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1200L
Volts120v
Watts15W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsNon-Compliant - Compliance Score <297
CA Prop 65Lead
CA StatusNon-Compliant
FCC CompliantTrue
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextNon-Compliant
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923091193
Case Cube3.1161
Case Height19.0
Case Length16.97
Case Quantity12
Case UPC10045923091190
Case Weight18.7
Case Width16.7
EA Cube0.1991
EA Height8.25
EA Length8.13
EA Quantity1
EA Weight1.29
EA Width5.13
Inner Cube1.3251
Inner Height8.78
Inner Length16.3
Inner Quantity6
Inner UPC20045923091197
Inner Weight9.25
Inner Width16.0
Pack TypeBox
Web Height3.31
Web Width6.0
