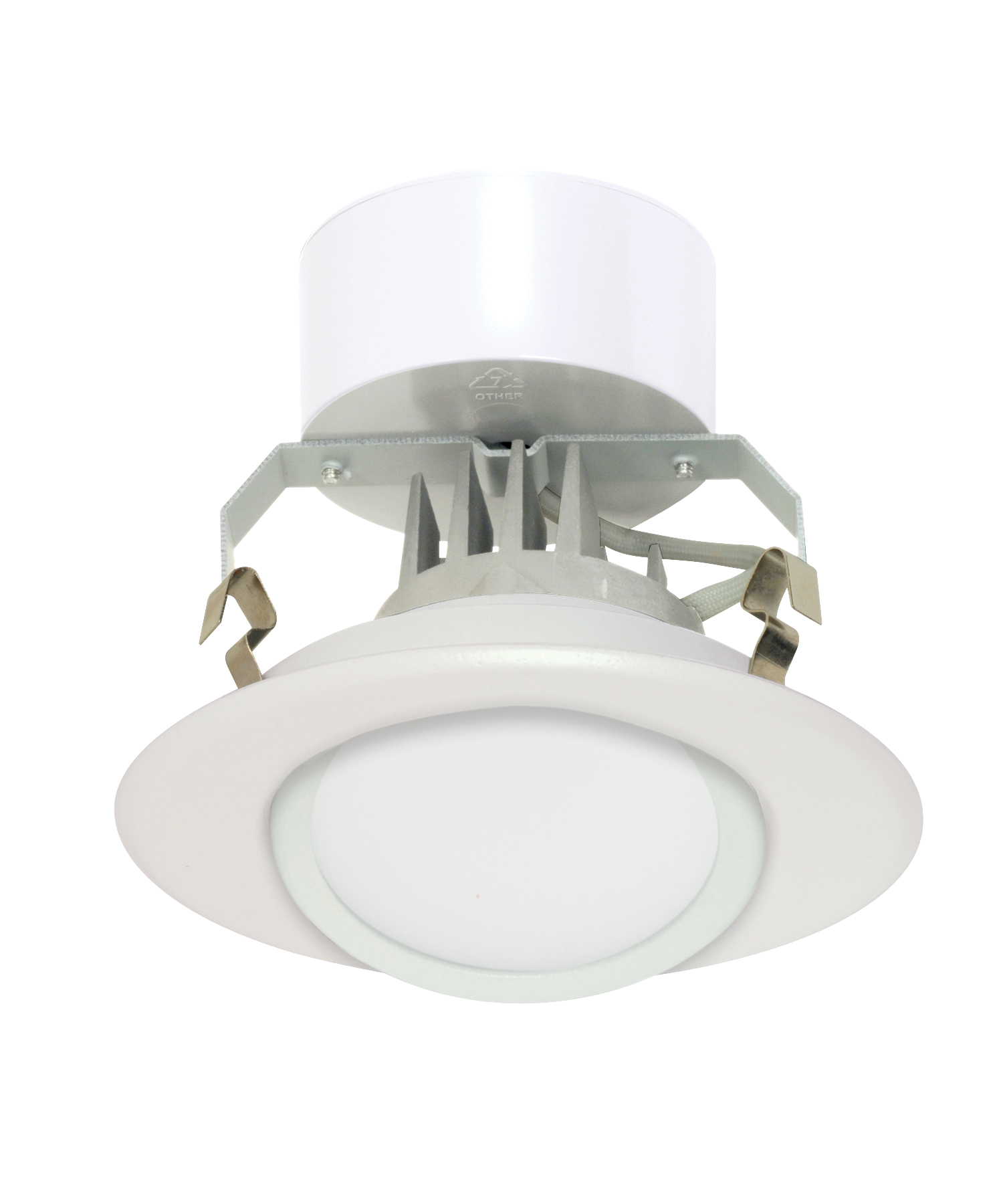

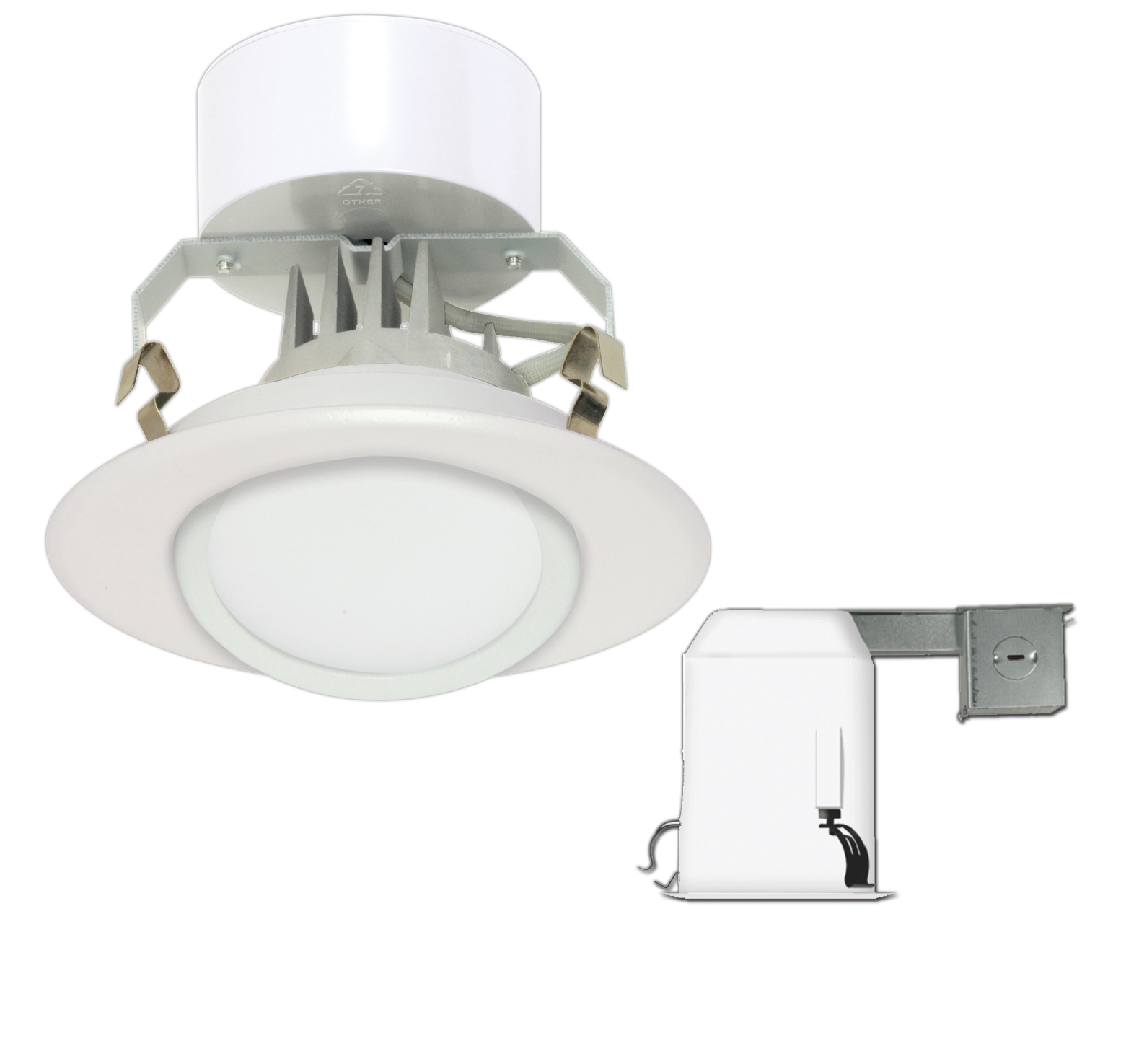

10.4WLED/RDL/4"GBL/KIT/120V 3K - S9120
10.4WLED/RDL/4"GBL/KIT/120V 3K - S9120
S9120

10.4WLED/RDL/4"GBL/KIT/120V 3K

Discontinued
  • Discontinued - 10.4 watt LED Directional Downlight Retrofit Kit
  • 4" Gimbaled
  • 3000K
  • Medium base
  • 120 volts
  • Dimmable
location_rating^damp^1
dimmable^dimmable^2
hours_rated^35k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9120 SpecificationsRecessed downlight retrofit kits
Description
Description
Discontinued - 10.4 watt LED Directional Downlight Retrofit Kit; 4" Gimbaled; 3000K; Medium base; 120 volts; Dimmable
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter5.0
Fixture TypeDownlight Retrofit Kit
StatusObsolete
StyleContemporary
CCT SelectableNo
Wattage SelectableNo
Can Size4 in.
Finish FamilyWhite
Amps0.087A
Has CameraNo
IOT EnabledNo
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent25W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated35000
Beam Angle (degree)90
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens437L
Volts120v
Watts10.4W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923091209
Case Cube1.4905
Case Height17.5
Case Length14.5
Case Quantity6
Case UPC10045923091206
Case Weight3.07
Case Width10.15
EA Cube0.2164
EA Height5.5
EA Length6.88
EA Quantity1
EA Weight0.4
EA Width9.88
Pack TypeBox
Web Height6.0
Web Width5.0
