S9429

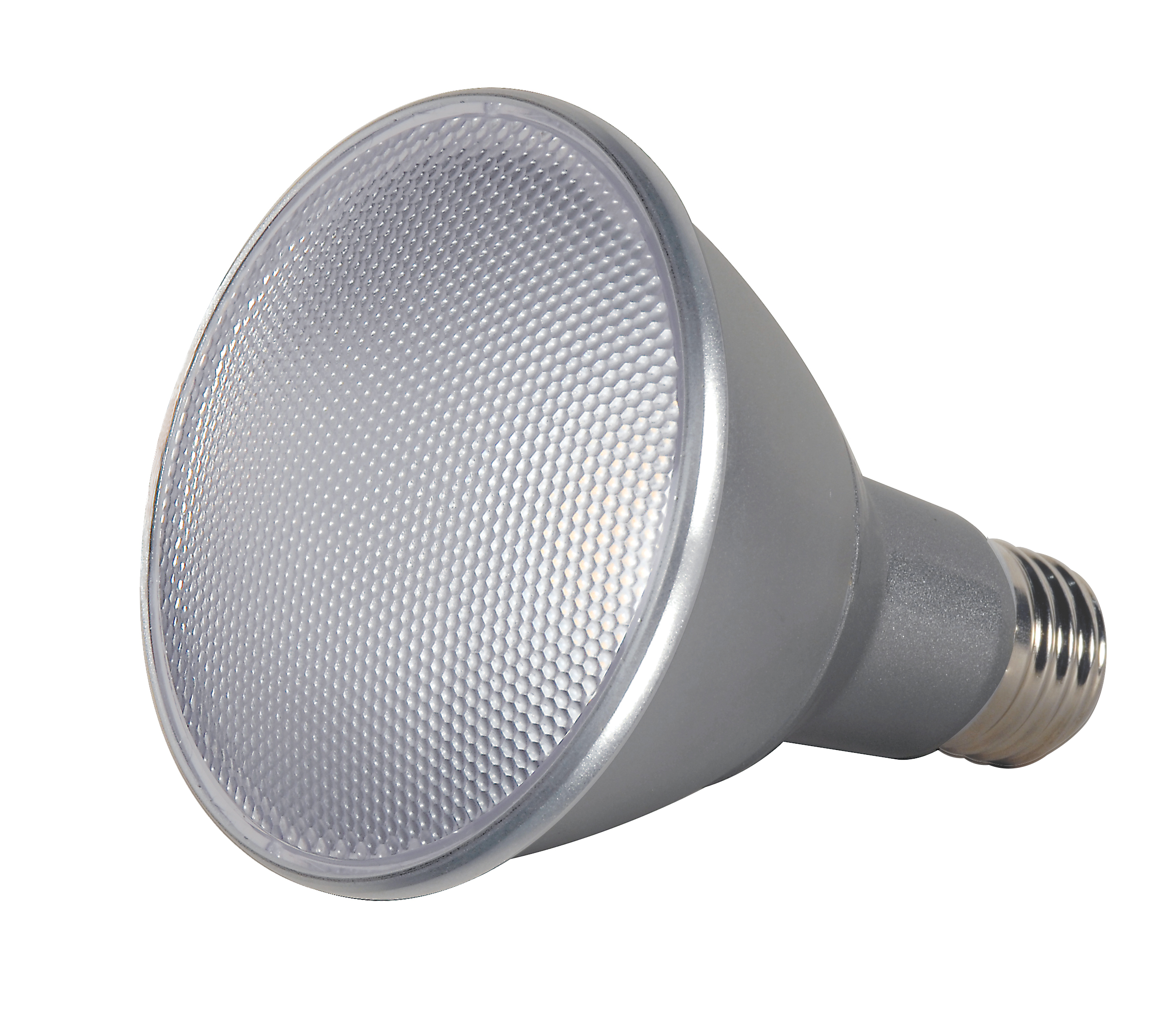

13PAR30/LN/LED/25'/5000K/120V

Discontinued - Suggested Replacement: S29429
  • 13 Watt PAR30 Long Neck LED
  • 5000K
  • 25 deg. Beam Angle
  • Medium base
  • 120 Volt
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^25^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S9429 SpecificationsSA1393 LED PAR V3 PI Sheet Full Line 3-25-25SA2000-3 LO RES LED Lamp Reference Guide - LIT 4 21
Tools
Lighting Layout Analysis For S9429
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
13 Watt PAR30 Long Neck LED; 5000K; 25 deg. Beam Angle; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Center Beam Candle Power2900
Lamp FilamentLED
Fixture TypePAR
StatusDiscontinued
Most Current GenerationS29429
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.108A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Operating PositionUniversal
Power Factor1
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)25
Color TempNatural Light
CRI80+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1000L
Volts120v
Watts13W
Physical
Lamp BaseMedium
FinishClear
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR30LN
MOD Lamps3.75
MOL4.59
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingWet
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923094293
Case Cube0.7971
Case Height6.11
Case Length17.34
Case Quantity12
Case UPC10045923094290
Case Weight6.25
Case Width13.0
EA Cube0.0443
EA Height4.93
EA Length3.94
EA Quantity1
EA Weight0.29
EA Width3.94
Inner Cube0.316
Inner Height5.32
Inner Length12.41
Inner Quantity6
Inner UPC20045923094297
Inner Weight4.2
Inner Width8.27
Pack TypeBox
Web Length4.59
Web Width3.75
