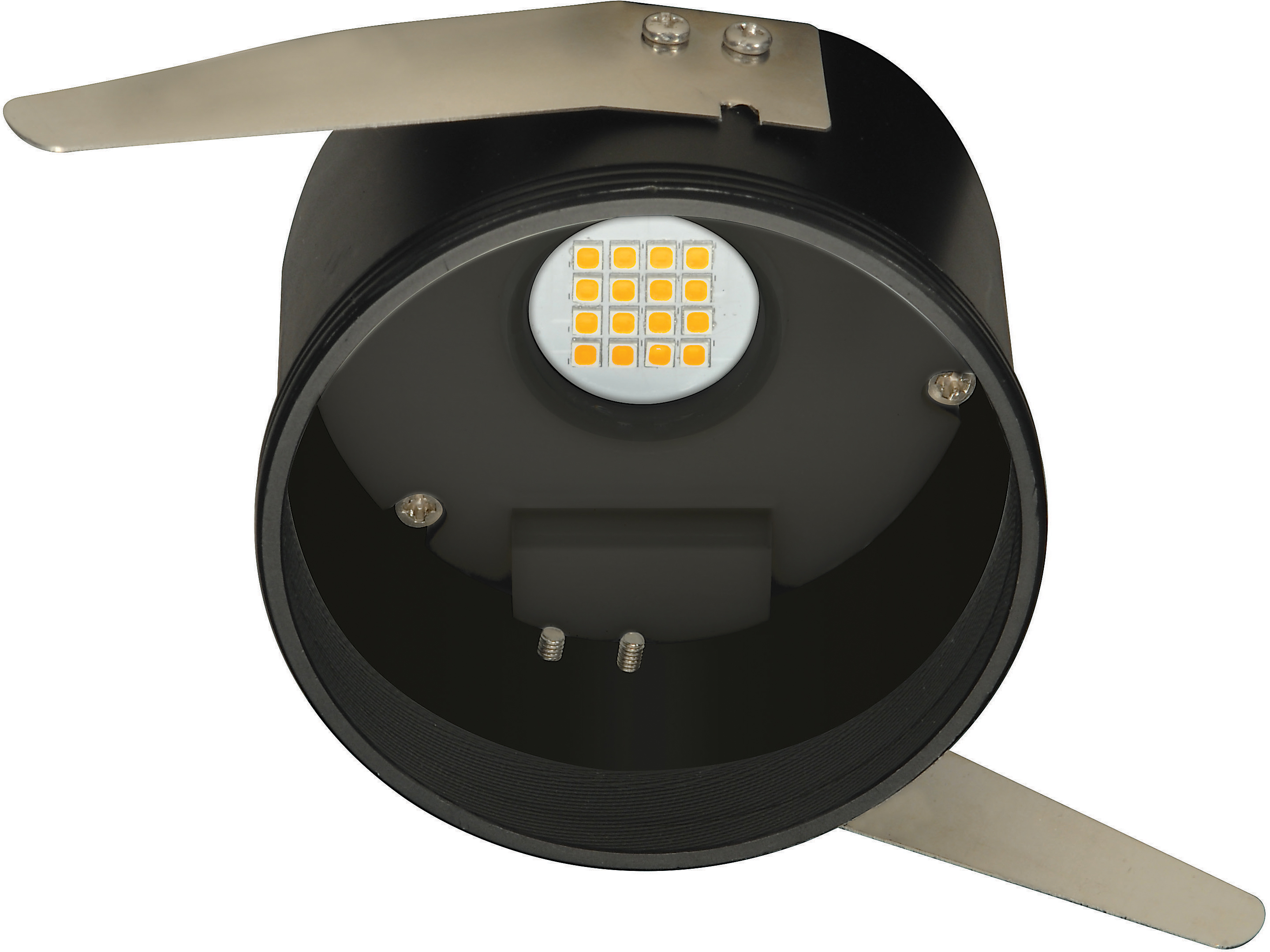

10.5WLED/4-BASE/27-22K/120V - S9524
S9524

10.5WLED/4-BASE/27-22K/120V

Discontinued
  • 10.5 watt
  • 4" base unit LED Downlight / Retrofit Fixture
  • 2700K-2200K
  • 120 volts
location_rating^damp^1
color_temp^dim_to_warm^1
cc_selectable^y^1
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9524 SpecificationsS9524 Instructions.pdfNU1350-5 LED Fixt Guide 8-19-20
Description
Description
10.5 watt; 4" base unit LED Downlight / Retrofit Fixture; 2700K-2200K; 120 volts
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter3.19
MaterialAluminum
Fixture TypeCustomizable LED Retrofit
StatusObsolete
StyleContemporary
CCT SelectableYes
Wattage SelectableNo
Can Size4 in.
Finish FamilyBlack
Amps0.088A
Has CameraNo
IOT EnabledNo
Power Factor0.99
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent45W
Electrical
CCT (Kelvin Temp)2700K-2200K
DimmableYes-Dimmable
Hours Rated50000
Color TempWarm Dimming
CRI80+
Dimming TypeForward Phase or Reverse Phase
Operating Temp-20C (-4F) to +45C (+113F)
Lumens650L
Volts120v
Watts10.5W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesFits 4in. universal cans or retrofit
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanNon-Compliant
DLC ApprovedNo
Energy Star CertifiedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923095245
Case Cube0.7708
Case Height7.48
Case Length15.87
Case Quantity12
Case UPC10045923095242
Case Weight6.6
Case Width11.22
EA Cube0.0533
EA Height3.39
EA Length7.68
EA Quantity1
EA Weight0.46
EA Width3.54
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.09
Web Width3.19
