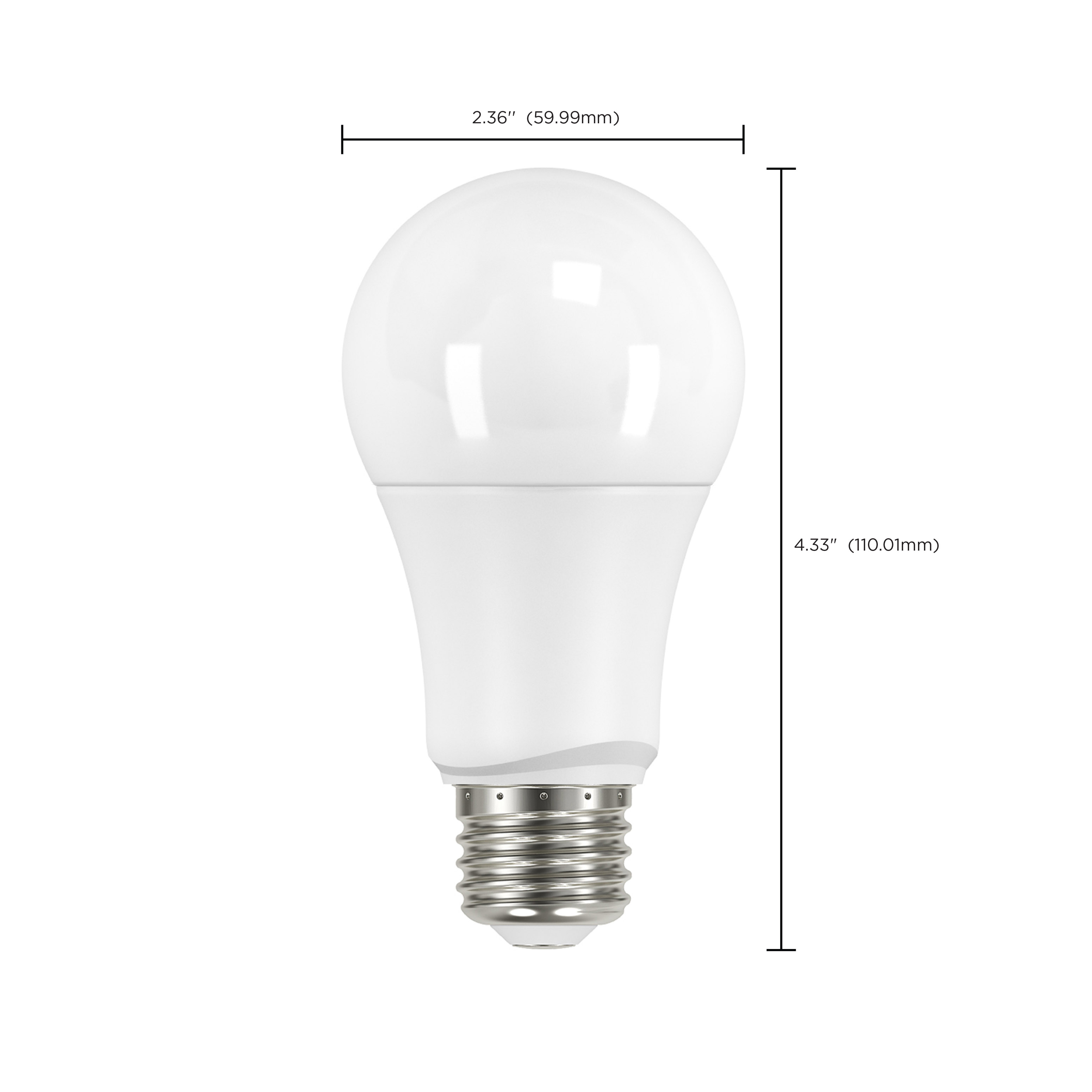

SKU S9594 - Image 1
SKU S9594 - Image 2
SKU S9594 - Image 3
SKU S9594 - Image 4

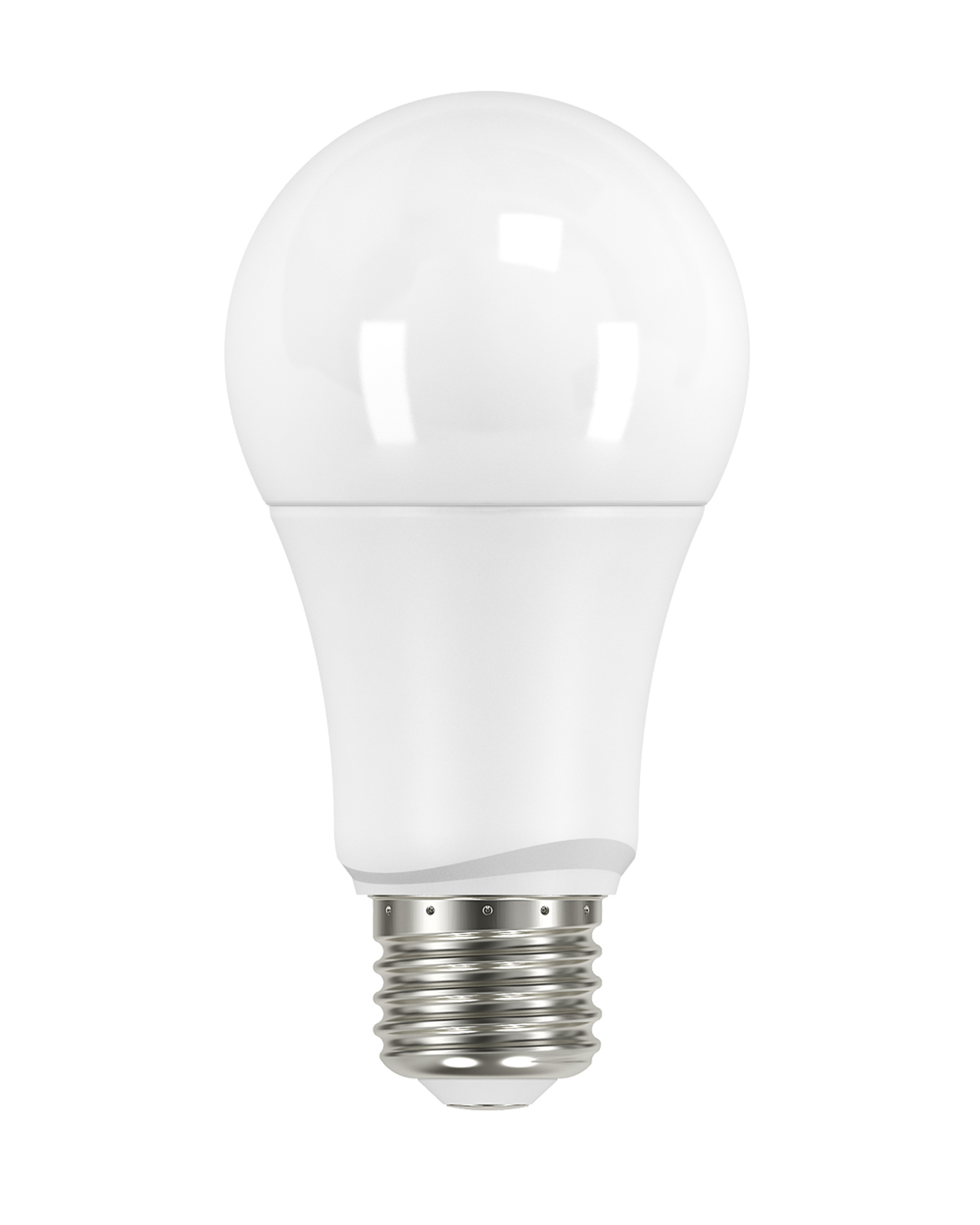

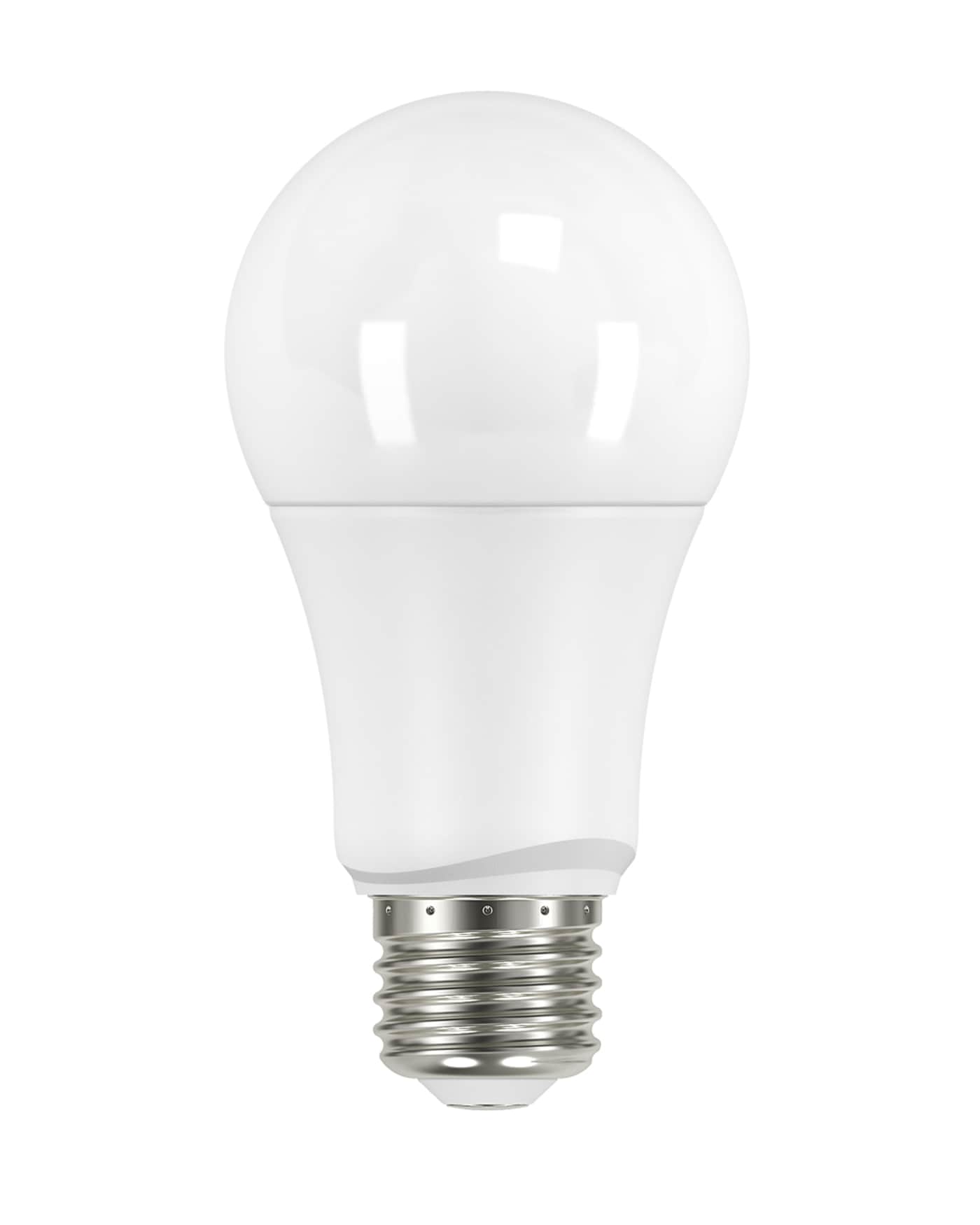

S9594

9.5A19/LED/3000K/ND/120V

  • 9.5 Watt
  • A19 LED
  • Frosted
  • 3000K Medium base
  • 220 deg. Beam Angle
  • 120 Volt
  • Non-Dimmable
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9594 SpecificationsS9594 LFLSA2631-60W Replacement LED A19 PI 9 24
Tools
Lighting Layout Analysis For S9594
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.5 Watt; A19 LED; Frosted; 3000K Medium base; 220 deg. Beam Angle; 120 Volt; Non-Dimmable
Products Specs
General
CompanySATCO
CA RegulationsNon-Compliant - <82 CRI
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTraditional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.079A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionUniversal
Photo CellNo
Power Factor0.60
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated15000
Beam Angle (degree)220
Color TempSoft White
CRI80+
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens800L
Volts120v
Watts9.5W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19
MOD Lamps2.362
MOL4.331
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA T20 Compliant SubstituteS28561
CA StatusNon-Compliant
CO StatusLawful for sale
Dark Sky RatedFalse
FCC CompliantTrue
HI StatusLawful for sale
IC RatedFalse
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923095948
Case Cube0.6207
Case Height11.3
Case Length11.22
Case Quantity24
Case UPC10045923095945
Case Weight4.59
Case Width8.46
EA Cube0.0165
EA Height4.8
EA Length2.44
EA Quantity1
EA Weight0.15
EA Width2.44
Inner Cube0.1202
Inner Height5.12
Inner Length7.8
Inner Quantity6
Inner UPC20045923095942
Inner Weight1.01
Inner Width5.2
Pack TypeBox
Web Length4.331
Web Width2.362
