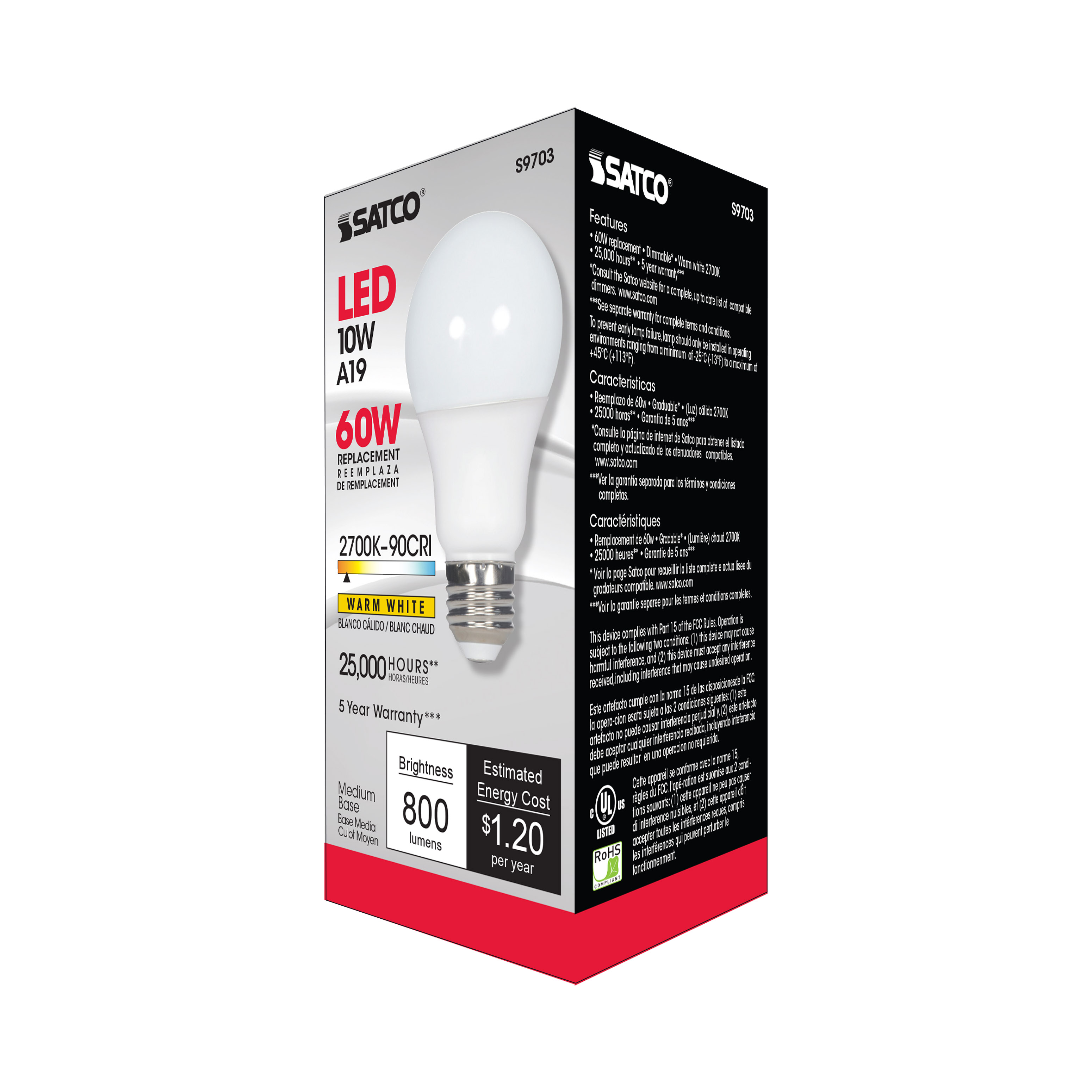

SKU S9703 - Image 1

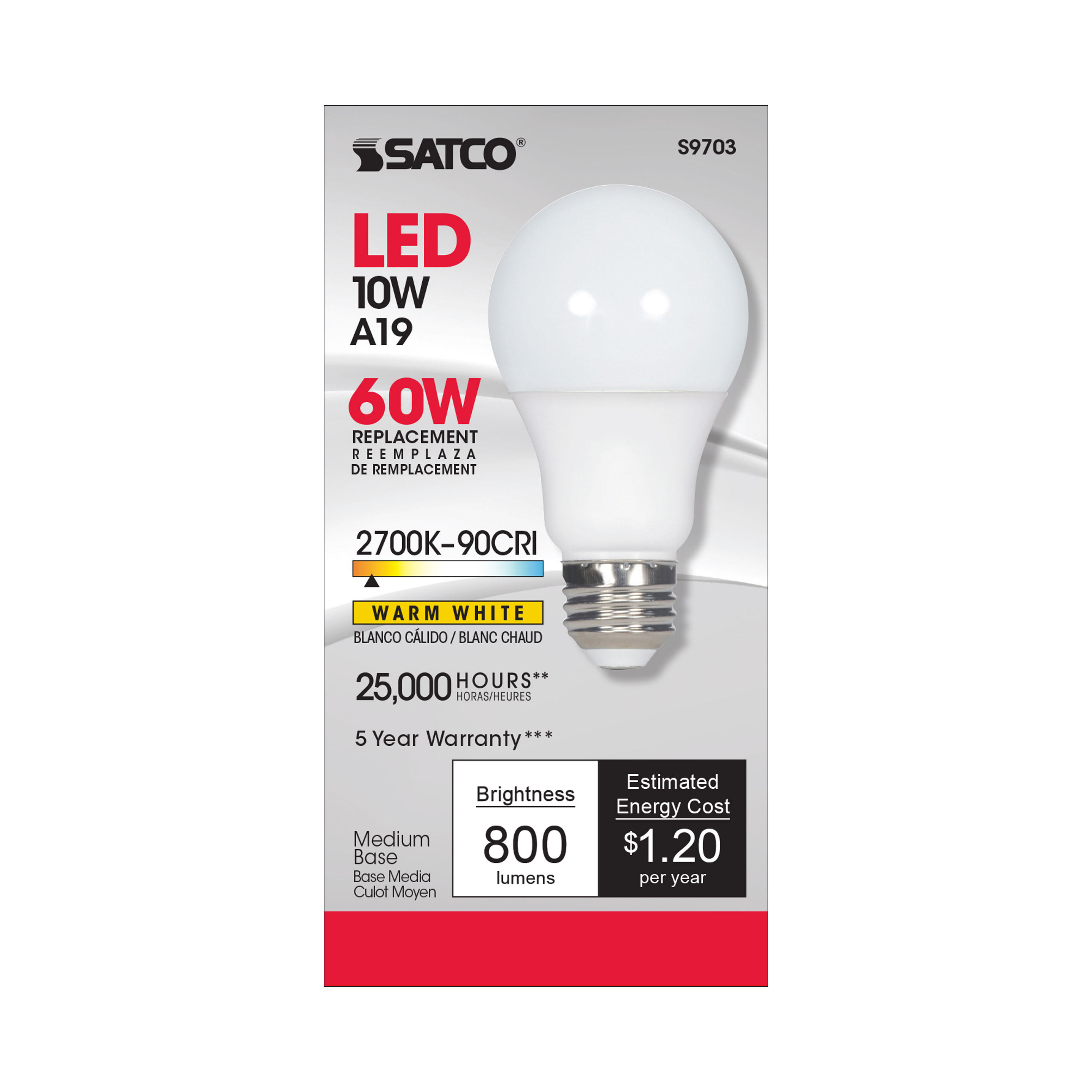

SKU S9703 - Image 2

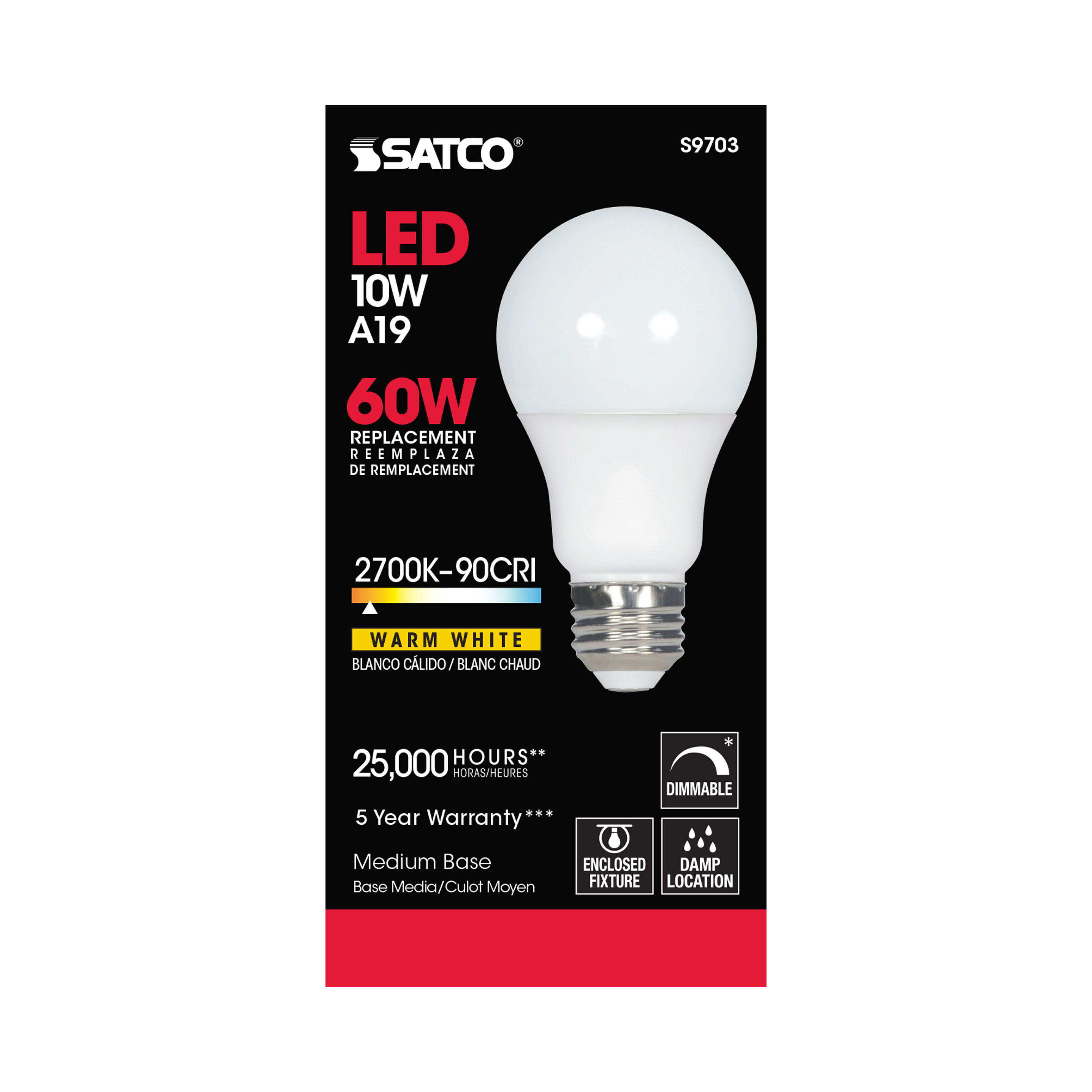

SKU S9703 - Image 3

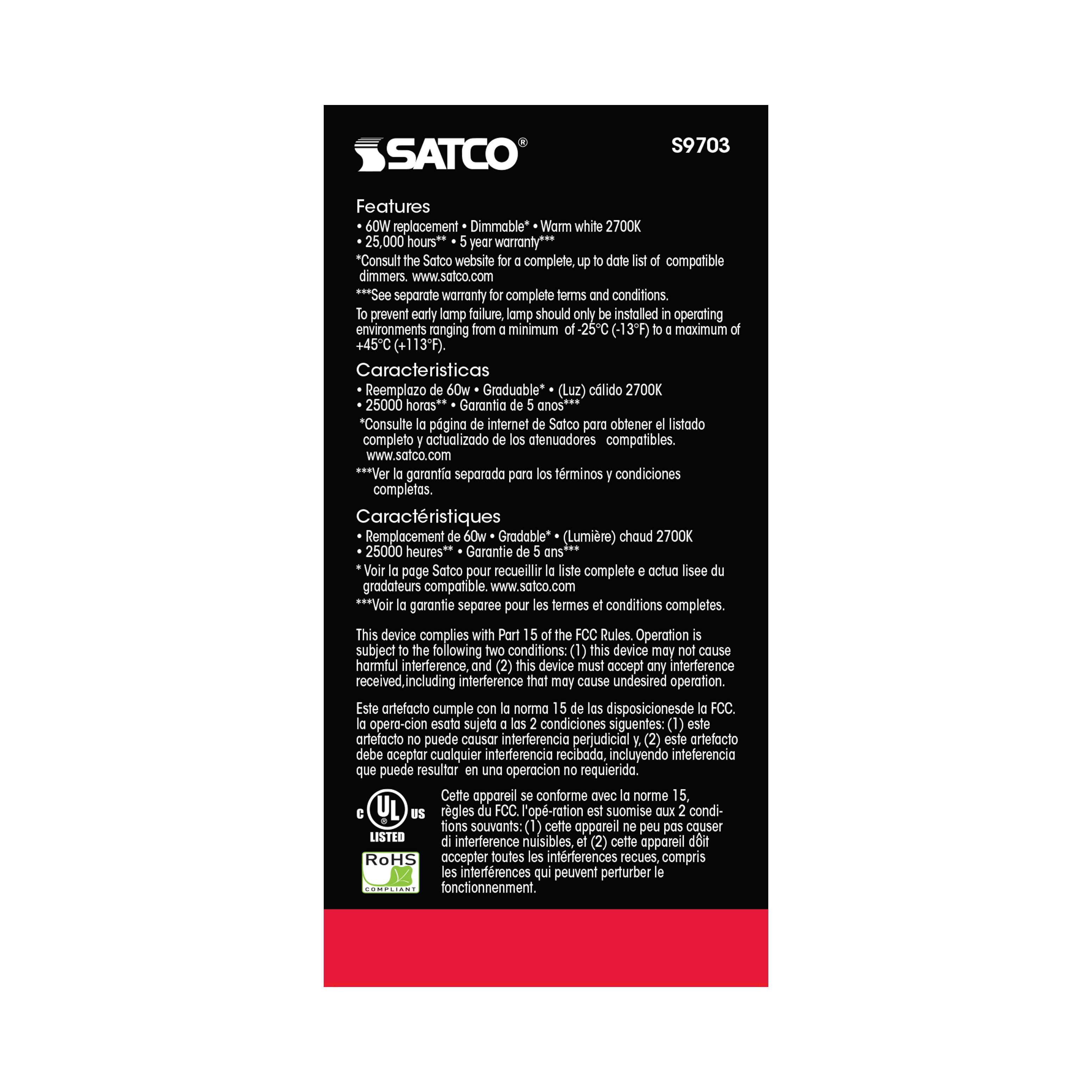

SKU S9703 - Image 4
SKU S9703 - Image 5
SKU S9703 - Image 6
SKU S9703 - Image 7

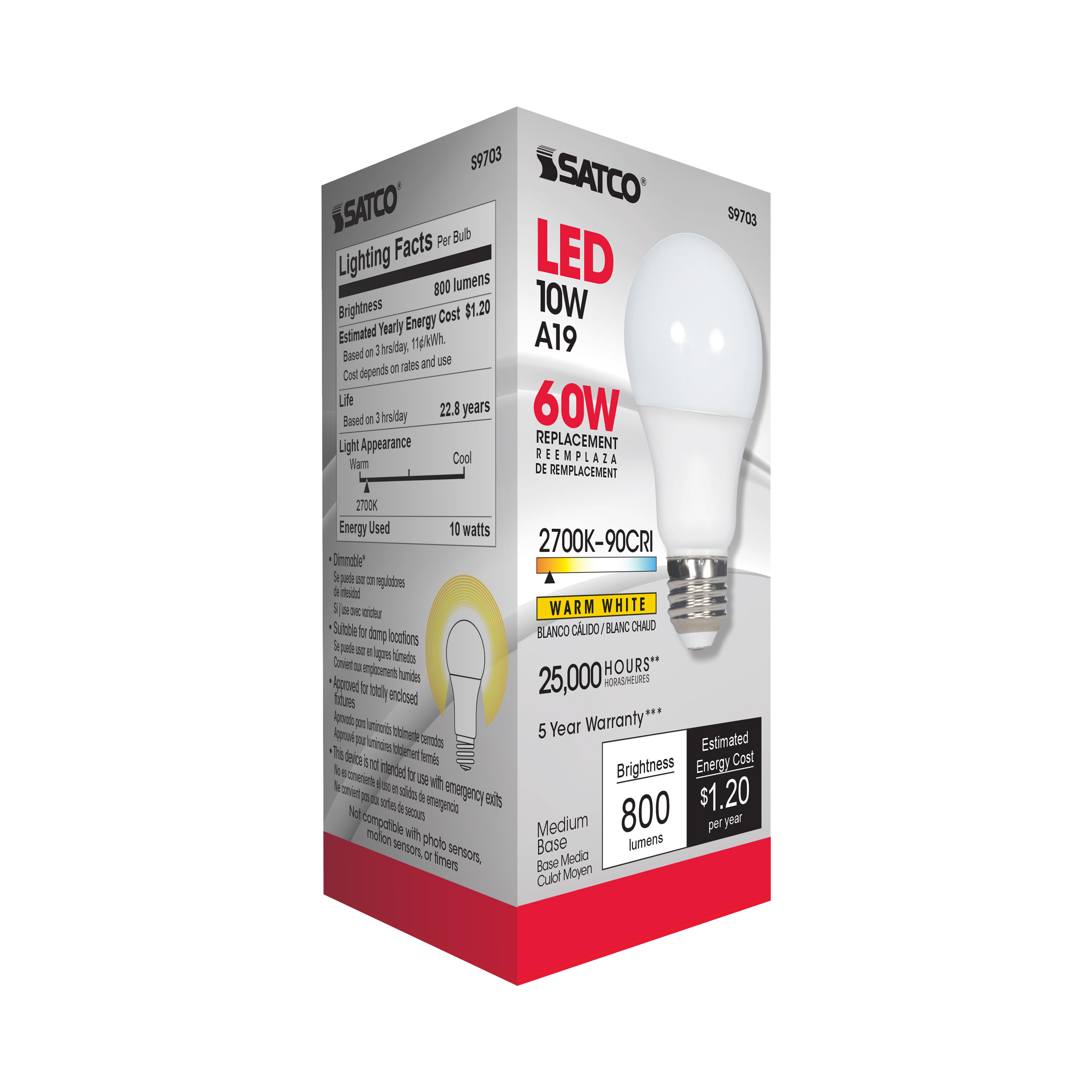

SKU S9703 - Image 8
SKU S9703 - Image 9

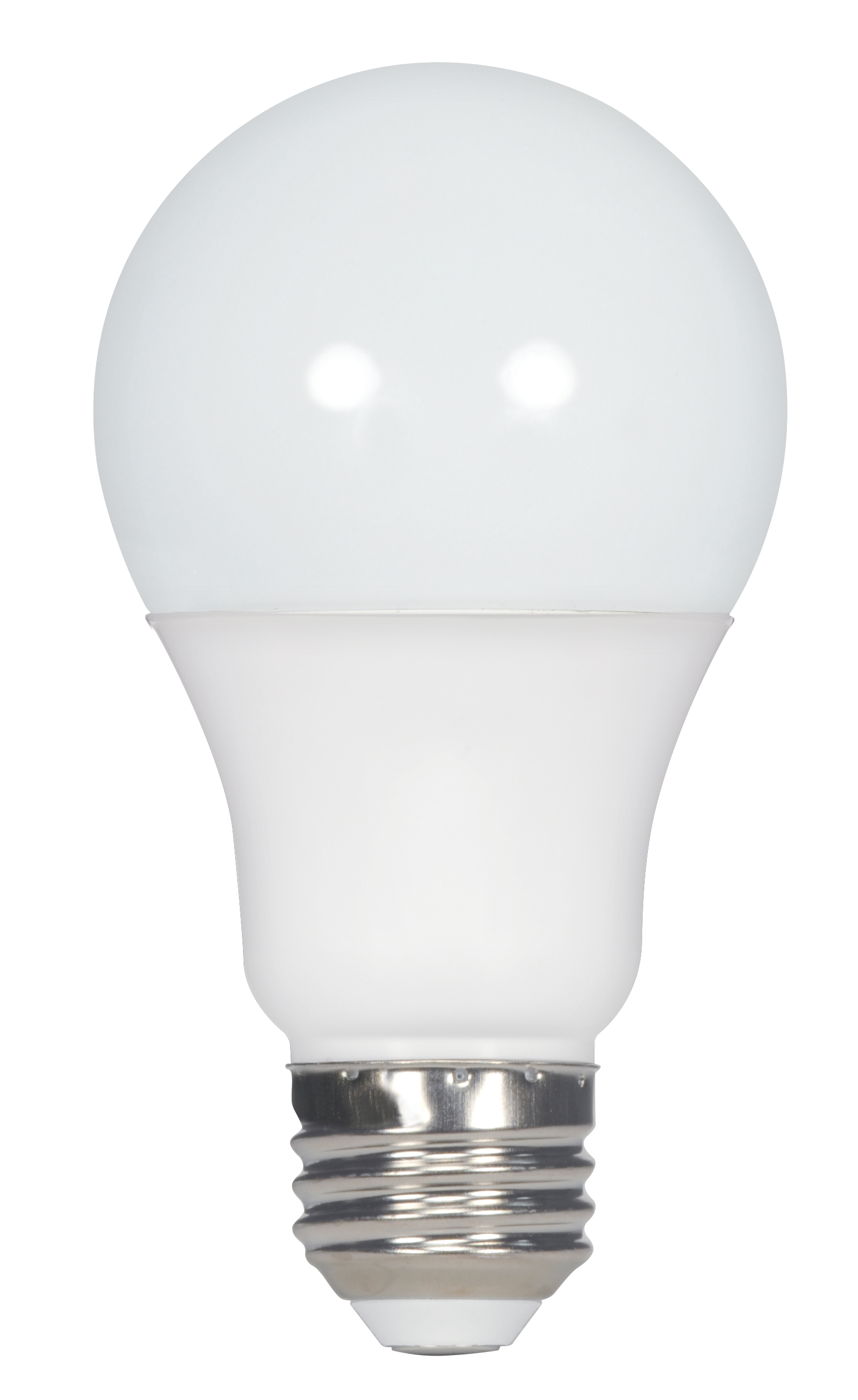

S9703

10A19/OMNI/LED/27K/90CRI

  • 10 Watt
  • A19 LED
  • 2700K
  • Medium base
  • 220 deg. Beam Angle
  • 90CRI
  • 120 Volt
location_rating^damp^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9703 SpecificationsS9703 LFLSA2631-60W Replacement LED A19 PI 9 24
Tools
Lighting Layout Analysis For S9703
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
10 Watt; A19 LED; 2700K; Medium base; 220 deg. Beam Angle; 90CRI; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTraditional
Most Current GenerationS15150
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.083A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Photo CellNo
Power Factor0.93
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)

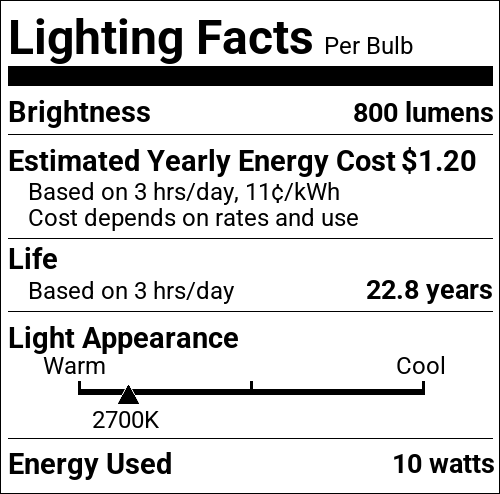

Lumens800L
Volts120v
Watts10W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19

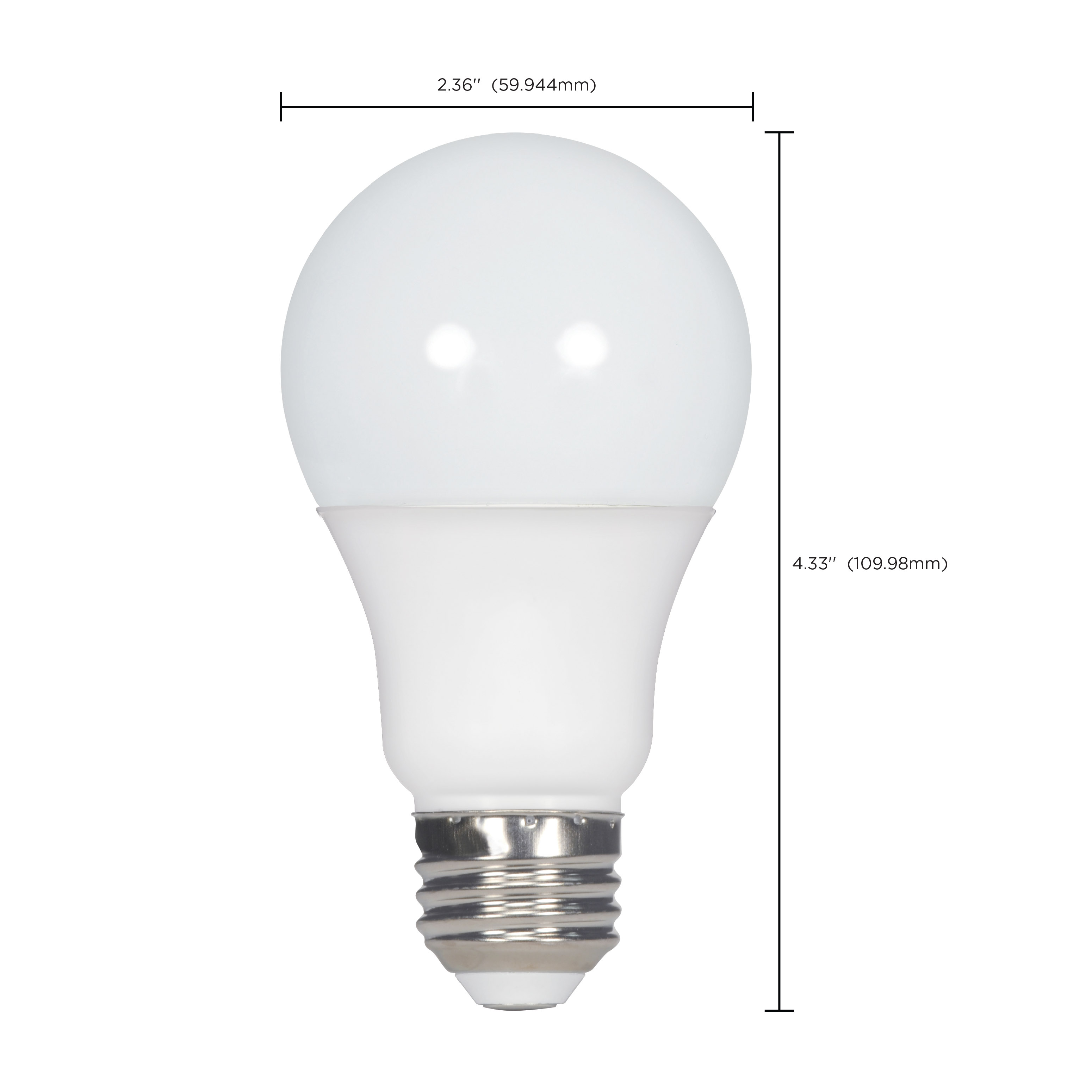

MOD Lamps2.362
MOL4.331
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
Dark Sky RatedFalse
FCC CompliantTrue
HI StatusLawful for sale
IC RatedFalse
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923097034
Case Cube0.6207
Case Height11.3
Case Length11.22
Case Quantity24
Case UPC10045923097031
Case Weight4.85
Case Width8.46
EA Cube0.0165
EA Height4.8
EA Length2.44
EA Quantity1
EA Weight0.15
EA Width2.44
Inner Cube0.1202
Inner Height5.12
Inner Length7.8
Inner Quantity6
Inner UPC20045923097038
Inner Weight1.17
Inner Width5.2
Pack TypeBox
Web Length4.331
Web Width2.362
