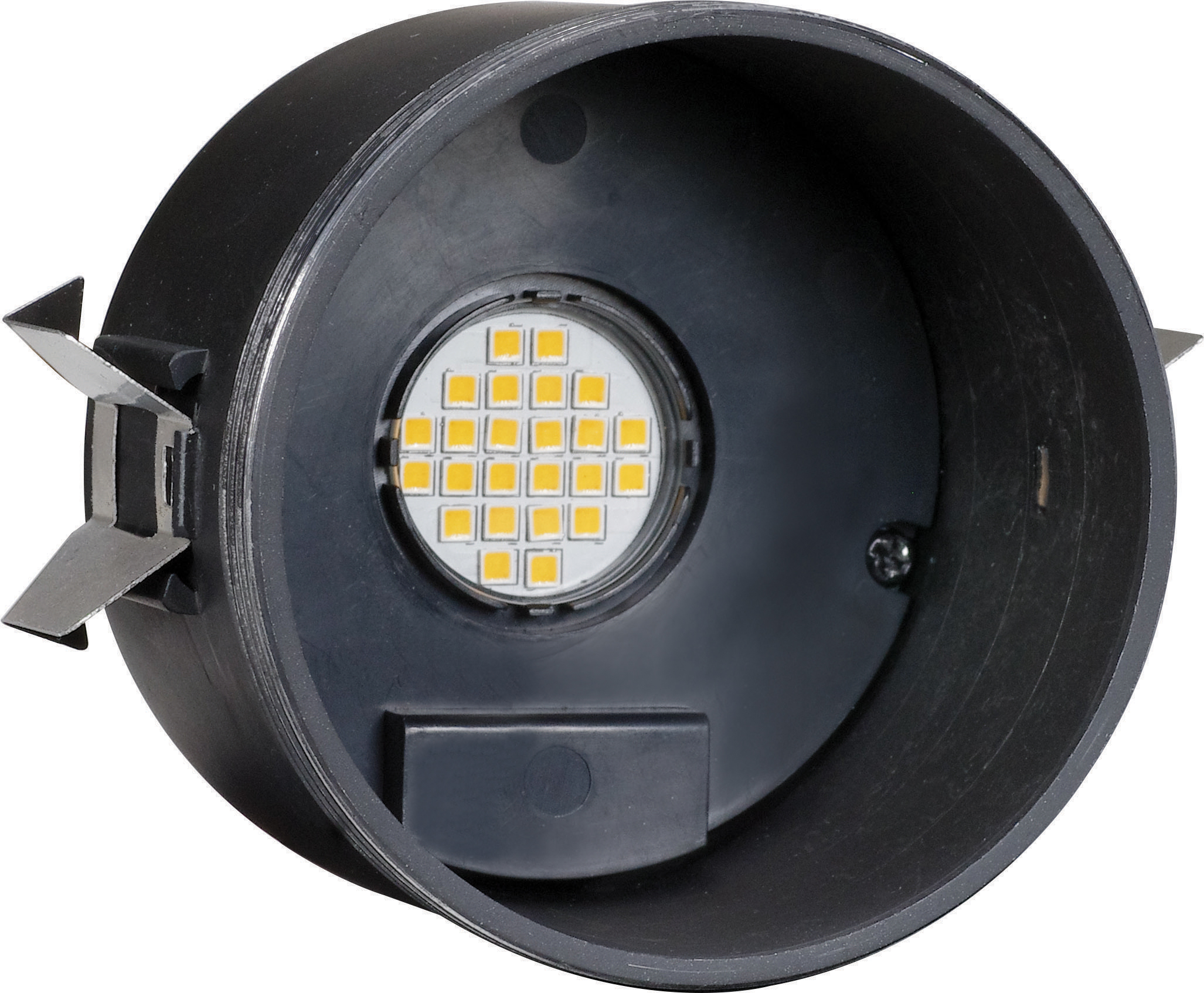

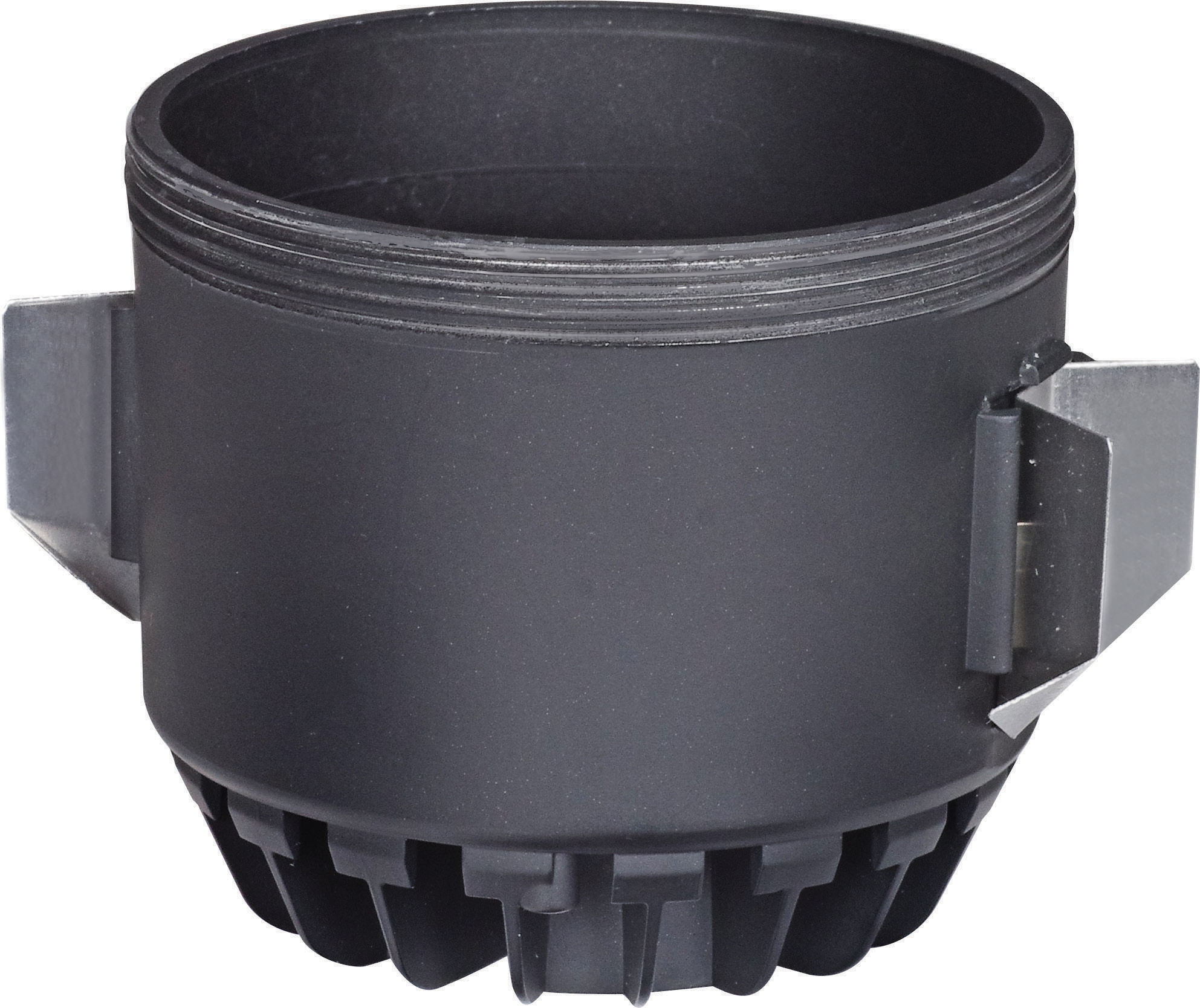

16WLED/4-BASE/27K/HL/120V - S9785
16WLED/4-BASE/27K/HL/120V - S9785
S9785

16WLED/4-BASE/27K/HL/120V

Discontinued
  • 16 watt
  • 4" base unit LED Downlight / Retrofit Fixture
  • 2700K
  • 120 volts
location_rating^damp^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9785 SpecificationsS9785 Instructions.pdf
Tools
Lighting Layout Analysis For S9785
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
16 watt; 4" base unit LED Downlight / Retrofit Fixture; 2700K; 120 volts
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter3.25
MaterialAluminum
Fixture TypeCustomizable LED Retrofit
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Can Size4 in.
Finish FamilyBlack
Amps0.133A
Has CameraNo
IOT EnabledNo
Power Factor0.98
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated50000
Color TempWarm White
CRI90+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens880L
Volts120v
Watts16W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesFits 4in. universal cans or retrofit
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanNon-Compliant
DLC ApprovedNo
Energy Star CertifiedNo
Title 20No
T24/JA8 CompliantNo
US State BanCA
Packaging
UPC045923097850
Case Cube0.7265
Case Height8.47
Case Length17.5
Case Quantity20
Case UPC10045923097857
Case Weight10.2
Case Width8.47
EA Cube0.0377
EA Height0.98
EA Length8.19
EA Quantity1
EA Weight0.92
EA Width8.11
Pack TypeBox
Web Height2.75
Web Width3.25
