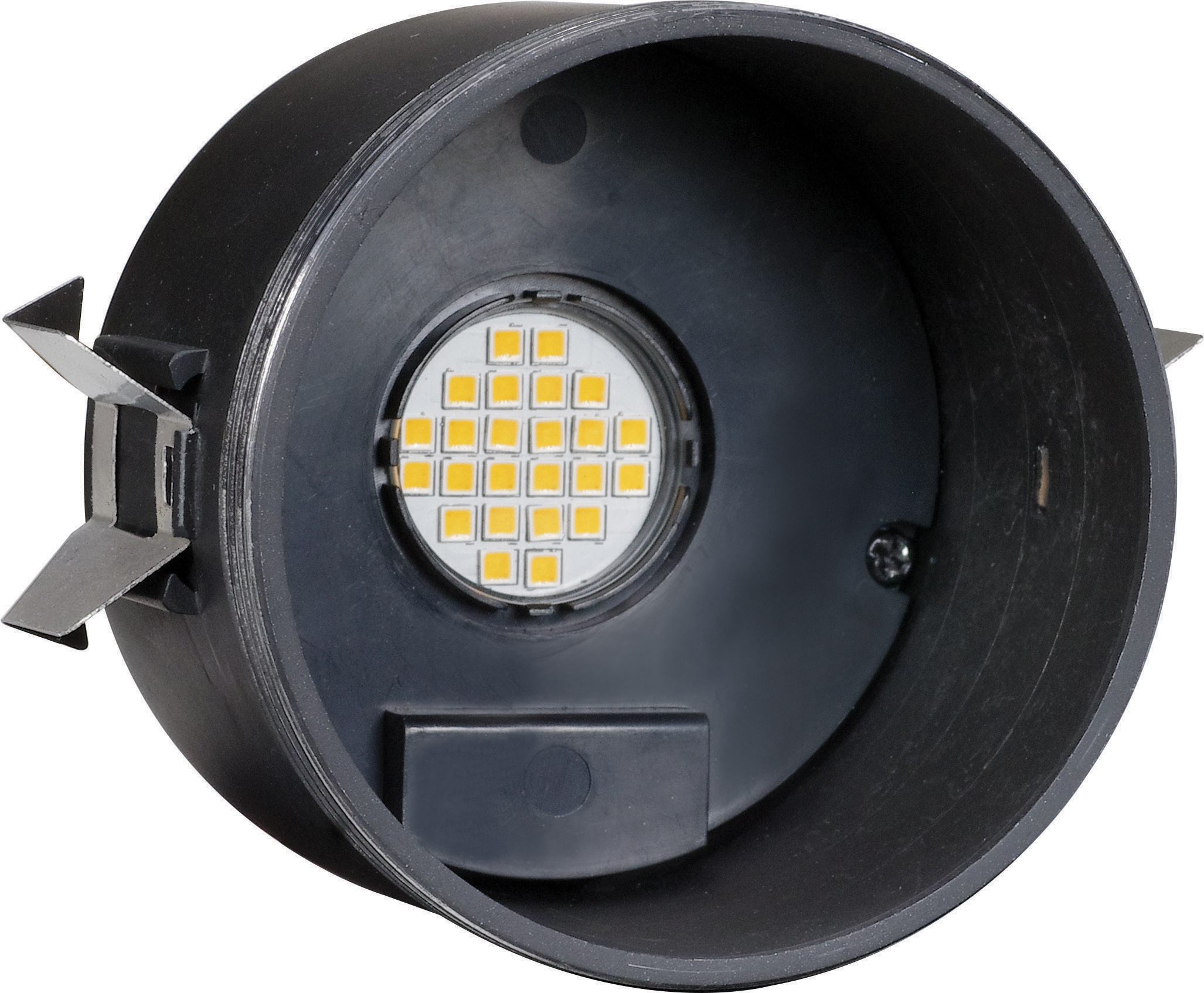

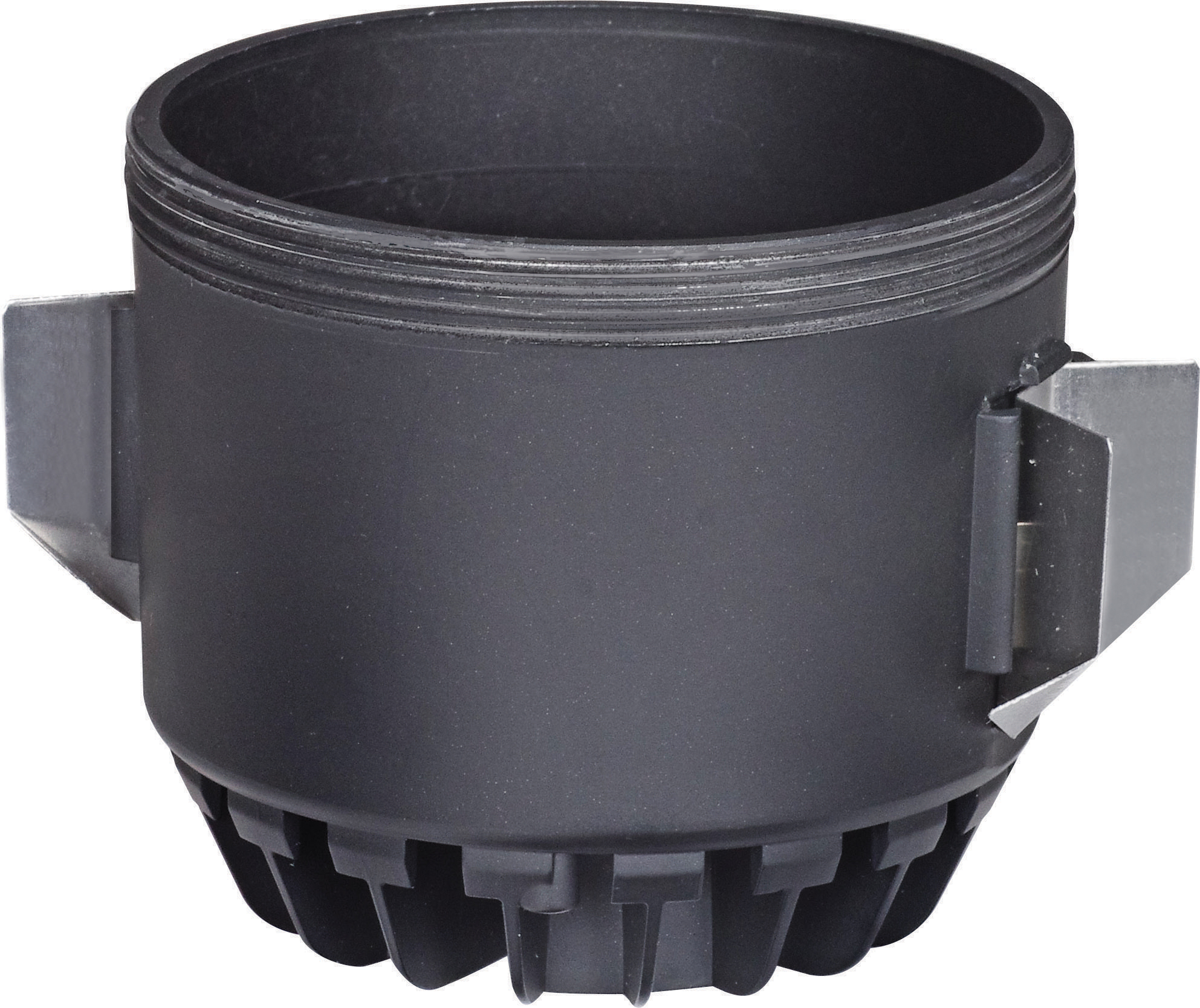

S9786

16WLED/4-BASE/30K/HL/120V

  • 16 watt
  • 4" base unit LED Downlight / Retrofit Fixture
  • 3000K
  • 120 volts
location_rating^damp^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9786 SpecificationsS9786 InstructionsNU1350-5 LO RES LED Fixt Guide 10 20
Description
Description
16 watt; 4" base unit LED Downlight / Retrofit Fixture; 3000K; 120 volts
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter3.25
MaterialAluminum
Fixture TypeCustomizable LED Retrofit
StatusDiscontinued
StyleContemporary
CCT SelectableFalse
Wattage SelectableFalse
Can Size4 in.
Finish FamilyBlack
Amps0.133A
Has CameraFalse
IOT EnabledFalse
Power Factor0.98
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase
Operating Temp-20C (-4F) to +45C (+113F)
Lumens890L
Volts120v
Watts16W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesFits 4in. universal cans or retrofit
Documents
Compliance
CA RegulationsNon-Compliant
CA Prop 65Lead
CA StatusNon-Compliant
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextNon-Compliant
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923097867
Case Cube1.5369
Case Height17.83
Case Length17.2
Case Quantity40
Case UPC10045923097864
Case Weight22.0
Case Width8.66
EA Cube0.0301
EA Height3.35
EA Length3.94
EA Quantity1
EA Weight0.55
EA Width3.94
Inner Cube0.3334
Inner Height17.2
Inner Length8.11
Inner Quantity10
Inner UPC20045923097861
Inner Weight5.5
Inner Width4.13
Pack TypeColor Box
Web Height2.75
Web Width3.25
