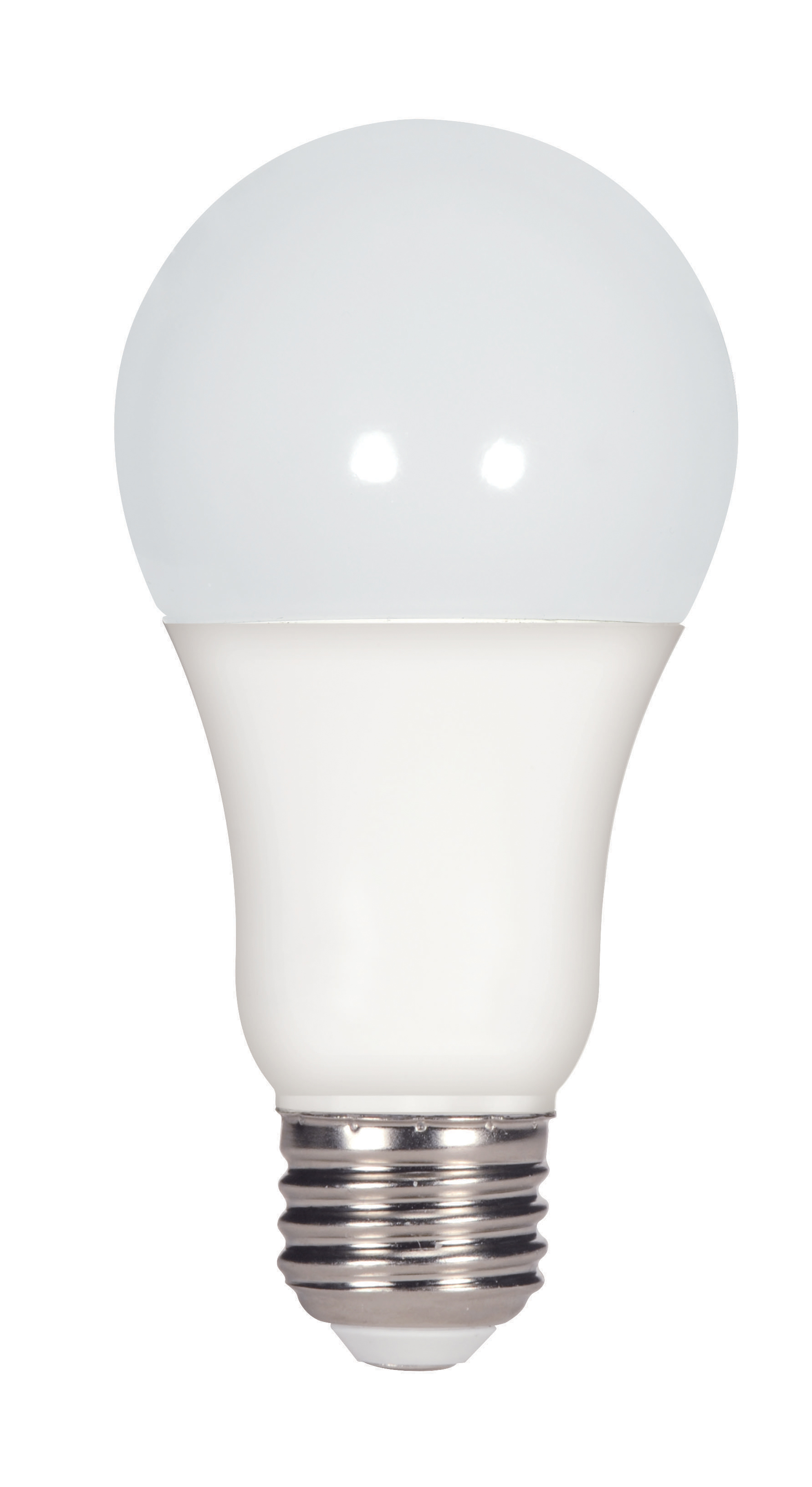

11.5A19/LED/3000K/1100L/120V/D - S9811
S9811

11.5A19/LED/3000K/1100L/120V/D

Discontinued - Suggested Replacement: S29811
  • 11.5 watt
  • A19 LED
  • 3000K
  • Medium base
  • 220' beam spread
  • 120 volts
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

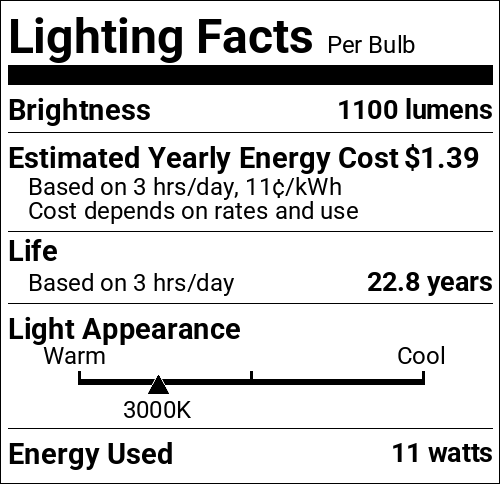

S9811 SpecificationsMulti-directional LED A19 75W replacement lampsS9811 Lighting Facts Label
Tools
Lighting Layout Analysis For S9811
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
11.5 watt; A19 LED; 3000K; Medium base; 220' beam spread; 120 volts
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.096A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens1100L
Volts120v
Watts11.5W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19
MOD Lamps2.38
MOL4.63
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24/JA8 CompliantNo
US State BanCA
Packaging
UPC045923098116
Case Cube0.9212
Case Height12.68
Case Length13.98
Case Quantity24
Case UPC10045923098113
Case Weight9.22
Case Width8.98
EA Cube0.0251
EA Height5.43
EA Length3.07
EA Quantity1
EA Weight0.33
EA Width2.6
Inner Cube0.1821
Inner Height5.79
Inner Length8.31
Inner Quantity6
Inner UPC20045923098110
Inner Weight2.16
Inner Width6.54
Pack TypeBox
Web Length4.63
Web Width2.38
