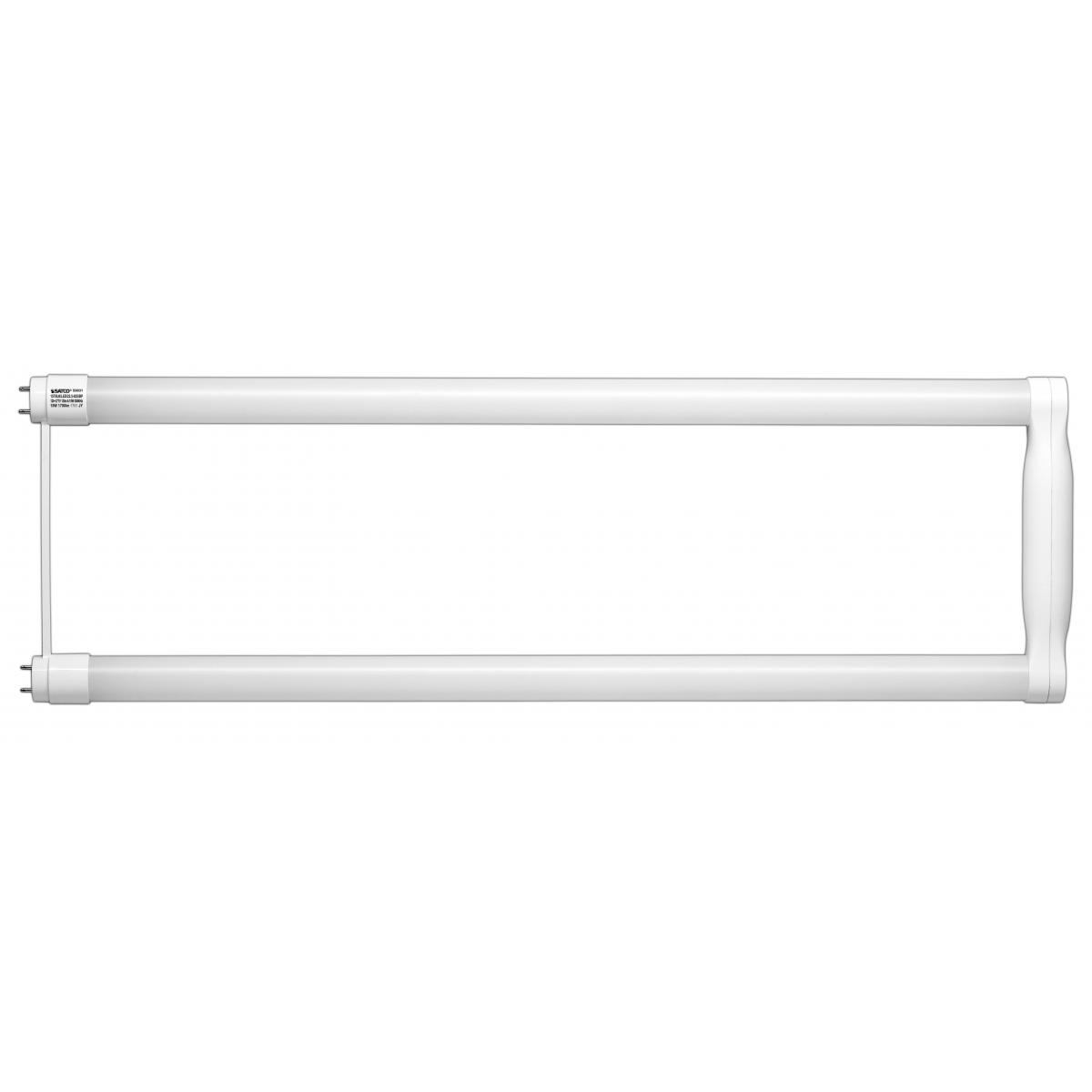

SKU S9931 - Image 1
S9931

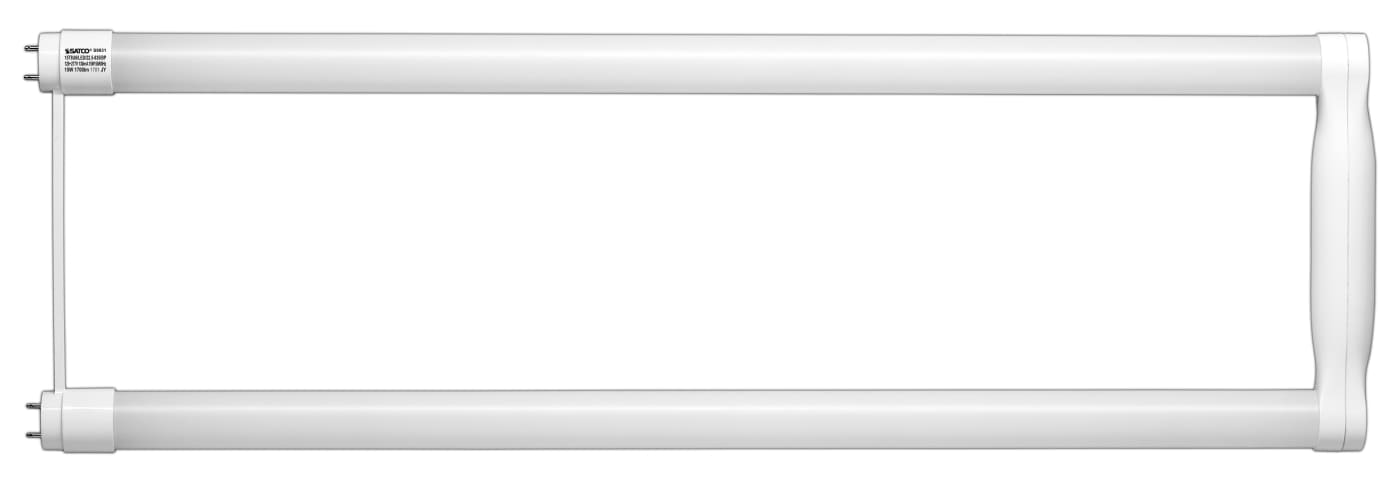

15T8U6/LED/22.5-835/BP

  • 15 Watt T8 U-Bend LED
  • Medium bi-pin base
  • 3500K
  • 50000 Average rated hours
  • 1800 Lumens
  • Type B
  • Ballast Bypass
  • Single Ended Wiring
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S9931 SpecificationsS9931 InstructionsSA2189 Linear LED Bal Bypass T8 Ubend 10 20
Description
Description
15 Watt T8 U-Bend LED; Medium bi-pin base; 3500K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Single Ended Wiring
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
CA RegulationsExempt - Base Not Regulated
Lamp FilamentLED
Fixture TypeU-Bend
StatusDiscontinued
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.125-0.054A
Has CameraFalse
IOT EnabledFalse
Leg Spacing6.0
Lens FinishFrost
LensedTrue
Nominal Length22.5
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv36W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)220
Color TempNeutral White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1800L
Volts120V-277V
Watts15W
Physical
Lamp BaseMedium Bi Pin
FinishFrost
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL22.5
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923099311
Case Cube2.0847
Case Height9.5
Case Length24.0
Case Quantity12
Case UPC10045923099318
Case Weight10.8
Case Width15.8
EA Cube0.141
EA Height1.4
EA Length23.2
EA Quantity1
EA Weight0.75
EA Width7.5
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length22.5
Web Width1.0
