| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Glass / Thermo Plastic (PBT) Cap |
| Fixture Type | PL |
| Status | Active |
| Style | Utility |
| Total Harmonic Distortion | 20% (+/-5%) |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Additional Info | CCT Selectable Option: S18422 |
| Amps | 0.125-0.054A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lens Material | Glass |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 36W |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 3500K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 270 |
| Color Temp | Neutral White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -4F to +113F (-20C to +45C) |

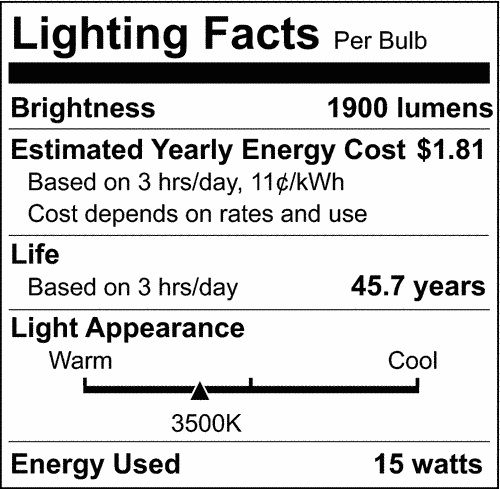

| Lumens | 1900L |
| Volts | 120V-277V |
| Watts | 15W |

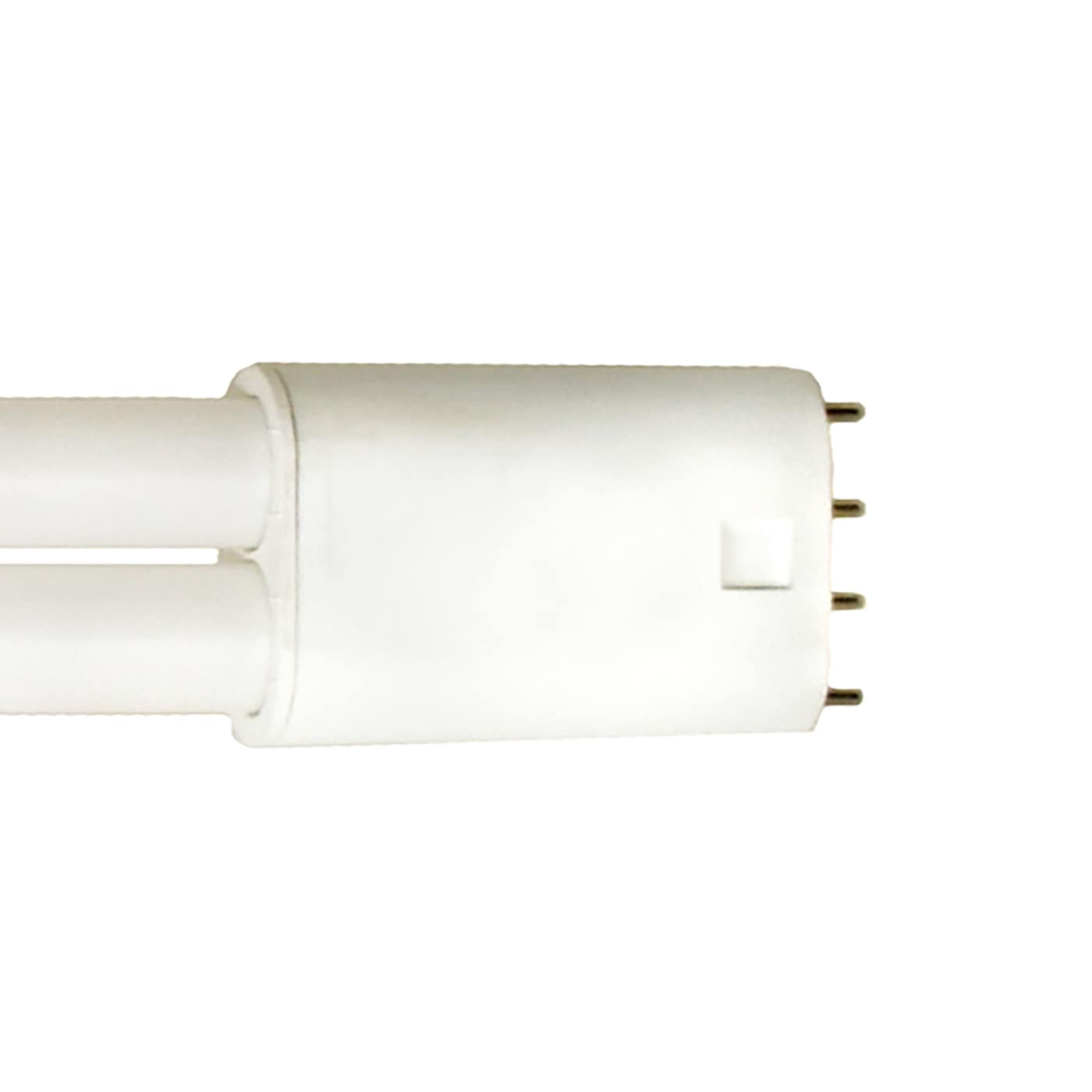

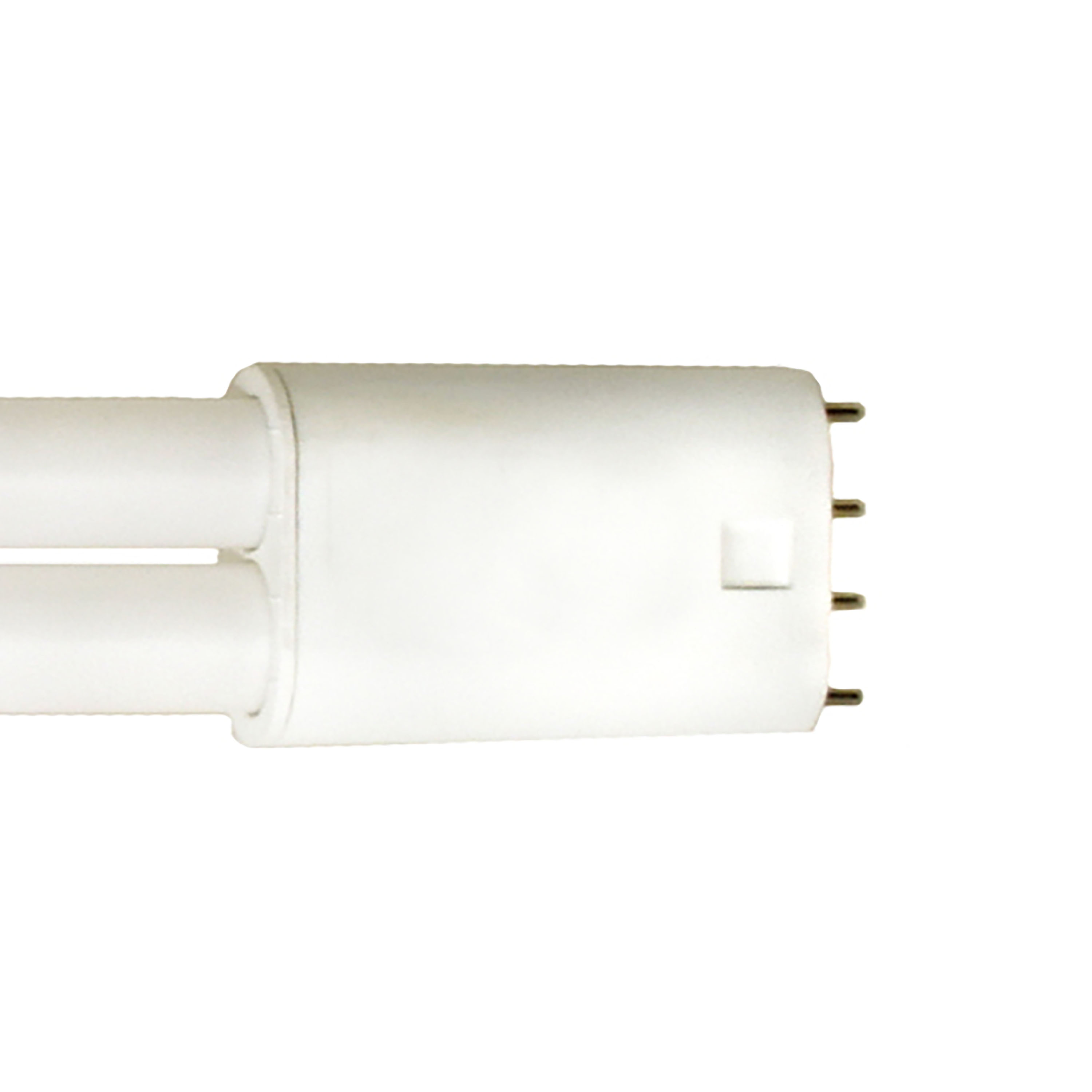

| Lamp Base | 2G11 (4-Pin) |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | 2G11 |
| Lamp Type | T5 |
| MOD Lamps | 0.68 |
| MOL | 16.5 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| UPC | 045923099526 |
|---|---|
| Case Cube | 0.2115 |
| Case Height | 5.32 |
| Case Length | 17.44 |
| Case Quantity | 10 |
| Case UPC | 10045923099523 |
| Case Weight | 4.0 |
| Case Width | 3.94 |
| EA Cube | 0.0101 |
| EA Height | 0.69 |
| EA Length | 16.8 |
| EA Quantity | 1 |
| EA Weight | 0.4 |
| EA Width | 1.5 |
| Pack Type | Box |

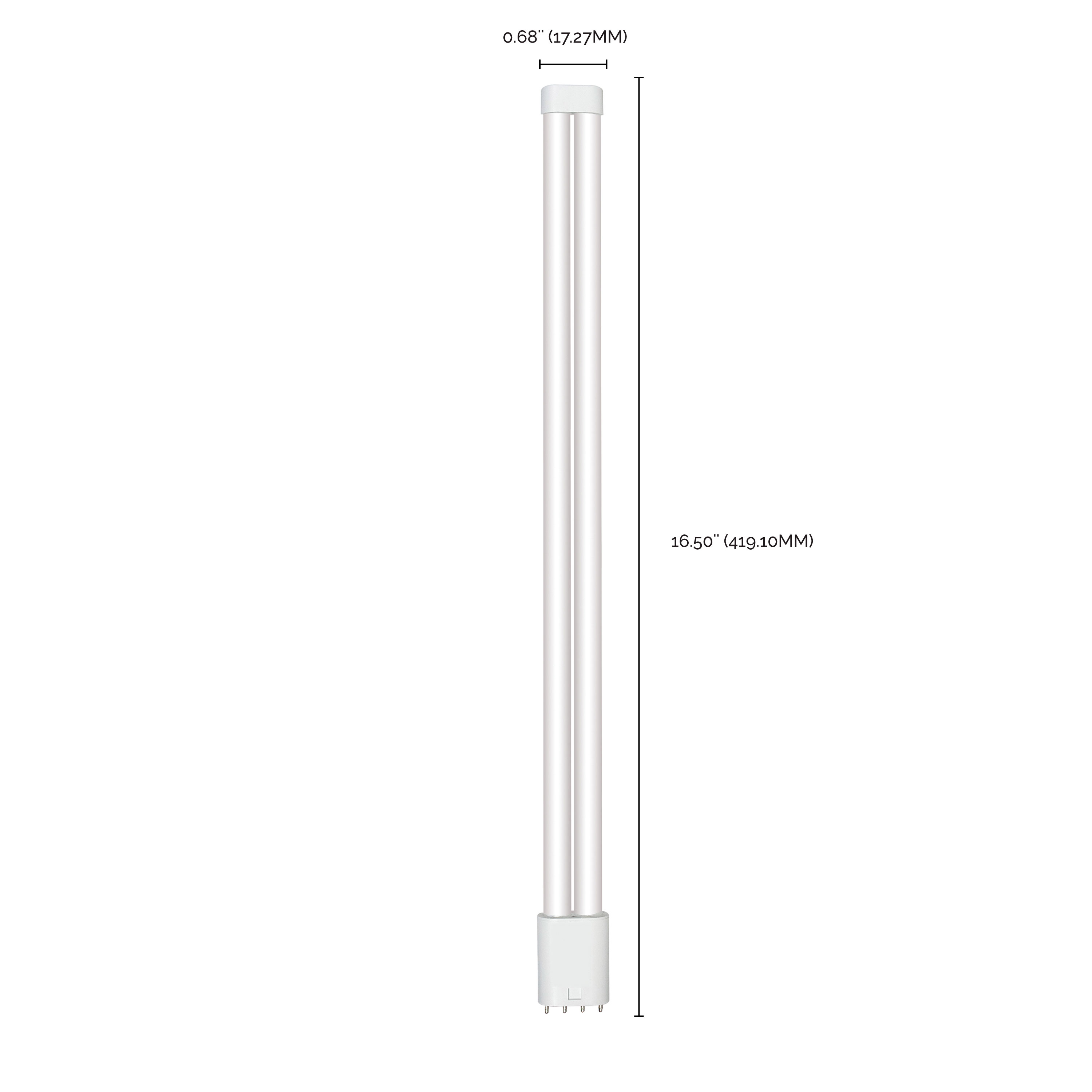

| Web Length | 16.5 |
| Web Width | 0.68 |
