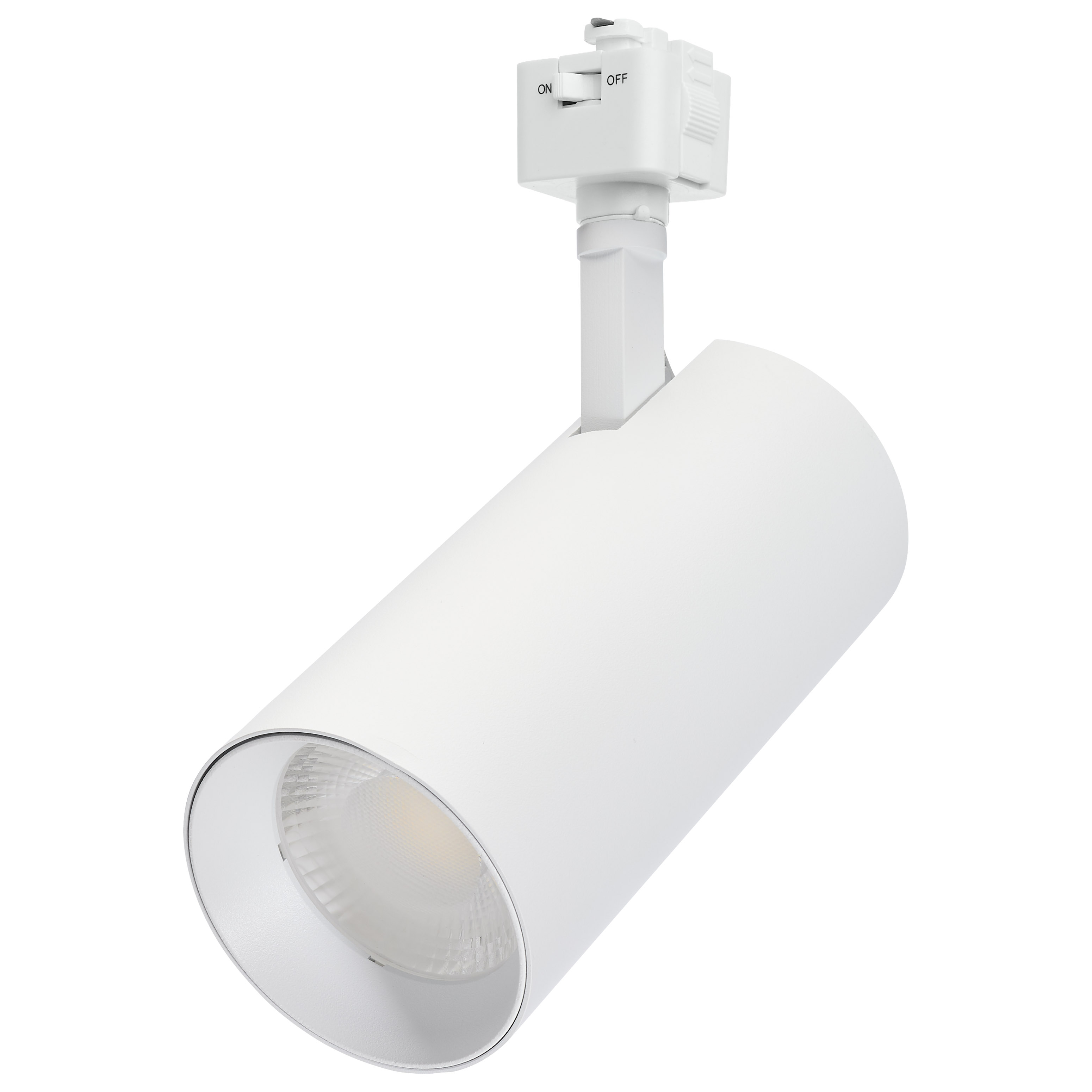

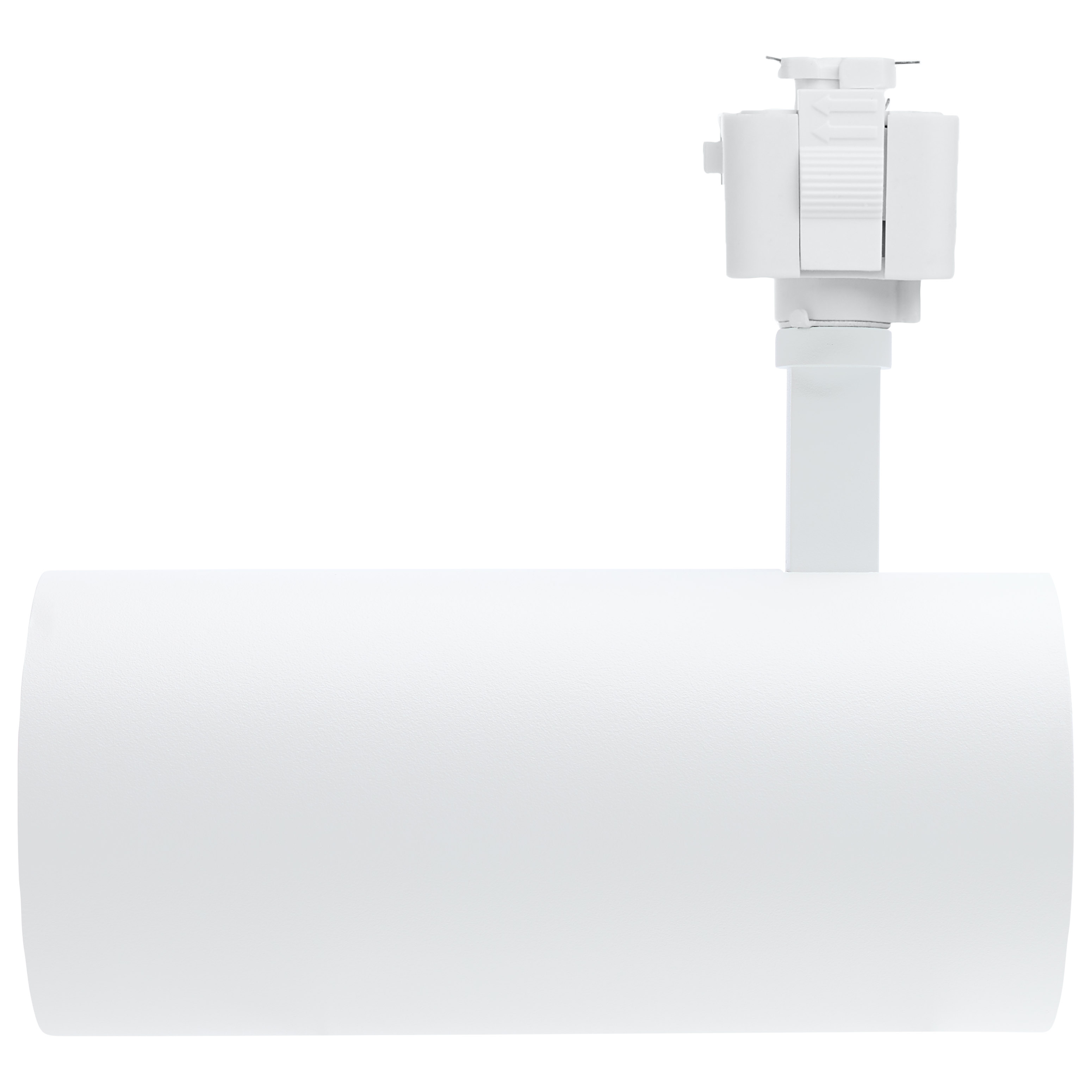

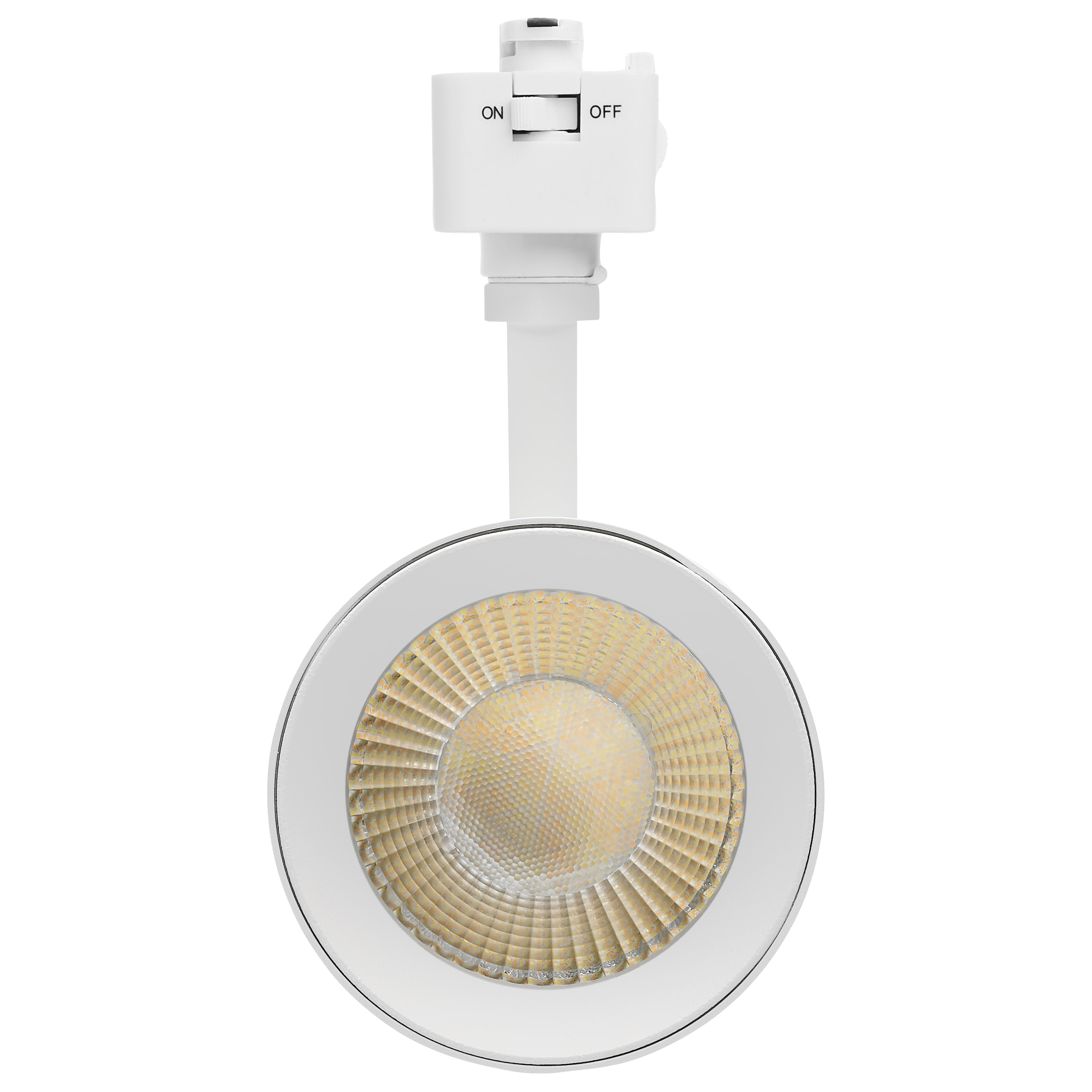

30W CCT LED TRK 36 WHT J-STYLE - TH5021
30W CCT LED TRK 36 WHT J-STYLE - TH5021
30W CCT LED TRK 36 WHT J-STYLE - TH5021
30W CCT LED TRK 36 WHT J-STYLE - TH5021
30W CCT LED TRK 36 WHT J-STYLE - TH5021
TH5021

30W CCT LED TRK 36 WHT J-STYLE

  • 30 Watt LED Track Head
  • 36 Degree Beam Spread
  • J-Style Track
  • 5 CCT Selectable
  • Matte White Finish
  • J-Style
cc_selectable^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^30k^2
warranty^3_years^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
TH5021 SpecificationsTH5021 Instructions.pdf
Tools
Lighting Layout Analysis For TH5021
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
New to SATCO NUVO, the TH5021 LED CCT Selectable track head fixture is finished in matte white, operates at 30 watts, and features a focused 36-degree beam angle-ideal for compact spotlighting applications. Now compatible with both Single Circuit and 2 Circuit J-Style track systems, this fixture offers expanded versatility. J-Style track is widely used in residential and commercial settings for its simple, streamlined connector design. With five color temperature options selectable at installation and a high 90 CRI for true-to-life color rendering, the TH5021 delivers efficient, modern lighting with precise control.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Extends (in)9.06
MaterialAluminum / Steel
Fixture TypeTrack Head
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 2KV
Track Head StyleCylinder
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.270A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor>0.9
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent150W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated30000
Beam Angle (degree)36
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens2100L
Volts120v
Watts30W
Physical
Lamp BaseIntegrated
FinishMatte White
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedureTrack
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDry
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923408151
Case Cube1.0335
Case Height10.43
Case Length14.21
Case Quantity12
Case UPC10045923408158
Case Weight20.35
Case Width12.05
EA Cube0.0701
EA Height9.45
EA Length3.78
EA Quantity1
EA Weight1.7
EA Width3.39
Pack TypeBox

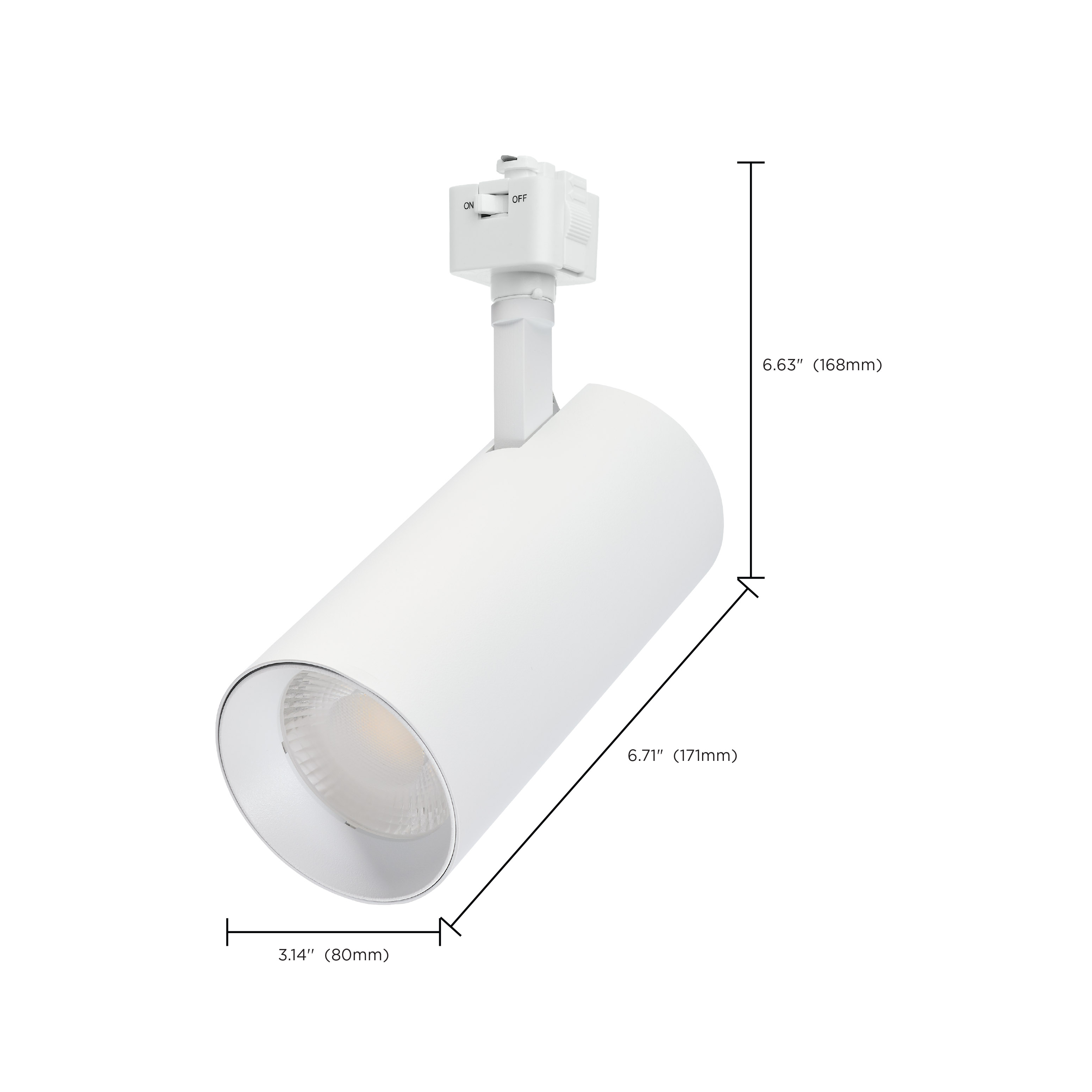

Web Height6.63
Web Length6.71
Web Width3.14
