30W BEAM ADJ TRK HEAD J-STYLE - TH5042
30W BEAM ADJ TRK HEAD J-STYLE - TH5042
30W BEAM ADJ TRK HEAD J-STYLE - TH5042
30W BEAM ADJ TRK HEAD J-STYLE - TH5042
30W BEAM ADJ TRK HEAD J-STYLE - TH5042
TH5042

30W BEAM ADJ TRK HEAD J-STYLE

  • 30 Watt LED Track Head
  • J-Style
  • 20 to 50 Degree Adjustable Beam Spread
  • CCT Selectable
  • Matte Black Finish
  • J-Style
cc_selectable^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^30k^2
warranty^3_years^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
TH5042 SpecificationsTH5042 UV Test Report.pdf
Tools
Lighting Layout Analysis For TH5042
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

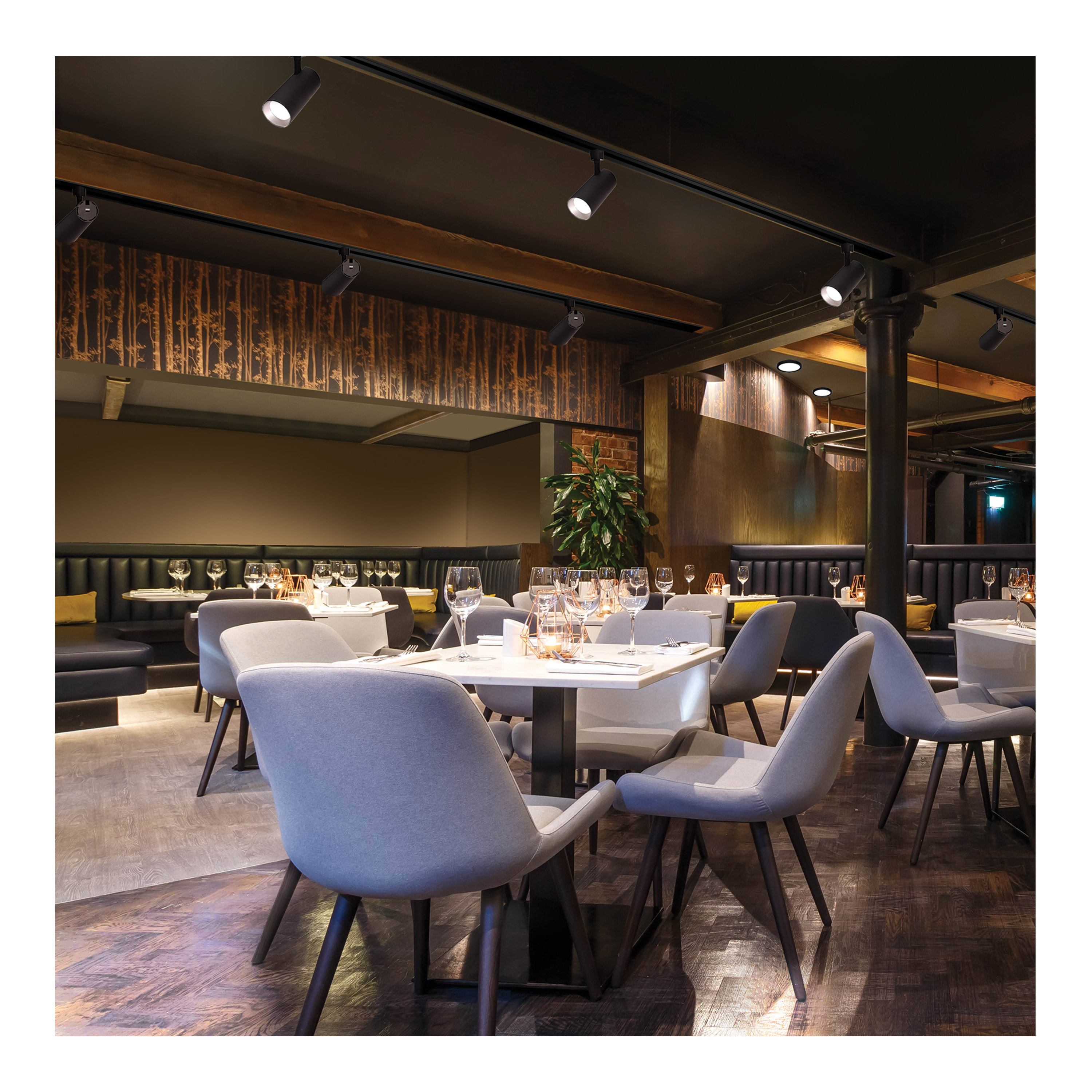

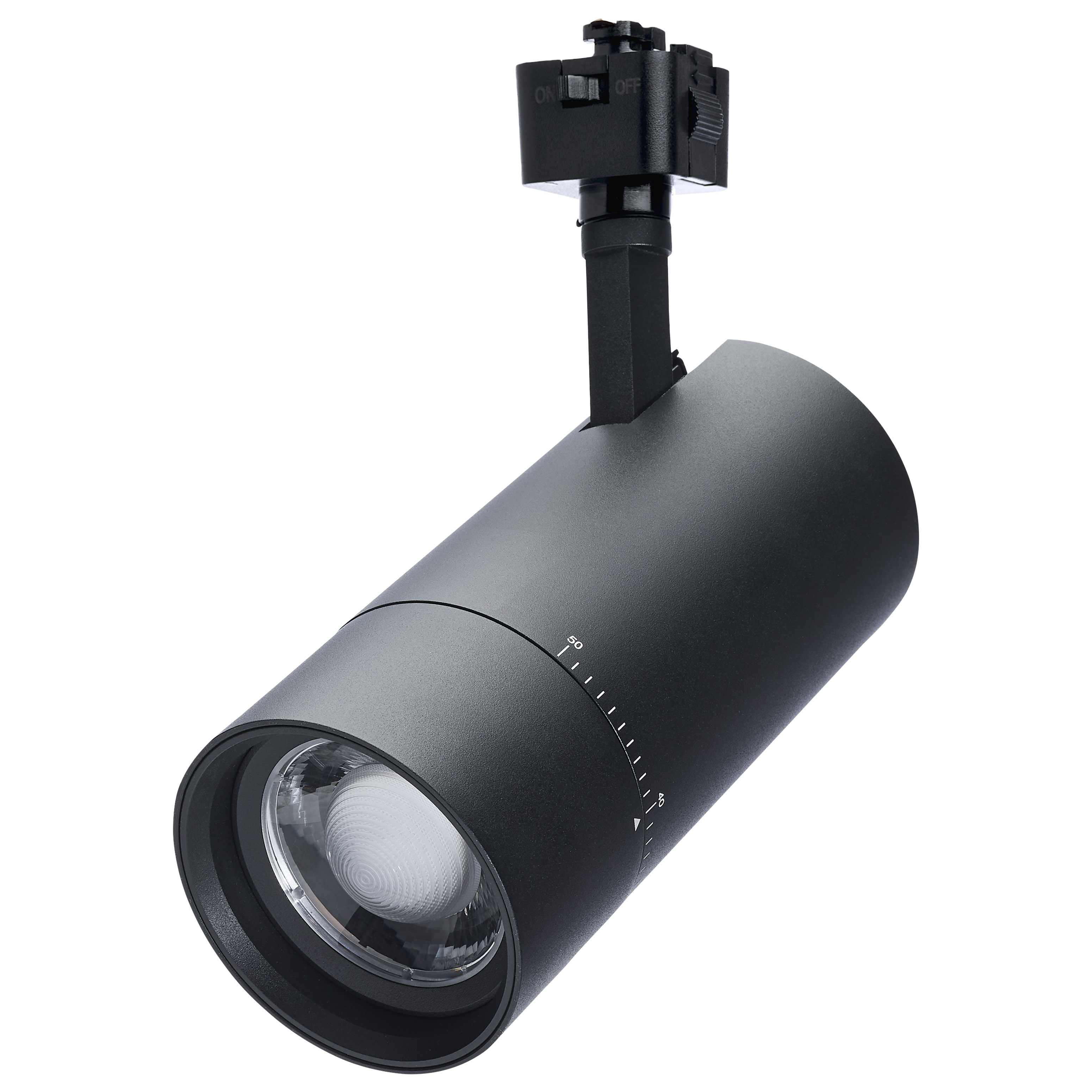

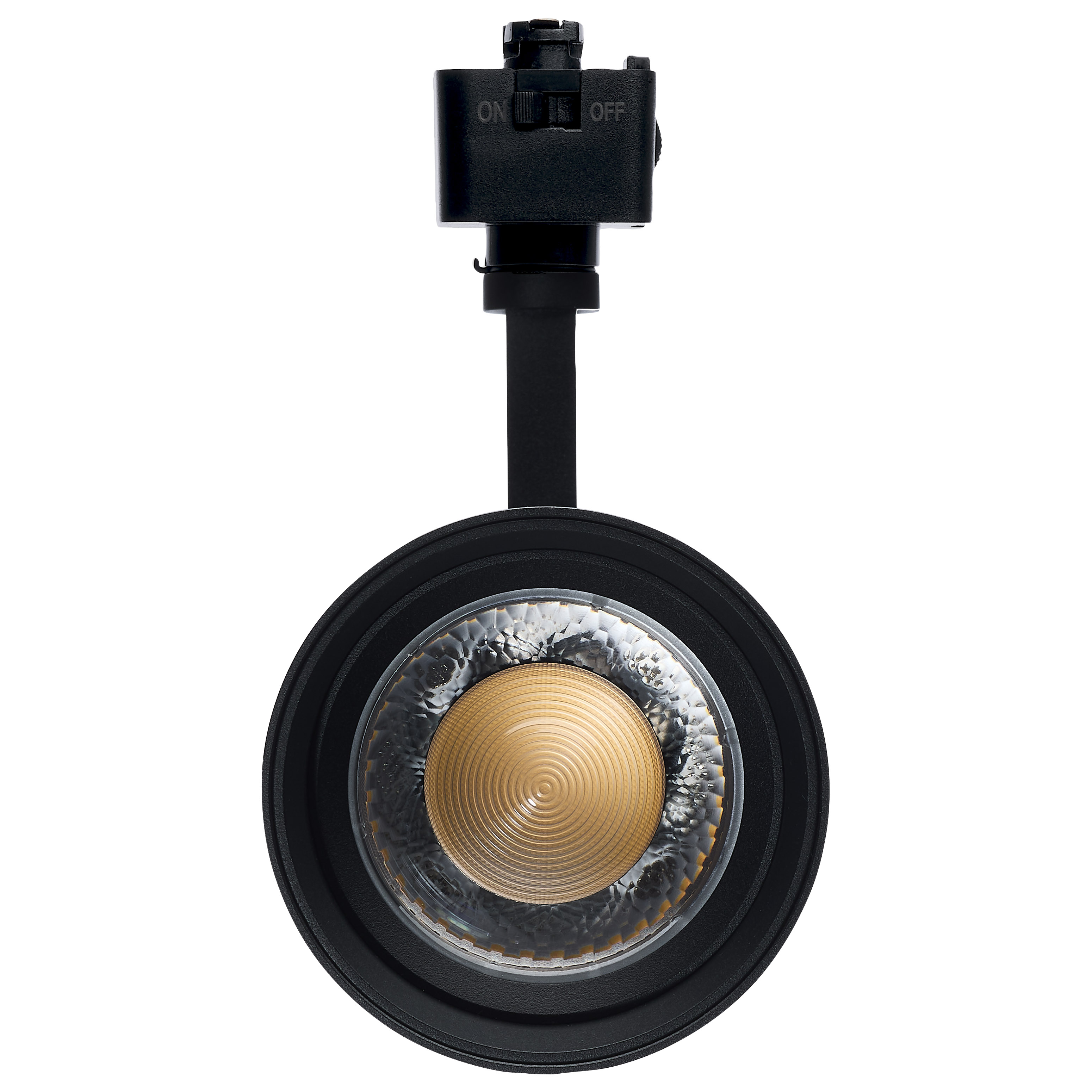

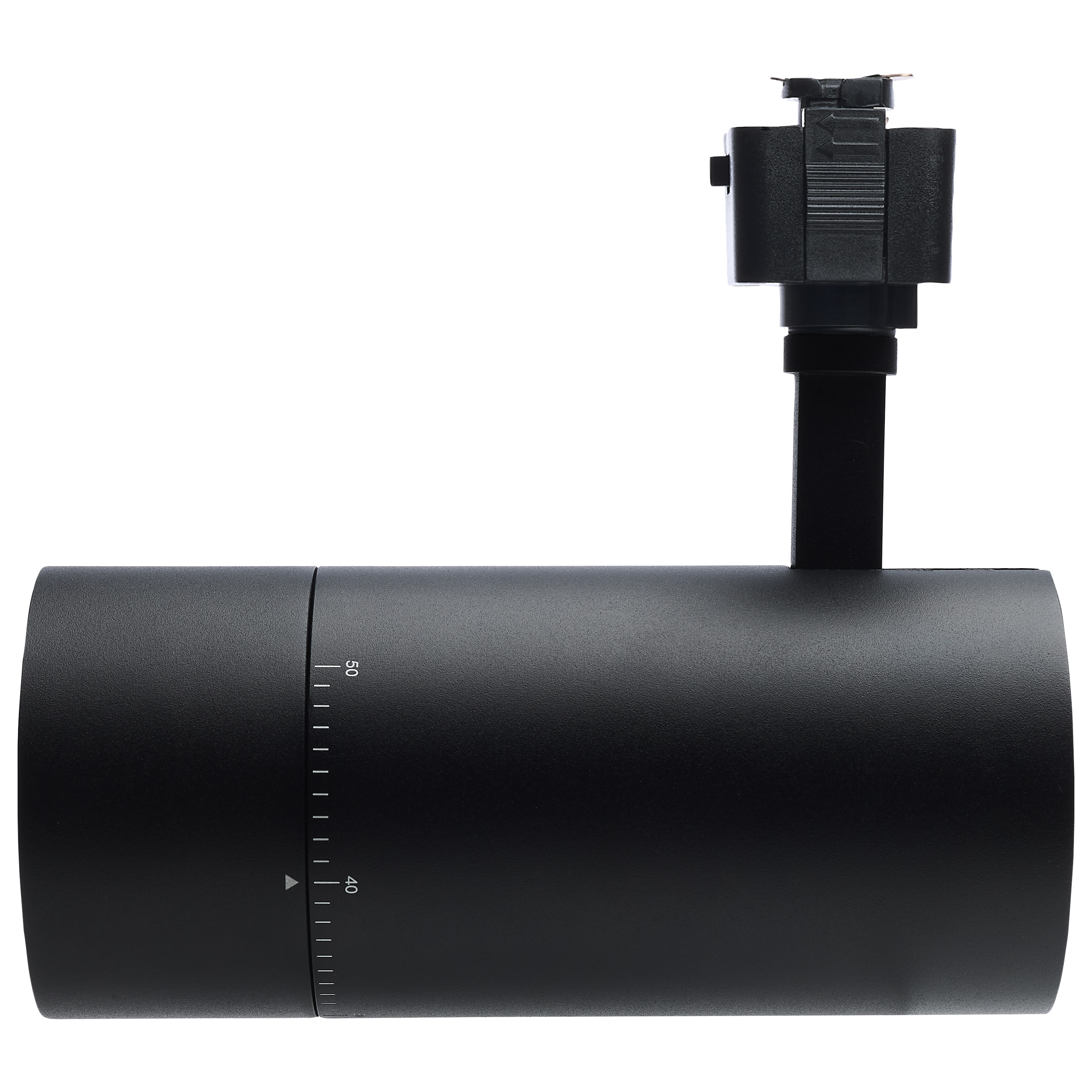

SATCO NUVO's TH5042 is a beam adjustable, matte black, 30 watt LED track head designed for compatibility with both Single Circuit and 2 Circuit J-Style track systems, enhancing its flexibility across various installation environments. This fixture features a 90-degree adjustable head and an adjustable beam spread range from 20 to 50 degrees, allowing for precise directional lighting. With five selectable color temperature options at installation and a high 90 CRI, this track head delivers crisp, accurate illumination. Ideal for galleries, retail settings, offices, and restaurants, this fixture combines performance and versatility in a clean, modern design.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Extends (in)9.25
MaterialAluminum / Steel
Fixture TypeTrack Head
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 2KV
Track Head StyleCylinder
CCT SelectableYes
Wattage SelectableNo
Finish FamilyBlack
Amps0.270A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor>0.9
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent150W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated30000
Beam Angle (degree)20-50
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)

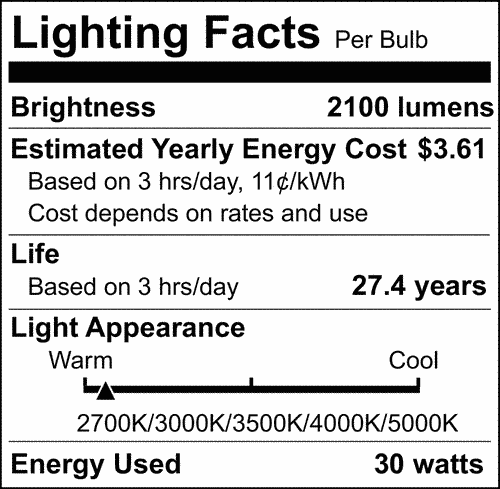

Lumens2100L
Volts120v
Watts30W
Physical
Lamp BaseIntegrated
FinishMatte Black
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedureTrack
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDry
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923408229
Case Cube1.0335
Case Height10.43
Case Length14.21
Case Quantity12
Case UPC10045923408226
Case Weight26.44
Case Width12.05
EA Cube0.0701
EA Height9.45
EA Length3.78
EA Quantity1
EA Weight2.2
EA Width3.39
Pack TypeBox

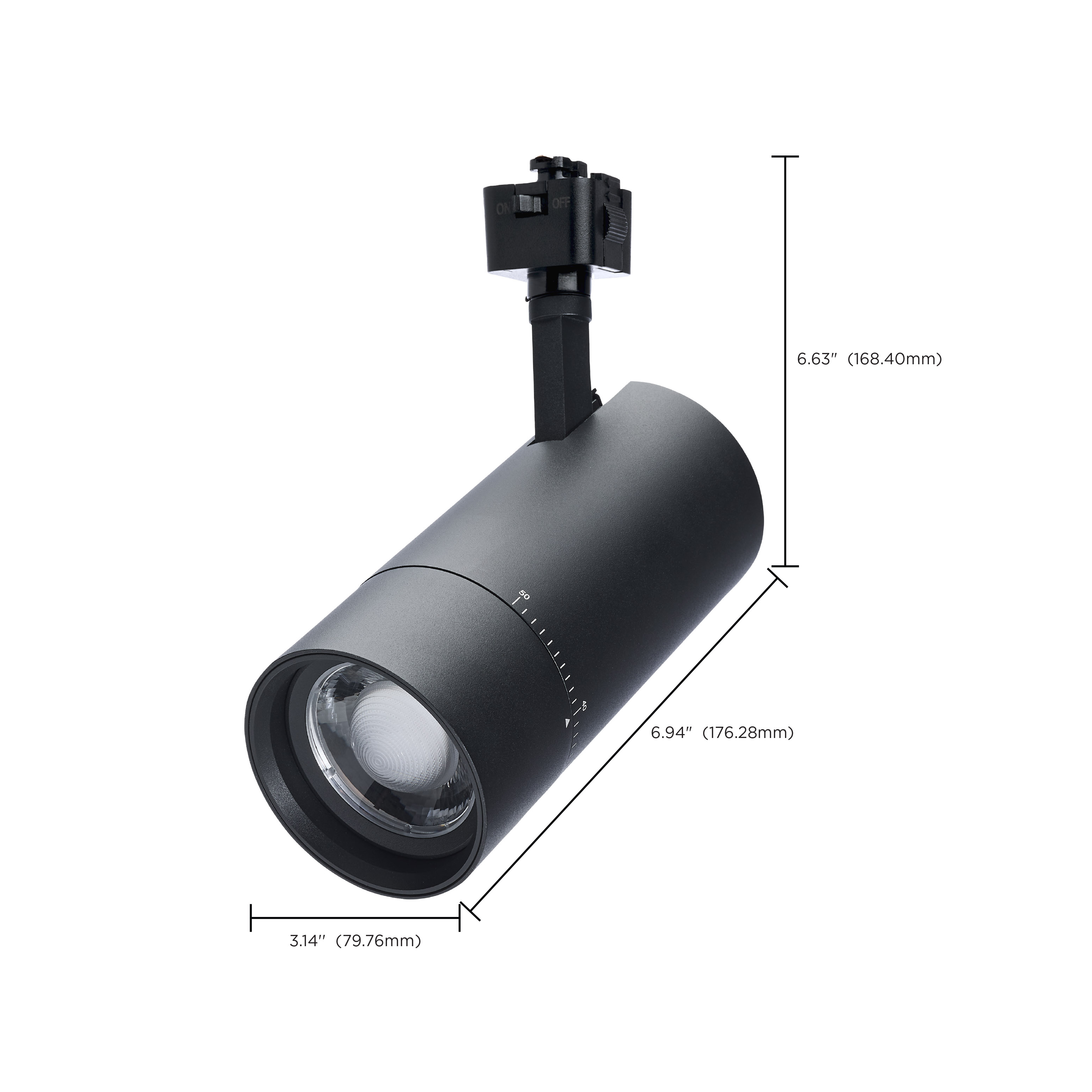

Web Height6.63
Web Length6.94
Web Width3.14
