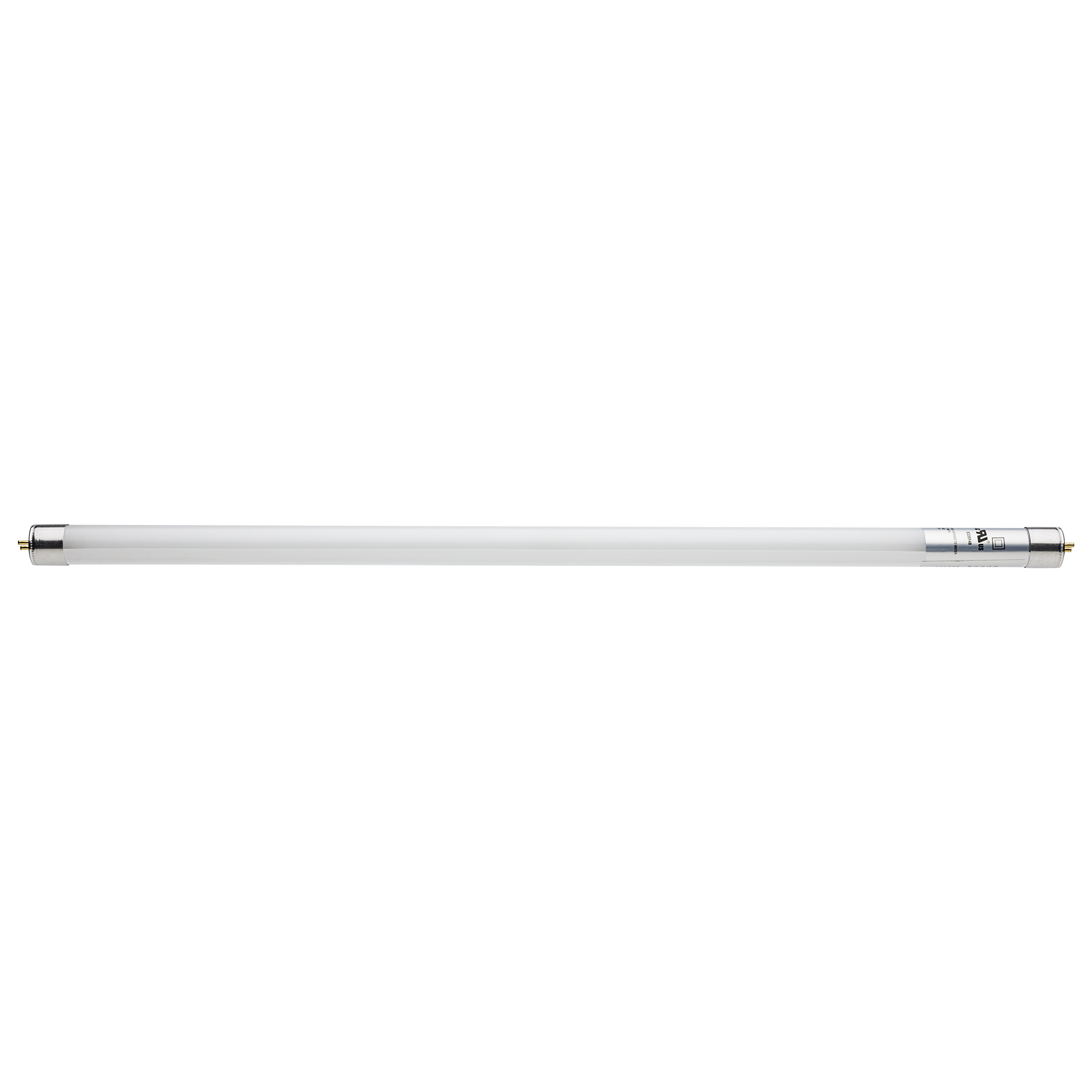

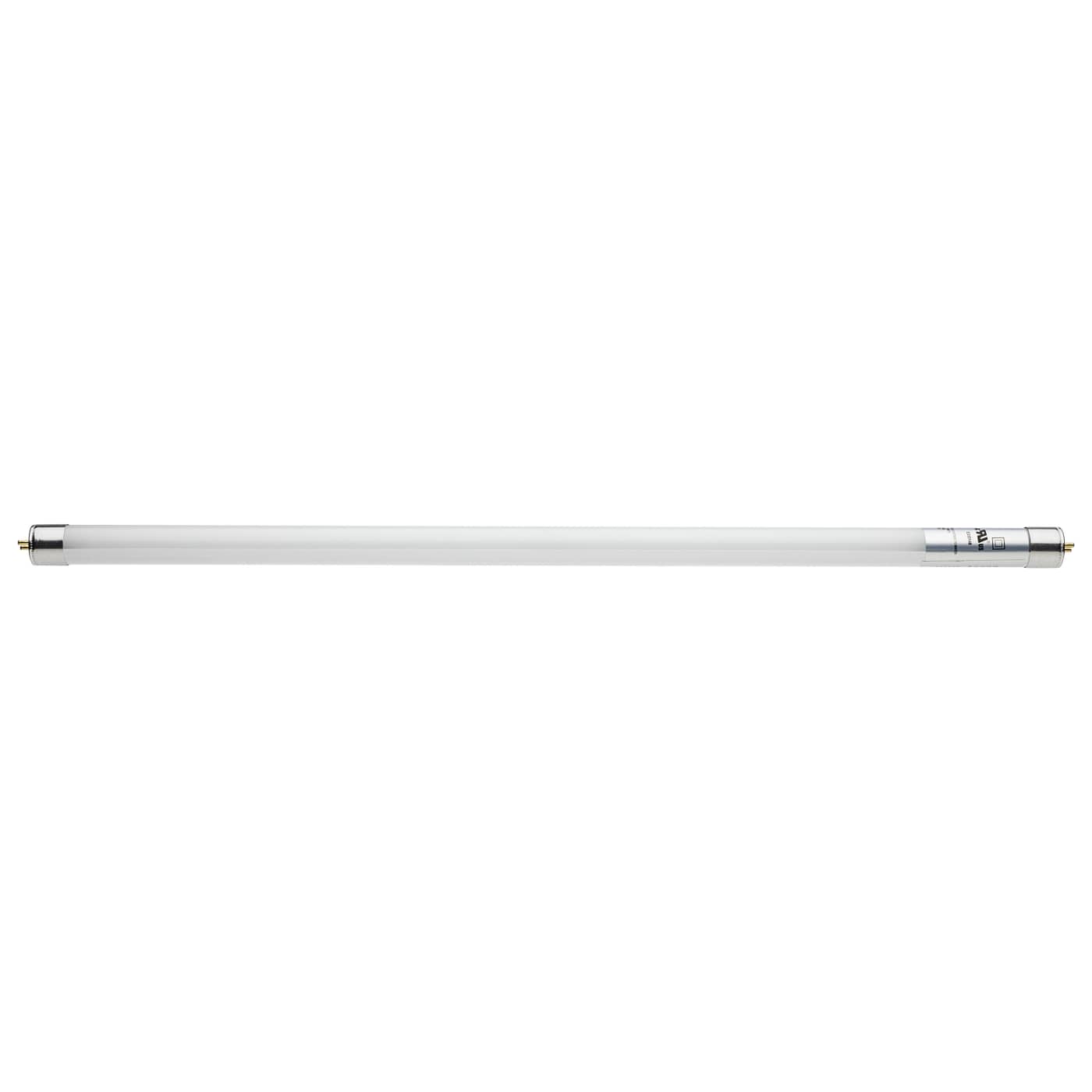

7W/LED/T5/840/BP - S11908
7W/LED/T5/840/BP - S11908
7W/LED/T5/840/BP - S11908
7W/LED/T5/840/BP - S11908
S11908

7W/LED/T5/840/BP

  • 7 Watt T5 LED
  • Miniature bi-pin base
  • 4000K
  • 50000 Average rated hours
  • 700 Lumens
  • 120-277 Volt
  • Type B
  • Ballast Bypass
  • Double Ended Wiring
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S11908 SpecificationsS11908 Photometrics.iesS11908 Instructions.pdf
Tools
Lighting Layout Analysis For S11908
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
7 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 700 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsNo ballast or external driver required
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoReplaces F13T5/CW lamps
Amps0.058-0.025A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Nominal Length21.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Product TechnologyLED
Fluor Equiv13W
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)240
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens700L
Volts120V-277V
Watts7W
Physical

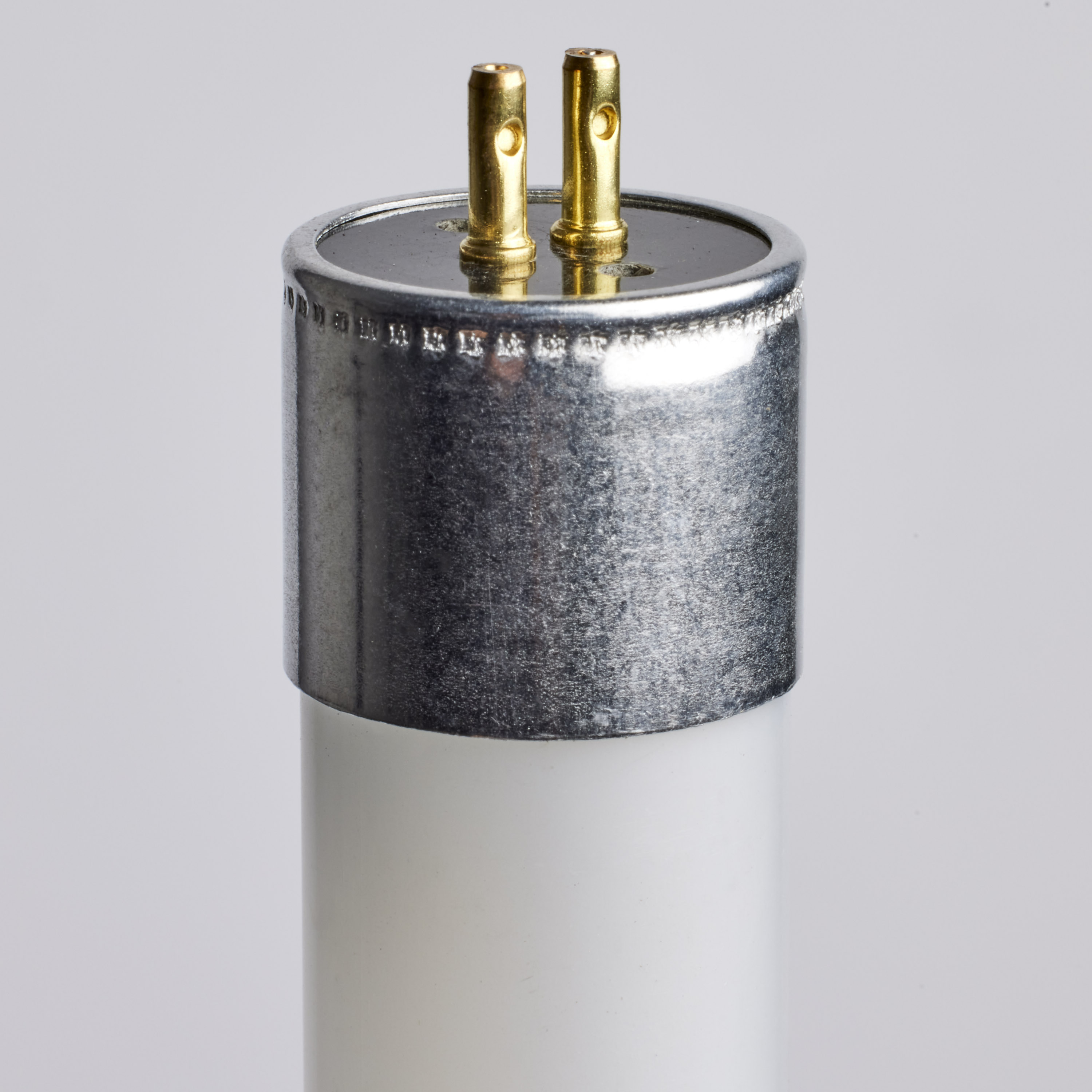

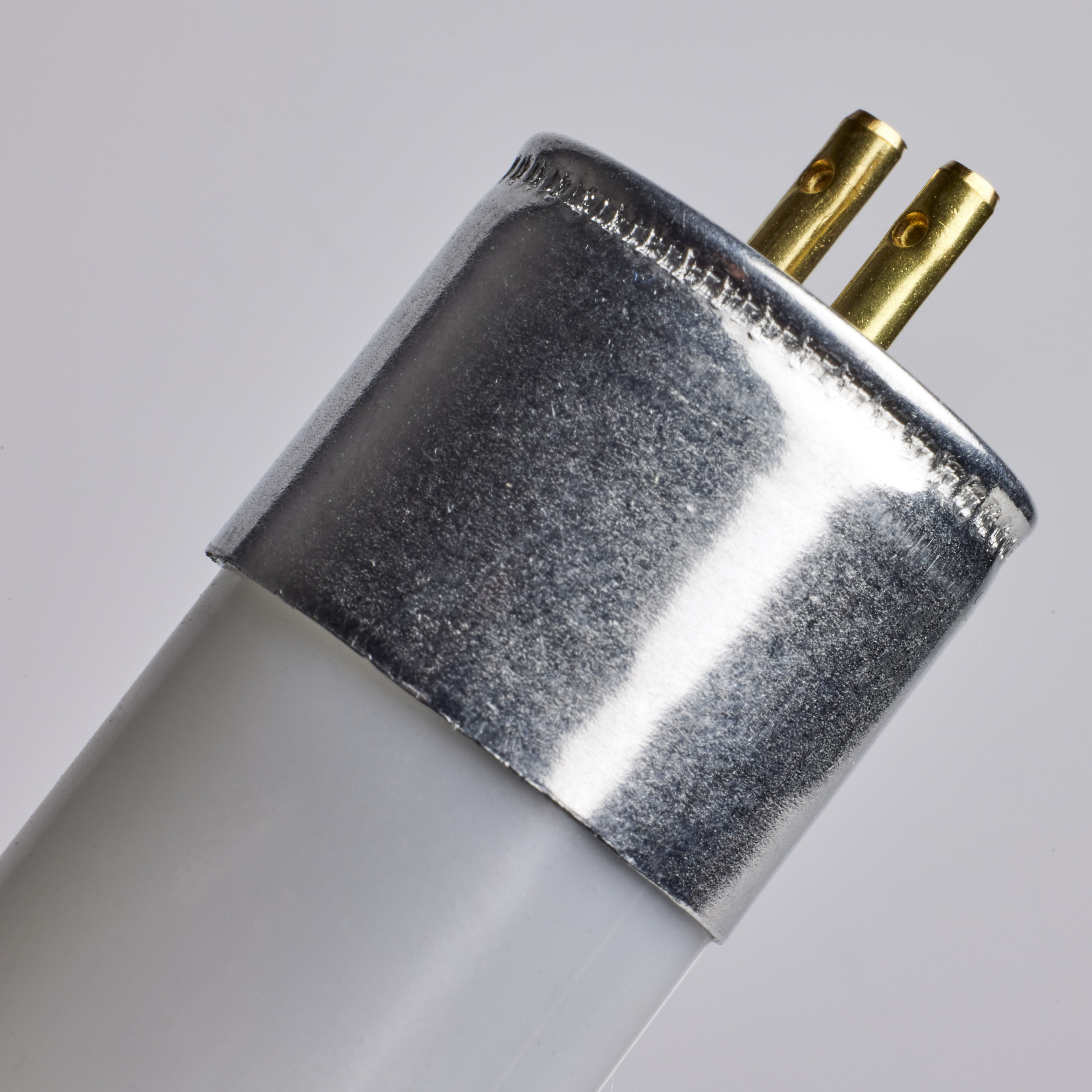

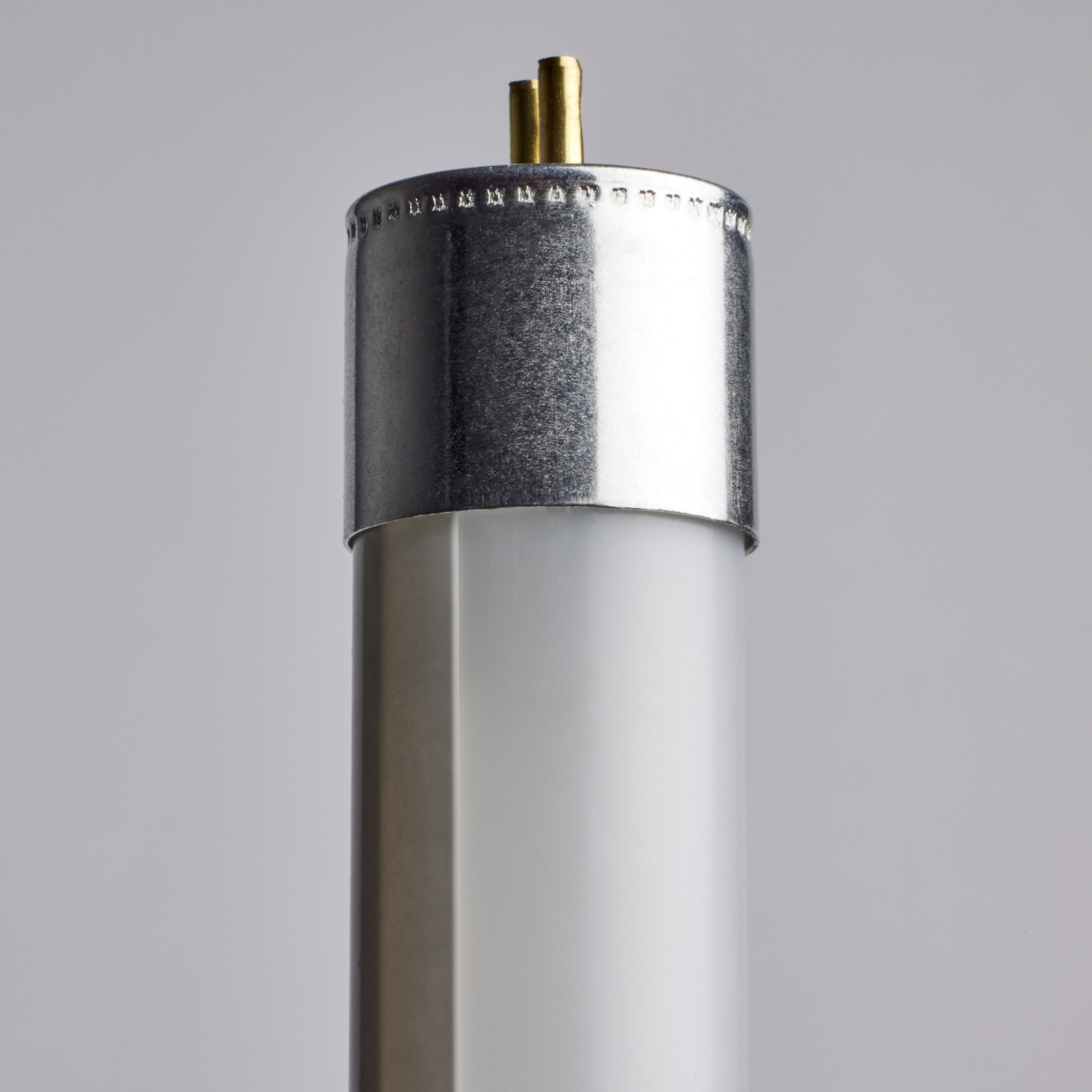

Lamp BaseMiniature Bi Pin
FinishFrost
ANSI BaseG5
Lamp TypeT5
MOD Lamps0.83
MOL20.91
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Direct wire 120-277V line voltage; Double ended wiring
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923119088
Case Cube1.914
Case Height23.82
Case Length11.02
Case Quantity100
Case UPC10045923119085
Case Weight13.39
Case Width12.6
EA Cube0.0098
EA Height21.0
EA Length0.9
EA Quantity1
EA Weight0.24
EA Width0.9
Inner Cube0.1975
Inner Height23.0
Inner Length2.8
Inner Quantity10
Inner UPC20045923119082
Inner Weight1.3
Inner Width5.3
Pack TypeBox
Web Length20.91
Web Width0.83
