S8610

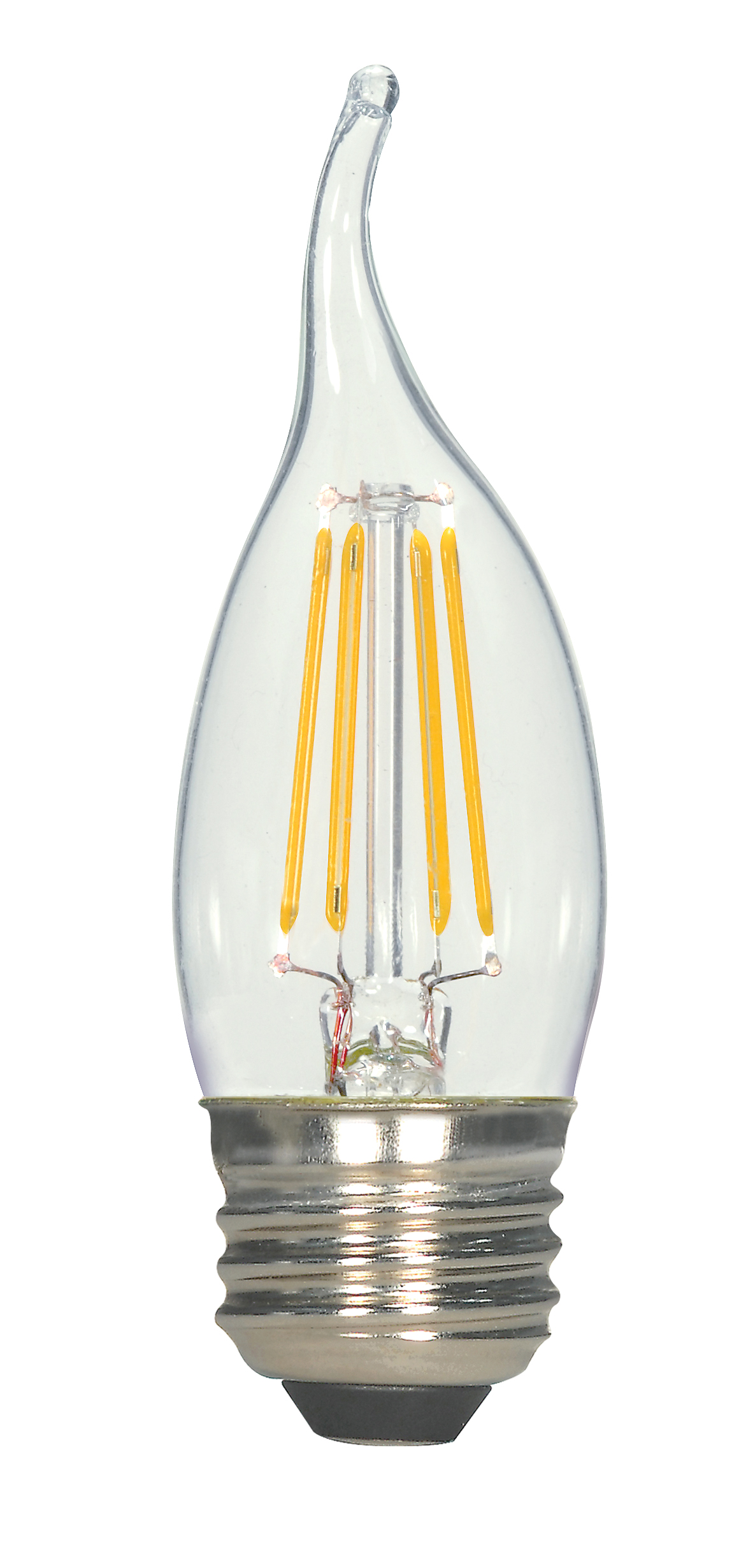

4.5W EFC/LED/27K/120V

Discontinued
  • 4.5 Watt CA11 LED Filament
  • Clear
  • Medium base
  • 2700K
  • 450 Lumens
  • 120 Volt
  • Carded
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

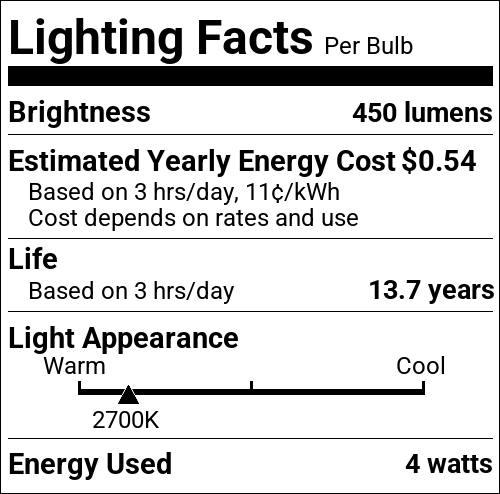

S8610 SpecificationsS8610 LFL.pdfS8610 Lighting Facts Label
Tools
Lighting Layout Analysis For S8610
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4.5 Watt CA11 LED Filament; Clear; Medium base; 2700K; 450 Lumens; 120 Volt; Carded
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
Fixture TypeCandle
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Amps0.038A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens450L
Volts120v
Watts4.5W
Physical
Lamp BaseMedium
FinishClear
ANSI BaseE26
Lamp TypeCA11
MOD Lamps1.38
MOL4.31
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24/JA8 CompliantNo
US State BanCA
Packaging
UPC045923086106
Case Cube0.8617
Case Height10.04
Case Length10.67
Case Quantity12
Case UPC10045923086103
Case Weight2.84
Case Width13.9
EA Cube0.0412
EA Height7.5
EA Length1.65
EA Quantity1
EA Weight0.88
EA Width5.75
Pack TypeCarded
Web Length4.31
Web Width1.38
