| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass- Direct wire only 100V-277V |
| Lamp Filament | LED |
| Fixture Type | Corncob |
| Status | Obsolete |
| Working Voltage | AC 90-305V |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | Clear |
| Additional Info | High Lumen Omni-directional LED for Industrial/Commercial applications; Replaces HID, CFL, and Incandescent |
| Amps | 0.220-0.079A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Clear |
| Lensed | Yes |
| Operating Position | Universal |
| Power Factor | >.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 40W |
| Incandescent Equivalent | 150W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 40000 |
| Beam Angle (degree) | 300 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -4F to +149F (-20C to +65C) |
| HID Equivalent | 100W |

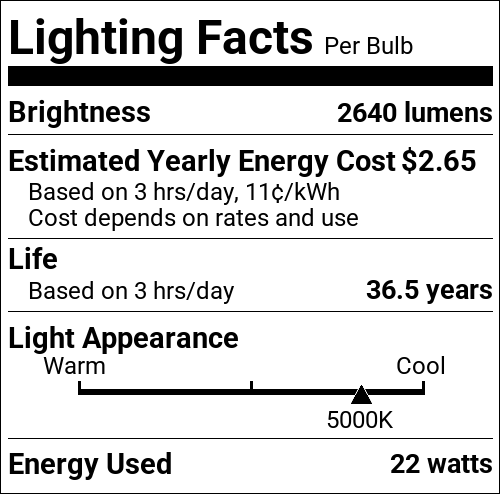

| Lumens | 2640L |
| Volts | 120V-277V |
| Watts | 22W |
| Lamp Base | Medium |
|---|---|
| Finish | Clear |
| Housing Color | WhiteGrey |
| ANSI Base | E26 |
| Lamp Type | Corncob |
| MOD Lamps | 2.75 |
| MOL | 7.31 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| IP Rating | IP64 |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Listed |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| UPC | 045923093517 |
|---|---|
| Case Cube | 2.9851 |
| Case Height | 17.52 |
| Case Length | 21.06 |
| Case Quantity | 48 |
| Case UPC | 10045923093514 |
| Case Weight | 46.3 |
| Case Width | 13.98 |
| EA Cube | 0.0323 |
| EA Height | 7.32 |
| EA Length | 2.76 |
| EA Quantity | 1 |
| EA Weight | 0.8 |
| EA Width | 2.76 |
| Pack Type | Box |
| Web Length | 7.31 |
| Web Width | 2.75 |
