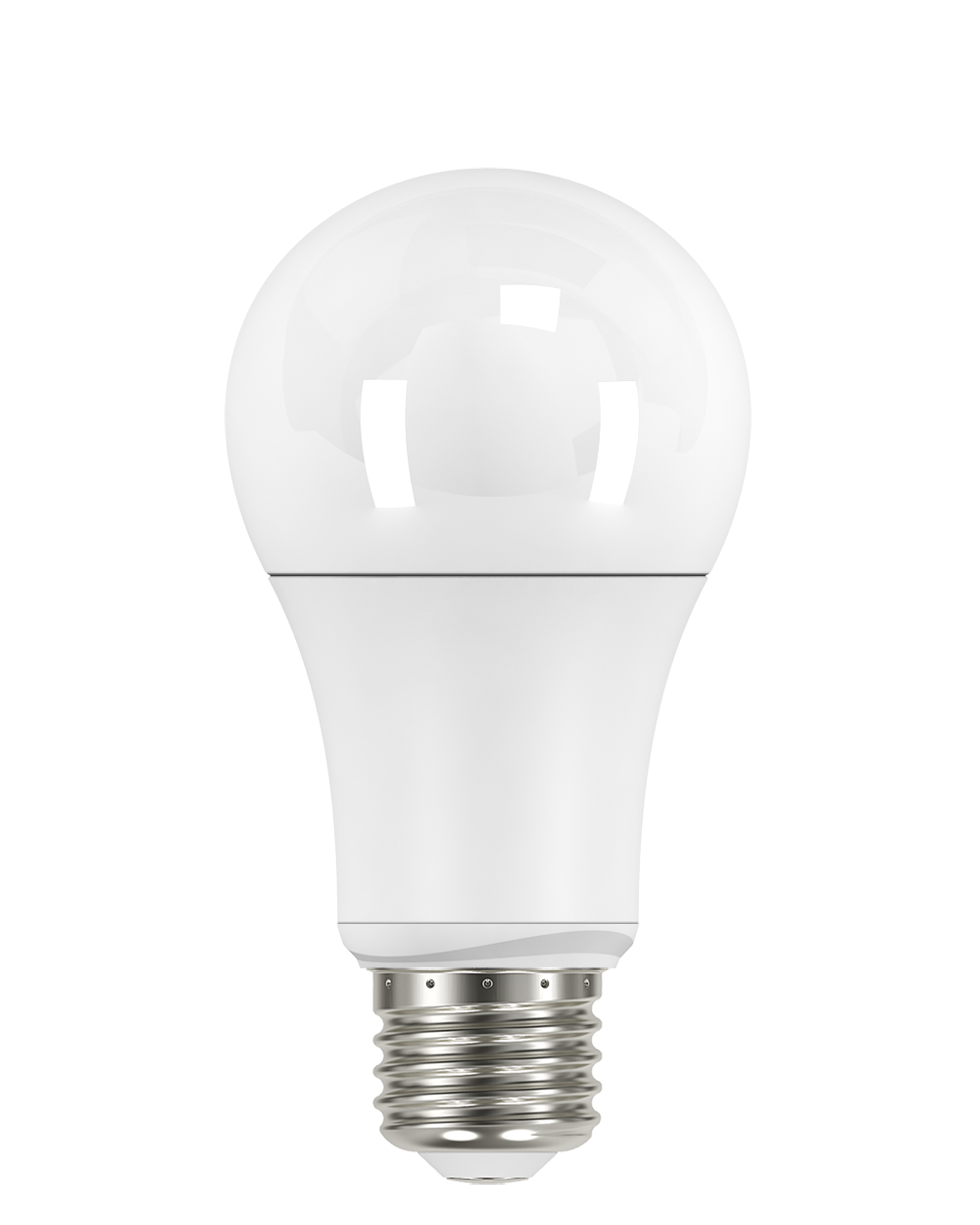

11A19/LED/5000K/120V/4PK - S9801
S9801

11A19/LED/5000K/120V/4PK

Discontinued - Suggested Replacement: S28770
  • 11 watt
  • A19 LED
  • 5000K
  • Medium base
  • 240' beam spread
  • 120 volts
  • 4-pack
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

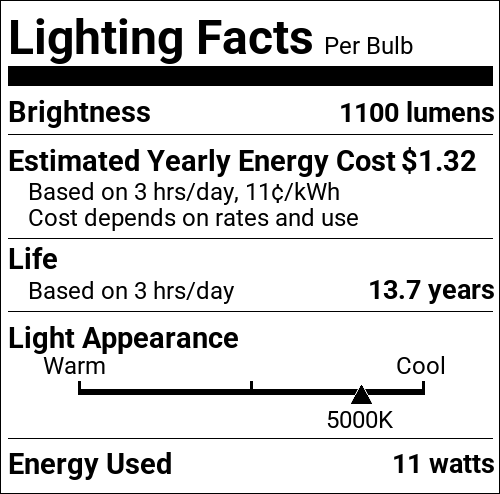

S9801 Specifications75W & 100W replacement LED 4 packsS9801 Lighting Facts Label
Tools
Lighting Layout Analysis For S9801
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
11 watt; A19 LED; 5000K; Medium base; 240' beam spread; 120 volts; 4-pack
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.092A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated15000
Beam Angle (degree)240
Color TempNatural Light
CRI80+
Operating Temp-4F to +113F (-20C to +45C)
Lumens1100L
Volts120v
Watts11W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19
MOD Lamps2.38
MOL4.63
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24/JA8 CompliantNo
US State BanCA
Packaging
UPC045923098017
Case Cube1.1878
Case Height6.1
Case Length20.9
Case Quantity12
Case UPC10045923098014
Case Weight12.33
Case Width16.1
EA Cube0.0696
EA Height4.92
EA Length9.85
EA Quantity1
EA Weight0.9
EA Width2.48
Pack TypeBox
Web Length4.63
Web Width2.38
