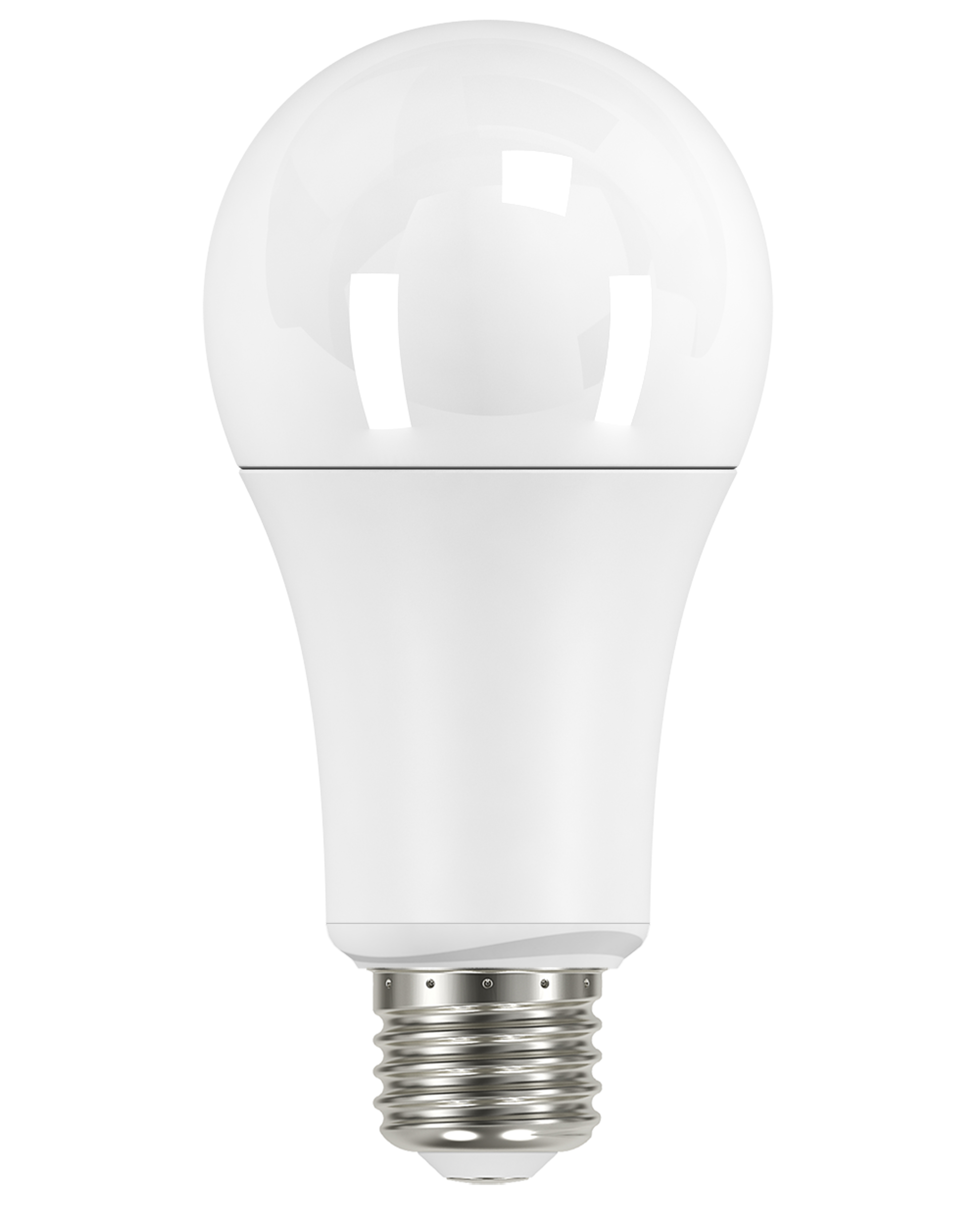

15A21/LED/2700K/120V/4PK - S9802
S9802

15A21/LED/2700K/120V/4PK

Discontinued - Suggested Replacement: S28789
  • 15 watt
  • A21 LED
  • 2700K
  • Medium base
  • 240' beam spread
  • 120 volts
  • 4-pack
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

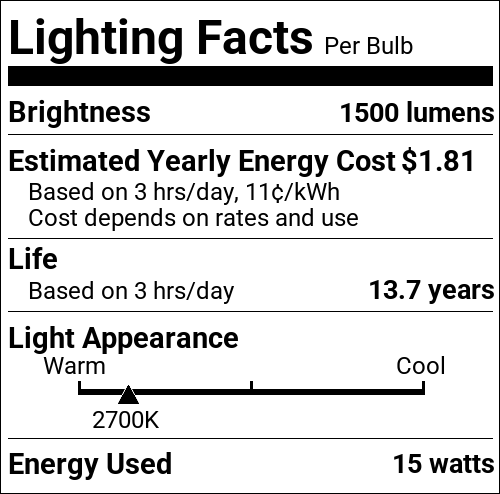

S9802 Specifications75W & 100W replacement LED 4 packsS9802 Lighting Facts Label
Tools
Lighting Layout Analysis For S9802
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
15 watt; A21 LED; 2700K; Medium base; 240' beam spread; 120 volts; 4-pack
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.125A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated15000
Beam Angle (degree)240
Color TempWarm White
CRI80+
Operating Temp-4F to +113F (-20C to +45C)
Lumens1500L
Volts120v
Watts15W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA21
MOD Lamps2.56
MOL5.25
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24/JA8 CompliantNo
US State BanCA
Packaging
UPC045923098024
Case Cube1.6584
Case Height7.0
Case Length23.0
Case Quantity12
Case UPC10045923098021
Case Weight15.64
Case Width17.8
EA Cube0.1013
EA Height5.79
EA Length10.95
EA Quantity1
EA Weight1.08
EA Width2.76
Pack TypeBox
Web Length5.25
Web Width2.56
