SKU S29465 - Image 1
S29465

9.5WLED/DIR/4/40'/40K/120V

Discontinued - Suggested Replacement: S11822

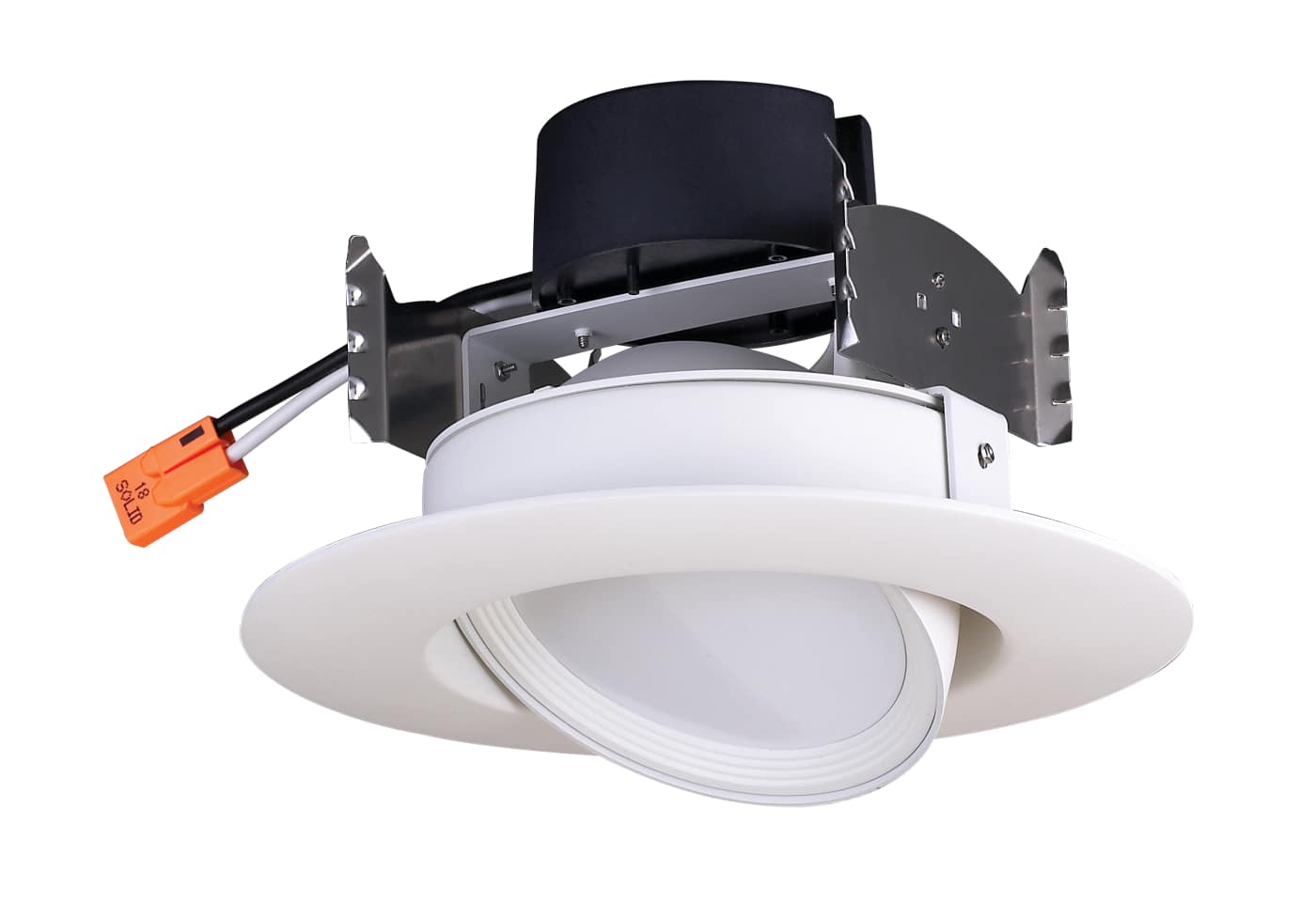

  • 9.5 watt LED Directional Retrofit Downlight - Gimbaled
  • 4"
  • 4000K
  • 40' Beam spread
  • 120 volts
  • Dimmable
location_rating^damp^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
beam_angle^40^2
volts^120v^2
ic_rated^y^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S29465 SpecificationsS29465 InstructionsSA2256 4 5 6inch LED Gimbal Rec Retro PI Sheets 2 18
Tools
Lighting Layout Analysis For S29465
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.5 watt LED Directional Retrofit Downlight - Gimbaled; 4"; 4000K; 40' Beam spread; 120 volts; Dimmable
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter6.0
MaterialThermo Plastic (PBT)
Fixture TypeDownlight Retrofit
StatusDiscontinued
StyleContemporary
Most Current GenerationS11822
CCT SelectableFalse
Wattage SelectableFalse
Can Size4 in.
Finish FamilyWhite
Additional InfoTrim material is Thermo Plastic; Trim color is White
Amps0.079A
Has CameraFalse
IOT EnabledFalse
Power Factor0.97
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)40
Color TempCool White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Temp-20C (-4F) to +45C (+113F)
Lumens600L
Volts120v
Watts9.5W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
IC RatedTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextCalifornia T24 Listed
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923294655
Case Cube1.0114
Case Height7.68
Case Length16.61
Case Quantity8
Case UPC10045923294652
Case Weight8.62
Case Width13.7
EA Cube0.0998
EA Height6.69
EA Length6.54
EA Quantity1
EA Weight0.89
EA Width3.94
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.47
Web Width6.0
