Discontinued – Suggested Replacement: S39679

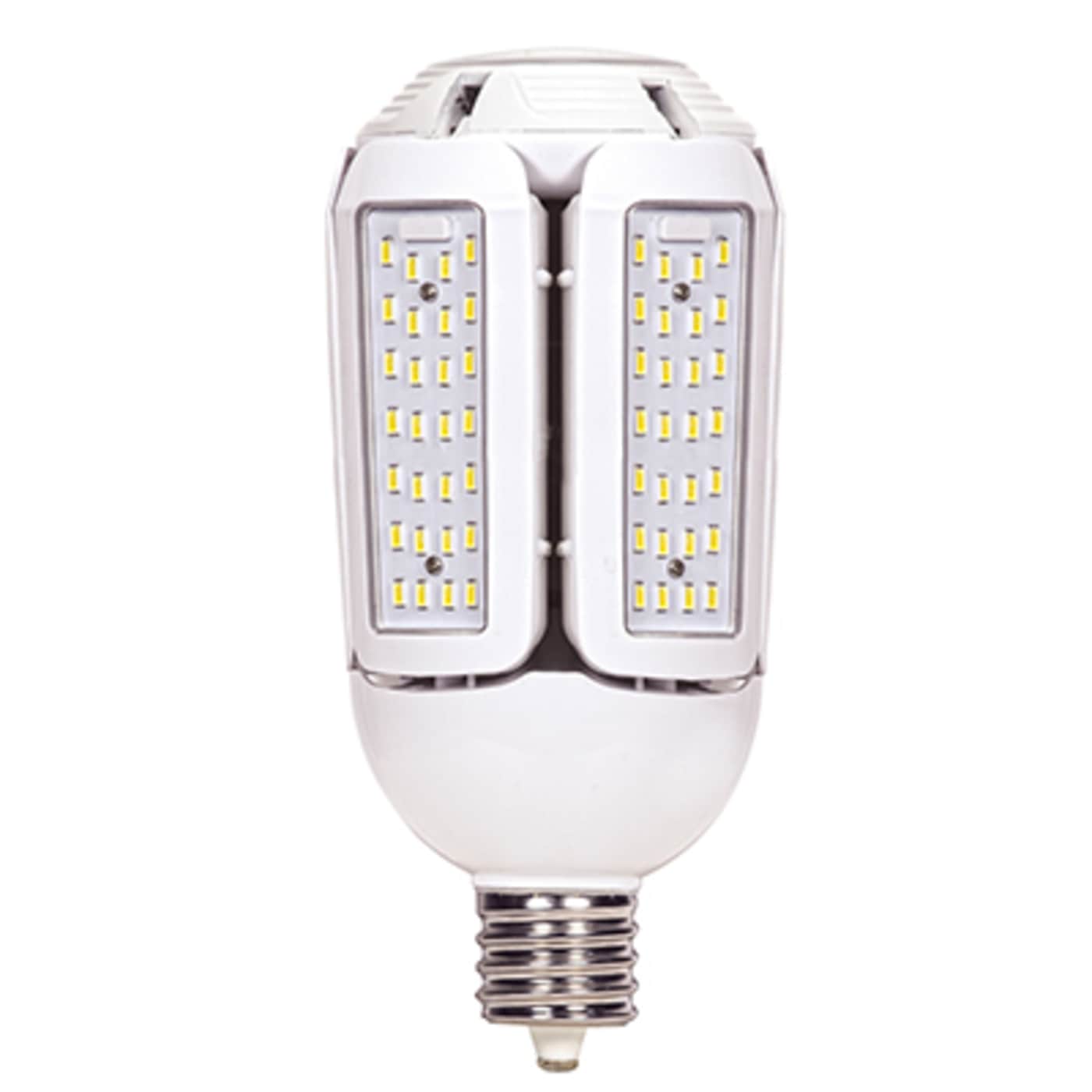

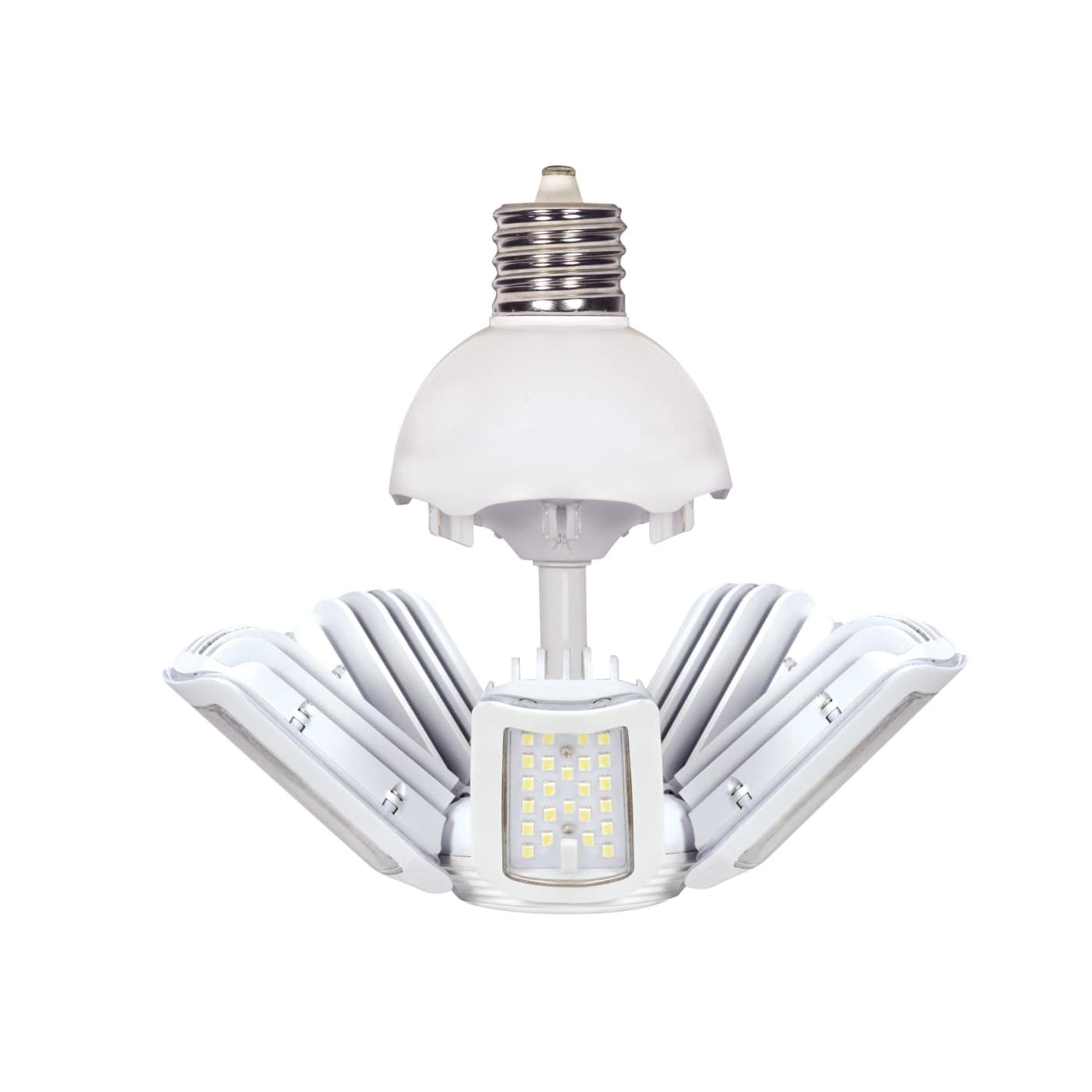

S29679 90W/LED/HID/MB/5000K/100-277V

S29679

90W/LED/HID/MB/5000K/100-277V

90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt


Lights

S29679

90W/LED/HID/MB/5000K/100-277V

90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39679
Watts90W
Incandescent Equivalent750W
Fluorescent Equivalent200W
HID Equivalent600W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens11700L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 22 in. Width: 17 in. Depth: 17 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts90W
Incandescent Equivalent750W
Fluorescent Equivalent200W
HID Equivalent600W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80+
Lumens11700L
Beam Spread360
DimmableNon-Dimmable
Power Factor>0.9
Hours Rated50000
Operating PositionBase Up or Down
Surge ProtectionBuilt-in surge protection - 4KV
Operating Temperature-20C (-4F) to +65C (+149F)
Physical
MOL10.03
MOD4.94
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite
Weight (lb.)3.48
Additional Information
Additional InfoWidth 360 deg 4.91 in.; Width 270 deg 10.87 in.; Width 180 deg 12.60 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Min Compartment SizeLength: 22 in. Width: 17 in. Depth: 17 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923296796
Each Quantity1
Each Length (in.)6.50
Each Width (in.)6.50
Each Height (in.)11.42
Each Weight (lb.)4.47
Each Cube (CuFt.)0.2792
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923296793
Case Quantity6
Case Length (in.)20.28
Case Width (in.)13.58
Case Height (in.)12.20
Case Weight (lb.)29.10
Case Cube (CuFt.)1.9444
